24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included)

SKU: VT65MLBIIFADA
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Estimated Time to Ship:

3 to 5 days

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Panel-Ready
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 118.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101043449
Freezer
Door Swing RHD
Reversible Factory Reversible
Crisper Finish Opaque
Crisper Cover Glass
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.0" (43 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
LHD - Left hand door swing
Door reversal to left hand swing
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Extra key for IF door
Extra key for select IF (panel-ready) units
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Fully finished white cabinet

Allows the unit to be used freestanding

Factory installed lock

Keep contents secure with a front lock on the door

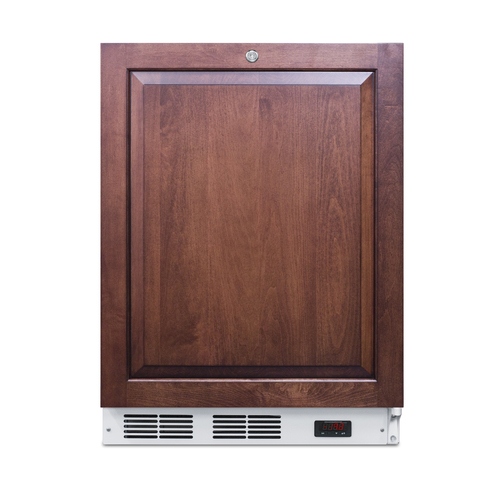

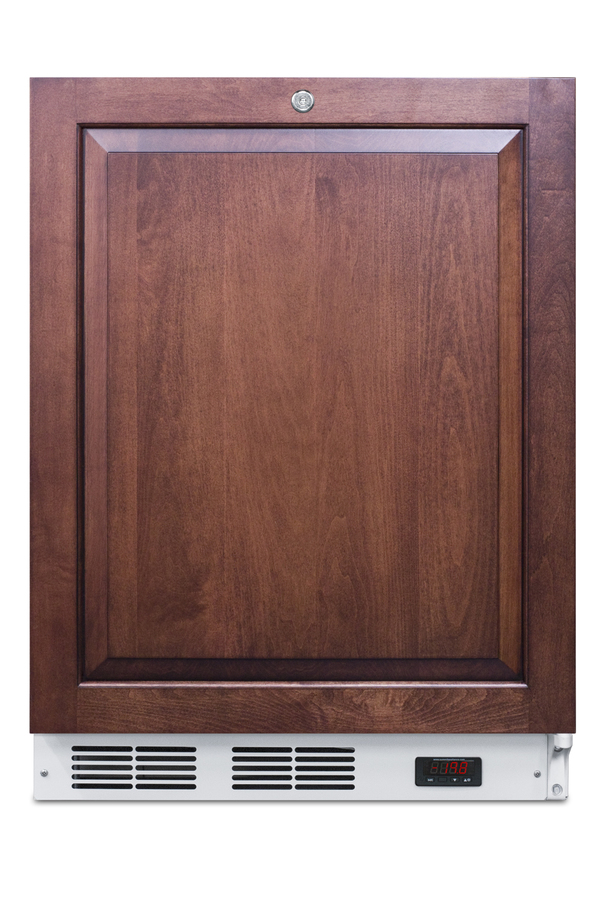

Integrated door frame

Customize the front by mounting an overlay panel over the door; seamless look can blend into cabinetry with no exposed frame. Handle not included. (panel dimensions: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

-25º capable

Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost

Energy efficient operation

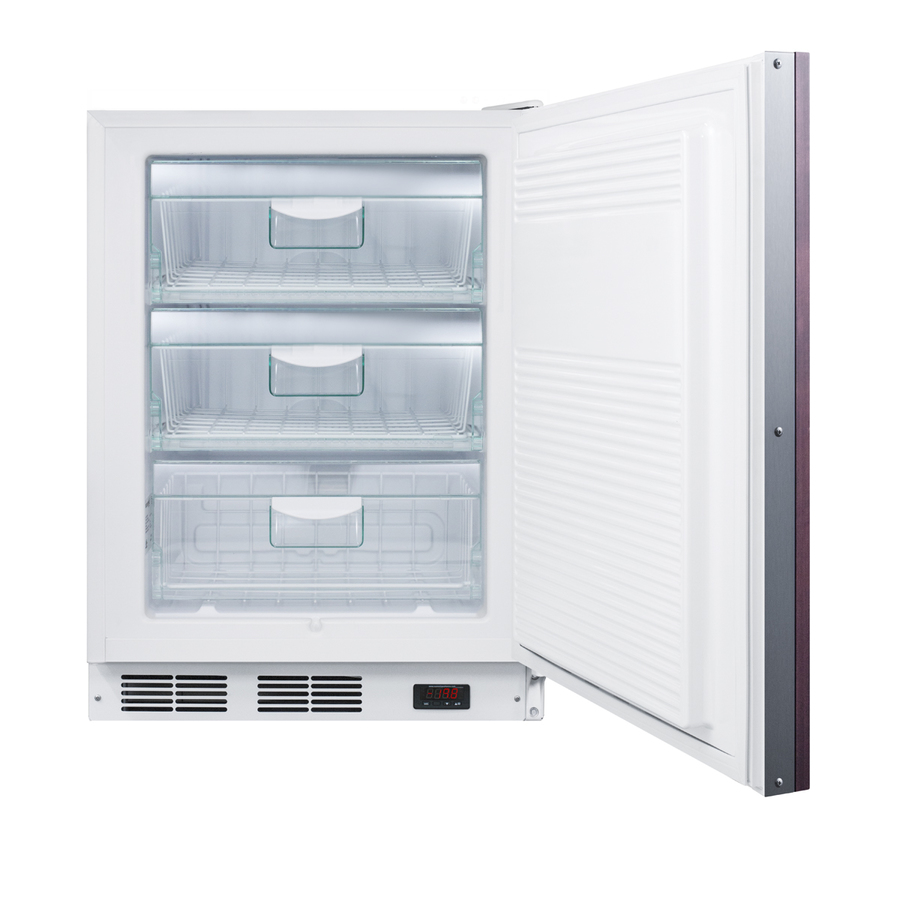

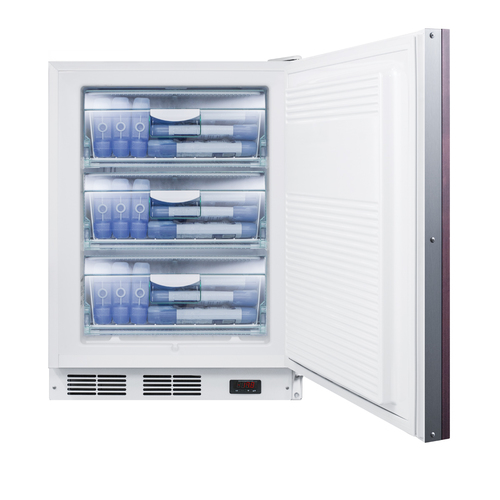

Three slide-out drawers

Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans

Static cooling system

Digital thermostat

Electronic controls located in the front kickplate for easy and intuitive temperature management

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.

The 32” high VT65MLBIIFADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and factory reversible door with an integrated door frame that accepts full overlay panels for a custom look. No handle is included. A factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
