24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBISSHHADA
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Estimated Time to Ship:

3 to 5 days

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.0" (117 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101043470
Freezer
Door Swing RHD
Reversible Yes
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
SS Hinges
Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" height allows the unit to be installed under lower ADA compliant counters

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Factory installed lock

Keep contents secure with a key lock on the door

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished white cabinet

Allows the unit to be used freestanding

Stainless steel door

Durable design with lasting elegance

Professional horizontal handle

Thin 14mm diameter on stainless steel handle set horizontally across the door

-25º C capable

Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost

No temperature fluctuations with an energy efficient manual defrost system

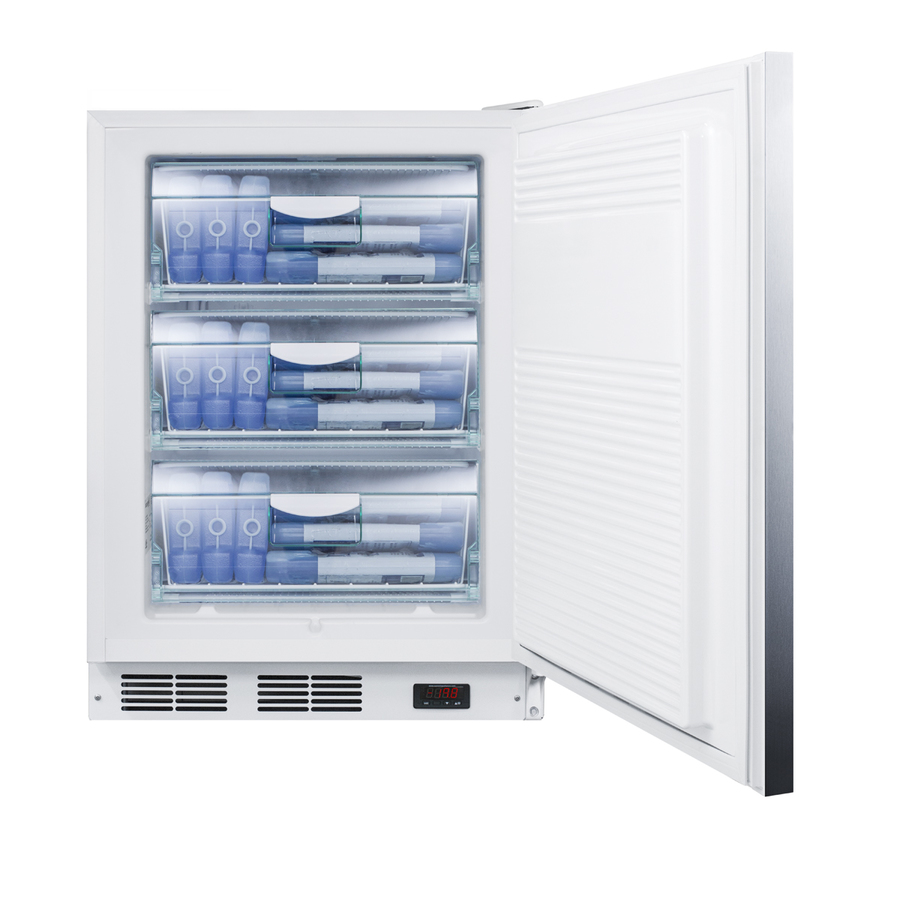

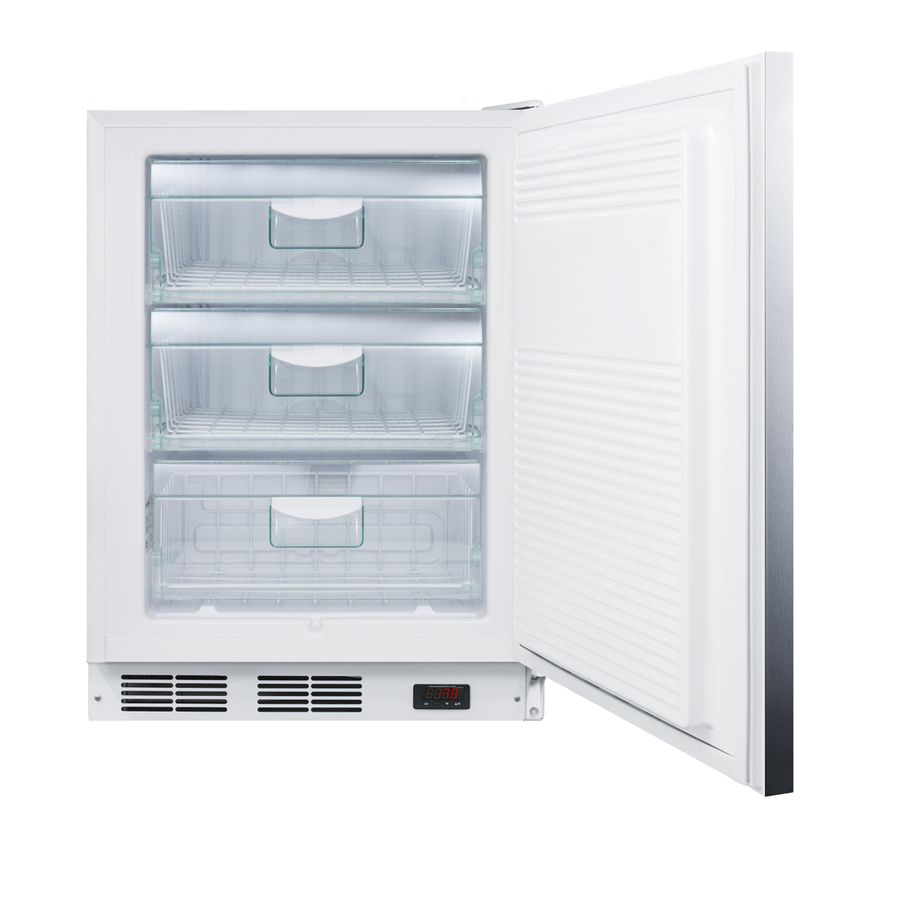

Three removable storage baskets

Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans

Static cooling system

Adjustable thermostat

Manage the interior temperature with ease and accuracy

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

100% CFC free

Environmentally friendly design using R404a and without ozone-damaging chemicals

Accucold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters.

The 24” wide VT65MLBISSHH can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet with a 304 grade stainless steel wrapped door. A sleek handle (14mm diameter) is horizontally mounted for a modern look and a factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
