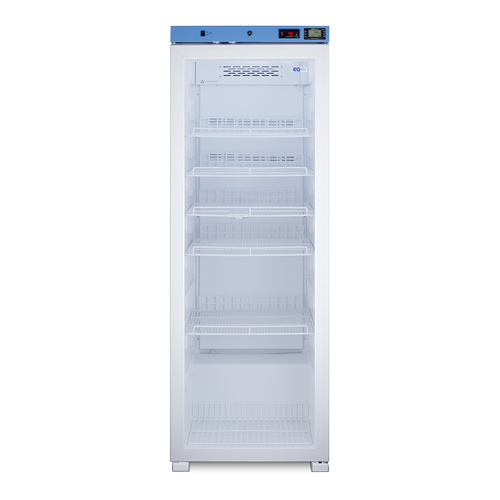

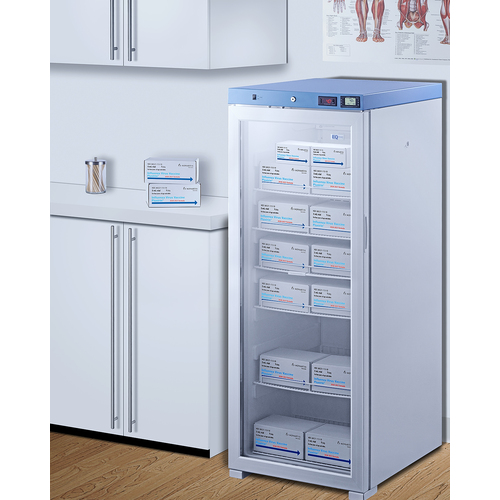

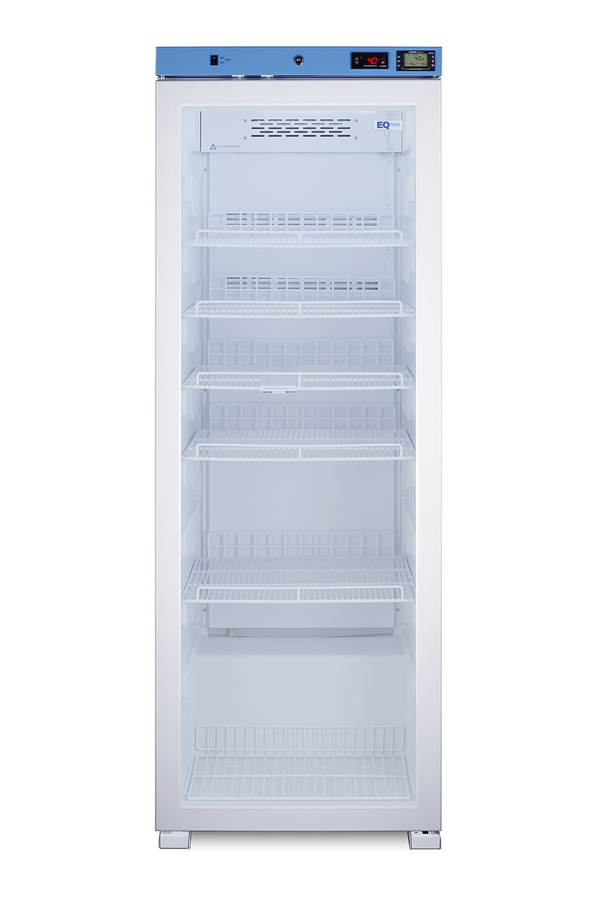

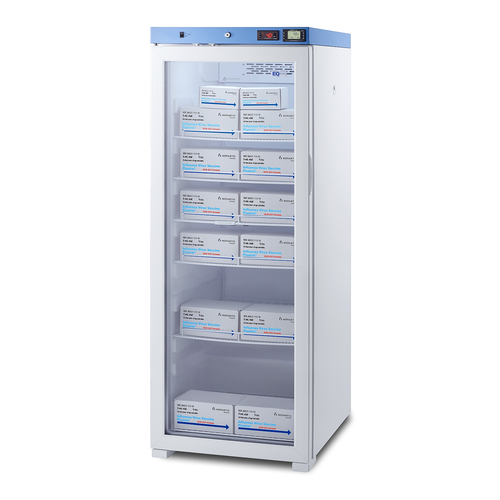

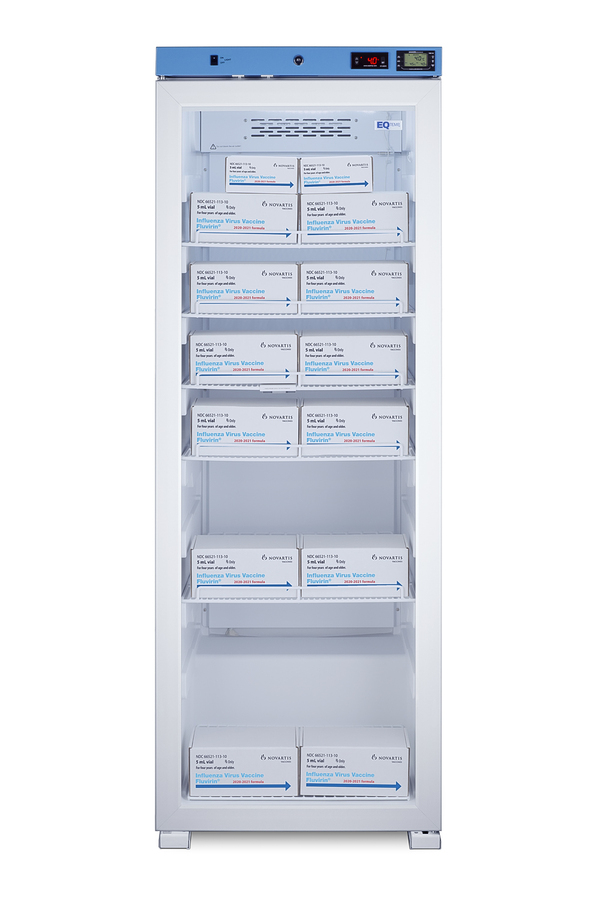

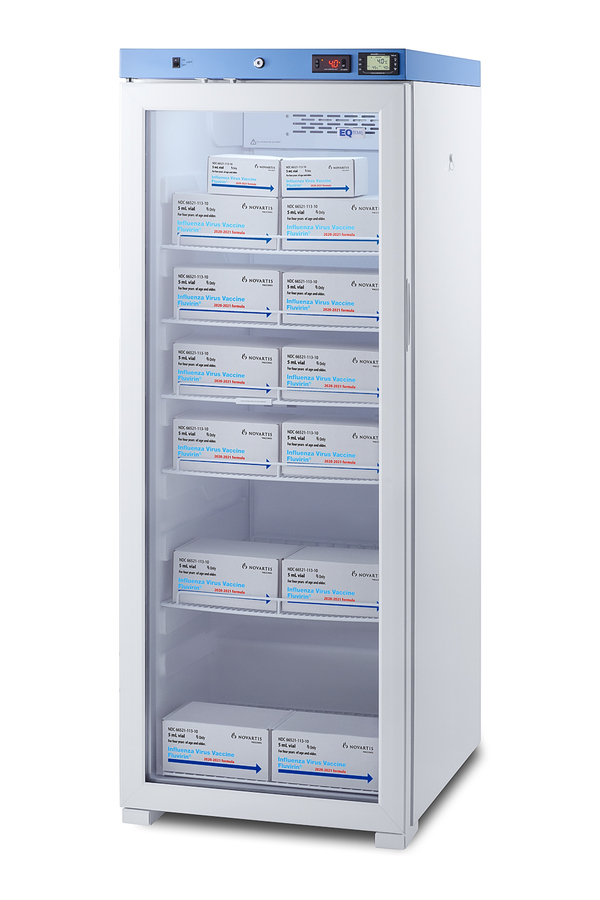

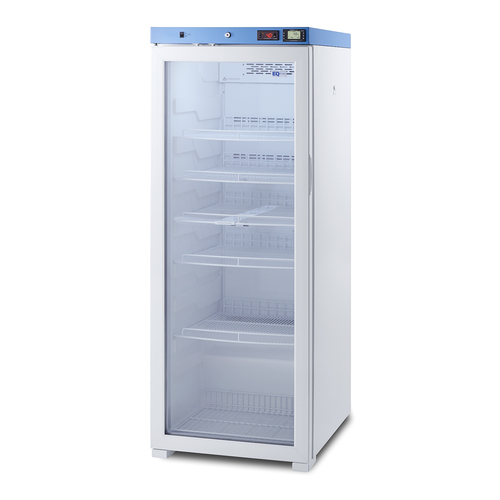

24" Wide Upright Healthcare Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard

SKU: ACR1322GNSF456LHD
Designed for convenient, affordable, and reliable cold storage in healthcare facilities and certified to NSF/ANSI 456
Estimated Time to Ship:

2 to 3 days

64.88" H x 23.38" W x 28.0" D
(165cm H x 59cm W x 71cm D)

Overview
Height of Cabinet 64.88" (165 cm)
Width 23.38" (59 cm)
Width with Door Open 23.63" (60 cm)
Depth 28.0" (71 cm)
Depth with door at 90° 50.0" (127 cm)
Capacity 12.71 cu.ft. (360 L)
Defrost Type Automatic
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S to NSF 456
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 169.0 lbs. (77 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101107783
Refrigerator Features
Door Swing LHD
Reversible Factory Reversible

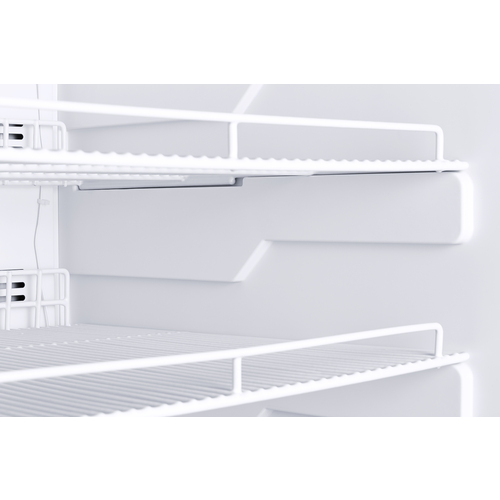

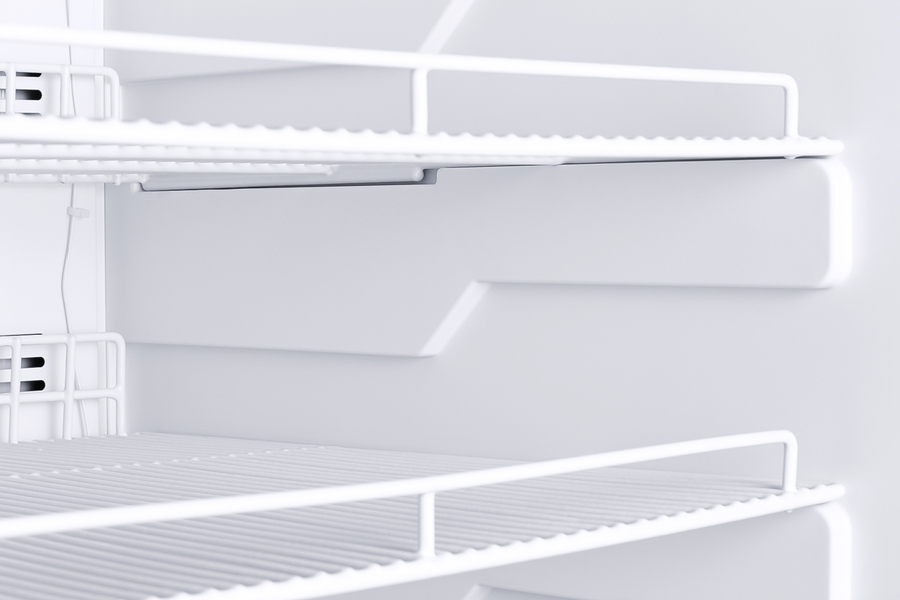

Shelf Type Wire
Shelf Qty 5
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 2.0oz.
High Side PSI 1.45
Low Side PSI 0.85
Level Legs Qty 2
Temperature Range 2º to 8ºC
Dimensions
Interior Height 56.5" (144 cm)
Interior Width 20.0" (51 cm)
Interior Depth 21.5" (55 cm)
Compressor Step Height 9.0" (23 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 8.0" (20 cm)

EQTemp Healthcare Refrigerator

All-refrigerator designed to operate between 2 and 8ºC for a variety of storage application in medical offices and other healthcare facilities

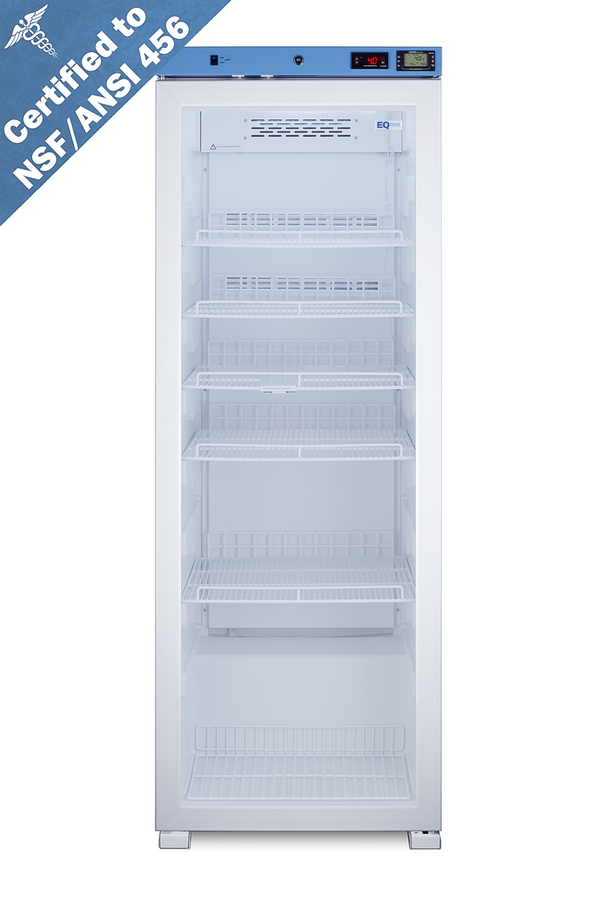

Certified to NSF/ANSI 456 Vaccine Storage Standard

Tested to comply with the latest standards

Certificate of calibration included

The temperature monitoring device (TMD) is calibrated to NIST standards in our ISO/IEC 17025:2017 certified calibration laboratory and ships with a 2-year certificate of calibration for your records

Temperature Range: 2º to 8ºC

Preset to 5ºC as recommended for many storage applications

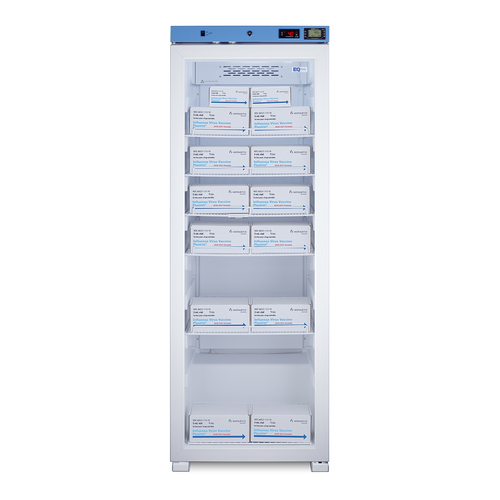

Large capacity

Full 12.71 cu.ft. capacity inside conveniently slim footprint

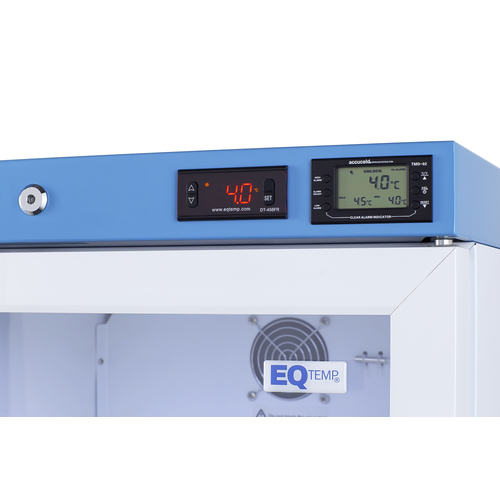

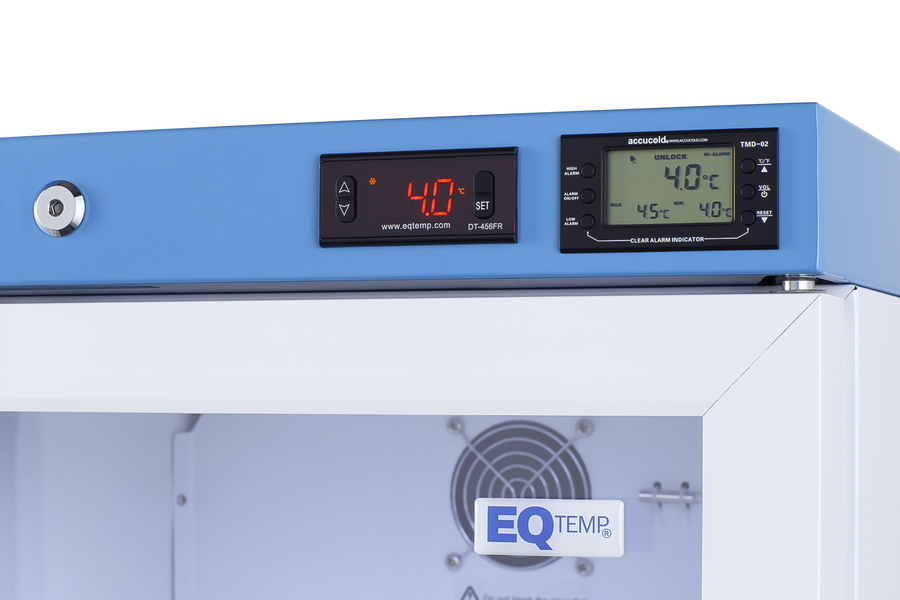

External temperature readout

Audible alarm sounds if the interior temperature rises or falls out of set range

High/low temperature alarm

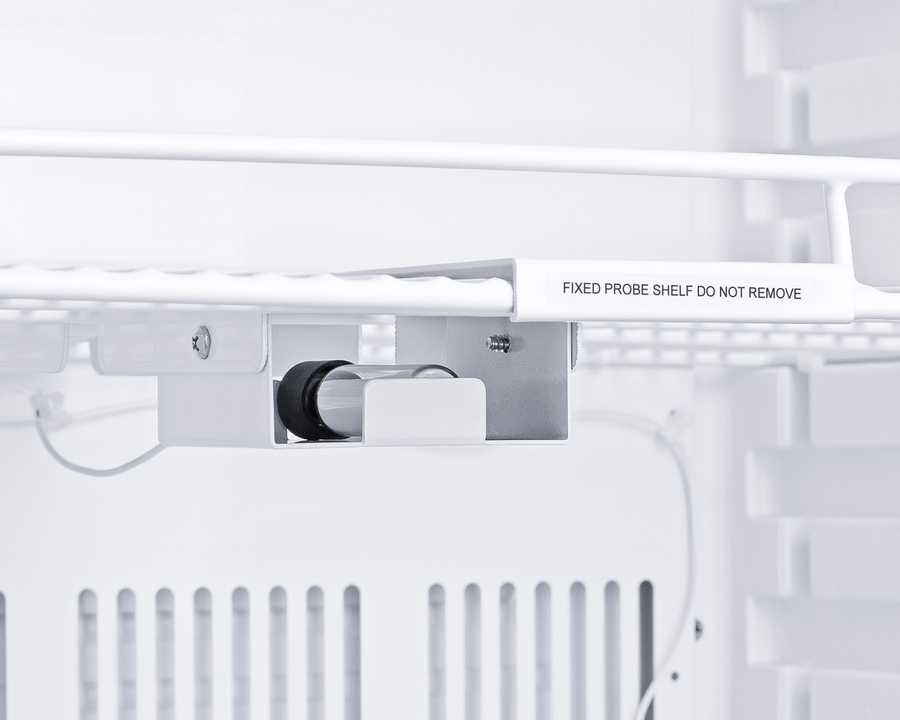

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

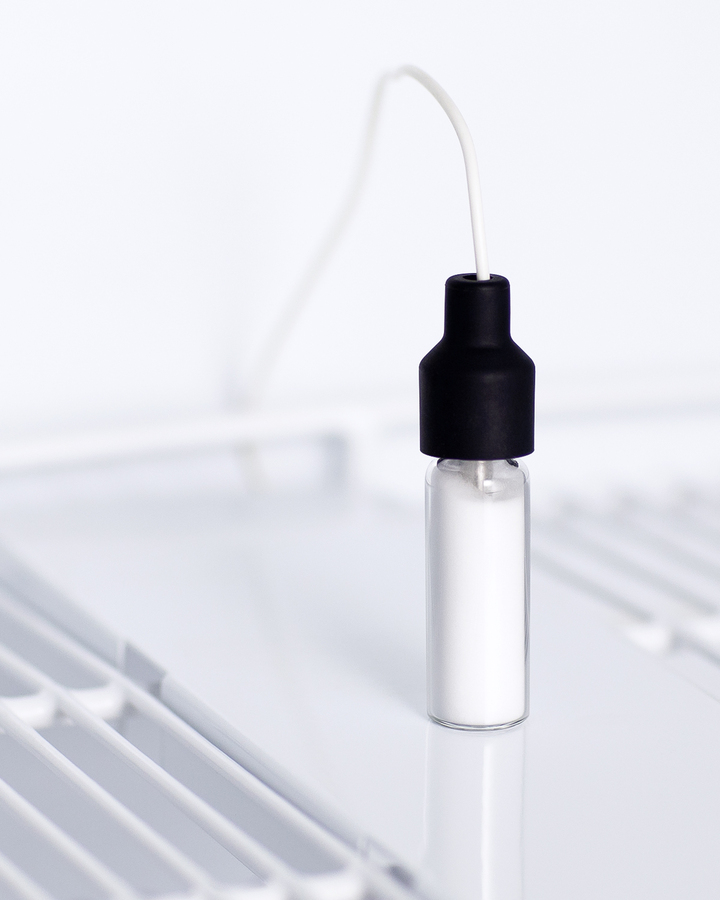

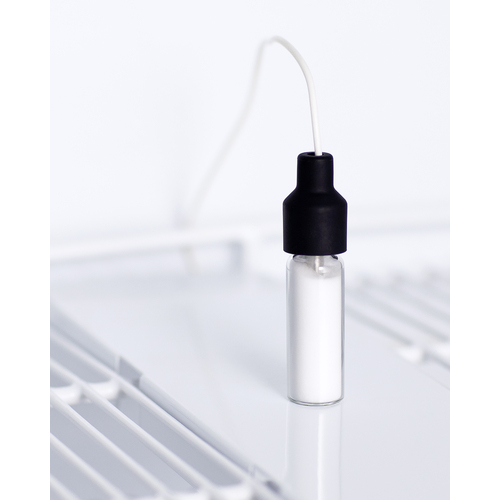

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

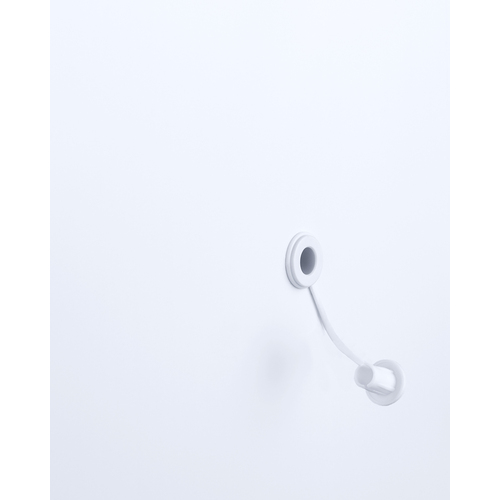

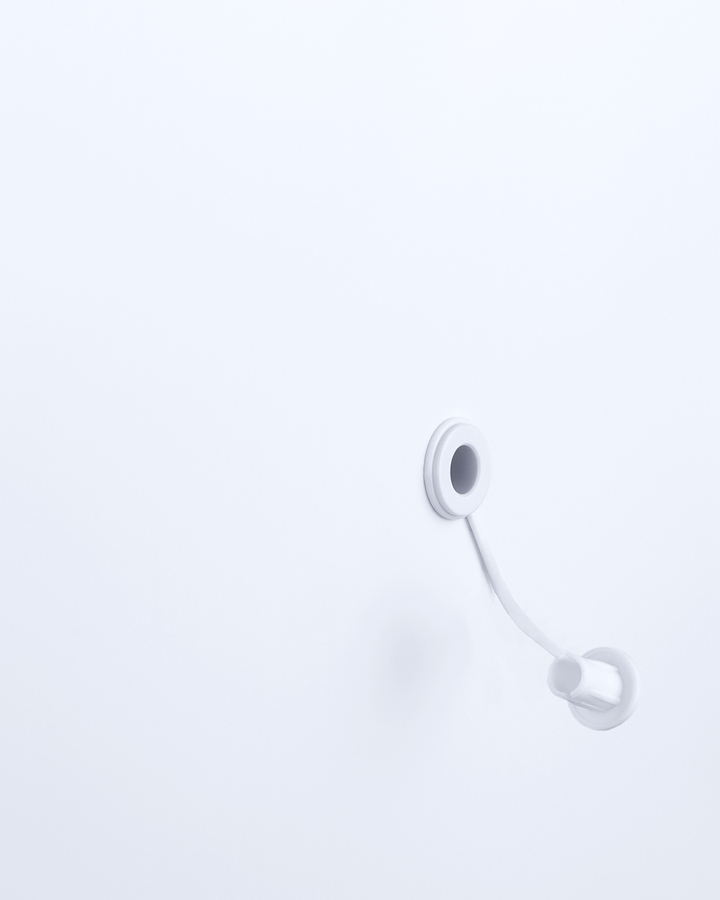

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Automatic defrost

Reduced user maintenance with automatic defrost

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

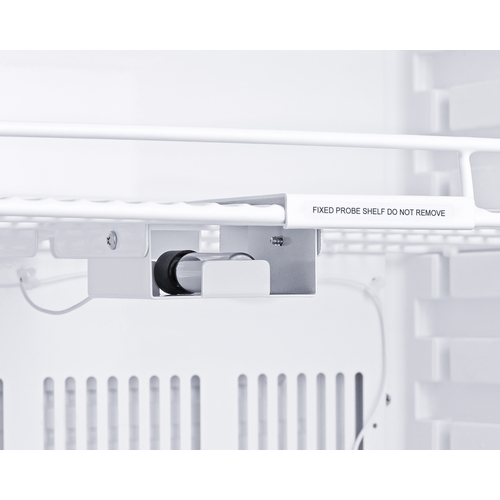

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Pocket handle

Handle is recessed into the side of the door to ensure no added depth

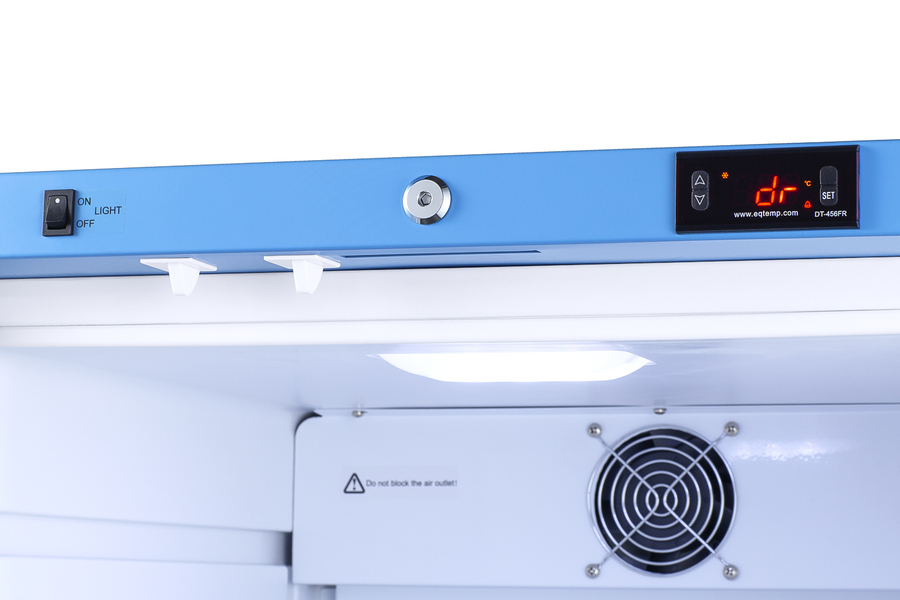

Open door alarm

Audible alarm sounds if the door is left open for more than one minute

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Left hand door swing

For this unit with a standard right hand door swing, see model ACR1322GNSF456

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

EQTemp by Accucold introduces a new series of affordable, specialty refrigeration solutions for healthcare facilities seeking specialized cold storage.

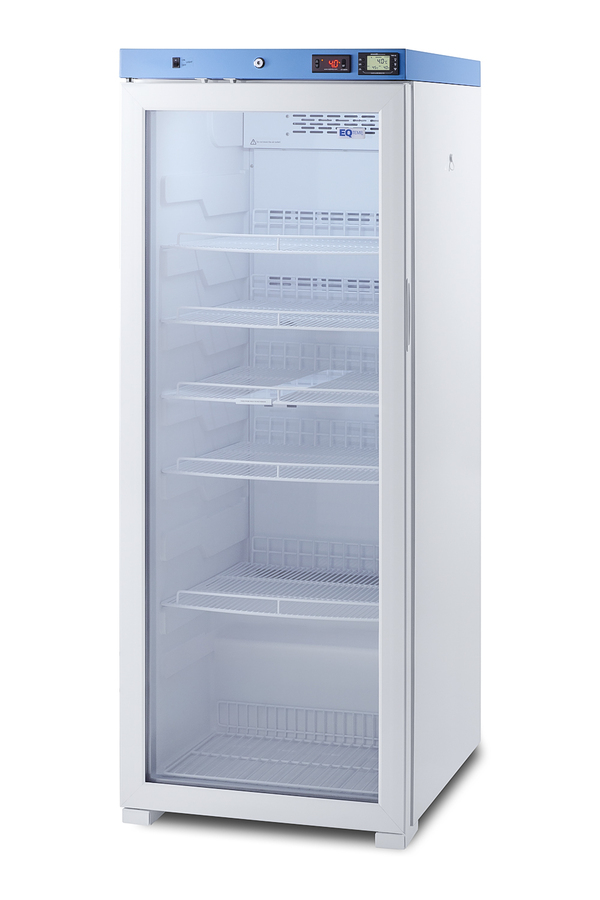

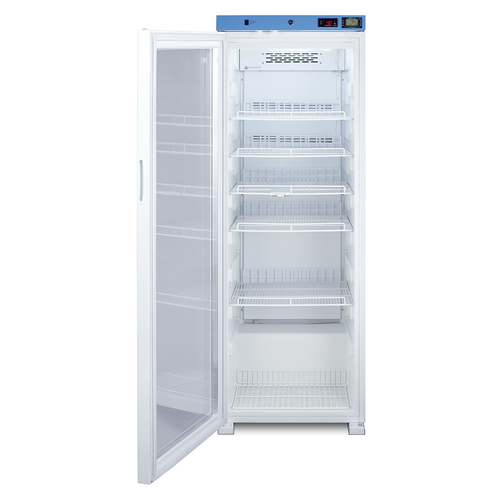

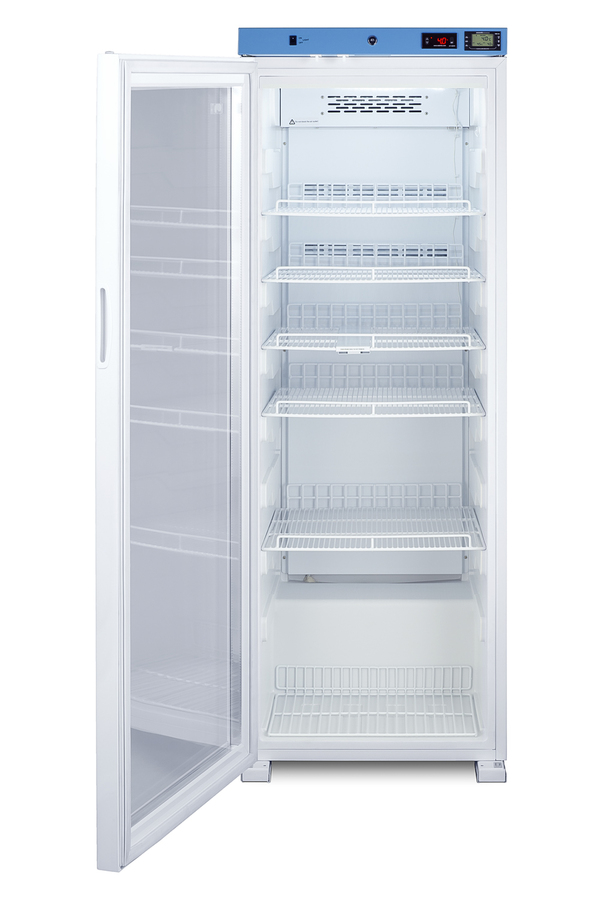

Model ACR1322GNSF456LHD is an upright 12.71 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

The ACR1322GNSF456LHD includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings. This unit ships with a left-hand door swing (for a right-hand version, see model ACR1322WNSF456).

EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the full product line to explore our extensive selection.

Note: EQTemp's ACR Series refrigerators are intended for a wide variety of healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.

Download
BROCHURE w/ DRAWINGS
ACR1322GNSF456LHD.pdf
Download
TECHNICAL DRAWING (.dwg)
ACR1322G.dwg
Download
ASSEMBLY DRAWING
ACR1322G-Assembly.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
