20" Wide Built-in Refrigerator-Freezer, ADA Compliant

SKU: ADA302RFZTBC
32" height and front-breathing system for built-in installation under ADA compliant counters, with a pure copper handle for added protection from bacteria
Estimated Time to Ship:

3 to 5 days

32.0" H x 19.75" W x 22.5" D
(81cm H x 50cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.68 cu.ft. (76 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 259.0kWh/year
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Shipping Weight 70.0 lbs. (32 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101076898
Refrigerator-Freezer
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 1
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 17.5" (44 cm)
Refrigerator - Interior Width 16.25" (41 cm)
Refrigerator - Interior Depth 17.0" (43 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 3
Refrigerator - Temperature Range 35-46º F
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 0.92 oz.
Freezer - Interior Height 5.75" (15 cm)
Freezer - Interior Width 16.25" (41 cm)
Freezer - Interior Depth 11.25" (29 cm)
Thermostat Type Dial
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Compressor Step Height 6.25" (16 cm)
Compressor Step Width 16.25" (41 cm)
Compressor Step Depth 6.0" (15 cm)

Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Exterior
LHD - Left hand door swing
Door reversal to left hand swing

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

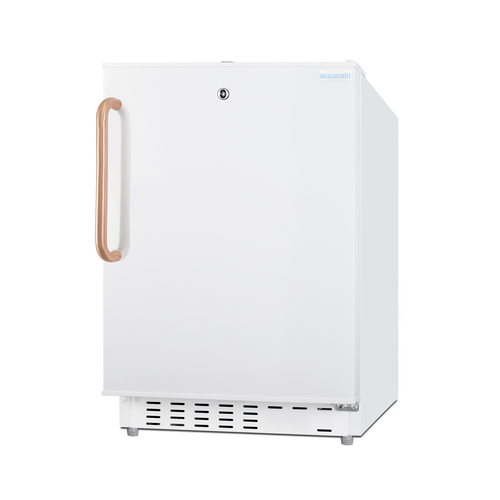

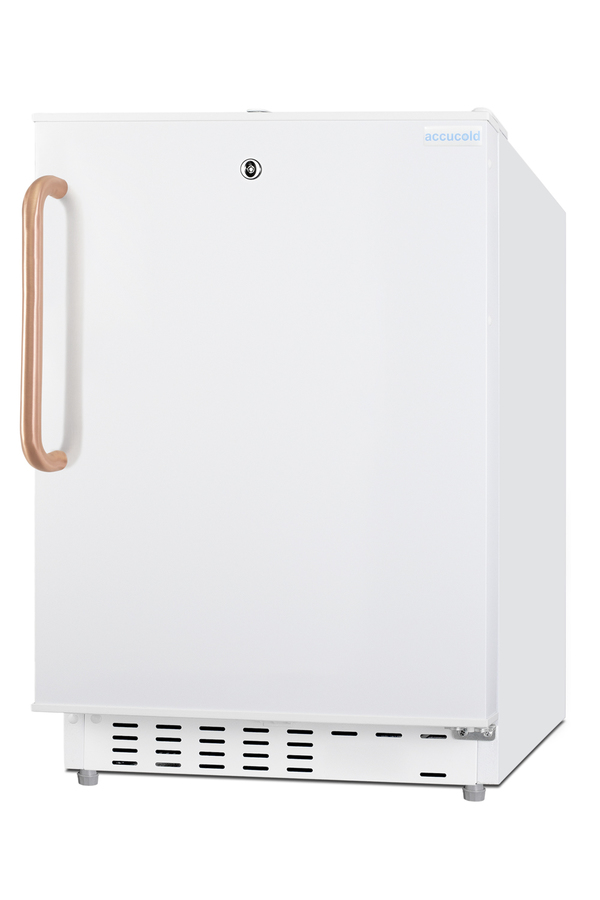

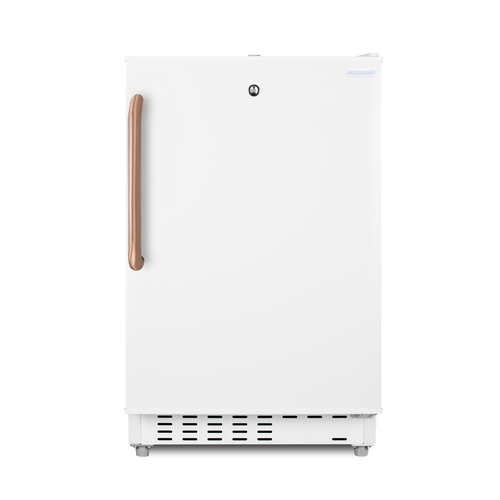

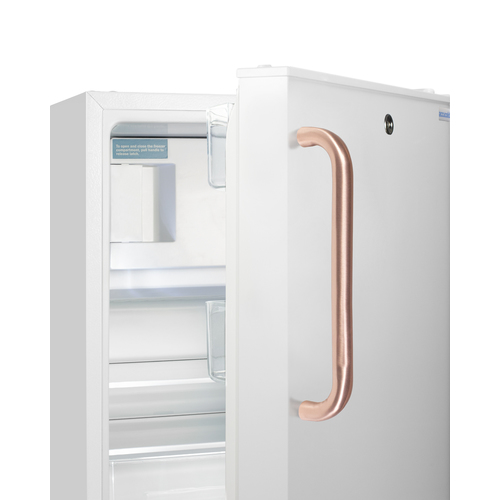

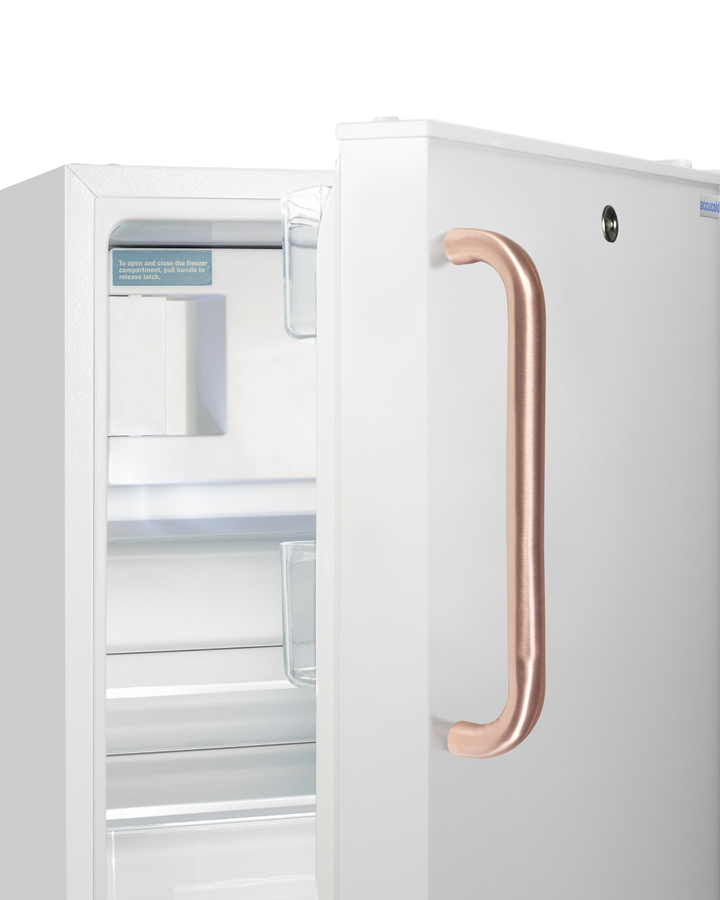

Copper handle

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness

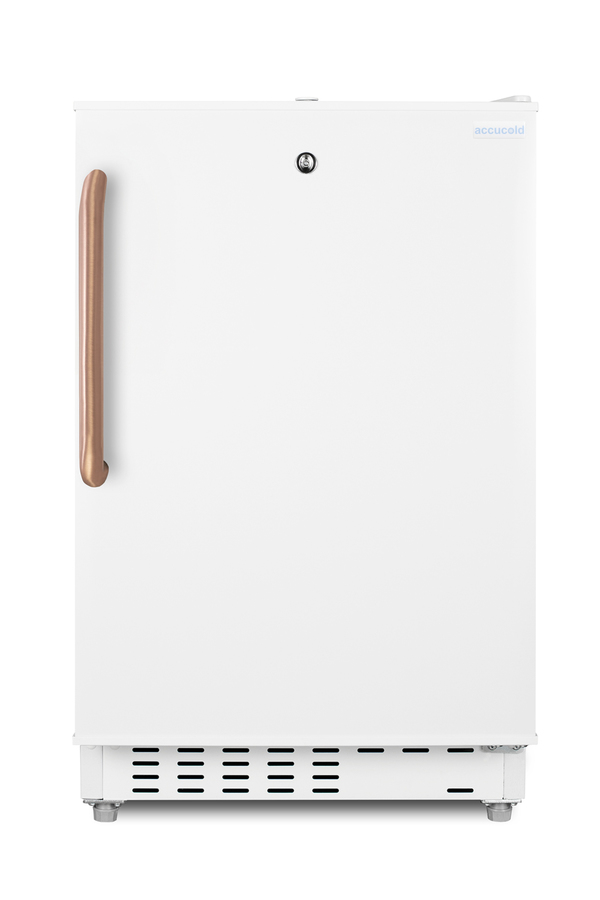

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

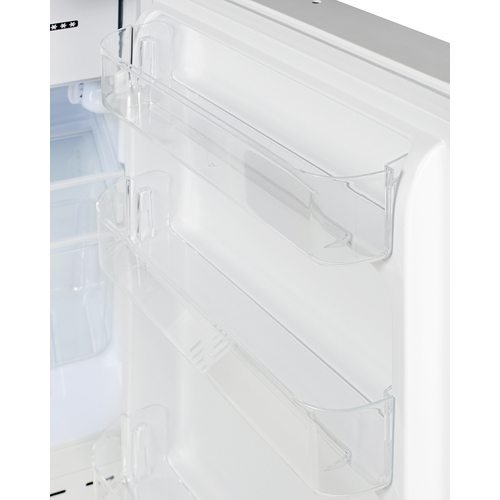

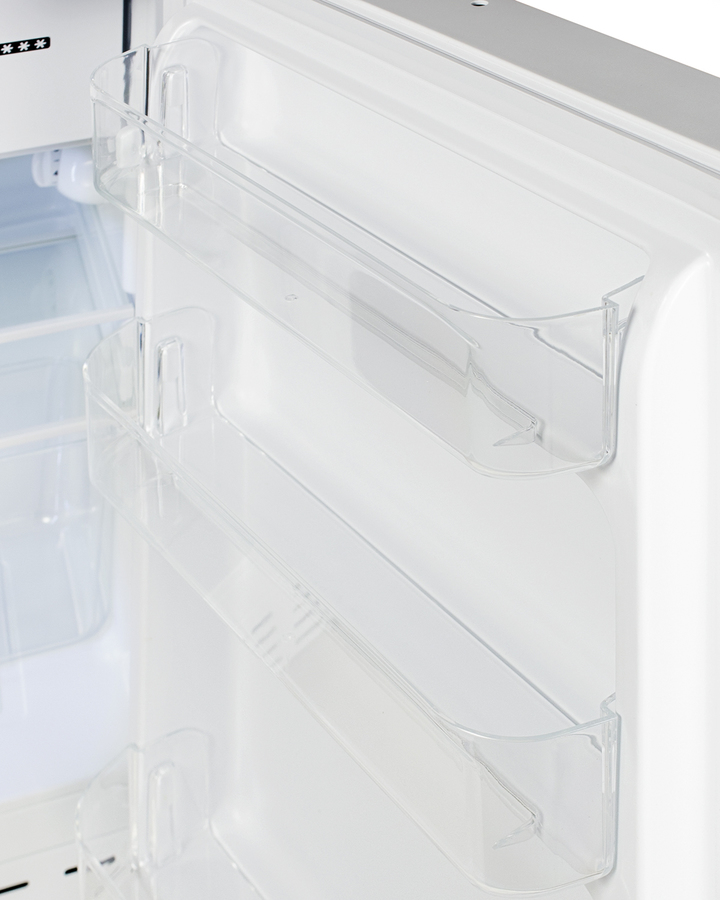

Door shelves

Three removable door racks for additional storage of bottles and other taller items

Adjustable glass shelves

Three adjustable spill-proof glass shelves for optimal storage in the 2.68 cu. ft. interior

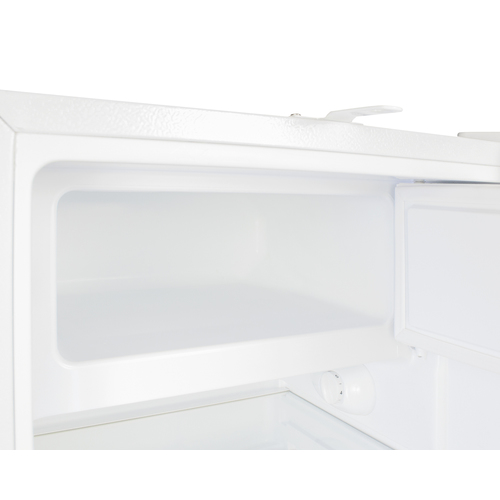

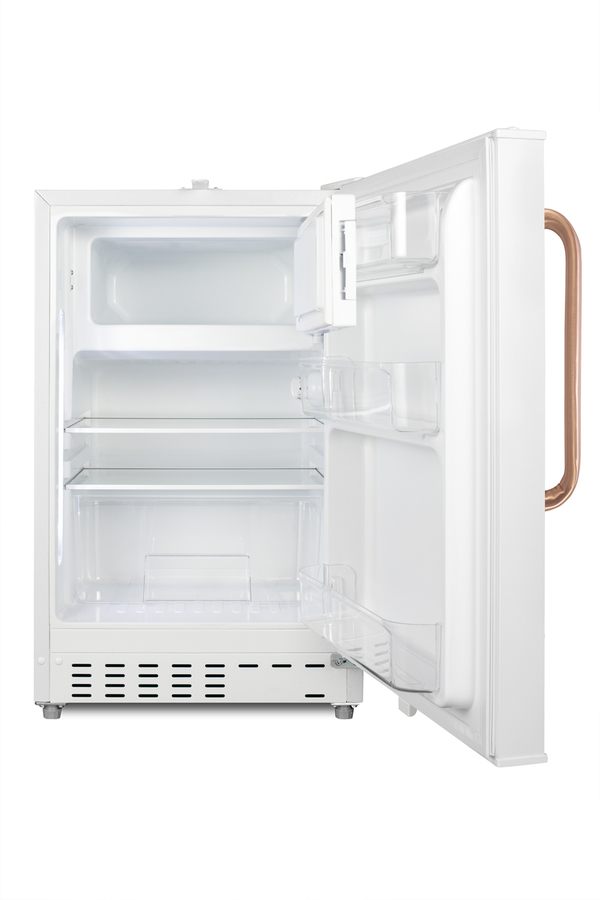

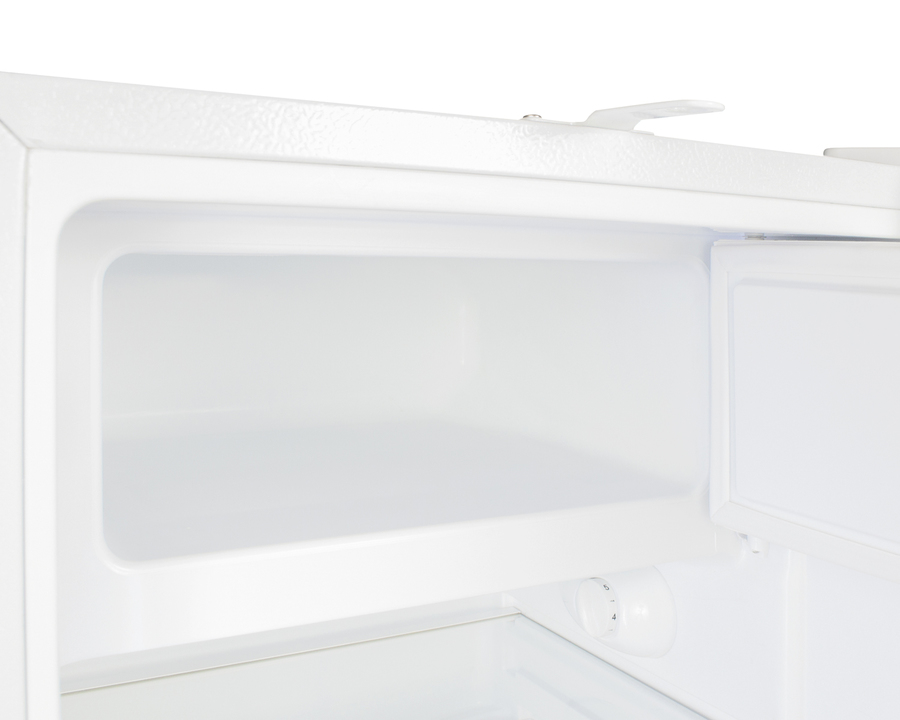

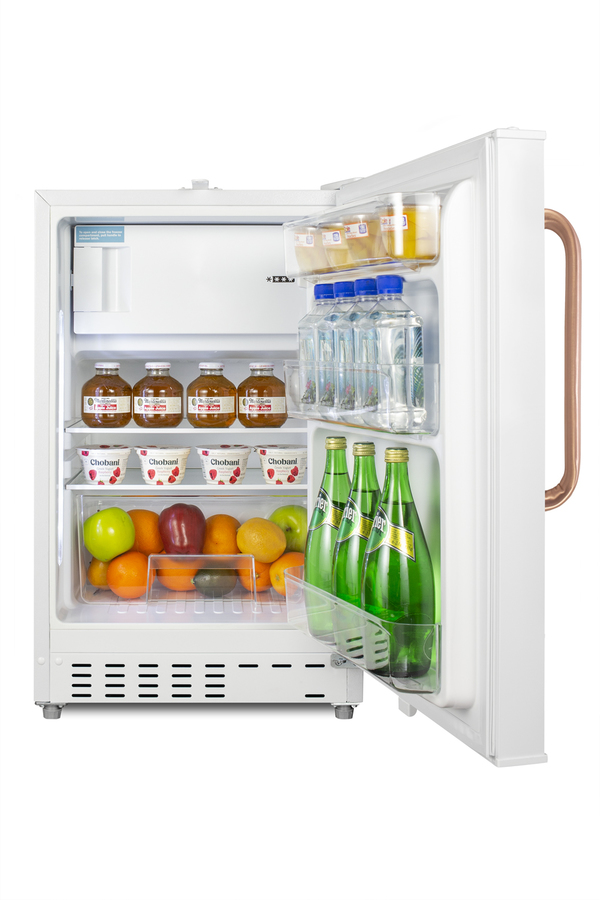

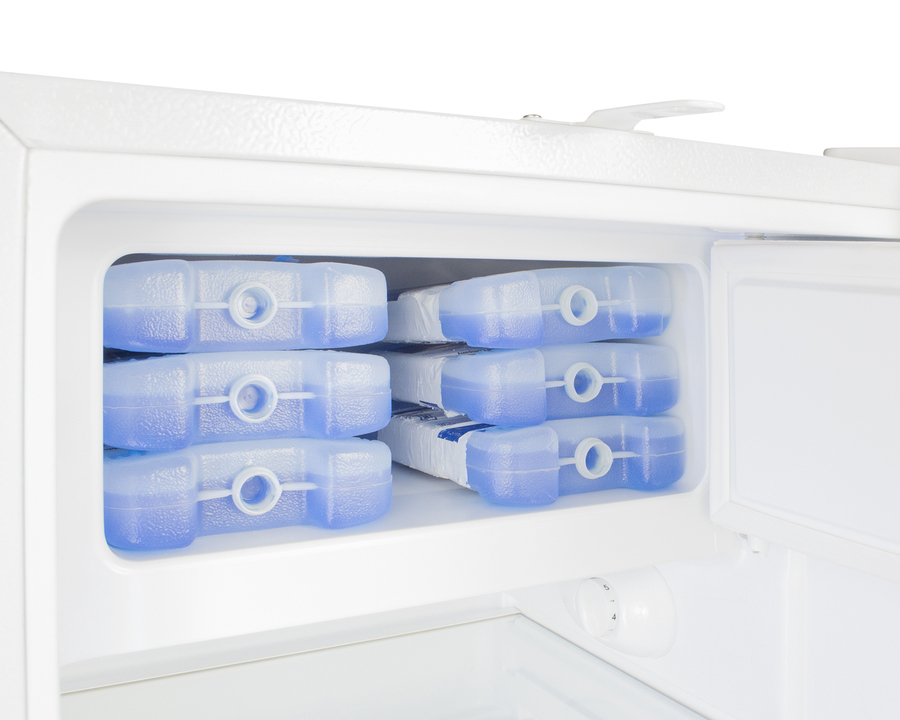

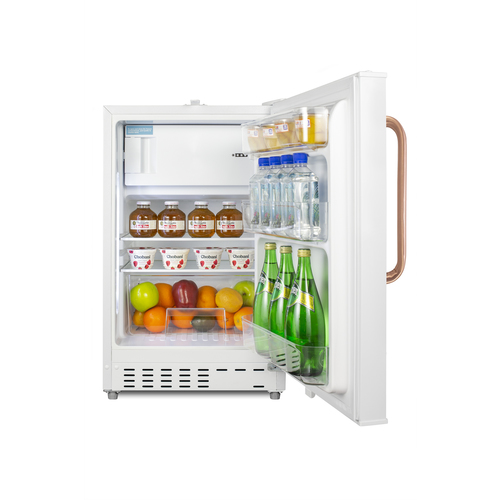

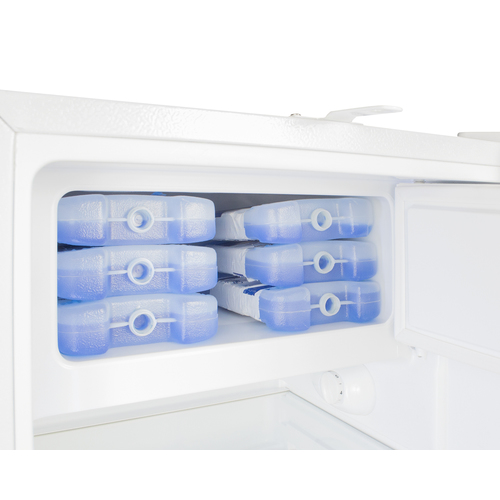

Freezer compartment

Interior freezer compartment offers convenient storage of ice cube trays, ice packs, and other healthcare supplies

Manual defrost

Static cooling system for added efficiency

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Slide-out drawer

Removable clear crisper drawer

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Interior light

Front-located LED light ensures entire interior is lit when door opens

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold offers a wide range of built-in undercounter refrigeration for general purpose storage in healthcare institutions. The ADA302RFZTBC is a refrigerator-freezer designed for use in settings complying with ADA guidelines.

The ADA302RFZTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. A factory-installed lock is located towards the top of the door for convenient access and security, perfect for high-traffic environments. The user-reversible door is 3" thick to ensure proper insulation and unit efficiency. This unit comes with a right angle cord to allow for added placement options without added depth.

The ADA302RFZTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

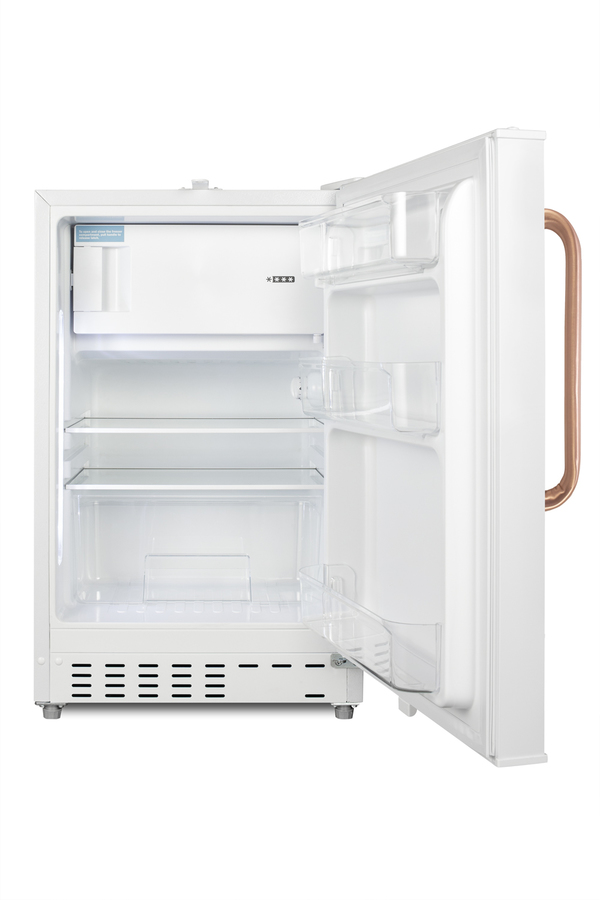

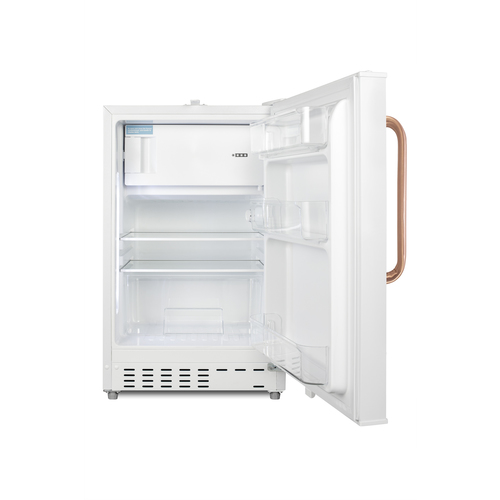

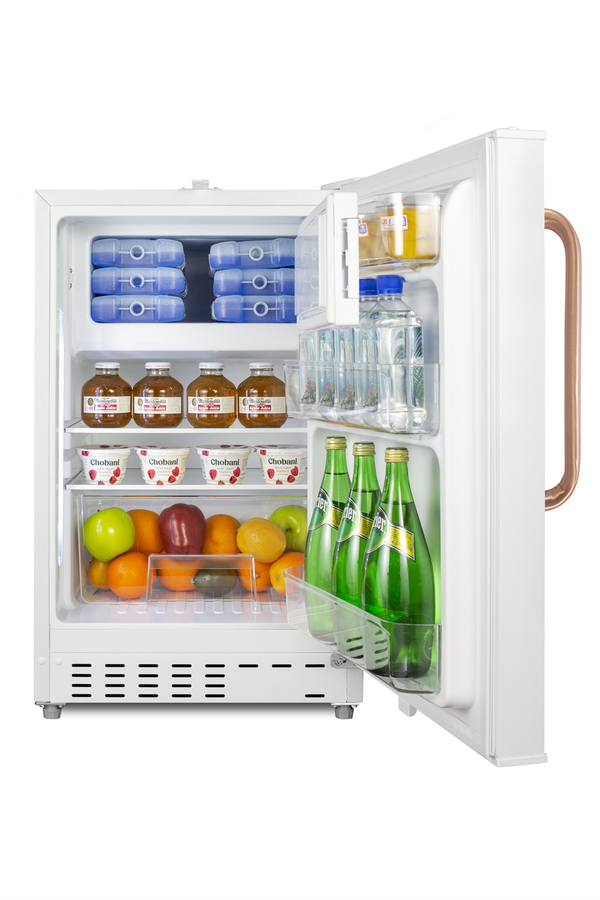

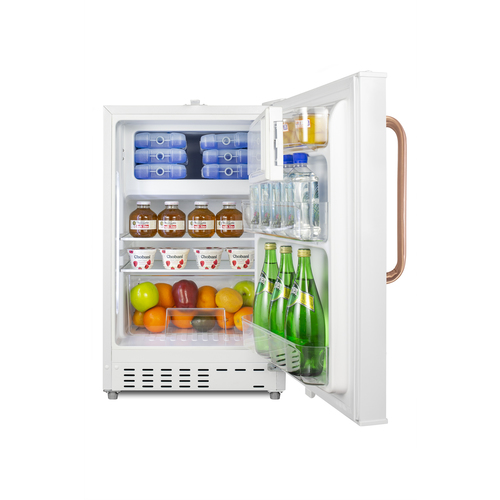

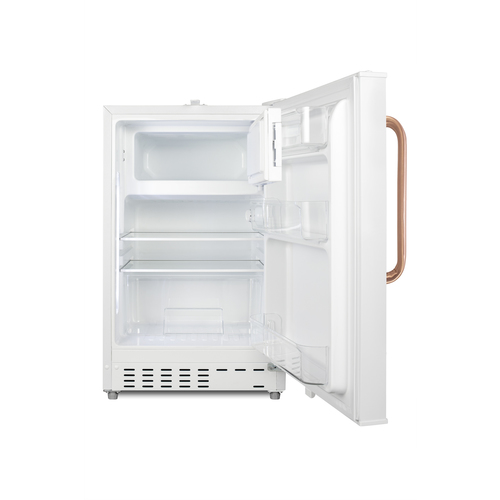

Inside, the ADA302RFZTBC features an all-white 2.68 cu.ft. interior for easy cleaning, with static manual defrost operation and a dial thermostat. An automatic LED light located toward the front of the unit illuminates the interior for full visibility. Three spill-proof adjustable glass shelves offer flexible storage options and a removable clear crisper drawer holds additioal items as needed. The door includes three removable racks. This unit includes a compact freezer compartment with an interior swing door, perfect for ice cube trays, ice packs, or additional supplies in need of freezing.

With its compact size and convenient features, the ADA302RFZTBC is the perfect unit for doctor's offices, nurses' stations, clinics, and other healthcare settings in need of an easy-fitting ADA compliant refrigerator-freezer.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
