4 Cu.Ft. MOMCUBE Freezer, ADA Height

SKU: AFZ5PVBIADAMC
Purpose-built for the safe and secure storage of breast milk
Estimated Time to Ship:

2 to 3 days

31.75" H x 23.38" W x 25.0" D
(81cm H x 59cm W x 64cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.75" (68 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 3.88 cu.ft. (110 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101107509
Freezer
Door Swing RHD
Reversible Yes
Interior Height 22.5" (57 cm)
Interior Width 18.0" (46 cm)
Interior Depth 18.0" (46 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R290a
Refrigerant Amount 1.73 oz.
High Side PSI 280.0
Low Side PSI 130.0
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 18.0" (46 cm)
Compressor Step Depth 7.13" (18 cm)
Temperature Range -18 to -4ºF

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator

Performance MOMCUBE Breast Milk Freezer freezer

Purpose-built Performance Series freezer for the long-term storage of breast milk

Purpose-built design

Designed and purpose-built for breast milk storage in accordance with the CDC's guidelines

ADA Compliant

Just under 32" tall designed to fit under ADA compliant counters

Recessed or freestanding use

Versatile design allows recessed installation under counters or freestanding use

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Adjustable temperature

Intuitive controls let you adjust the interior temperature between -18°F to -4ºF

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Manual defrost operation

Static cooling system for an efficient and stable interior

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings

Reversible door

User-reversible door swing for added flexibility

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished white cabinet

Allows the unit to be used freestanding

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS", as well as breast milk storage guidelines

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold's MOMCUBE freezers are designed and purpose-built for breast milk storage. All MOMCUBE® units are laboratory-tested to maintain proper breast milk temperature, as recommended by the CDC and ideal for maternity wards, hospitals, NICUs, employee wellness rooms complying with Section 4207 of the Patient Protection and Affordable Care Act, and other facilities.

The AFZ5PVBIADAMC is a 4 cu.ft. all-freezer with a temperature range of -18°F to -4°F as recommended for the long-term storage of human milk. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored milk product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

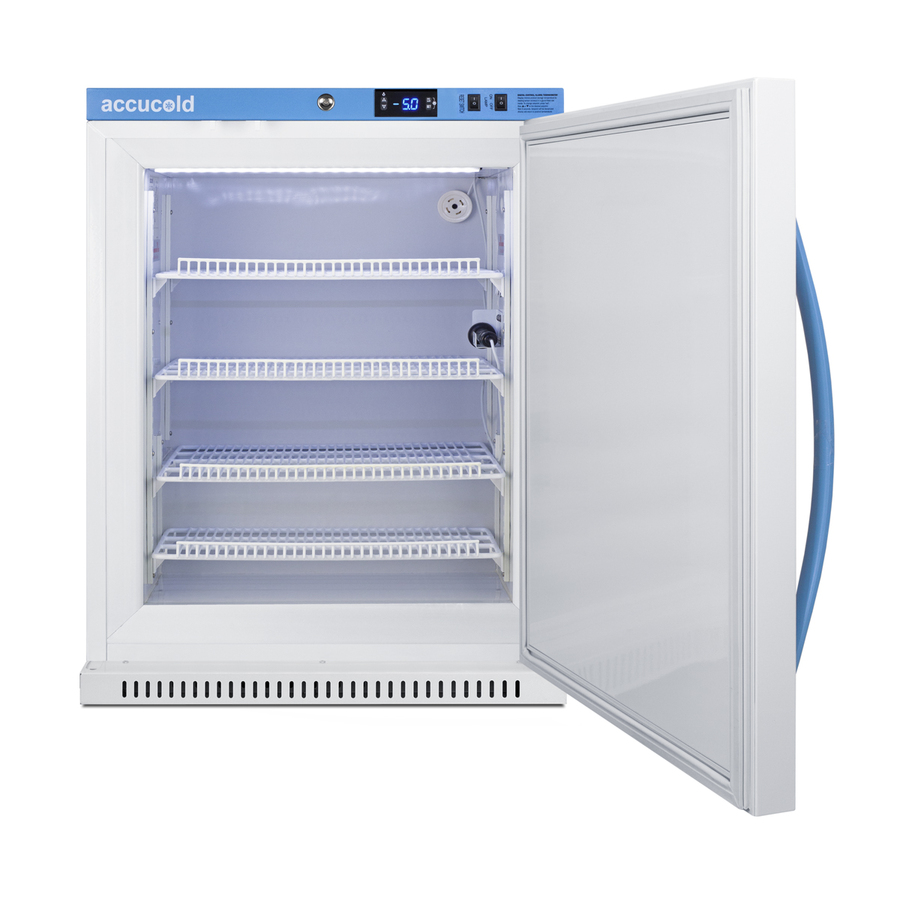

Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions.

The AFZ5PVBIADAMC comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, all Accucold Performance Series MOMCUBE freezers provide an energy efficient solution to breast milk storage. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/momcube.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
