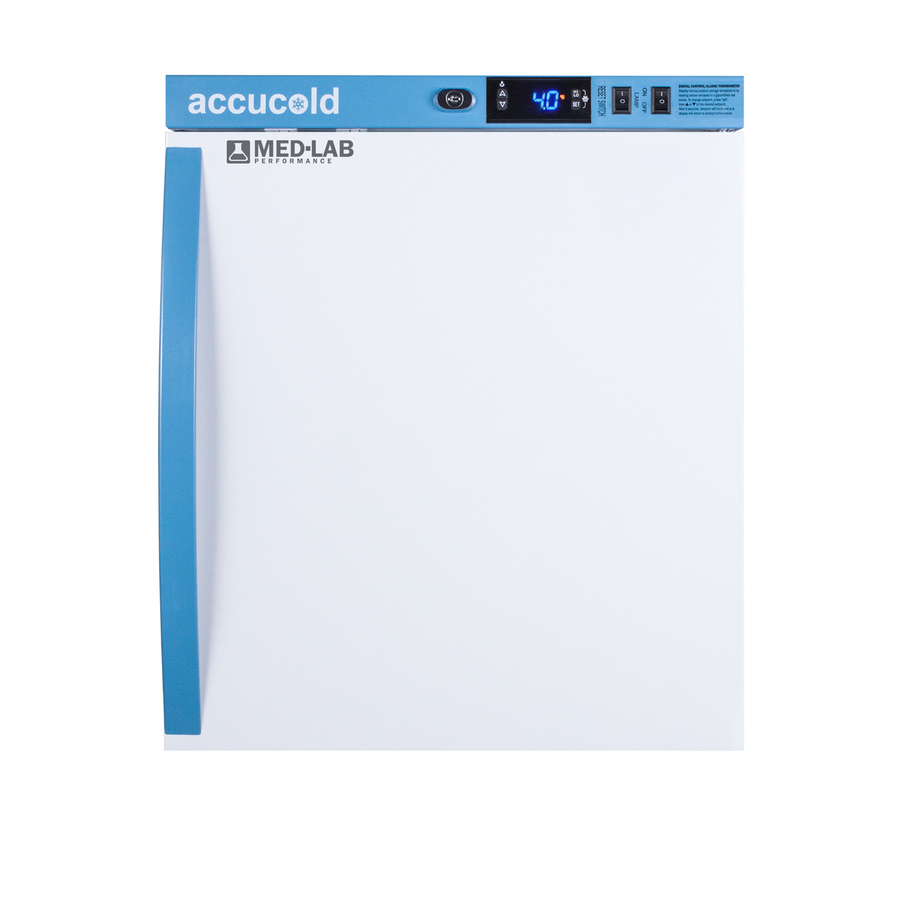

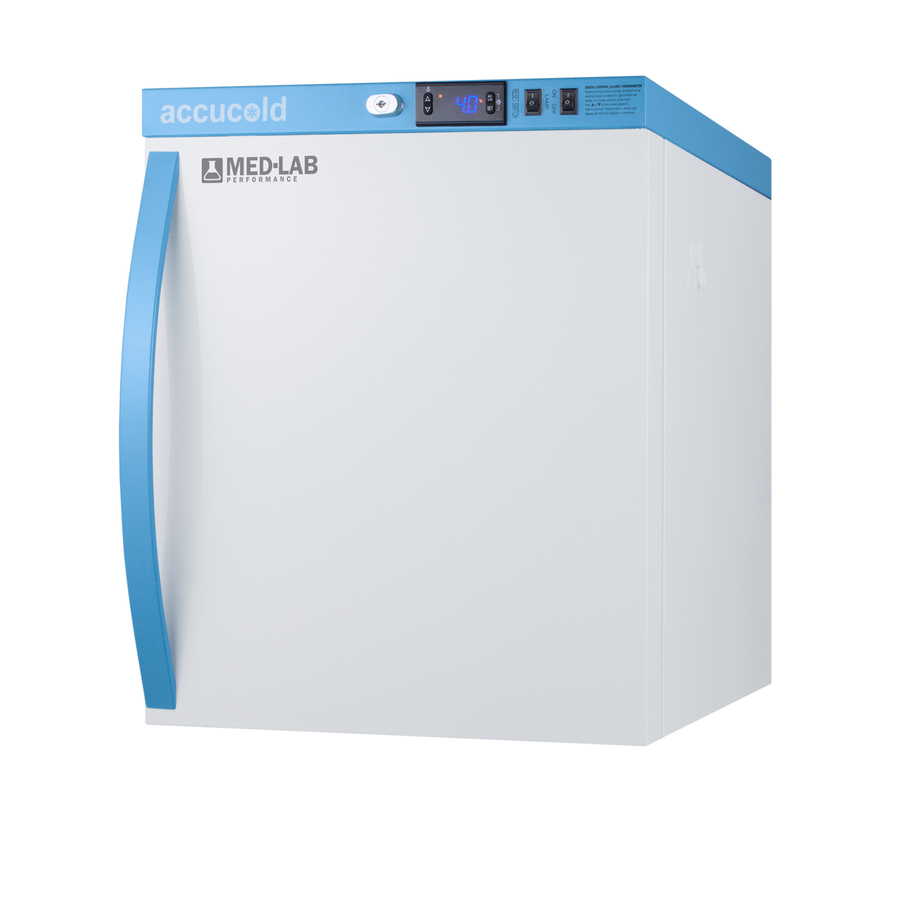

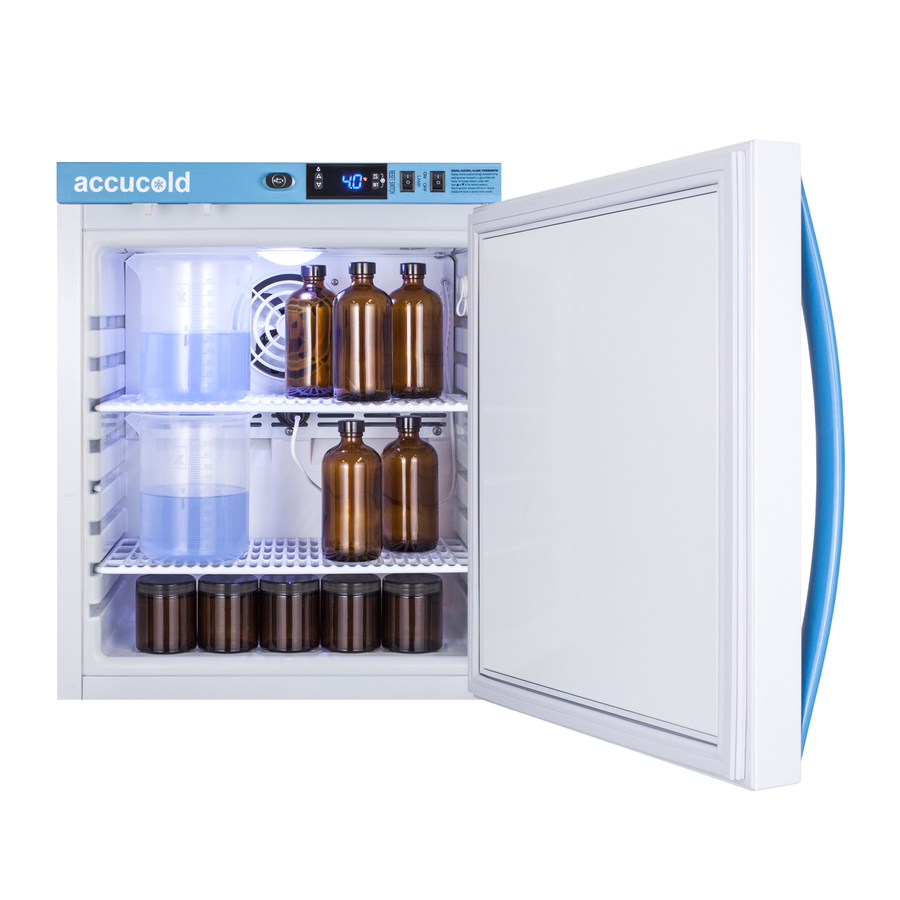

1 Cu.Ft. Compact Laboratory Refrigerator

SKU: ARS1ML

Designed and purpose-built to meet the demanding needs of life science, laboratory, and medical cold storage applications

Estimated Time to Ship: 1 to 2 days
How to Buy
Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

21.5" H x 17.5" W x 19.75" D

(55cm H x 44cm W x 50cm D)

SPECIFICATIONS

Overview
Height of Cabinet 21.5" (55 cm)
Width 17.5" (44 cm)
Width with Door Open 18.0" (46 cm)
Depth 19.75" (50 cm)
Depth with Handle 21.5" (55 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 60.8 lbs. (28 kg)
Shipping Weight 66.3 lbs. (30 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.71oz.
Interior Light Yes
Temperature Range 2 to 10ºC
Dimensions
Interior Height 15.75" (40 cm)
Interior Width 14.0" (36 cm)
Interior Depth 8.0" (20 cm)

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Purpose-built design
Designed and purpose-built to meet the demanding needs of scientific, life science, laboratory, and medical cold storage applications
+/-1ºC Variation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +10ºC

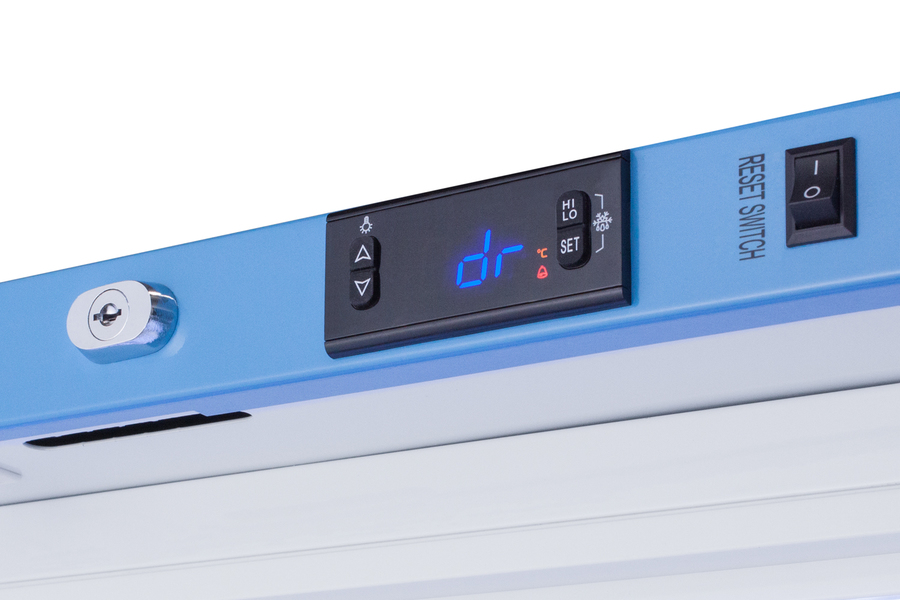

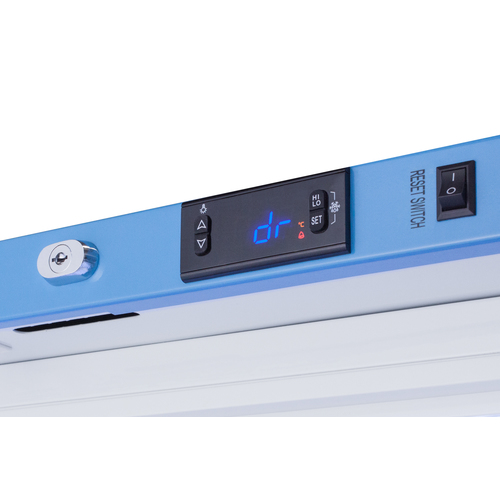

Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range

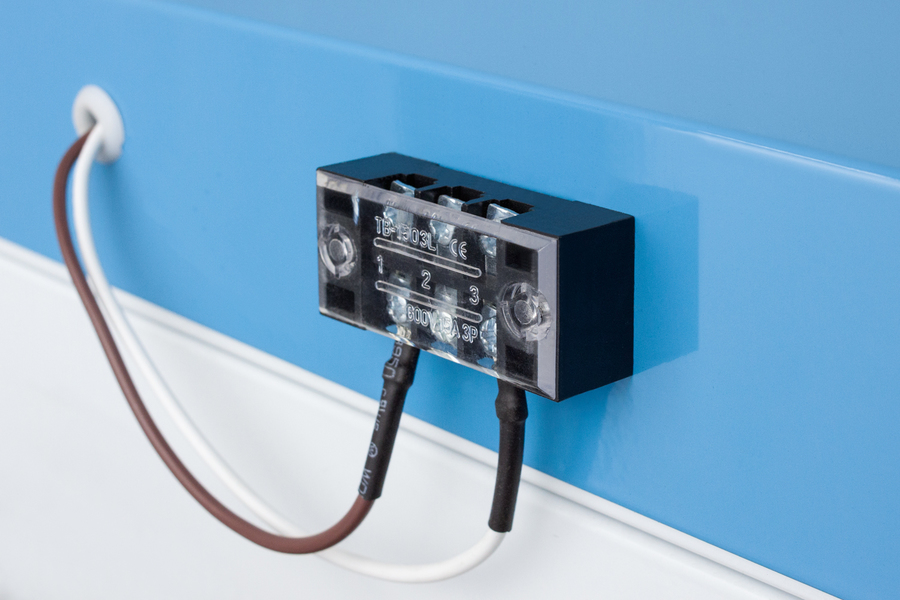

Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

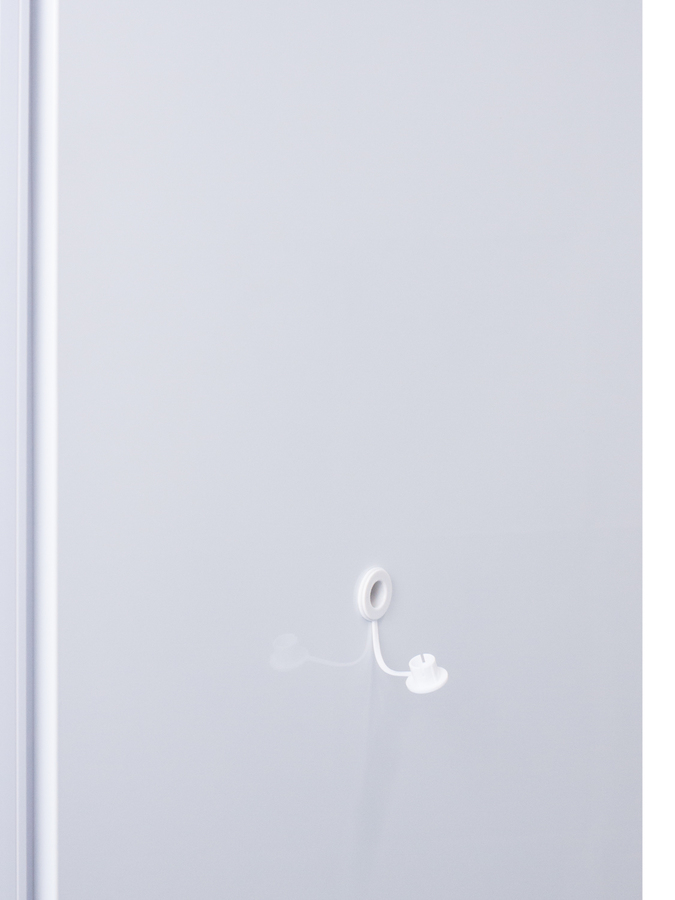

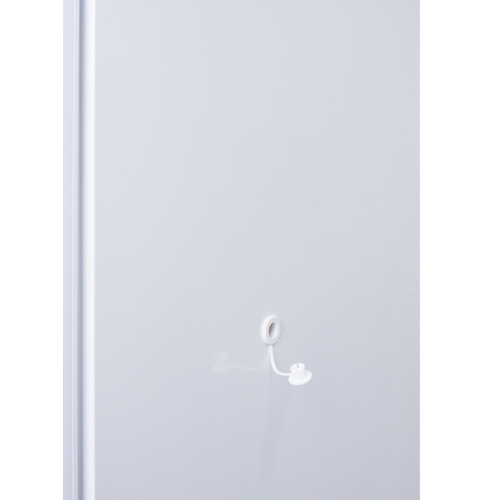

Access port
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm
Audible and visual alarm warns if the sensor is disrupted
Password protection
Control panel requires password entry to adjust the parameters beyond the set point

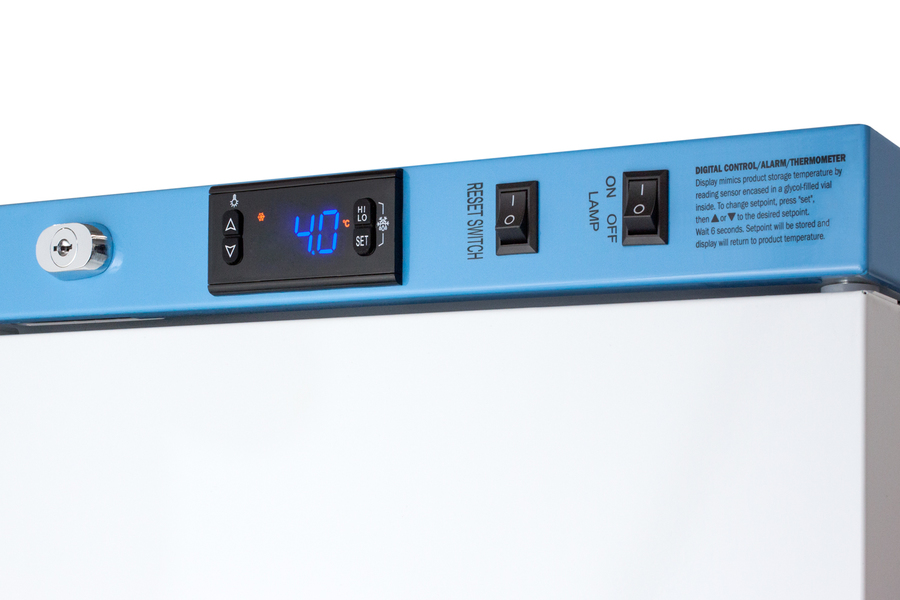

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

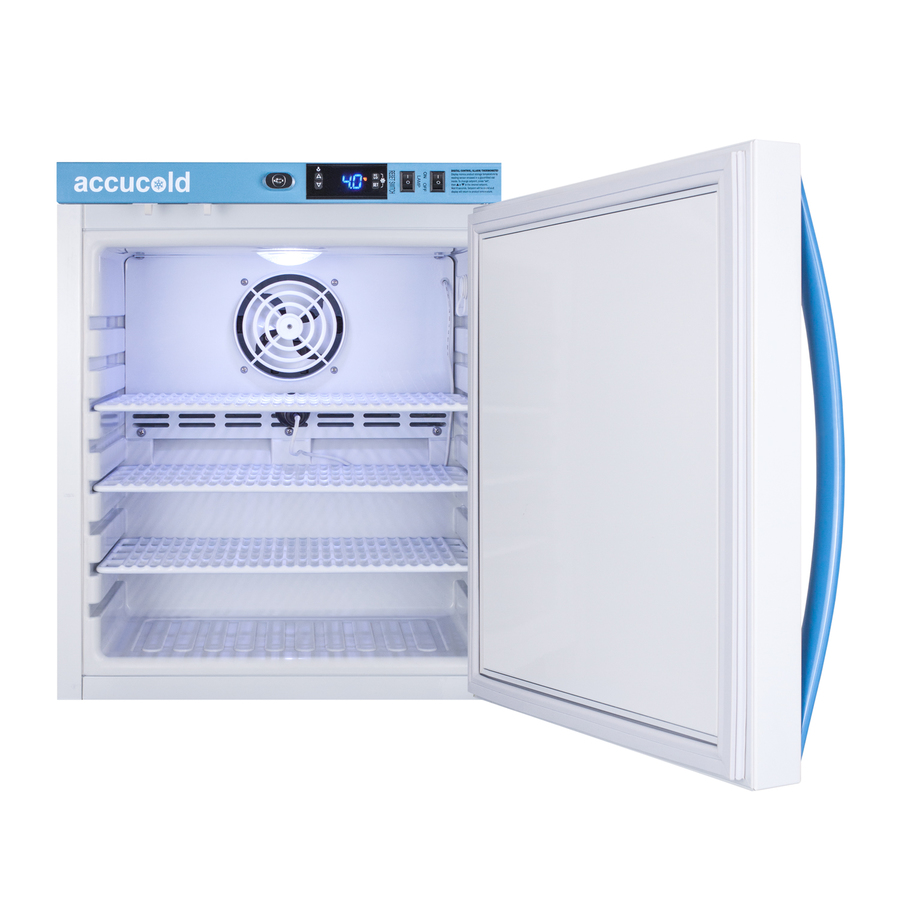

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to accommodate virtually any size
Durable interior
Walls are constructed from white powder coated metal for added strength and improved temperature retention

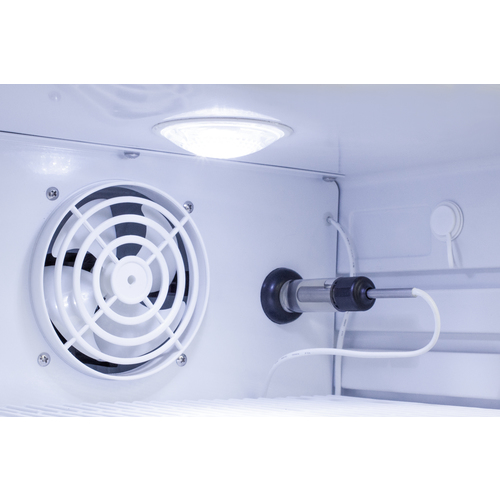

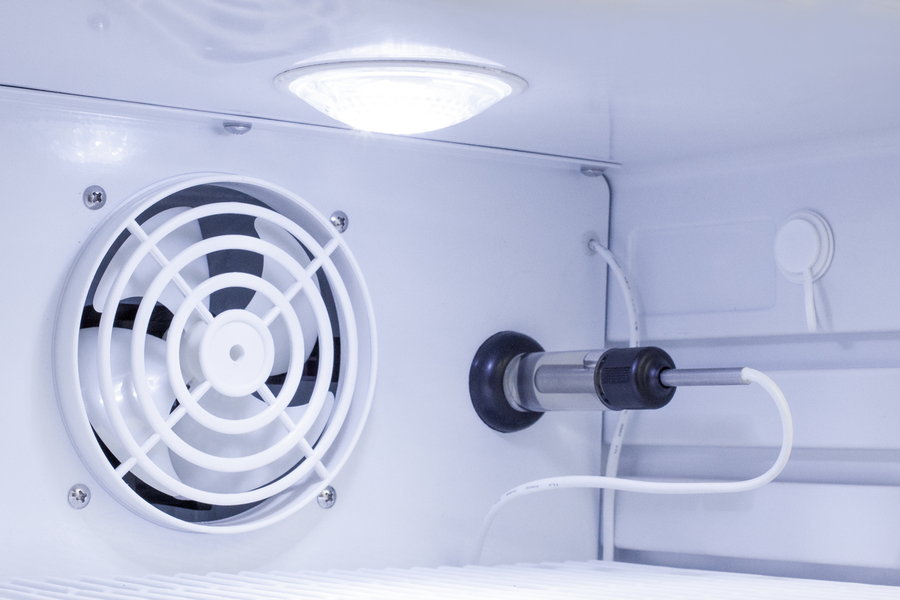

Interior light
Energy efficient LED lighting with internal on/off switch
Self-closing door
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
Reversible door
User-reversible door swing for added flexibility

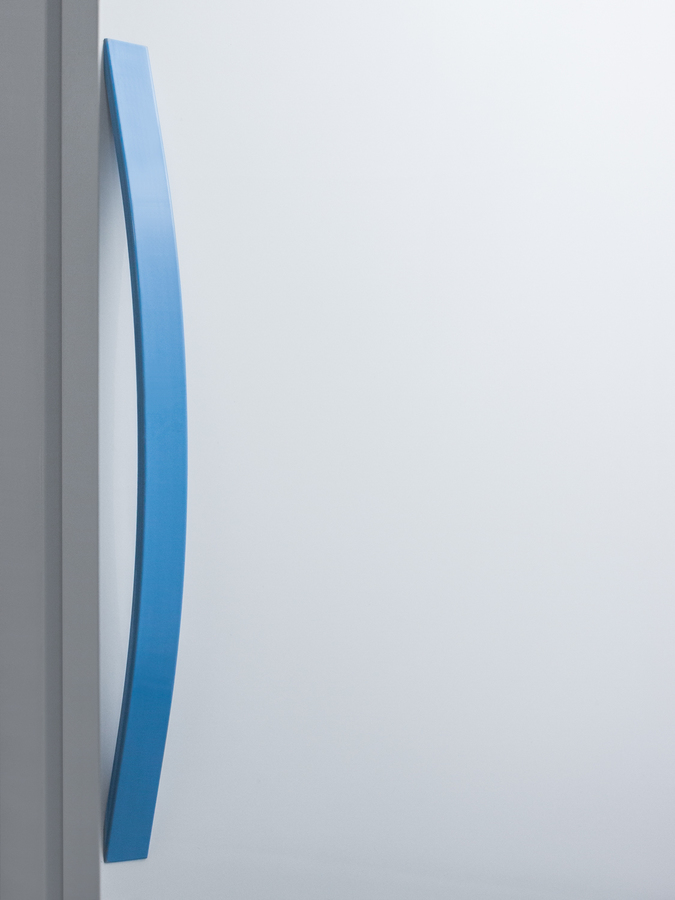

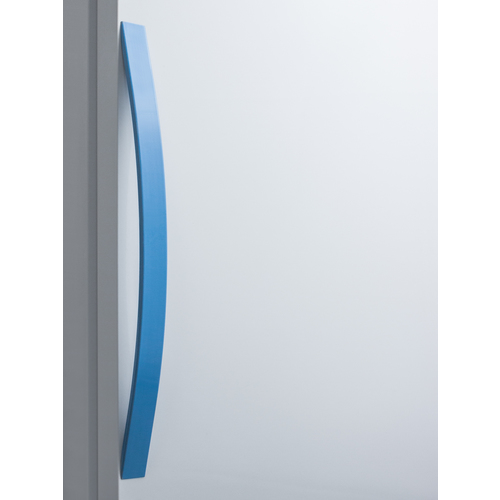

Easy-grip handle
17 1/2" long handle in blue finish for easy accessibility
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Additional choices
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Med-Lab series for more information

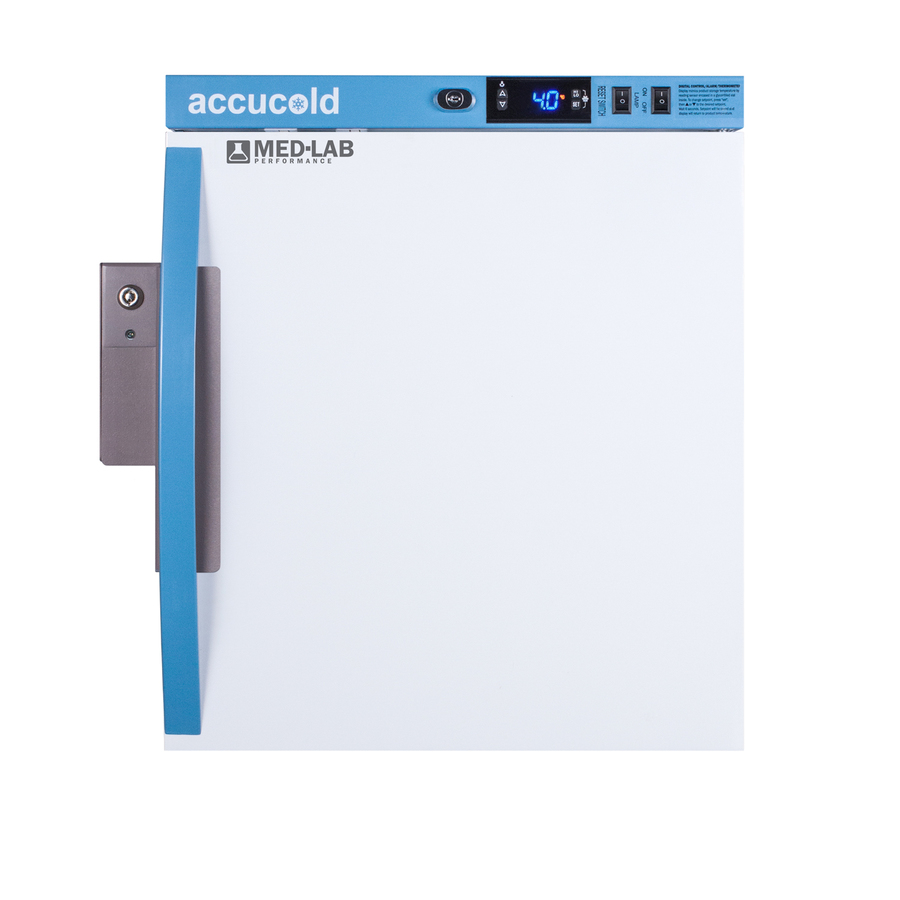

Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Accucold's Med-Lab Performance Series all-refrigerators are designed and purpose-built to meet the demanding needs of life science, laboratory, and medical cold storage applications.

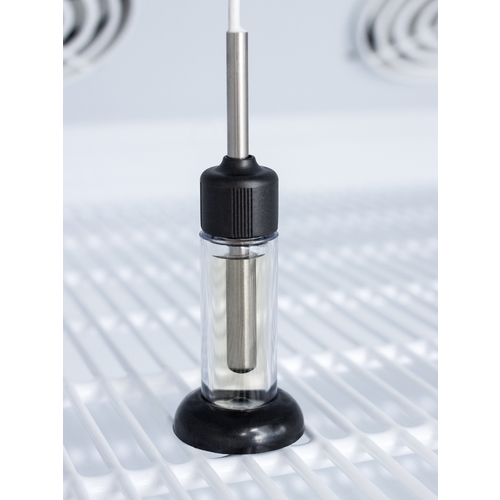

The ARS1ML is a 1 cu.ft. all-refrigerator with an adjustable control range from +2 to +10ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices.

Inside, the ARS1ML utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS1ML comes in a white cabinet finish with a blue accented control panel and easy-grip handle. The user-reversible door ships with a right hand swing and self-closing function (note: self-closing is disabled once reversed to LHD). This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS1ML provides an energy efficient solution to laboratory and life science storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes are available. Explore the full Med-Lab series at accucold.com/medlab.

SPECIFICATIONS

Overview
Height of Cabinet 21.5" (55 cm)
Width 17.5" (44 cm)
Width with Door Open 18.0" (46 cm)
Depth 19.75" (50 cm)
Depth with Handle 21.5" (55 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 60.8 lbs. (28 kg)
Shipping Weight 66.3 lbs. (30 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.71oz.
Interior Light Yes
Temperature Range 2 to 10ºC
Dimensions
Interior Height 15.75" (40 cm)
Interior Width 14.0" (36 cm)
Interior Depth 8.0" (20 cm)

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
