1 Cu.Ft. Compact Vaccine Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard

SKU: ARS1PV456
Purpose-built design to meet CDC guidelines and certified to the NSF 456 Vaccine Storage Standard
Estimated Time to Ship:

1 to 2 days

21.5" H x 17.5" W x 19.75" D
(55cm H x 44cm W x 50cm D)

Overview
Nominal Height 22.0" (56 cm)
Height of Cabinet 21.5" (55 cm)
Nominal Width 18.0" (46 cm)
Width 17.5" (44 cm)
Width with Door Open 18.0" (46 cm)
Nominal Depth 20.0" (51 cm)
Depth 19.75" (50 cm)
Depth with Handle 21.5" (55 cm)
Depth with door at 90° 36.0" (91 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S to NSF 456
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 61.0 lbs. (28 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101090696
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.71oz.
Interior Light Yes
Temperature Range 2 to 8ºC
Sound Level 39 dB
Dimensions
Interior Height 15.75" (40 cm)
Interior Width 14.0" (36 cm)
Interior Depth 8.0" (20 cm)

Exterior
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
LHD - Left hand door swing
Door reversal to left hand swing
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator

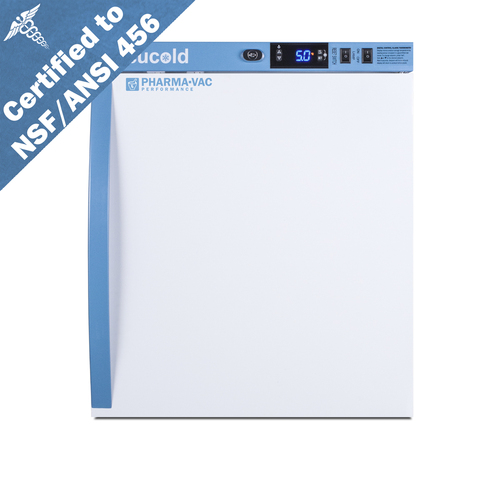

Certified to NSF/ANSI 456 Vaccine Storage Standard

Designed and tested to comply with the new NSF Vaccine Storage Standard

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Certificate of calibration included

2-year calibration certificate included for your records

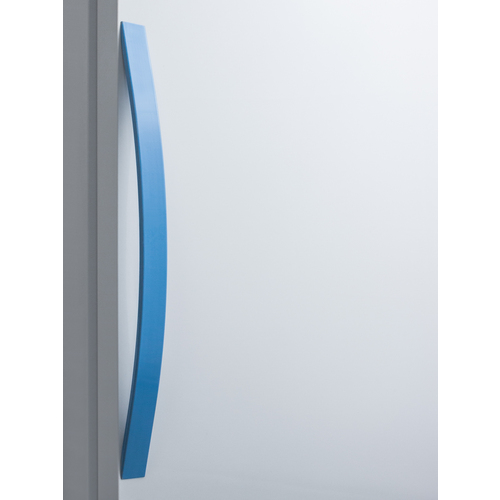

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce germ spread

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC

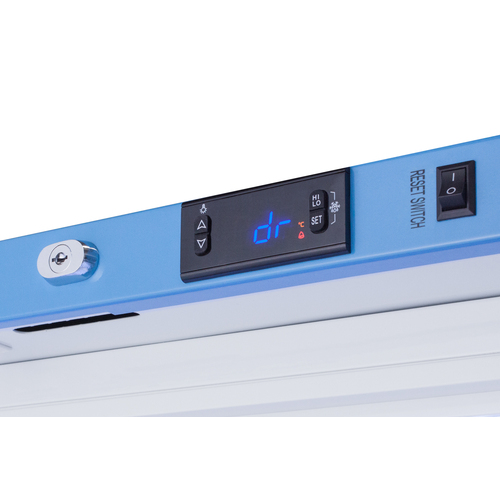

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

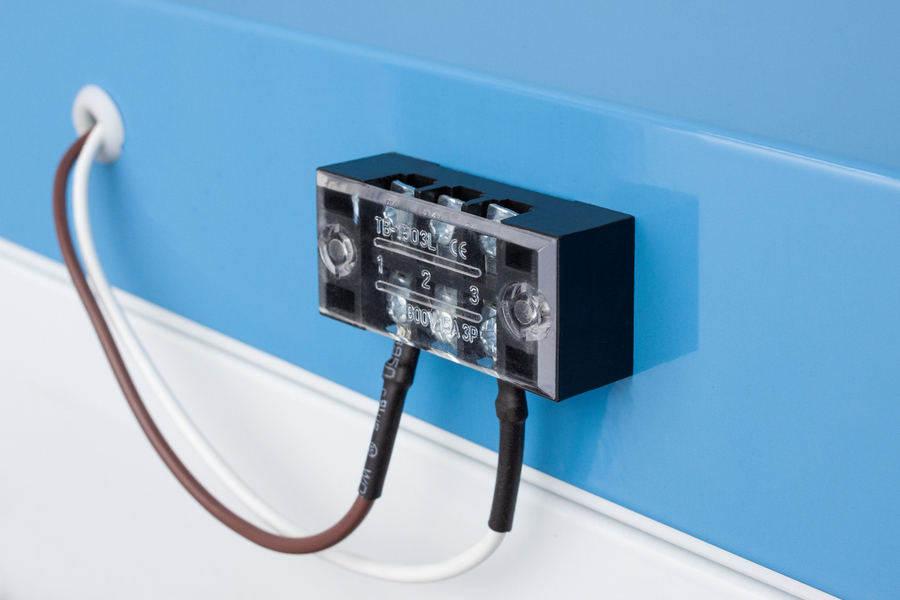

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

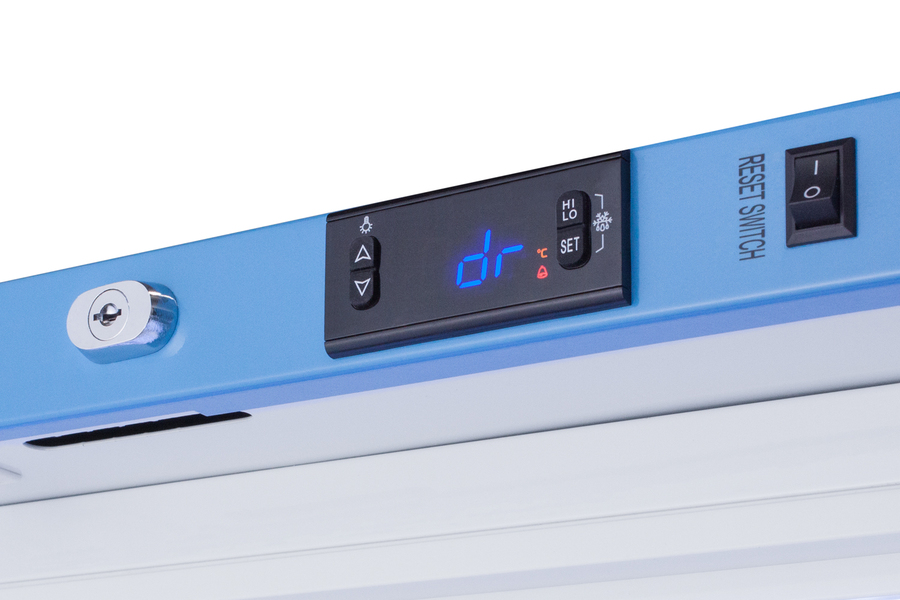

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

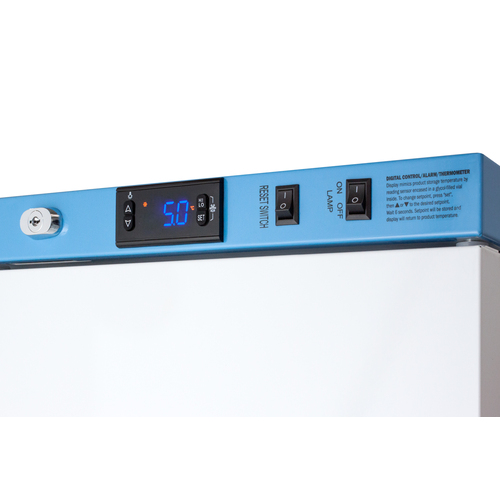

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to accommodate virtually any size

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

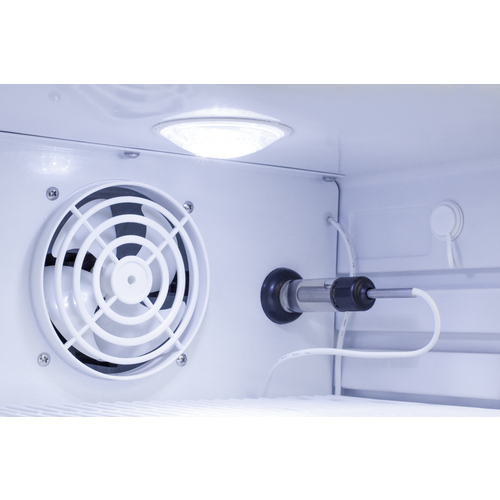

Interior light

Energy efficient LED lighting with internal on/off switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Self-closing door

Added protection in busy settings

Right hand door swing

For this unit with the door opening from the other side, order with option "LHD" or as SKU ARS1PV456LHD

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices

Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information

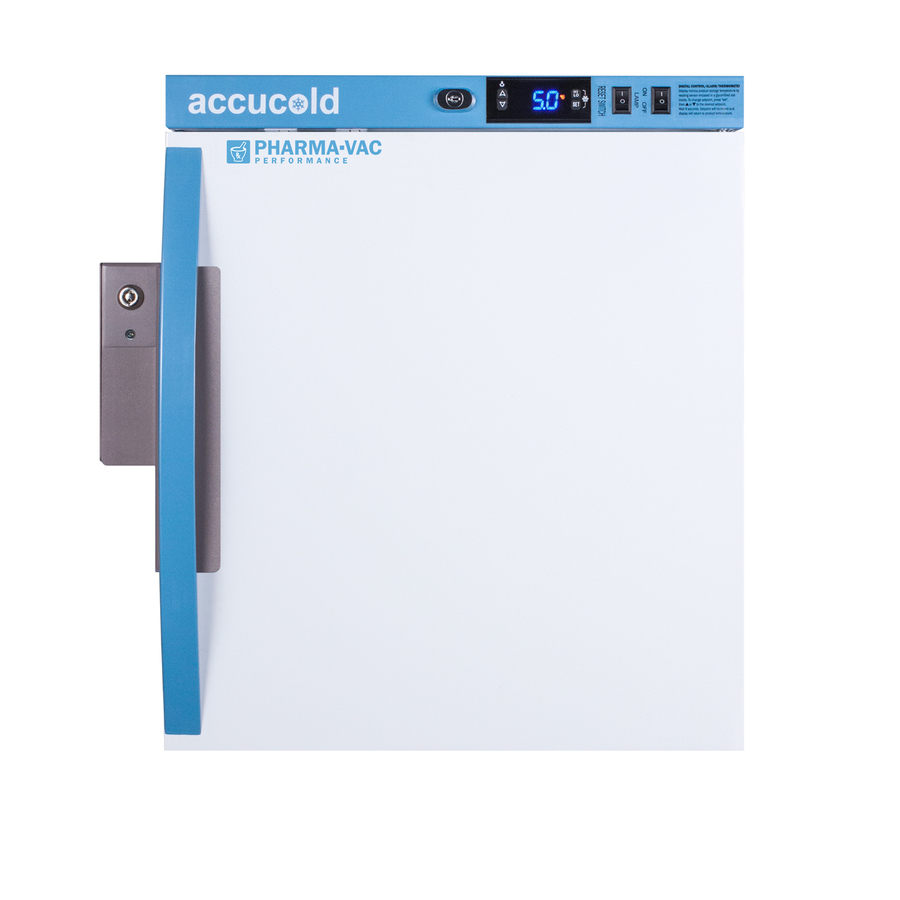

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold is proud to lead the industry with the largest line of cold storage product sizes certified to NSF/ANSI 456 Vaccine Storage Standard. The Pharma-Vac Performance Series supports meeting regulations and guidelines from the CDC, State Agencies, World Health Organization, and other Health Ministries on vaccine storage and handling.

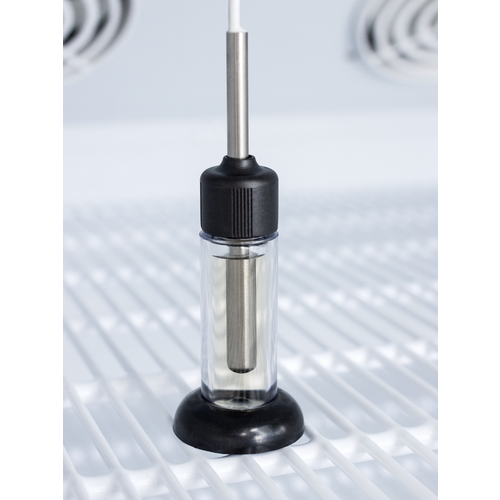

The ARS1PV456 is a 1 cu.ft. all-refrigerator with an adjustable control range from +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas.

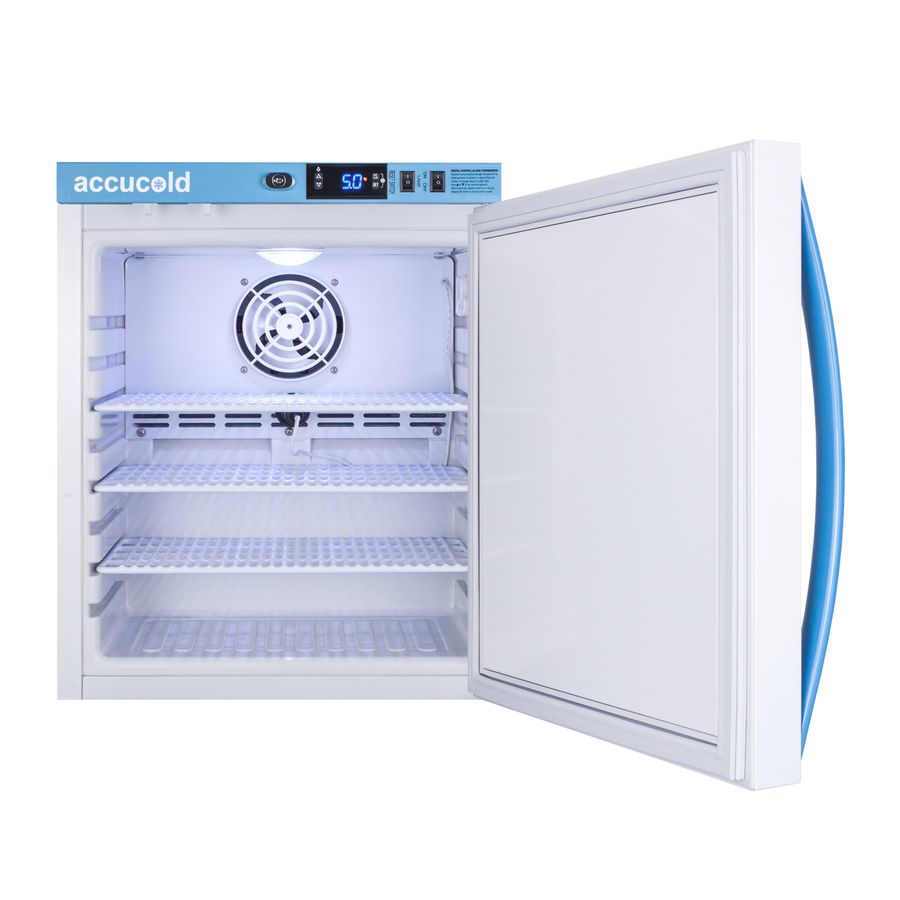

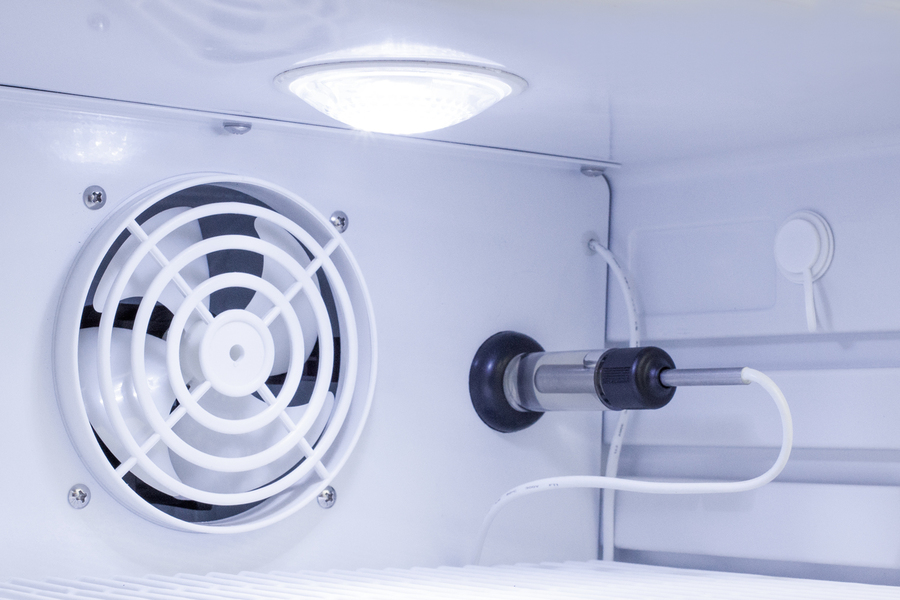

Inside, the ARS1PV456 utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

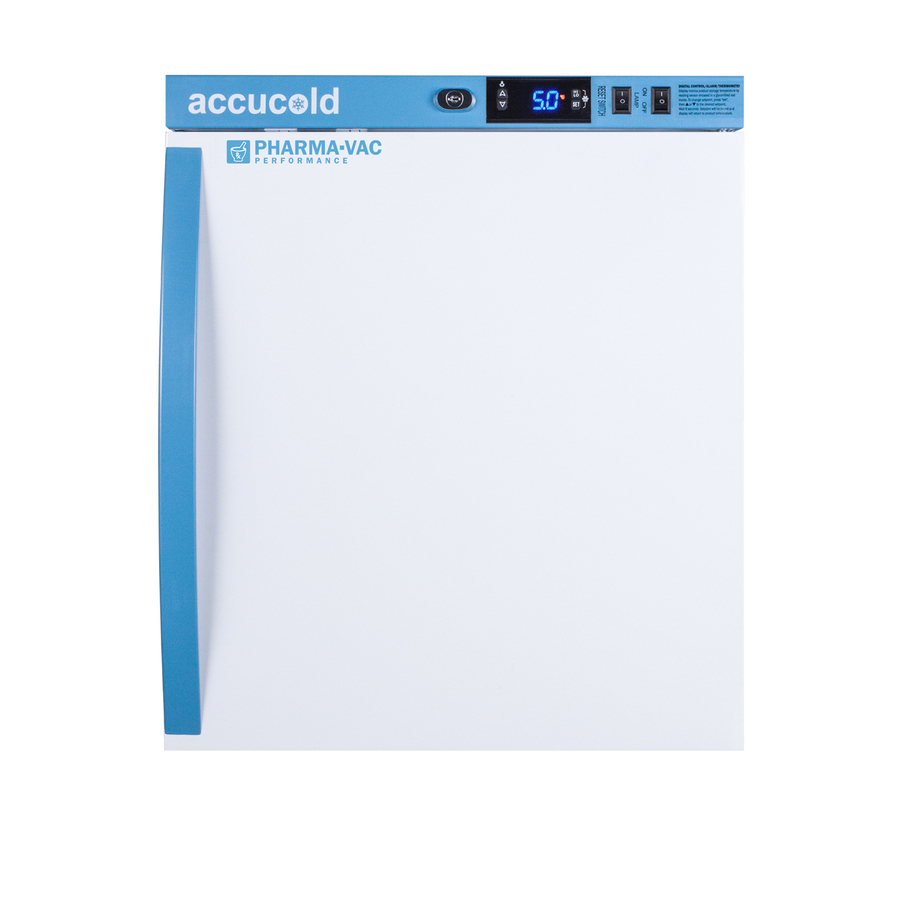

The ARS1PV456 comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS1PV456 provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac NSF 456 series at accucold.com/pharmavac.

ABOUT NSF 456: NSF/ANSI 456 is a voluntary standard introduced in 2021 that was designed to establish the performance and construction requirements for vaccine refrigeration. Models certified to this standard undergo strict testing to confirm temperatury consistency. All Accucold units approved to NSF 456 for vaccine storage are certified by an independent testing agency.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
