COVID-19 VACCINE COLD STORAGE SOLUTIONS

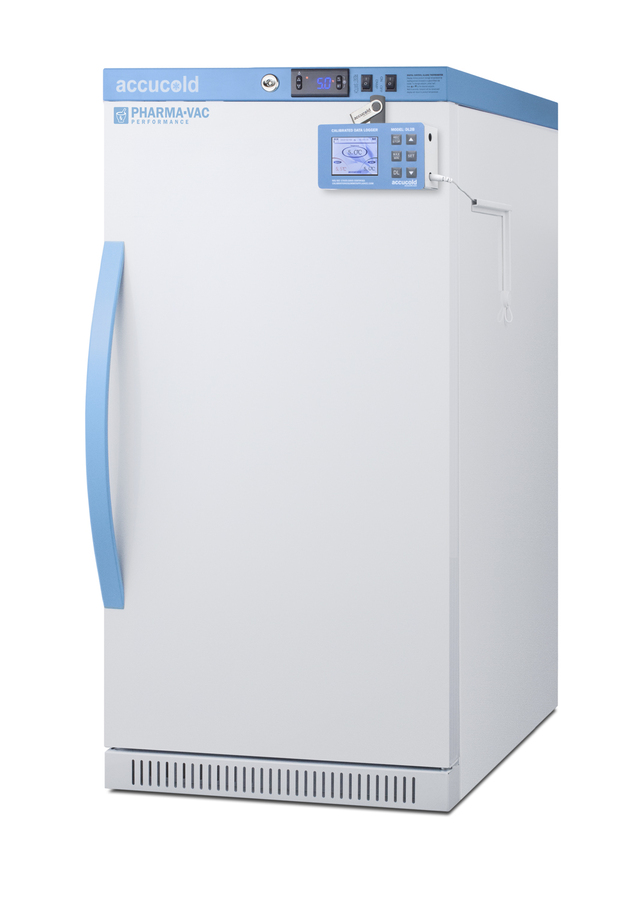

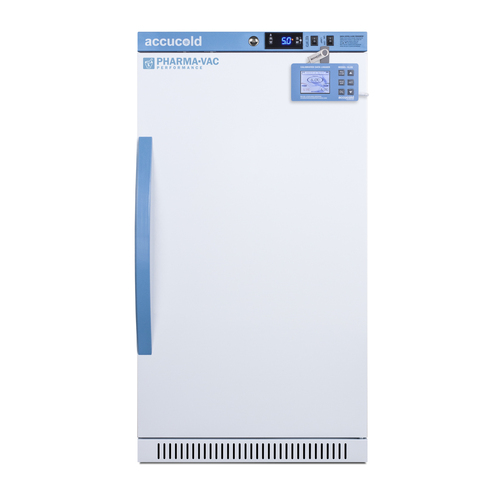

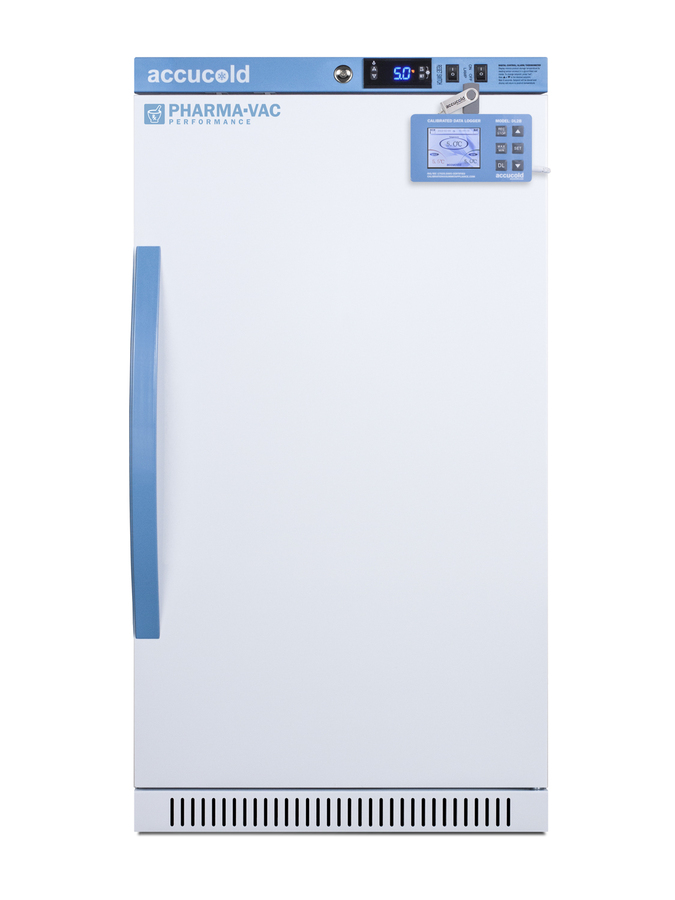

2.83 Cu.Ft. Vaccine Refrigerator, ADA Height

SKU: ARS32PVBIADADL2B

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a NIST calibrated data logger included

Estimated Time to Ship: 1 to 3 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507
How to Buy

32.0" H x 19.75" W x 22.63" D

(81cm H x 50cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.83 cu.ft. (80 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Weight 102.0 lbs. (46 kg)
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101077901
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.41oz.
High Side PSI 280.0
Low Side PSI 90.0
Interior Light Yes
Temperature Range 2°C to 8ºC
Dimensions
Interior Height 24.0" (61 cm)
Interior Width 16.0" (41 cm)
Interior Depth 15.0" (38 cm)
Compressor Step Height 6.13" (16 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Purpose-built design
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
ADA Compliant

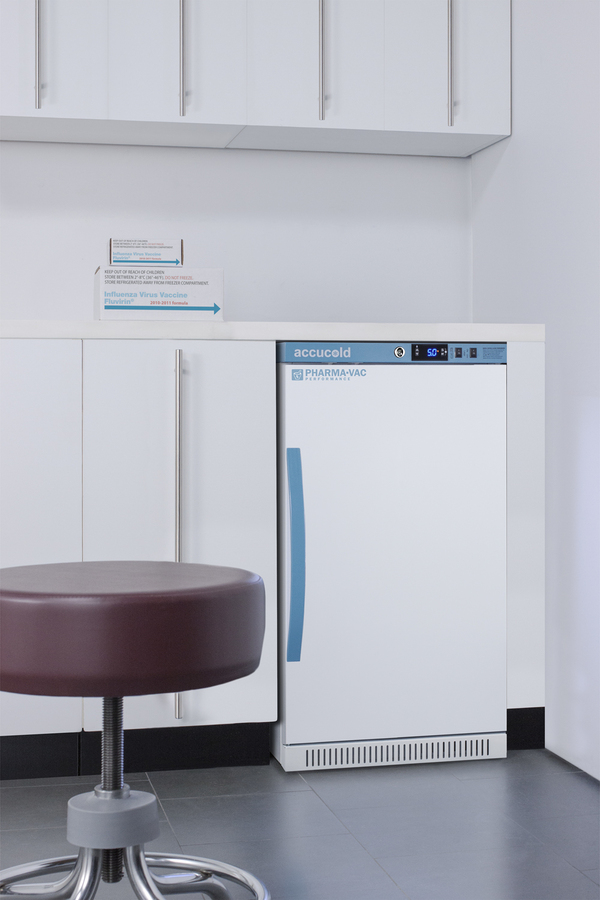

32" height is designed to fit under ADA compliant counters

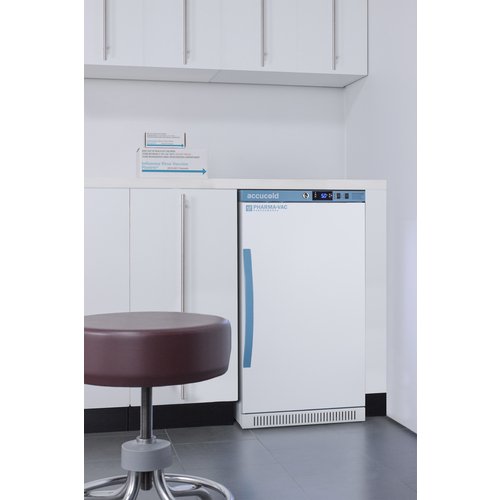

Recessed or freestanding use
Versatile design allows recessed installation under counters or freestanding use
+/-1ºC Variation

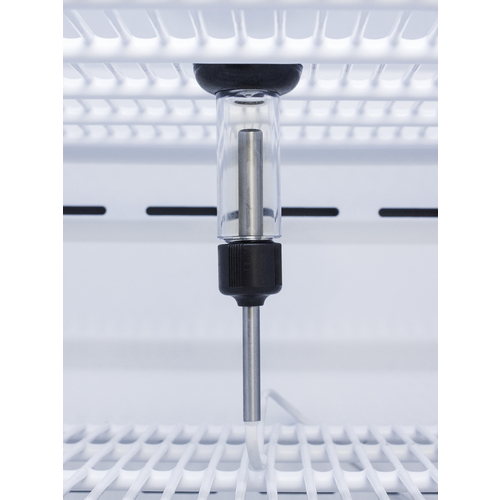

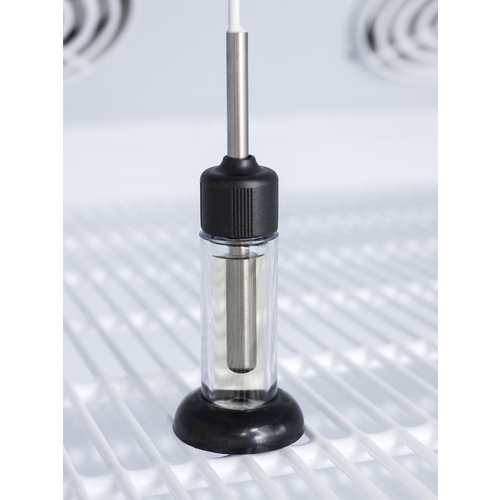

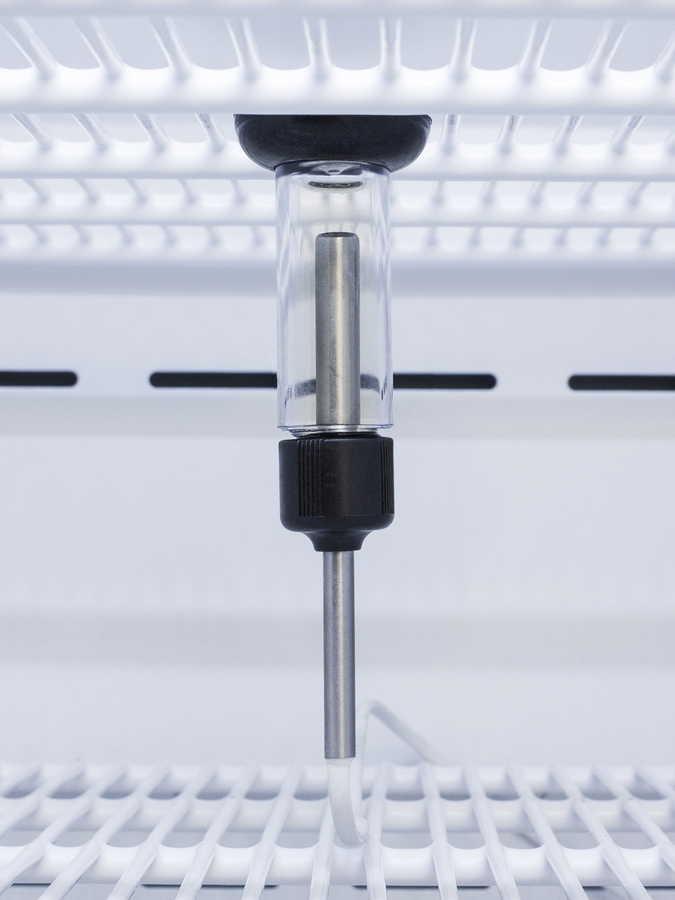

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
Digital data logger (DDL) included
Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our website
Commercial design
Meets UL-471 commercial standards
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2°C to +8ºC

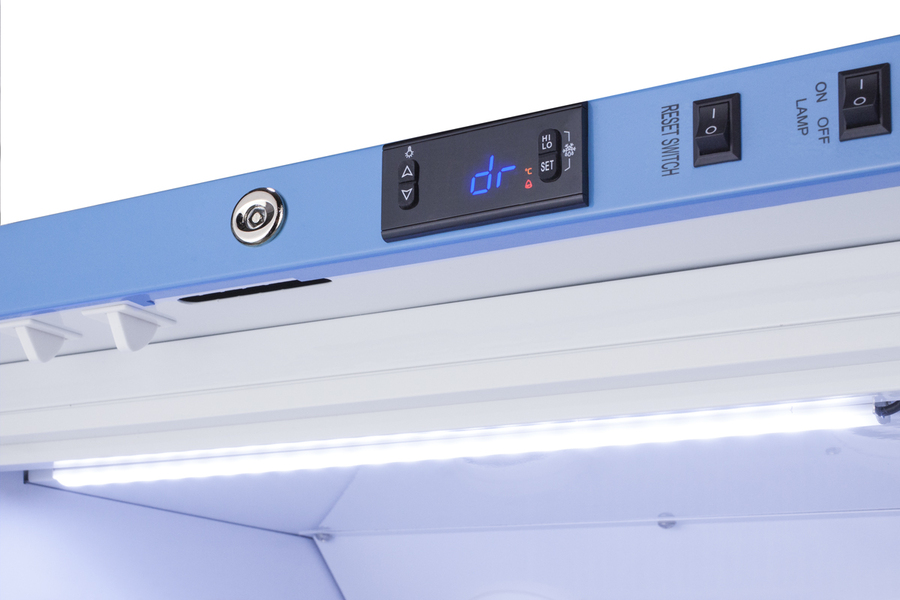

Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range

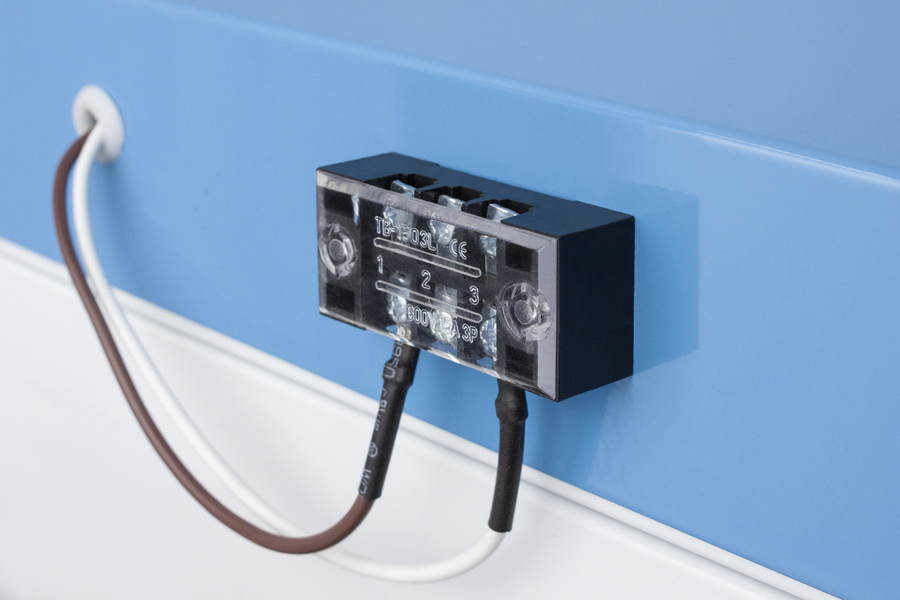

Remote alarm contacts
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

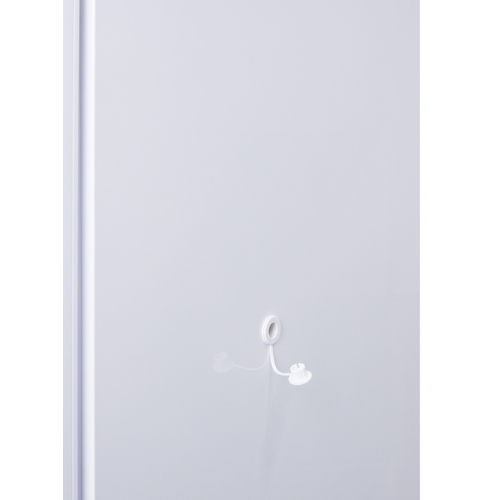

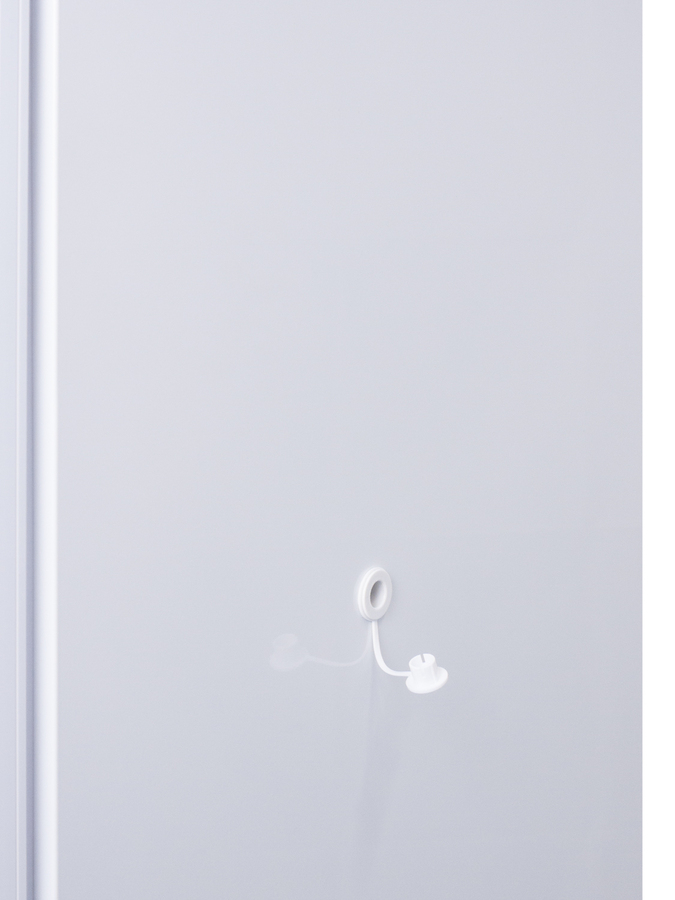

Access port
Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Audible power failure alarm
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm
Audible and visual alarm warns if the sensor is disrupted
Password protection
Control panel requires password entry to adjust the parameters beyond the set point

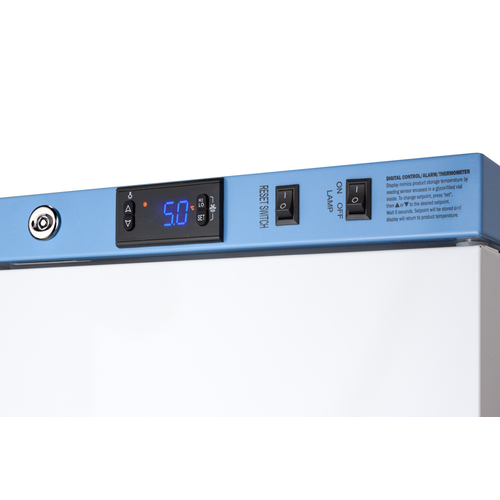

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Resettable min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments

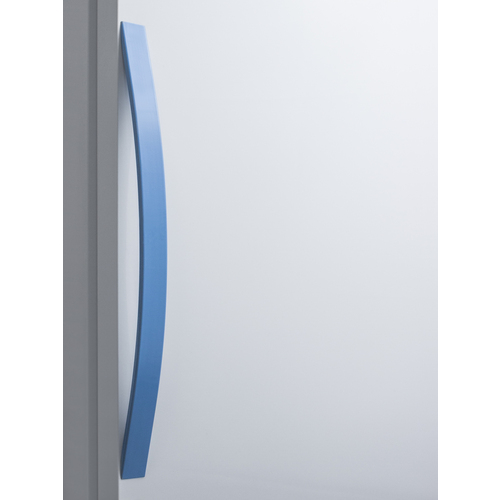

Antimicrobial silver ion-coated handle
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

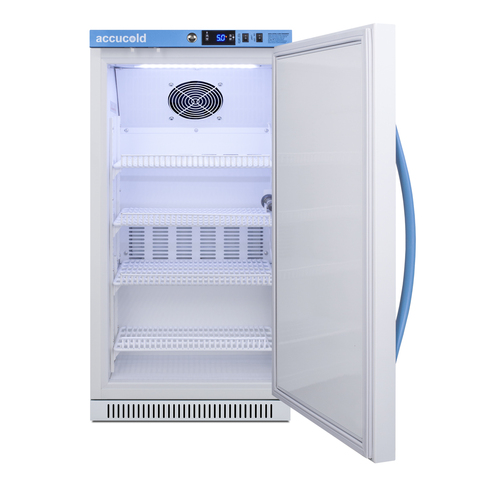

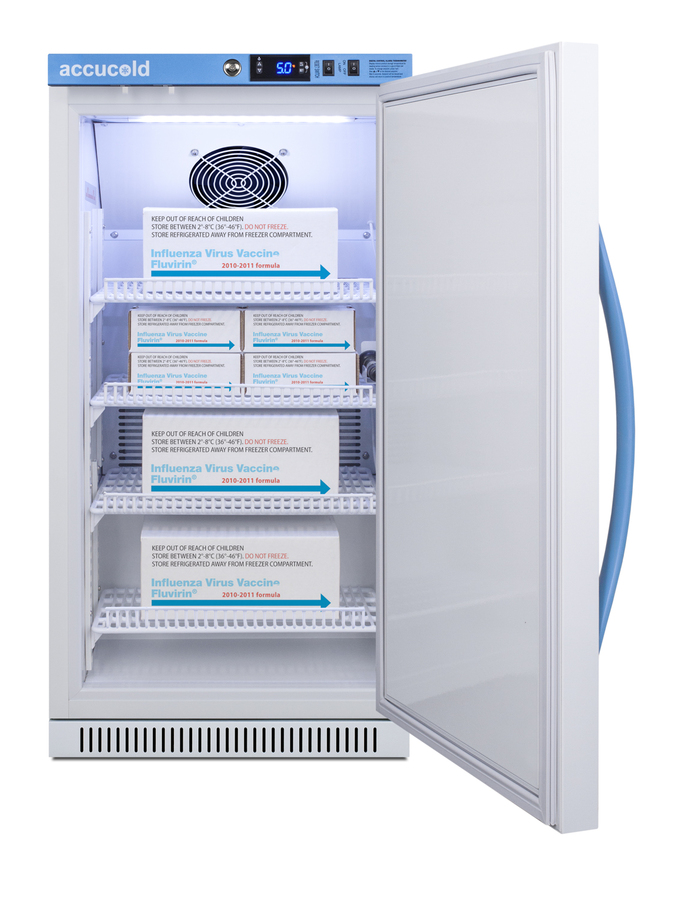

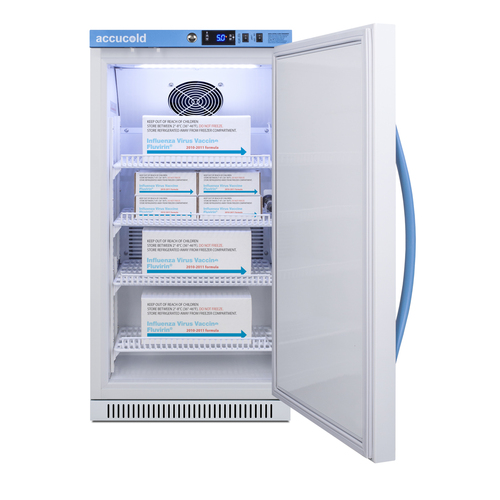

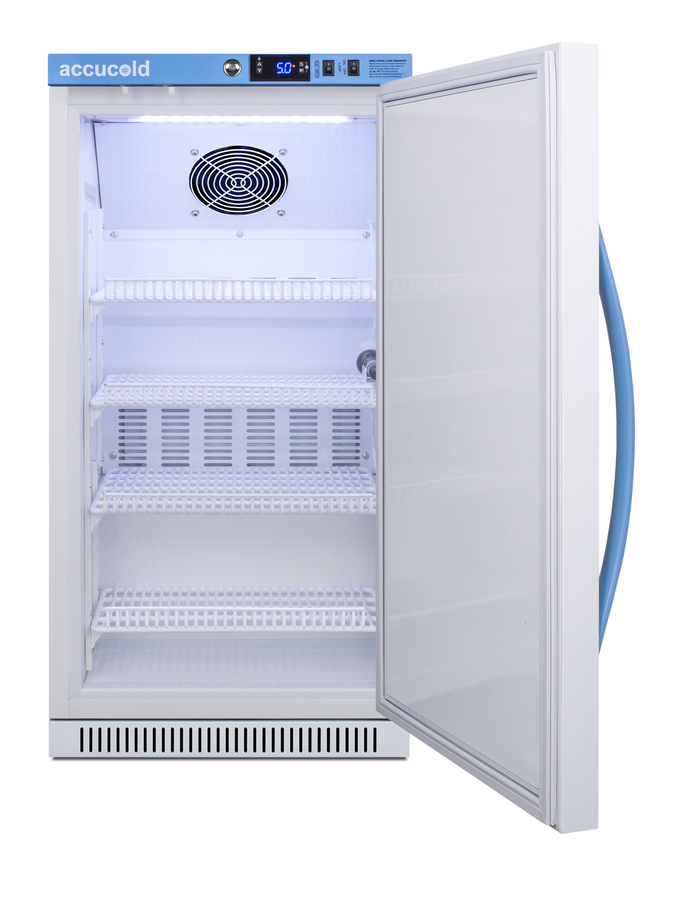

Adjustable plastic-coated wire shelves for improved circulation
Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Durable interior
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Interior light
Energy efficient LED lighting with internal on/off switch
Self-closing door
Added protection in busy settings
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Fully finished white cabinet
Allows the unit to be used freestanding
Extended warranty
2 years parts and labor/5 years compressor
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Additional choices
Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information
Versatile design
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

DESCRIPTION

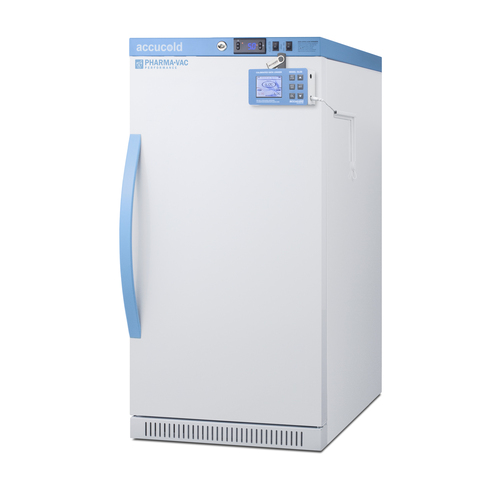

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines.

The ARS32PVBIADADL2B is a 2.83 cu.ft. all-refrigerator with a temperature range of +2°C to +8°C. Sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. It is designed for freestanding or recessed installation. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC and VFC for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 certified laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)

Inside, the ARS32PVBIADADL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS32PVBIADADL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS32PVBIADADL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 2.83 cu.ft. (80 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Weight 102.0 lbs. (46 kg)
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101077901
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.41oz.
High Side PSI 280.0
Low Side PSI 90.0
Interior Light Yes
Temperature Range 2°C to 8ºC
Dimensions
Interior Height 24.0" (61 cm)
Interior Width 16.0" (41 cm)
Interior Depth 15.0" (38 cm)
Compressor Step Height 6.13" (16 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Exterior
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
