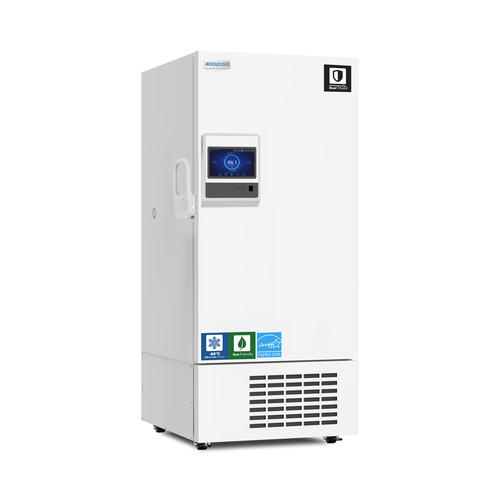

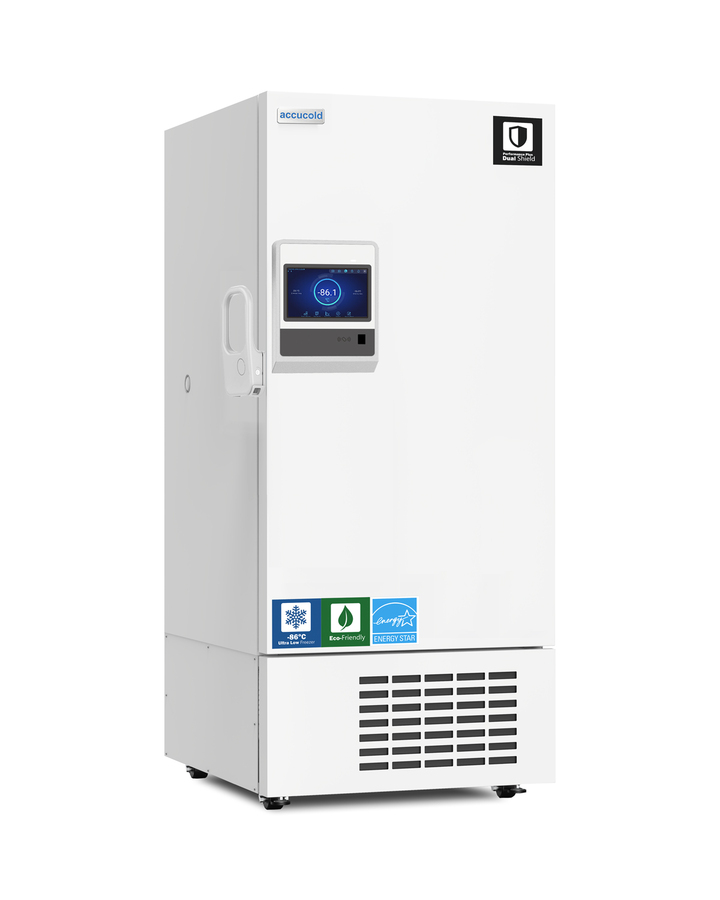

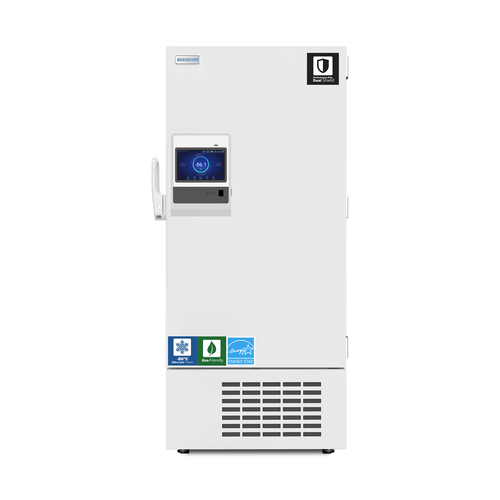

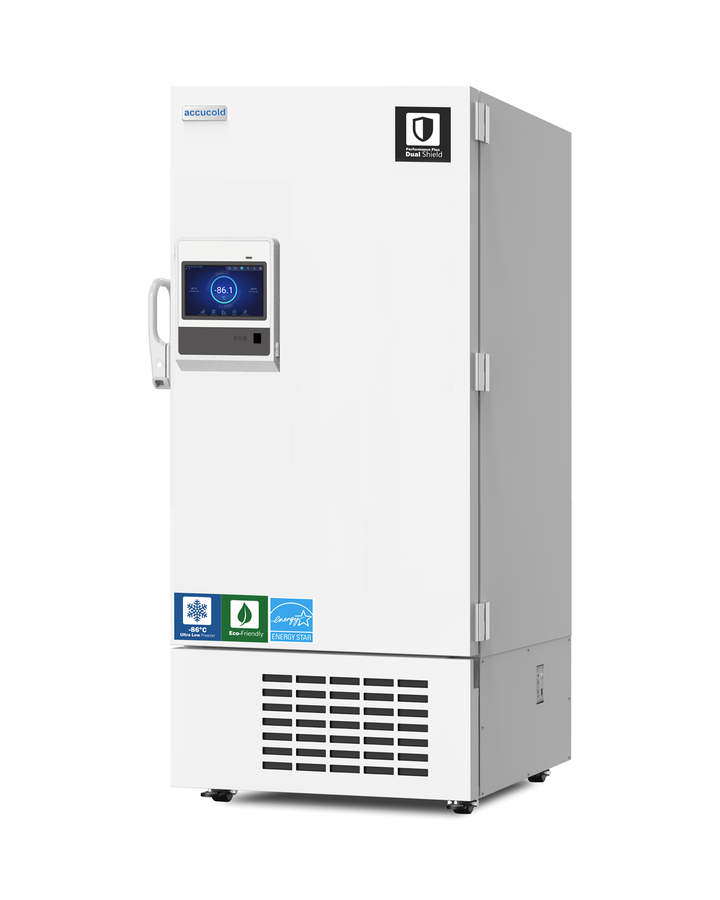

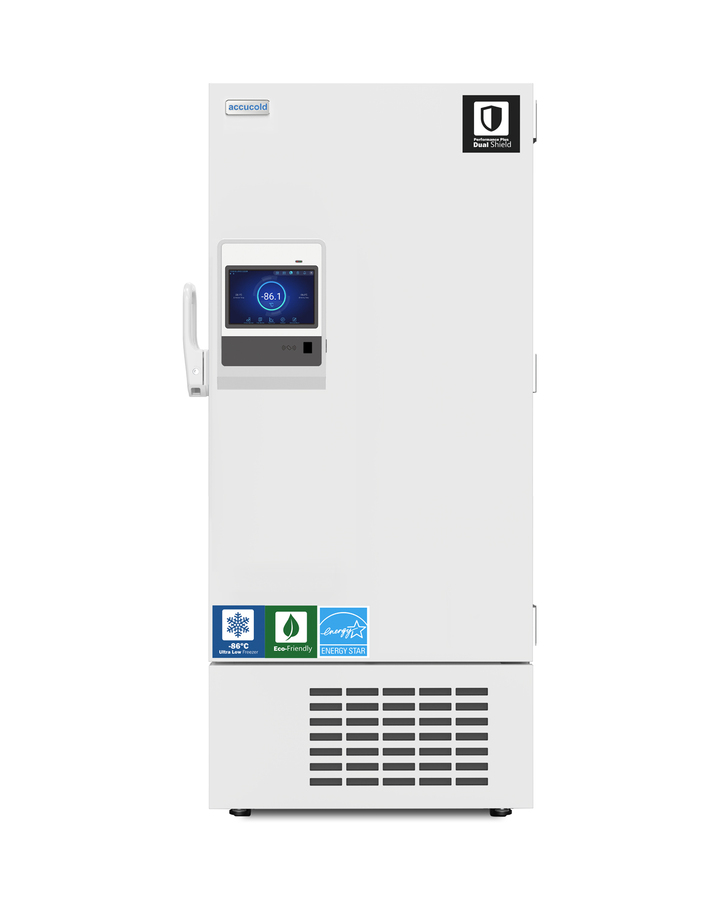

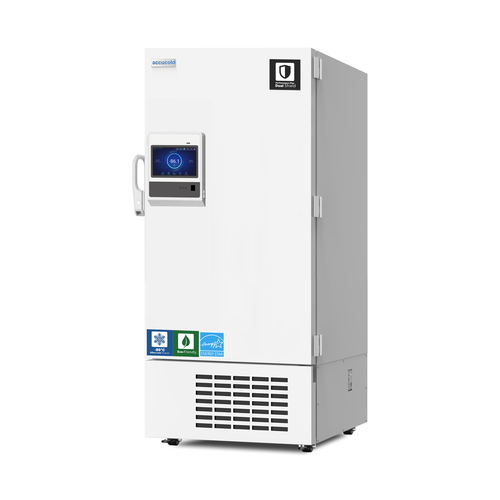

18.7 Cu.Ft. -86ºC Ultra Low Upright Freezer
Next day shipping

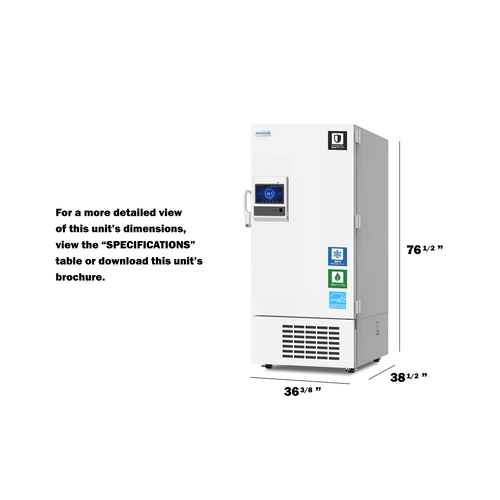

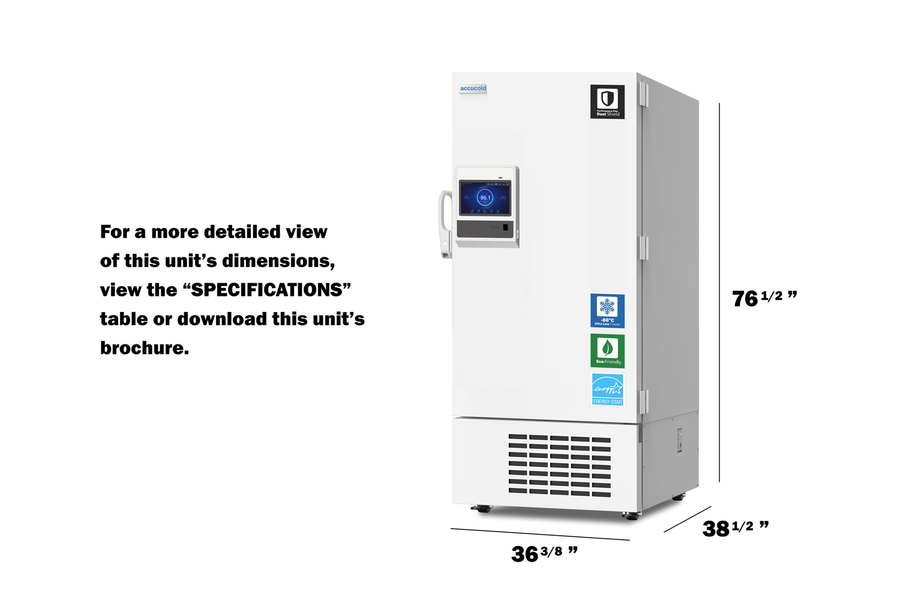

(194cm H x 94cm W x 98cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 76.5" (194 cm) |
| Width | 36.88" (94 cm) |
| Depth | 38.5" (98 cm) |
| Depth with door at 90° | 67.63" (172 cm) |
| Capacity | 18.7 cu.ft. (530 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 13.42 |
| Plug Type | (1) NEMA 5-15P and (1) NEMA 6-15P |
| Weight | 608.0 lbs. (276 kg) |
| Parts & Labor Warranty | 5 Years |
| Compressor Warranty | 12 Years |
| UPC | 761101160788 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | No |
| Interior Height | 49.75" (126 cm) |
| Interior Width | 23.0" (58 cm) |
| Interior Depth | 27.5" (70 cm) |
| Shelf Type | Steel |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Refrigerant Type | Mixed gas |
| Level Legs | 2 |
| Wheels | 4 |
| Temperature Range | -40 to -86ºC |
| Sound Level | 53.1 dB |
FEATURES
Designed for highly specialized cold storage storage applications of biological samples, DNA/RNA material, reagents, select vaccines and antibiotics, and other substances with strict low temperature requirements
Rated by the DOE to perform with more efficiency than federal standards require
Two redundant compressors operate independently, ensuring the interior temperature can be maintained at -80ºC in the event that one fails
Added layer of protection from ambient temperature and excess moisture that can lead to frost buildup
VIP vacuum insulation improves capacity and temperature stability
Accelerated performance to pull temperature down to -80ºC in just 185 minutes and recover from 1-minute door openings in 24 minutes
Durable construction and easily cleanable to ensure trusted sanitation

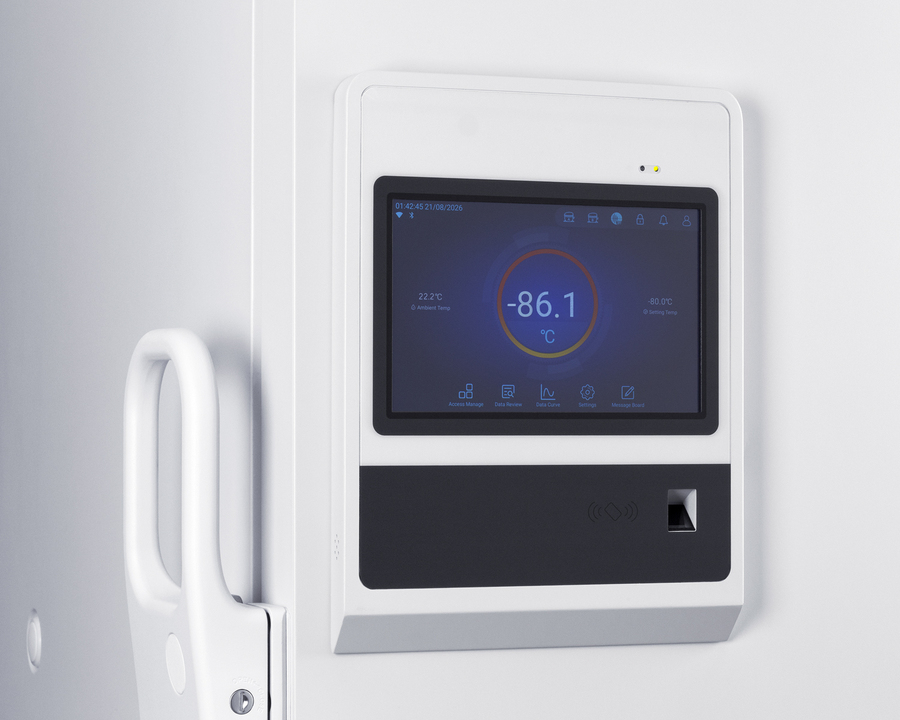

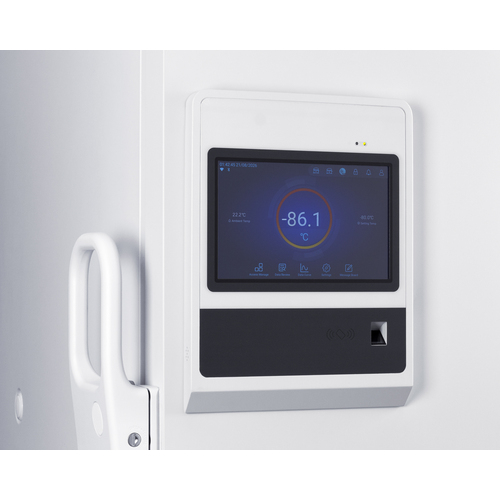

10" hi-res LED touchscreen allows intuitive operation and data management for staff

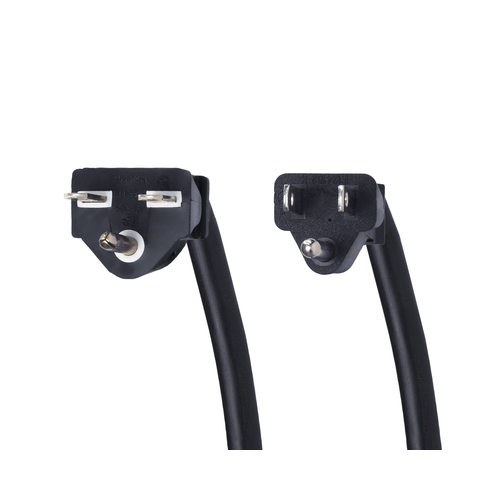

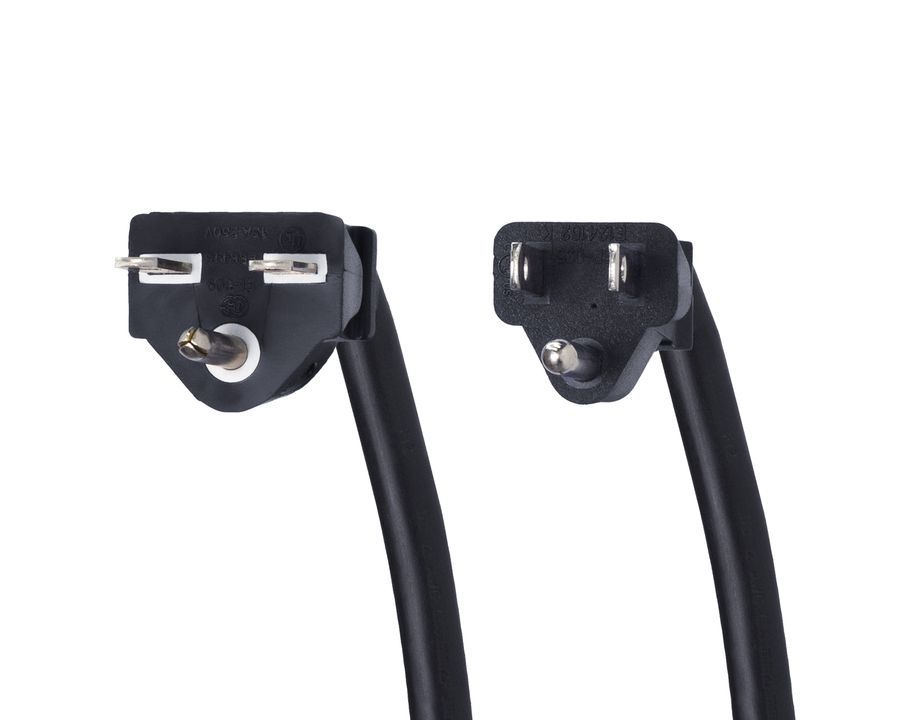

Can operate at 115V or 220V connections, with both plugs included

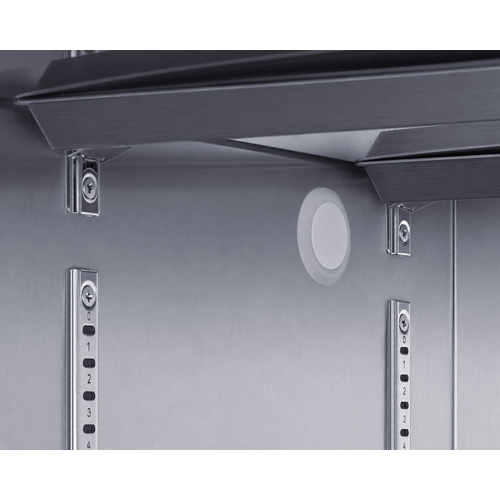

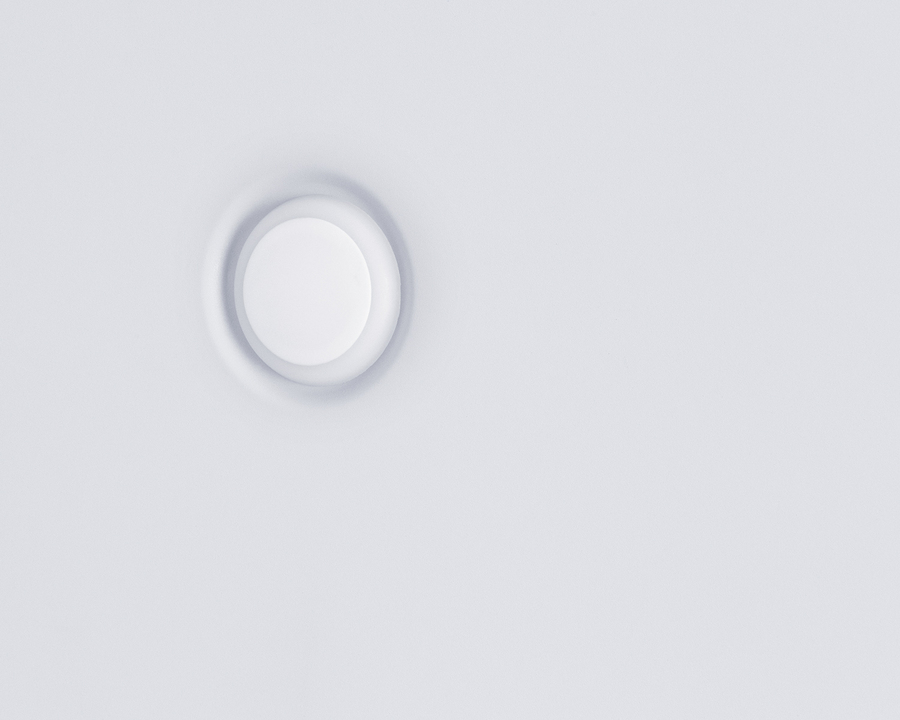

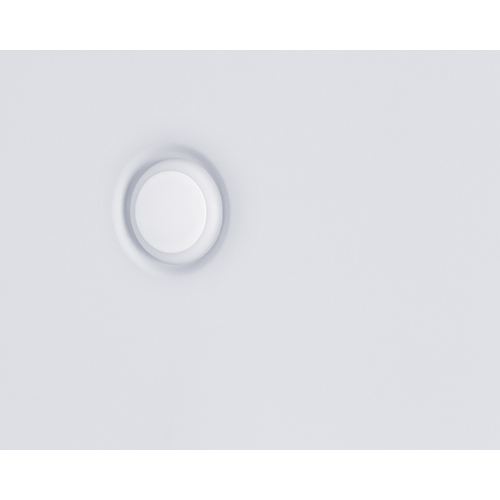

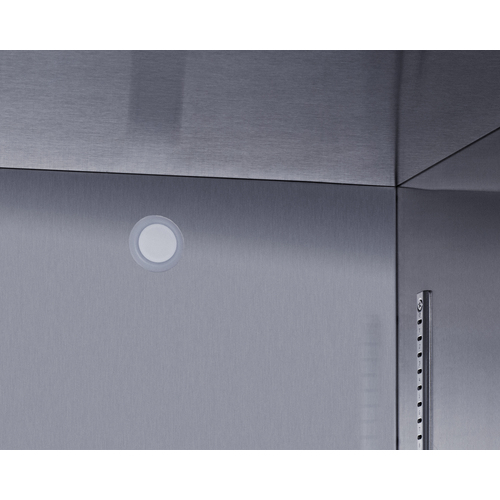

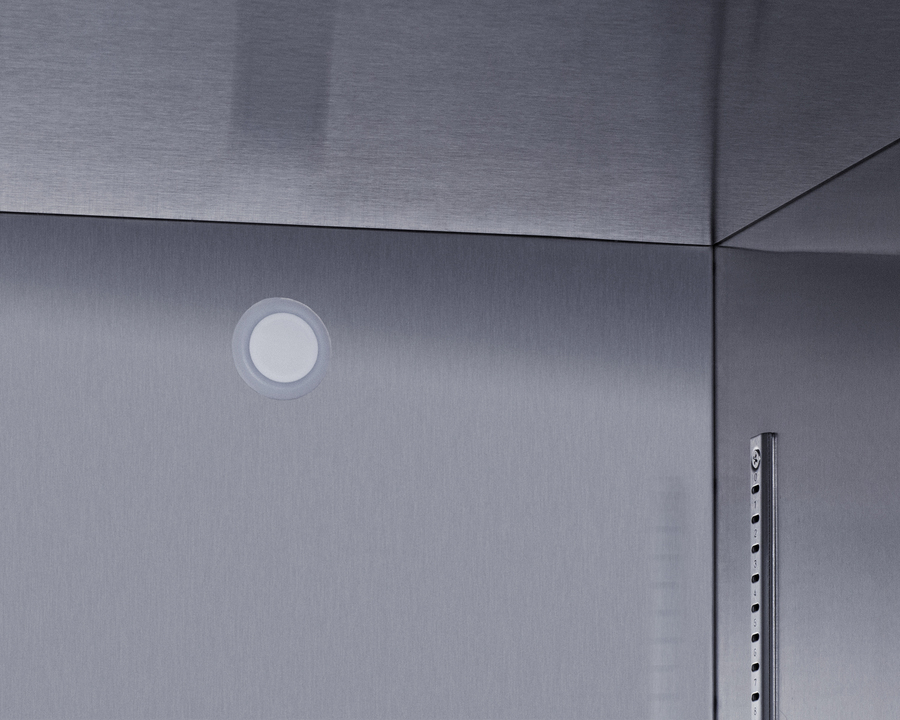

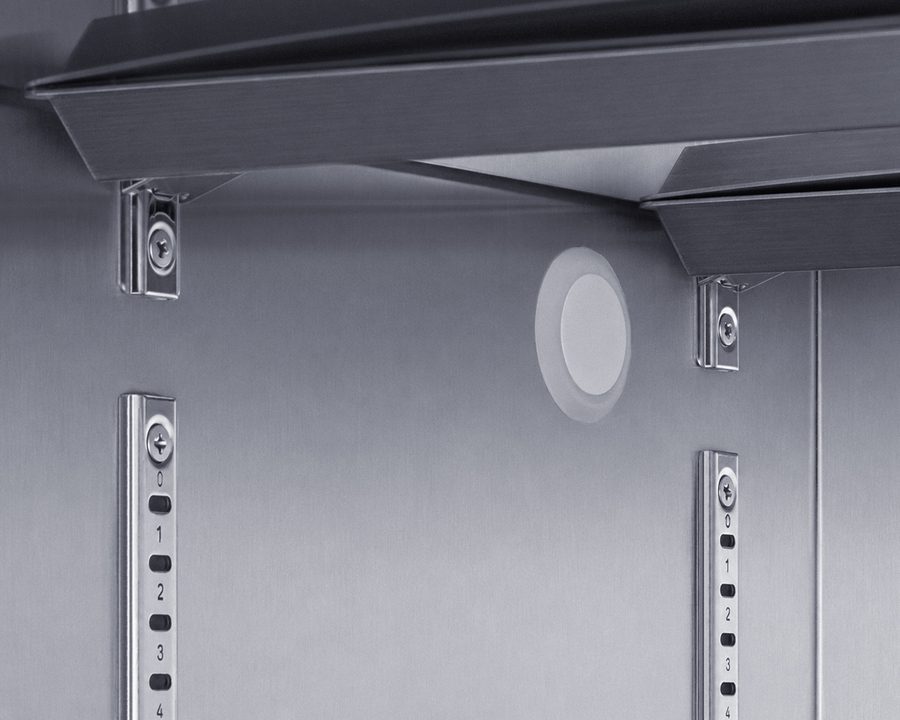

Pre-installed probe holes to accept additional monitoring devices

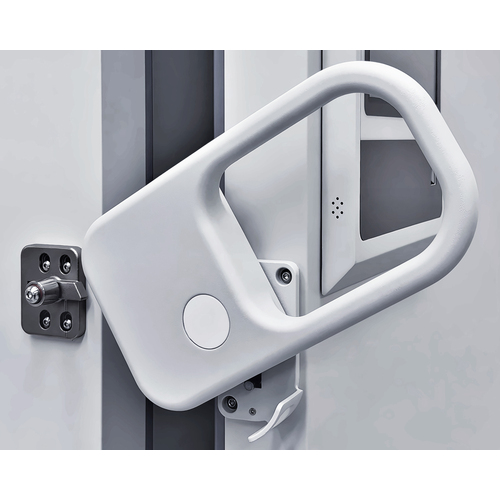

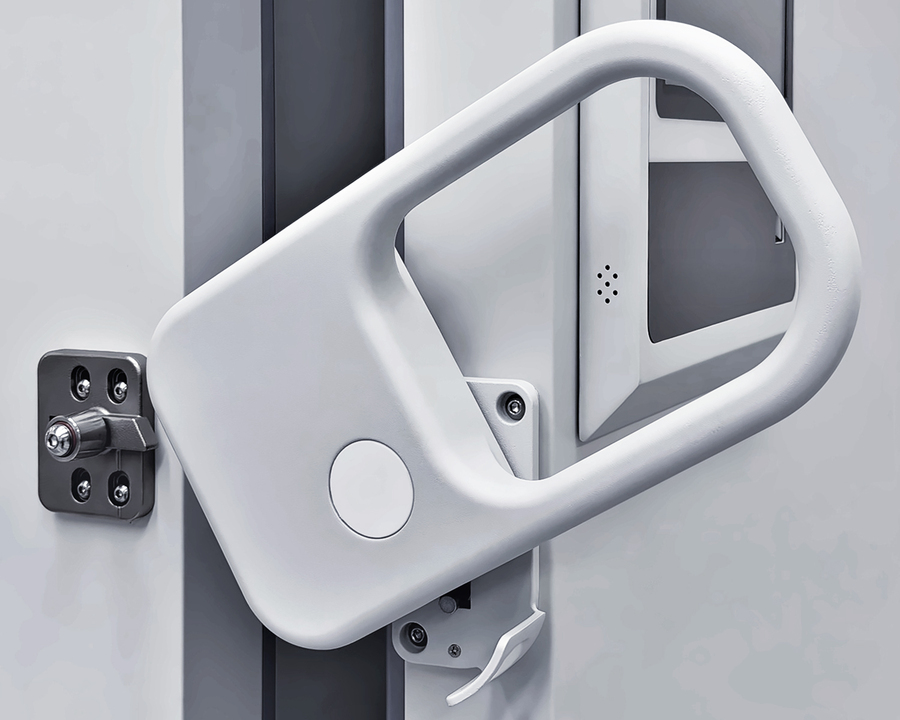

Side-mounted lever handle for easy opening

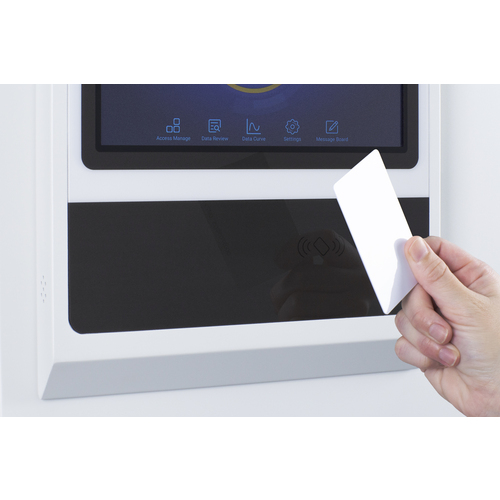

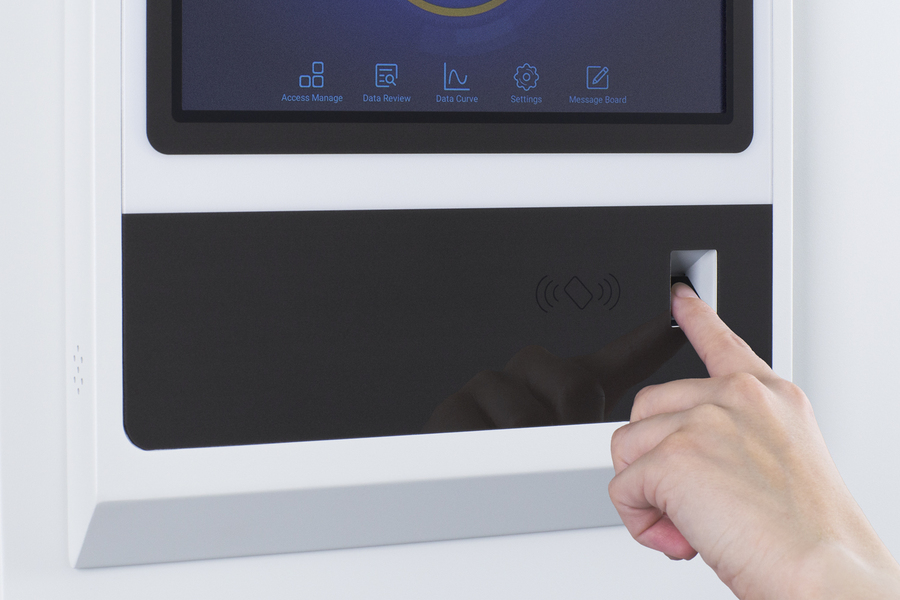

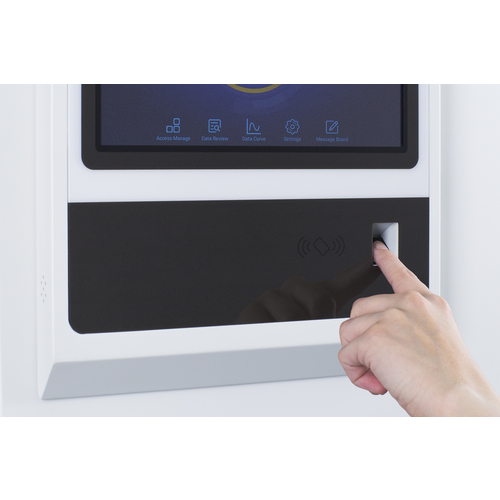

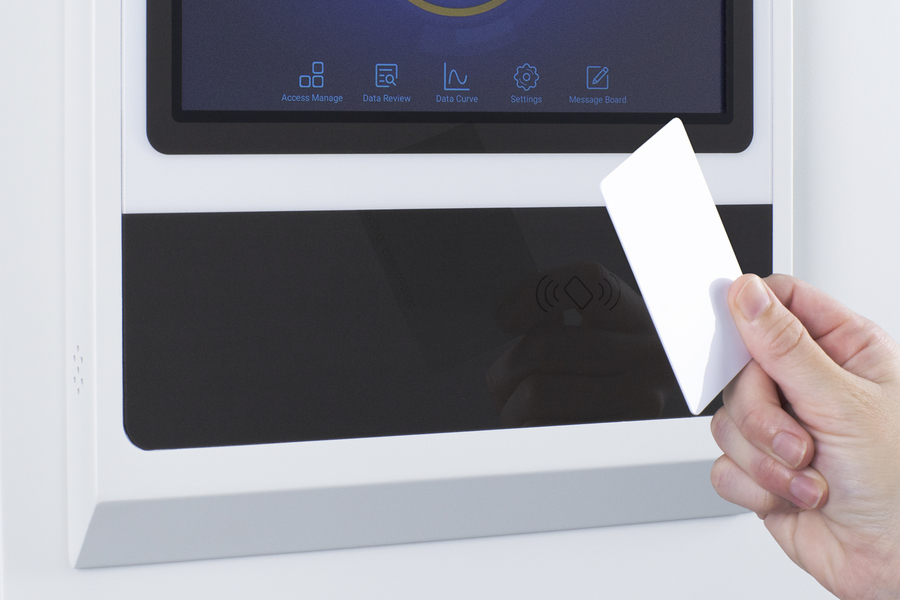

Password-protected controls with optional facial recognition, fingerprint access, and NFC cards (two included)

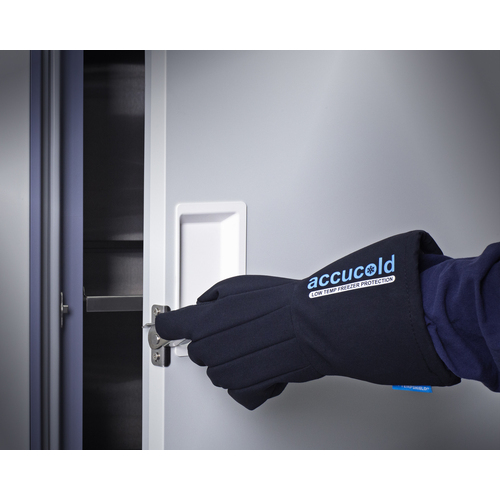

Secure storage with a locking door that can also accept a padlock
Allows your facility to connect as needed

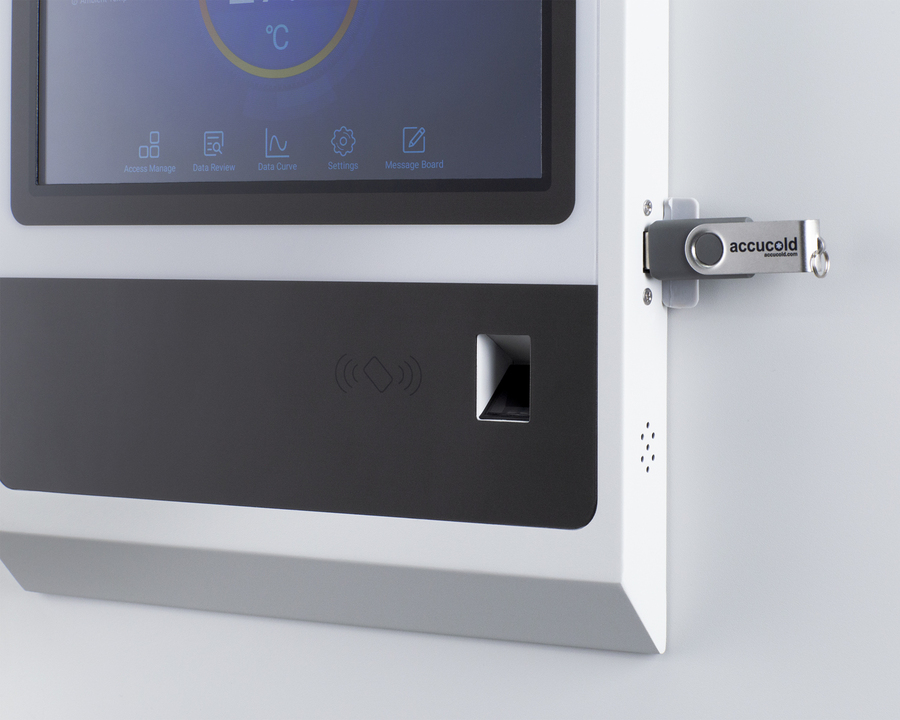

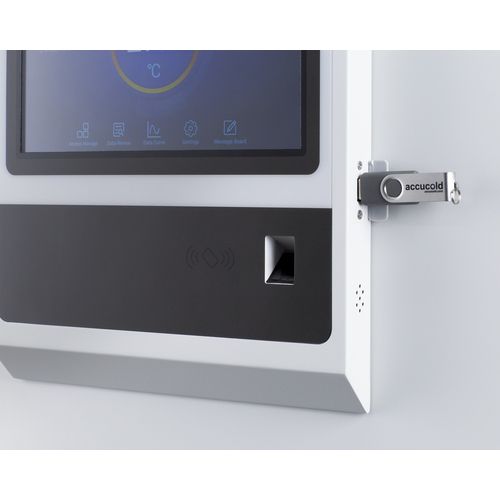

USB port included to allow for easy export of stored temperature data

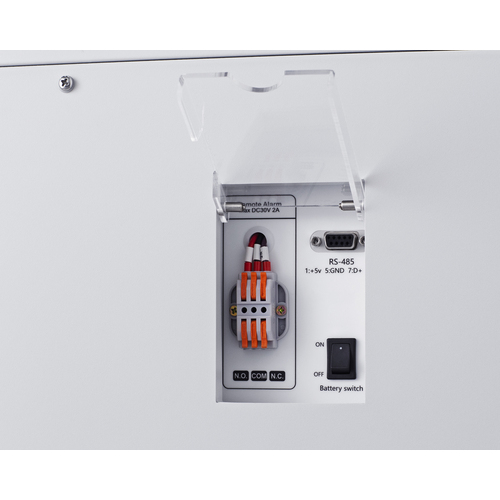

Audible and visual alarms for high and low internal temperature excursions and high ambient temperature
Sounds when the door is left ajar for over one minute
Audible and visual alerts for ambient temperature sensor, condenser sensor, temperature sensor, and high condenser temperature
Touchscreen setting lets you keep a record of what's being stored inside
Touchscreen includes an easy function for staff to communicate

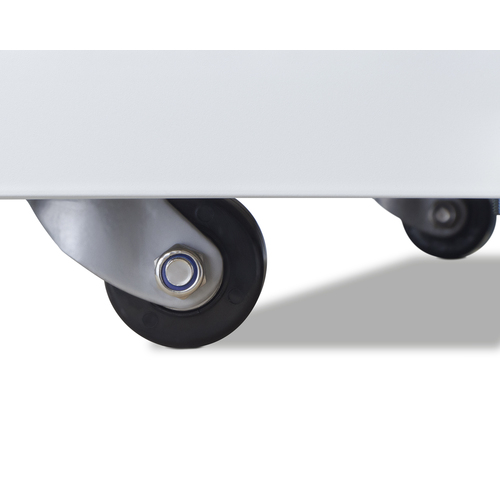

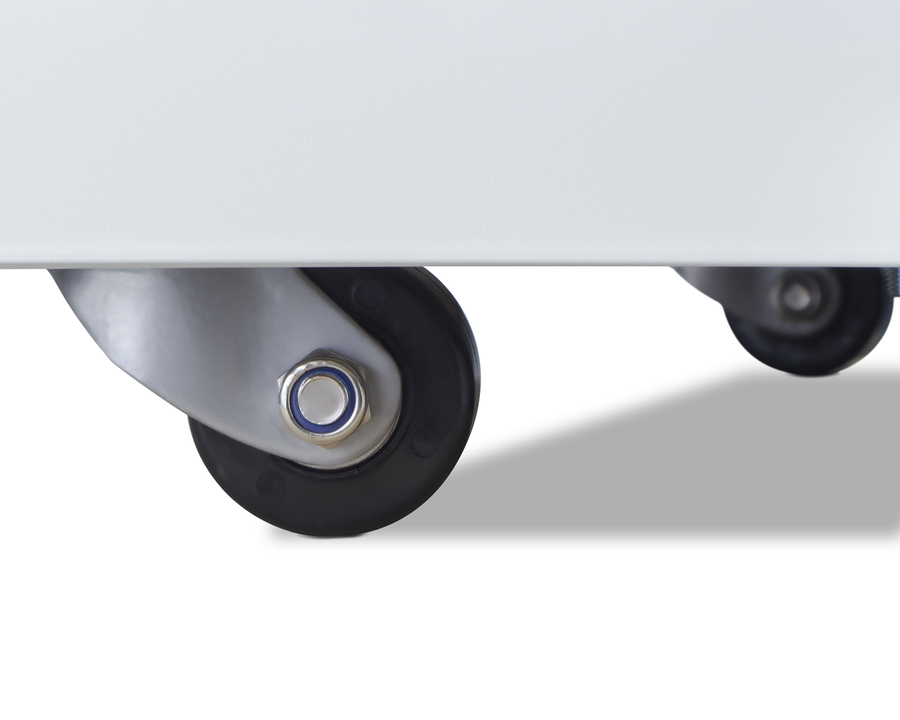

Four wheels (front two locking) to allow easier mobility when cleaning or moving the unit

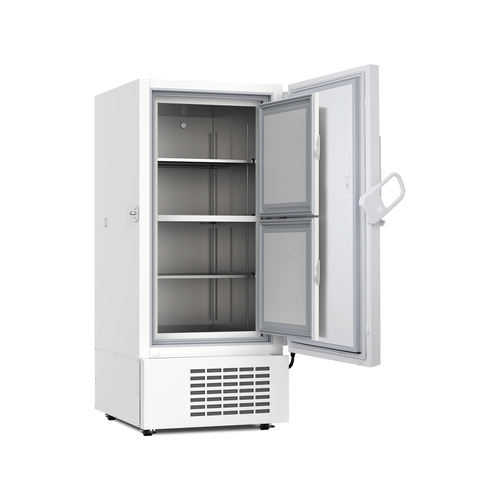

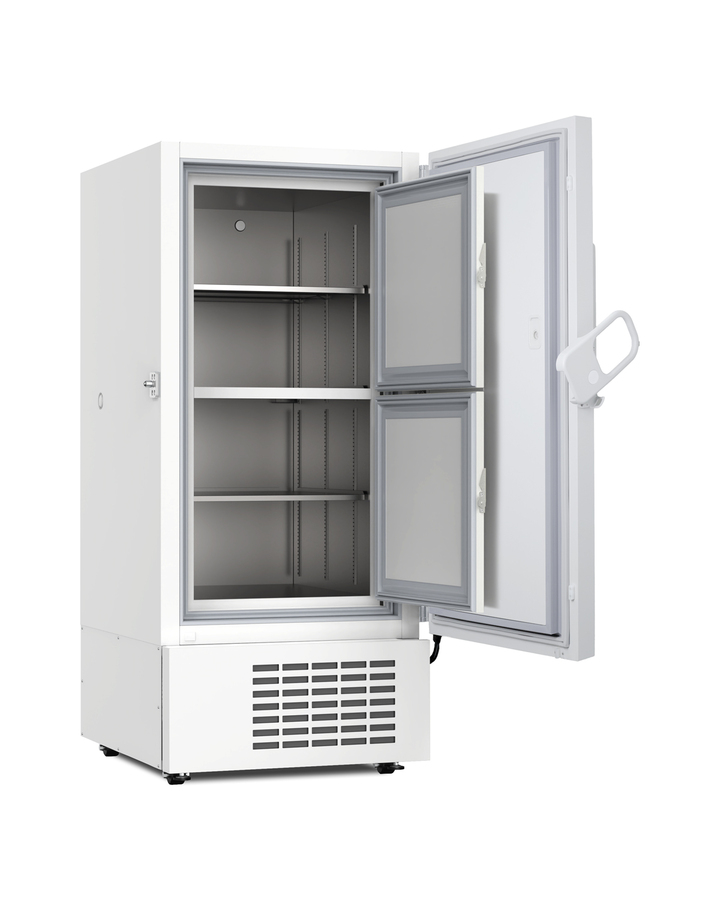

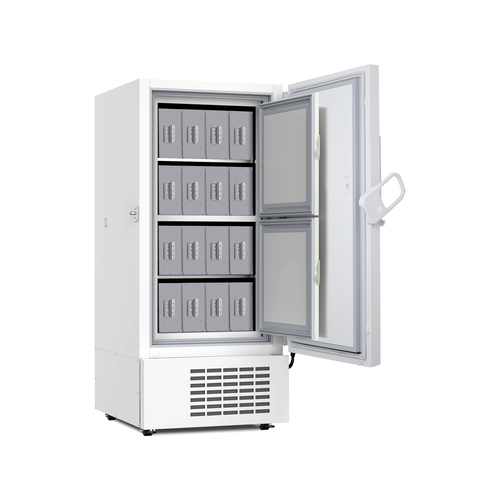

Stainless steel shelves included for easy storage

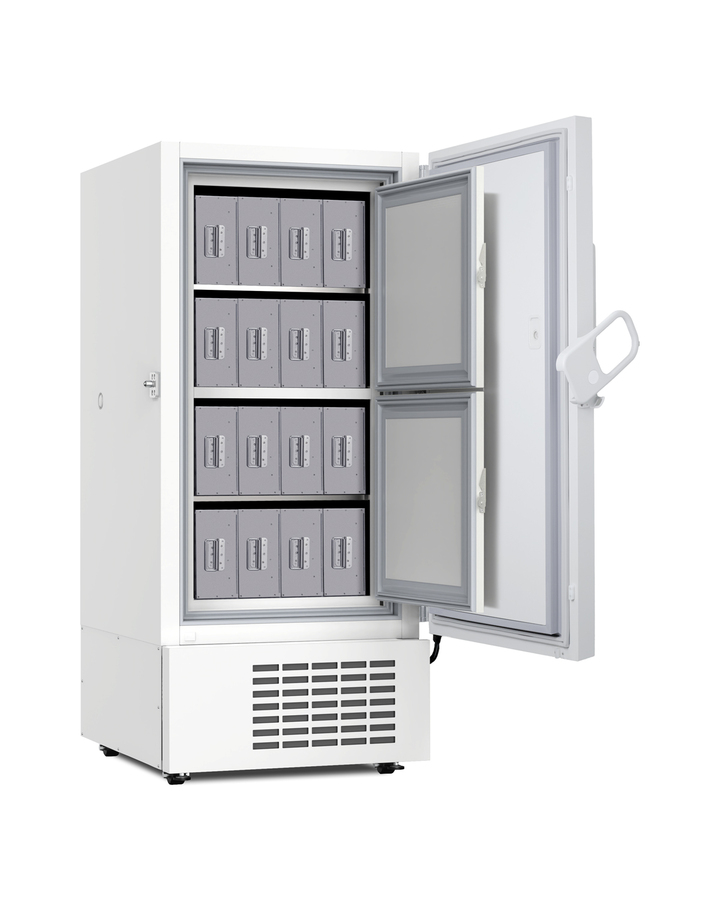

Designed to easily accommodate the most common rack configurations; Can hold up to 400 2" freezer boxes or 240 3" boxes
Stainless steel freezer racks made in the USA available for order
Operates at 53.1 dB for a performance that won't disturb working conditions
Specially crafted and rigorously tested for the long-term storage of biological materials
Two 1650 BTU compressors for reliable cooling with a blend of hydrocarbon refrigerants
Daily energy consumption: 7.3 kWh/day
12-year compressor coverand 5-year parts & labor warranty
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Contact us to learn more about our Preventive Maintenance programs for best practices in keeping your equipment running at its best
DESCRIPTION

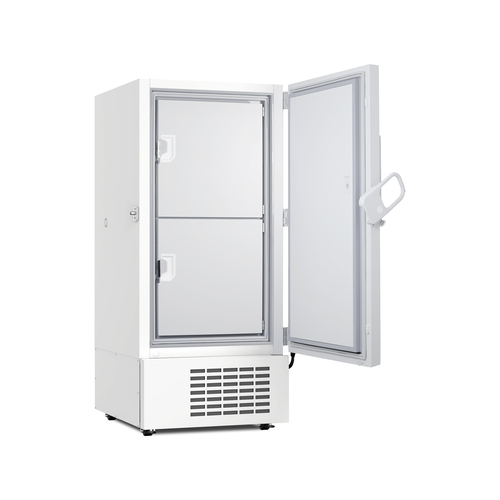

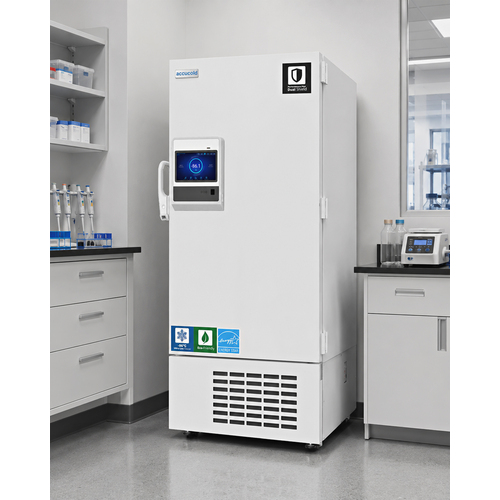

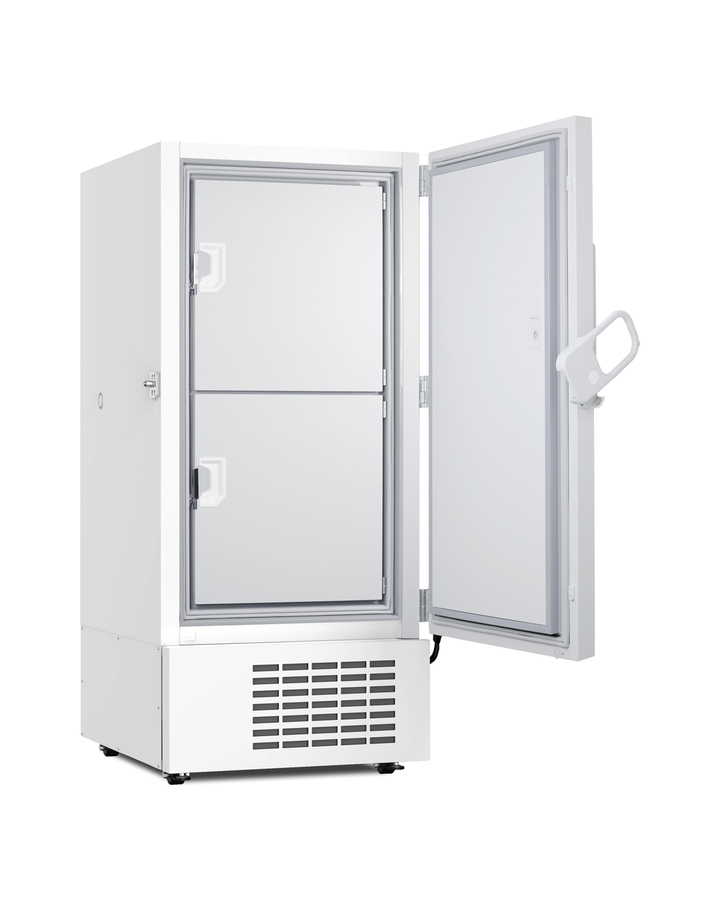

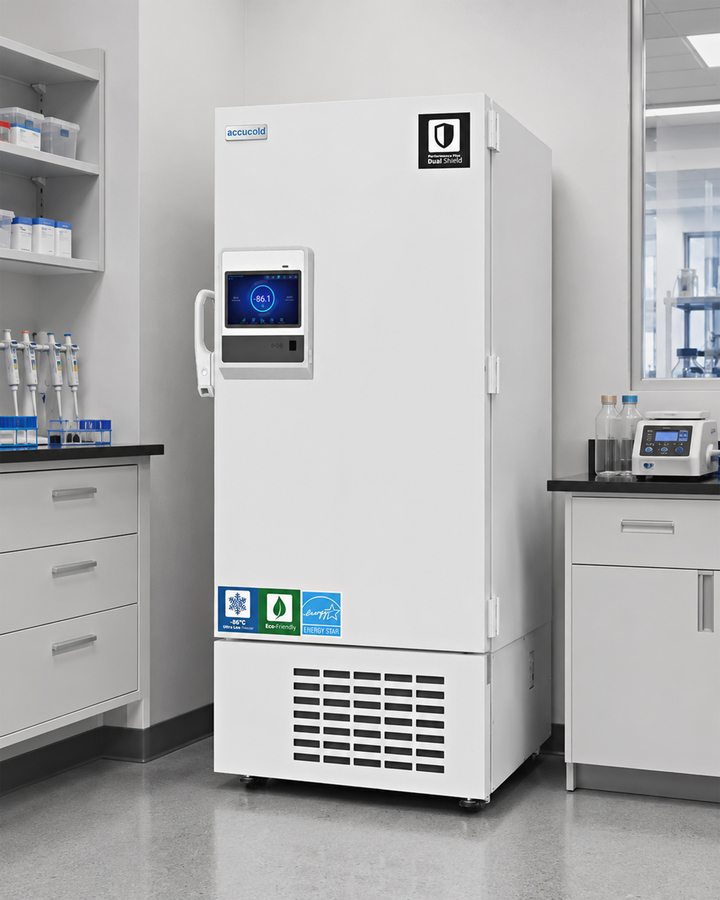

Accucold's Performance Plus ultra low freezers are purpose-built for the long-term storage and reliable protection of high value, temperature-sensitive products and biological materials. Model AULT530DC is an ENERGY STAR certified ultra low temperature freezer designed for laboratories, life science and pharmaceutical research facilities, and other institutional settings. This upright unit can operate between -86º and -40ºC and has been tested to maintain temperature within 2.5ºC of the set point. Our Dual Shield system features two powerful redundant compressors, ensuring stored items can stay at -80ºC temperatures in the event of one compressor failure. The interior features two insulated inner doors for an added layer of protection from ambient air. VIP vacuum insulation improves capacity and ensures temperature stability. Our powerful compressors have accelerated temperature pulldown to reach the set point in 185 minutes and quickly recover from door openings. This unit includes an advanced microprocessor digital control panel with a 10" HD touchscreen located on the door. This provides fast viewing of the current and high/low temperatures, as well as quick navigation to view temperature records, data curves, alarm history, door openings, message board, inventory records, and user activity. Temperature readings can be logged to a USB device, recording every 5 minutes and saving data for up to 10 years. Audible and visual alarms alert the user of interior or ambient temperature swings, open door warnings, various equipment sensor alerts, and power outages. Two access ports are included to accept additional monitoring equipment as needed. The rear includes remote contacts. This model offers 18.7 cu.ft. of storage. The stainless steel interior includes three adjustable steel shelves. The interior can hold up to 400 2" freezer boxes, or 240 3" freezer boxes using standard racks (not included). Freezer racks are available for purchase through Accucold. Dual voltage operation allows this unit to be plugged into 115V or 220V outlets. We include both a NEMA 5-15P and NEMA 6-15P for easy setup. Four pre-installed casters (two locking) allow easy portability as needed. For trusted security that meets facility needs, this unit is equipped with both a mechanical and electronic door lock, with optional facial recognition, fingerprint access, and NFC cards (two included). The side-mounted ergonomic handle can accommodate a padlock if added security is preferred. Accucold's ultra low temperature freezer line includes additional sizes. These models are UL-listed for both the US and Canada and come with an extended 12-year compressor and 5-year parts & labor warranty.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
YOU MIGHT NEED
PM5
DLPWULTKIT

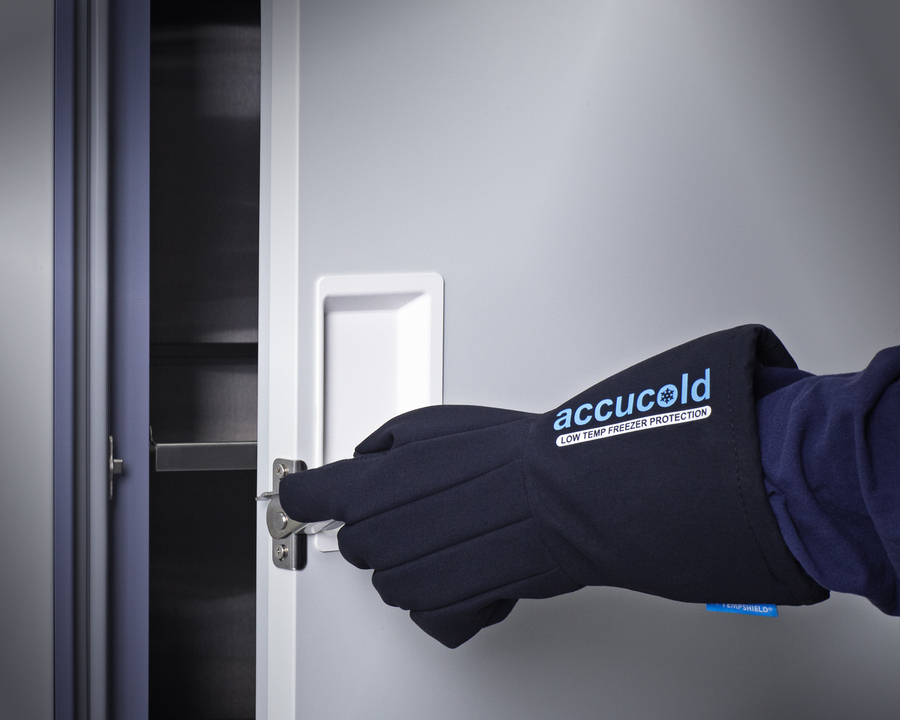

ULTGLOVESXL
