12 lb. Drain-Free Icemaker

SKU: BIM25

No drain required for more flexibility in placing the icemaker

Estimated Time to Ship:

Next day shipping

How to Buy

25.25" H x 15.0" W x 18.25" D
(64cm H x 38cm W x 46cm D)

Overview
Height of Cabinet	24.75" (63 cm)
Height to Hinge Cap	25.25" (64 cm)
Width	15.0" (38 cm)
Depth	18.25" (46 cm)
Depth with door at 90°	31.75" (81 cm)
Capacity	1.0 cu.ft. (28 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Shipping Weight	65.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059273
Icemaker
Door Swing	RHD
Reversible	Factory Reversible
Daily Ice Production	12.0 lbs. (5 kg)
Ice Storage Capacity	12.0 lbs. (5 kg)
Ice Shape	Crescent
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	0.63 oz.
High Side PSI	250.0
Low Side PSI	110.0
Interior Height	11.5" (29 cm)
Interior Width	10.0" (25 cm)
Interior Depth	12.63" (32 cm)
Level Legs	2

Exterior

LHD - Left hand door swing

Latch - Factory-installed door latch requires manual release to open unit

Built-in capable

Make the best use of space by installing your icemaker under the counter and flush with other cabinets

Mid-sized capacity

Produces and stores up to 12 pounds of ice per day cycle

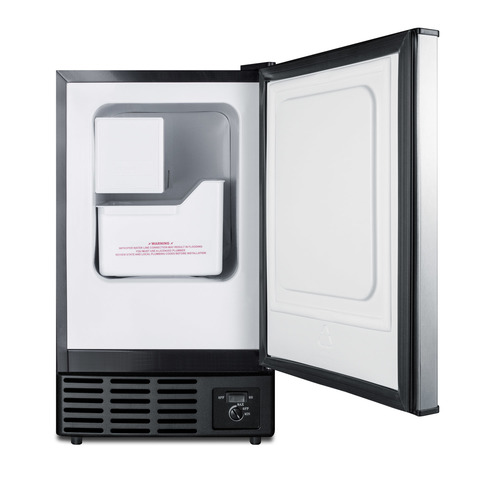

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Manual defrost

Side drain included for easier cleanup

Ice scoop included

Large plastic ice scoop included for your convenience

Fully finished cabinet

Allows the icemaker to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

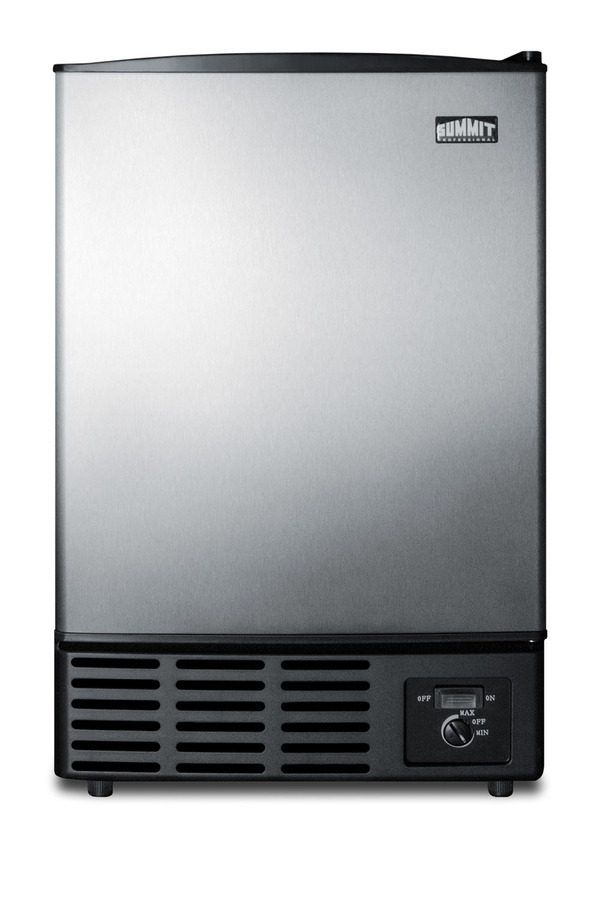

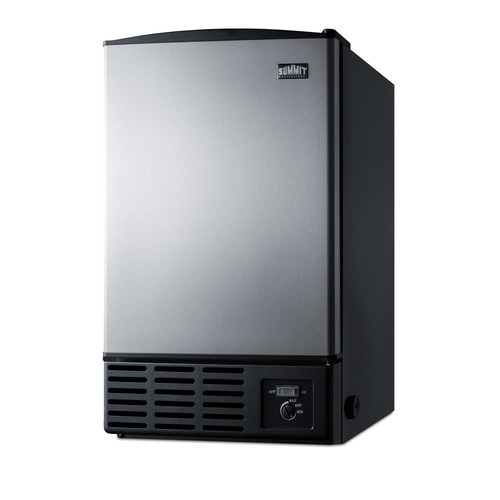

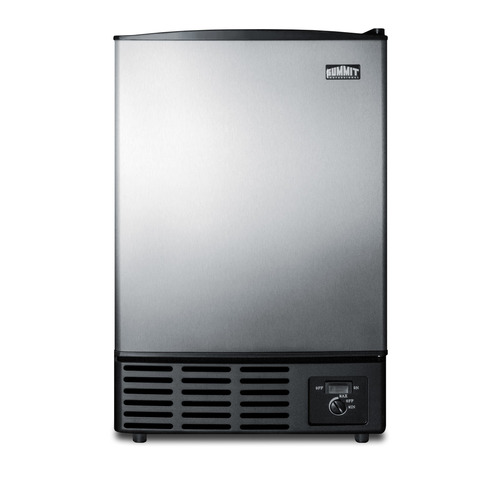

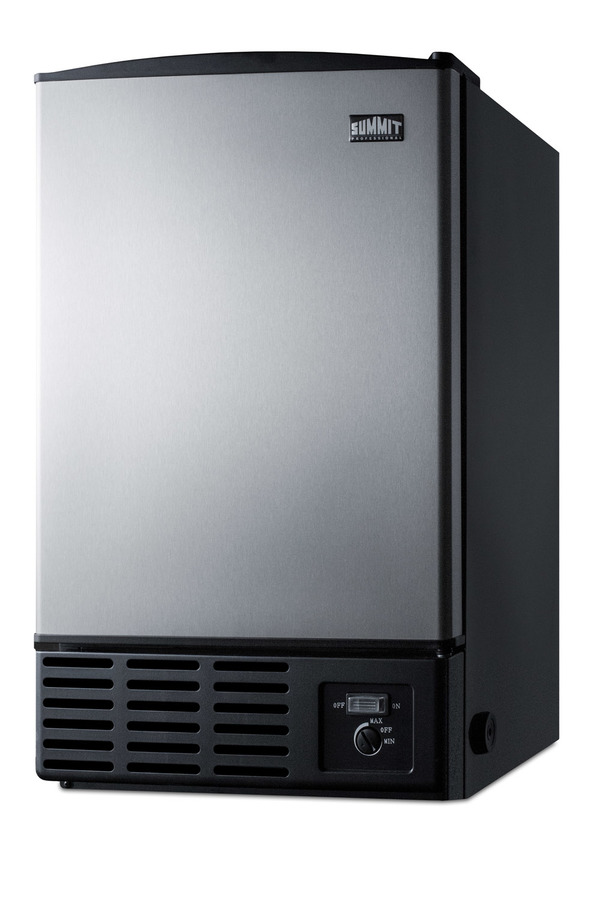

SUMMIT BIM25 is a compact icemaker with a modern look and convenient design.

Sized at 15" wide, the BIM25 can produce up to 12 pounds of crescent-shaped ice per day, storing it in a removable insulated bin. This unit features a fully finished black cabinet with a stainless steel door for an attractive look. The front-breathing system allows the unit to be installed under counters. A side defrost drain is included for easier cleaning. No drain or pump is required for use. This unit includes a connection hose, but other hardware must be supplied by your plumber.

With its compact size and easy operation, the BIM25 is the perfect unit for home bars, apartment units, yacht kitchens, and other settings looking to offer a reliable icemaker in attractive style.

BROCHURE w/ DRAWINGS
BIM25.pdf

TECHNICAL DRAWING (.dwg)
BIM25_ICE_MAKER__A-C_2000_.dwg

USE & CARE
BIM25_User_Manual_R600_01.27.21.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]
