12 lb. Drain-Free Icemaker

SKU: BIM25H34IF
No drain required for more flexibility in placing the icemaker
Estimated Time to Ship:

5 to 7 days

34.25" H x 15.38" W x 21.0" D
(87cm H x 39cm W x 53cm D)

Overview
Height of Cabinet 34.0" (86 cm)
Height to Hinge Cap 34.25" (87 cm)
Width 15.38" (39 cm)
Depth 21.0" (53 cm)
Depth with door at 90° 34.0" (86 cm)
Capacity 1.0 cu.ft. (28 L)
Defrost Type Manual
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059419
Icemaker
Door Swing RHD
Reversible Yes
Daily Ice Production 12.0 lbs. (5 kg)
Ice Storage Capacity 12.0 lbs. (5 kg)
Ice Shape Crescent
Number of Ice Cube Sizes 1
Refrigerant Type R600a
Refrigerant Amount 0.63 oz.
High Side PSI 250.0
Low Side PSI 110.0
Interior Height 11.5" (29 cm)
Interior Width 10.0" (25 cm)
Interior Depth 12.63" (32 cm)
Level Legs 2

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

No pump or drain required

Convenient design allows more flexibility in positioning the unit

Built-in capable

Make the best use of space by installing your icemaker under the counter and flush with other cabinets

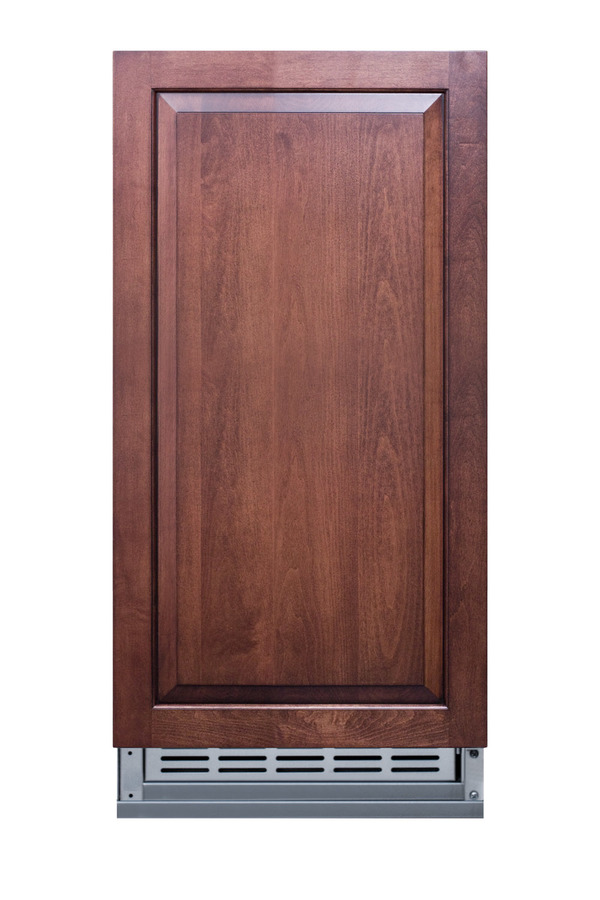

Panel-ready door

Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 28 1/2" H x 15 3/8" W)

Stainless steel wrapped cabinet

Door, cabinet, and kickplate feature full 304 grade stainless steel construction made in the USA

Mid-sized capacity

Produces and stores up to 12 pounds of ice per day cycle

Removable bin

Bucket can be removed for fast and easy cleaning

Storage compartment

Includes lower compartment for storing non-refrigerated items

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Manual defrost

Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Ice scoop included

Large plastic ice scoop included for your convenience

Sealed back

Flush design with no exposed coils for easier cleanup

Defrost drain included

Rear-mounted drain for easier cleaning

Fully finished cabinet

Allows the icemaker to be used freestanding

Factory reversible door

Unit ships with right hand door swing. For a left hand door swing, order with the "LHD" option

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT brings convenient luxury under the counter with built-in icemakers in complete stainless steel.

Sized at just 15 3/8" wide, the BIM25H34IF features a front-breathing design for built-in installation, but also has a fully finished stainless steel wrapped cabinet to allow freestanding use. The door is equipped with an integrated stainless steel frame designed to accept overlay panels (sized 28 1/2" H x 15 3/8" W), allowing you to create a custom look that blends into your existing cabinetry. This unit includes a lower non-refrigerated storage compartment with a swing door. It has a sealed back and right angle plug to allow more flush installation.

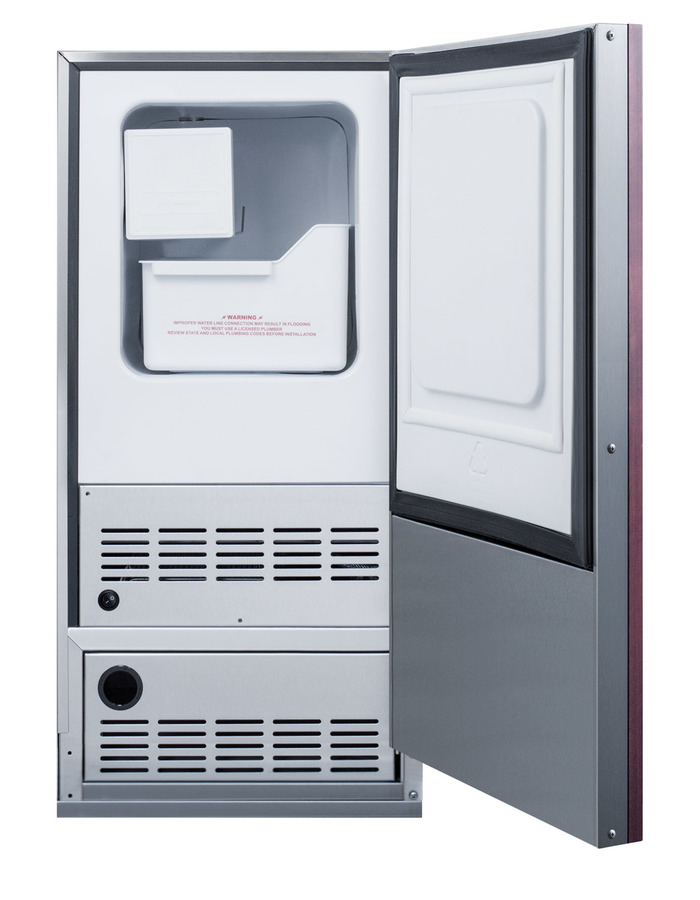

Inside, the BIM25H34IF can produce up to 12 pounds of crescent-shaped ice per day, storing it inside a removable insulated bin. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required for use, offering more flexibility in where you place the unit. The BIM25H34IF ships with a connection hose. Other hardware should be supplied by your plumber.

With its complete stainless steel construction and low maintenance design, the BIM25H34IF is a great way to finish any undercounter kitchen space.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
