COVID-19 VACCINE COLD STORAGE SOLUTIONS

Compact All-Refrigerator

SKU: FF28LWHVAC
Specially designed to store vaccines under stable temperature conditions
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
24.88" H x 18.5" W x 17.75" D
(63cm H x 47cm W x 45cm D)

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.88" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 0.8 cu.ft. (23 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.7
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 63.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101007175
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.7oz.
High Side PSI 120.0
Low Side PSI 70.0
Level Legs Qty 2
Temperature Range 2 to 8ºC
Dimensions
Interior Height 11.38" (29 cm)
Interior Width 14.0" (36 cm)
Interior Depth 10.5" (27 cm)

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Improved temperature stability

Interior is designed to operate within 2ºC of set temperature performance

Interior drawer covers

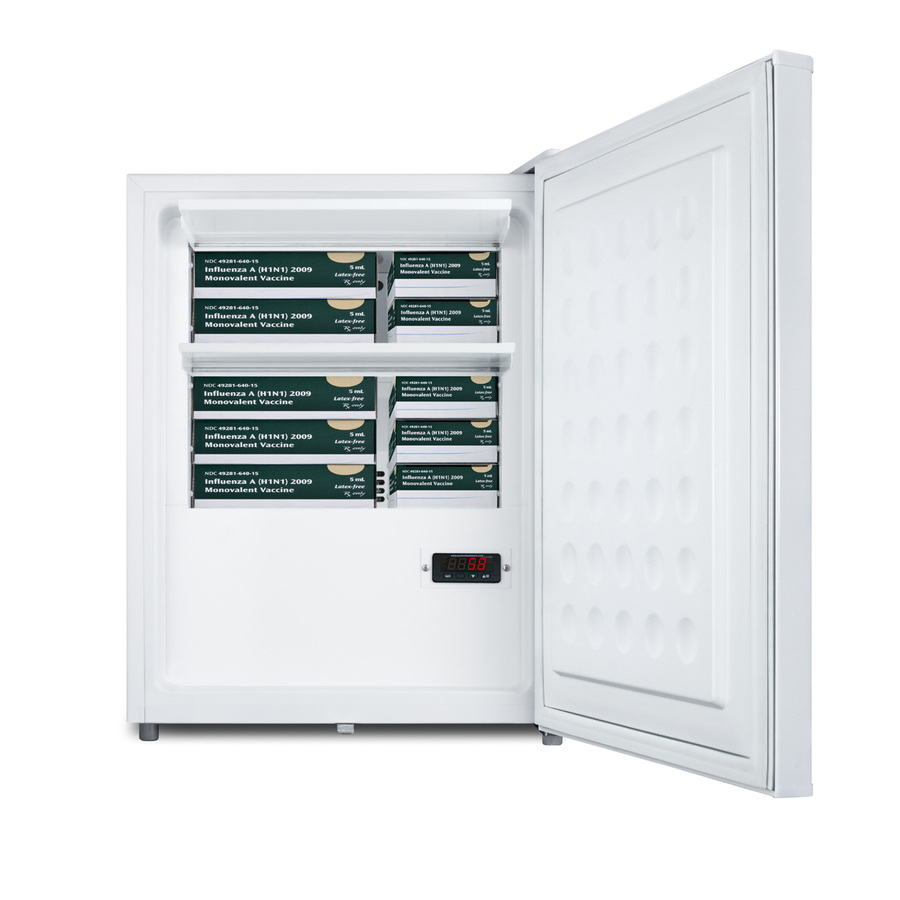

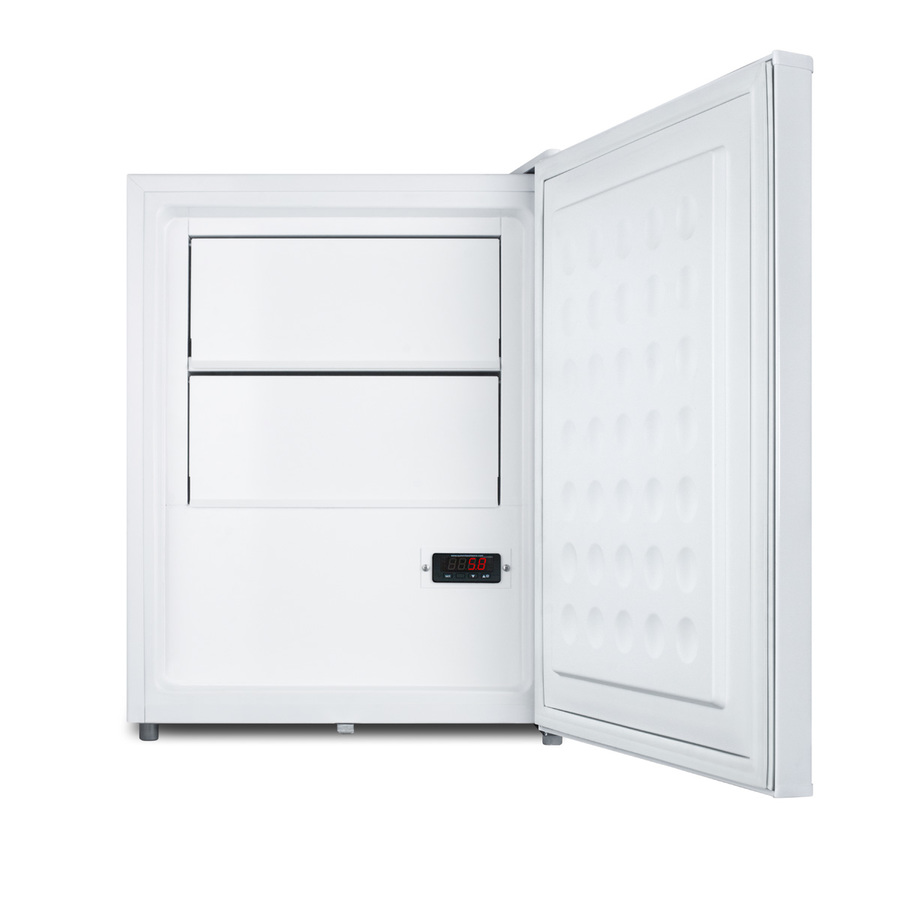

Two shelves are protected by metal door flaps that help to protect stored contents from being exposed to room temperature when the door is opened

Digital thermostat

Electronic controls ensure precise and intuitive temperature management

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes NIST calibrated display of the current interior and high/low temperature

Self-closing door

Door closes automatically when opened at angles less than 90º to prevent the interior from being exposed to room temperature

Access port with contact

Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order

Hospital grade cord and plug

Secure three-pronged 'green dot' cord for added unit safety in high traffic settings

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-cooled interior maintains a consistent temperature from top to bottom

Factory installed lock

Keyed lock for a secure interior

Fully finished white cabinet

Allows the unit to be used freestanding

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Compact dimensions

Perfectly sized for use on the counter

Factory reversible door

Standard unit ships RHD but can be ordered LHD

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

The Accucold® VAC Series refrigerators are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Sized for use on top of counters, the FF28LWHVAC is a compact all-refrigerator with automatic defrost operation. Fan-forced cooling helps to maintain even temperature distribution throughout the interior, ensuring the refrigerator stays within 2ºC of desired temperature and maximizing the usable storage space inside. The interior includes two drop-down covers that shield stored contents from being exposed to room temperature when the door is open. As recommended by the CDC for vaccine storage, this unit has a flat interior door liner.

The FF28LWHVAC includes a factory installed front lock for added security. The self-closing door is an ideal feature for lab or medical settings, helping to protect valuable samples and vaccines when a busy staff may not always have time to ensure a tight seal. The hospital grade 'green dot' cord offers added safety in high-traffic locations.

For temperature precision, the FF28LWHVAC includes a digital thermostat. A high/low temperature alarm sends an audible alert if the unit is out of set range, while also displaying a NIST calibrated temperature readout to the nearest tenth of a degree. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

In addition to the standard features of the VAC line, the FF28LWHVAC can be further customized to your exact specifications. Additional options include temperature loggers, open door alarms, and more. For more information, call our office to discuss your complete medical refrigeration needs with our sales team.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
FF28LWHVAC.pdf
Download
TECHNICAL DRAWING (.dwg)
FF28LWHVAC_REF.A-C2000.dwg
Download
MSDS INFORMATION
R134a_AO.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
