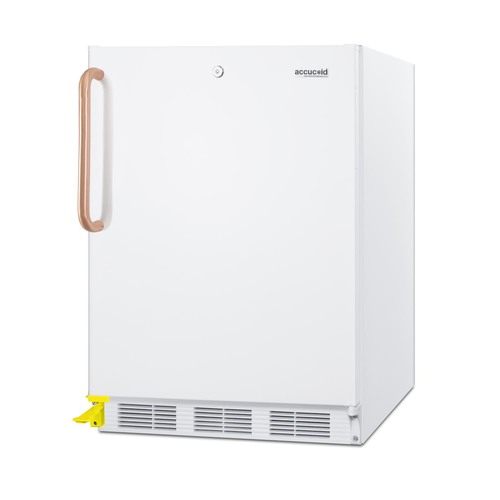

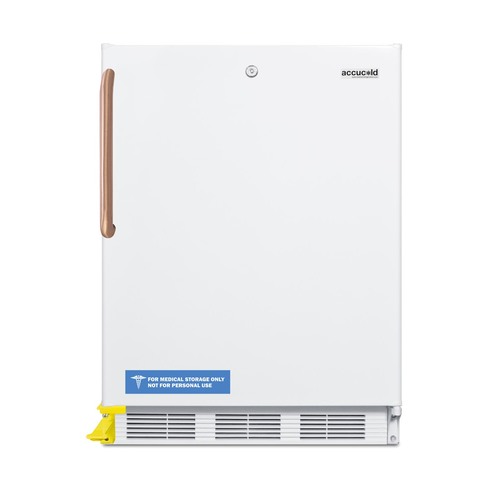

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF7LWBITBCSTOADA

Pure copper handle and step-to-open foot pedal help to lessen germ transfer for safer use in busy facilities

Estimated Time to Ship: 2 to 4 days
How to Buy
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.25" H x 23.63" W x 25.5" D

(82cm H x 60cm W x 65cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 25.5" (65 cm)
Depth with Handle 26.5" (67 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

ADA compliant
32” height allows installation under lower ADA compliant counters

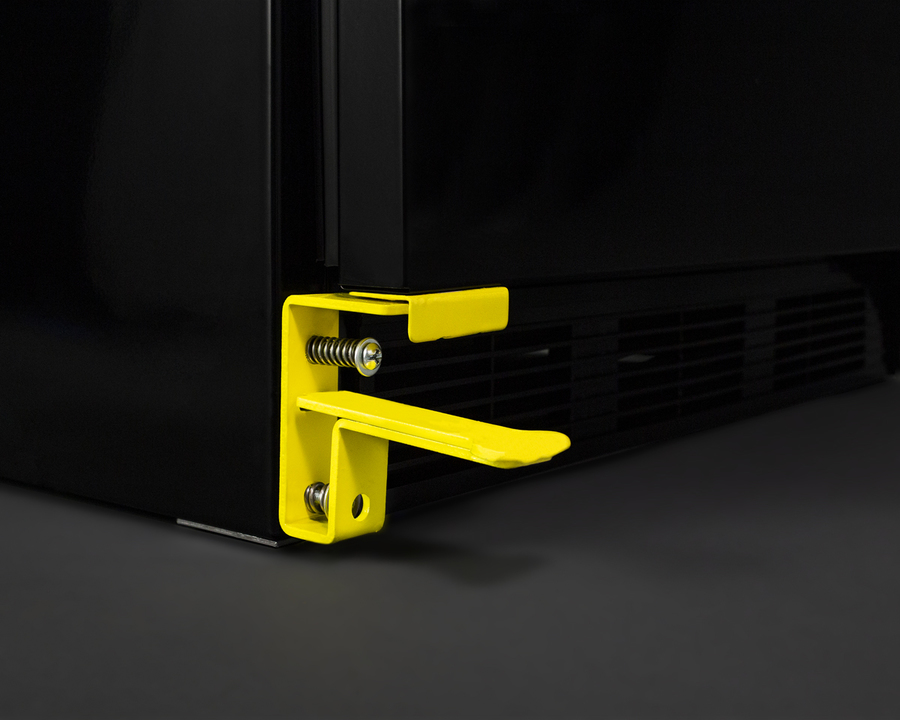

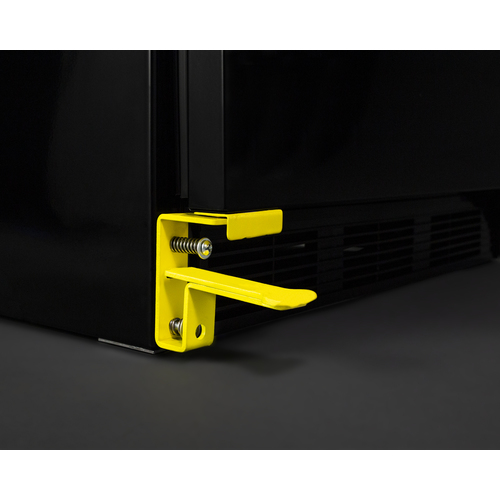

Step-to-open foot pedal
Helps lessen germ spread by providing a more sanitary method of opening appliance doors, while allowing efficient access to the unit’s interior for added convenience
Copper handle
Pure copper towel bar handle is naturally antimicrobial to protect against microbes for added safety and cleanliness
Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide with a full 5.5 c.f. capacity
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Automatic defrost
Reduced user maintenance with automatic defrost
One piece interior liner
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior

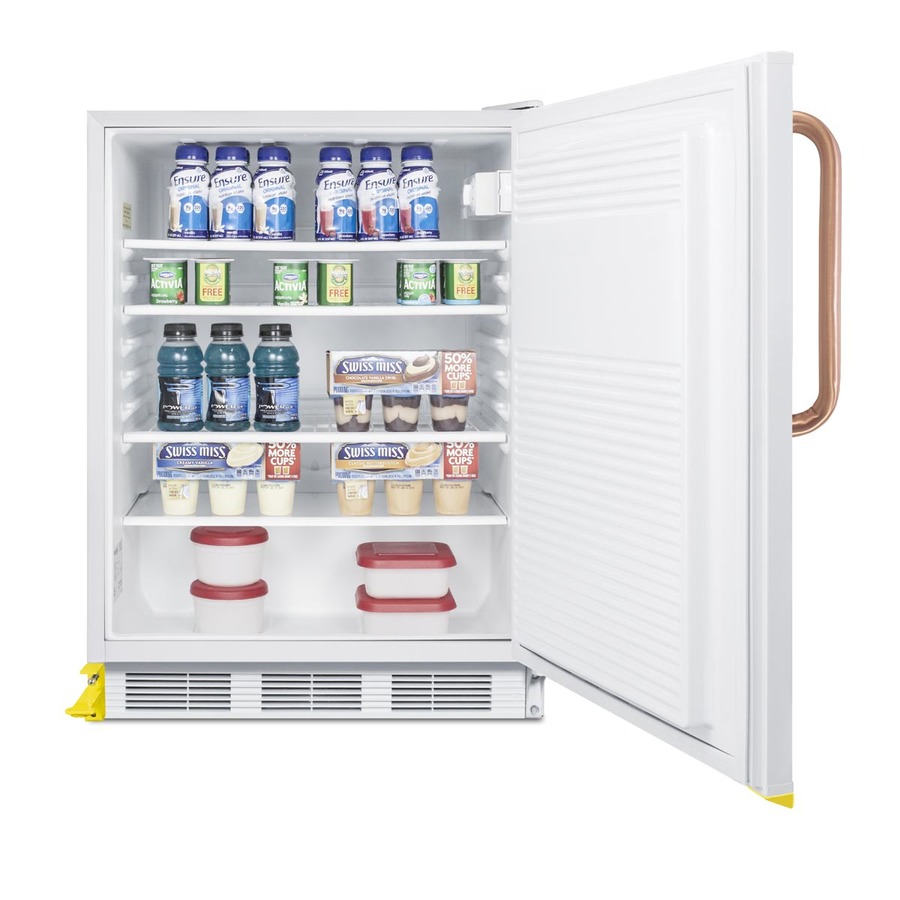

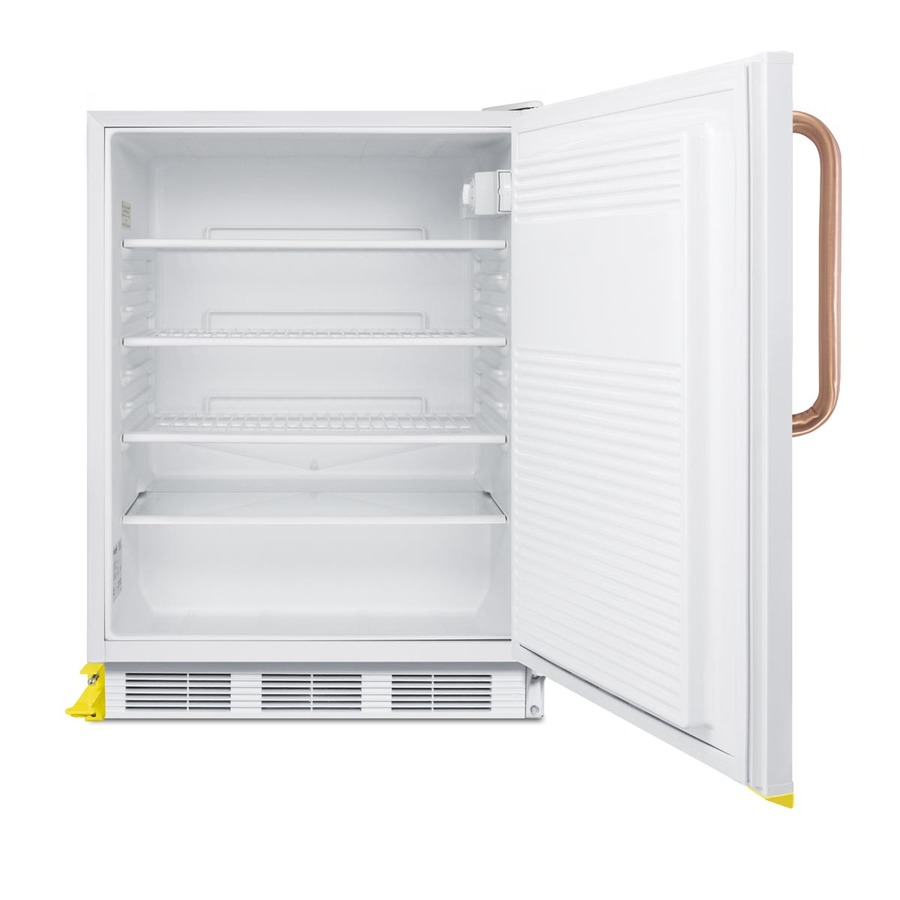

Adjustable shelves
Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Deep shelf space
Interior accommodates trays up to 19 1/2" x 15 1/2"
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch
Right hand door swing
For this unit with the door opening from the other side, add option "LHD"
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Accucold by Summit Appliance offers a quality line of refrigeration designed for general purpose healthcare applications, with pure copper handles and step-to-open foot pedals that help to reduce germ transfer in high-traffic environments.

The FF7LWBITBCSTOADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under lower ADA compliant counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a white exterior and right-hand door swing (for a left hand version, add option "LHD"). The front lock is located towards the top of the door for easier access.

The FF7LWBITBCSTOADA includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience. Additionally, this unit includes a factory-installed step-to-open foot pedal. Its hands-free design helps to lessen germ spread on high touch surfaces while also providing convenient, easy access for staff. Using spring-loaded operation, a gentle step opens the door to a full 90°, while the yellow finish stands out to prevent accidents in high-traffic environments. Please note the foot pedal adds 2" of depth under the door.

Inside, the FF7LWBITBCSTOADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7LWBITBCSTOADA is ETL-S listed to NSF-7 commercial standards. For more finish options, browse the entire FF7BIADA Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals, browse Accucold's Medical & Laboratory or Pharmacy & Vaccine Storage categories, or contact our product specialists to discuss your options.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 25.5" (65 cm)
Depth with Handle 26.5" (67 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Extra key
Extra keys available for purchase
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Interior
LockBox24 - Interior locking compartment
Interior lift-up compartment with combination lock for use in ARS, ARG, FF7, and FFAR10 models
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
