COVID-19 VACCINE COLD STORAGE SOLUTIONS

Compact All-Freezer

SKU: FS24LMED2

Designed and constructed to meet strict CDC and VFC freezer guidelines

Out of Stock; ETA: 12/15/2020
How to Buy
Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

21.75" H x 18.5" W x 17.63" D

(55cm H x 47cm W x 45cm D)

SPECIFICATIONS

Overview
Height of Cabinet 21.75" (55 cm)
Width 18.5" (47 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Weight 40.0 lbs. (18 kg)
Shipping Weight 42.0 lbs. (19 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
High Side PSI 280.0
Low Side PSI 110.0
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -20º to -15ºC

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Reliable temperature stability
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

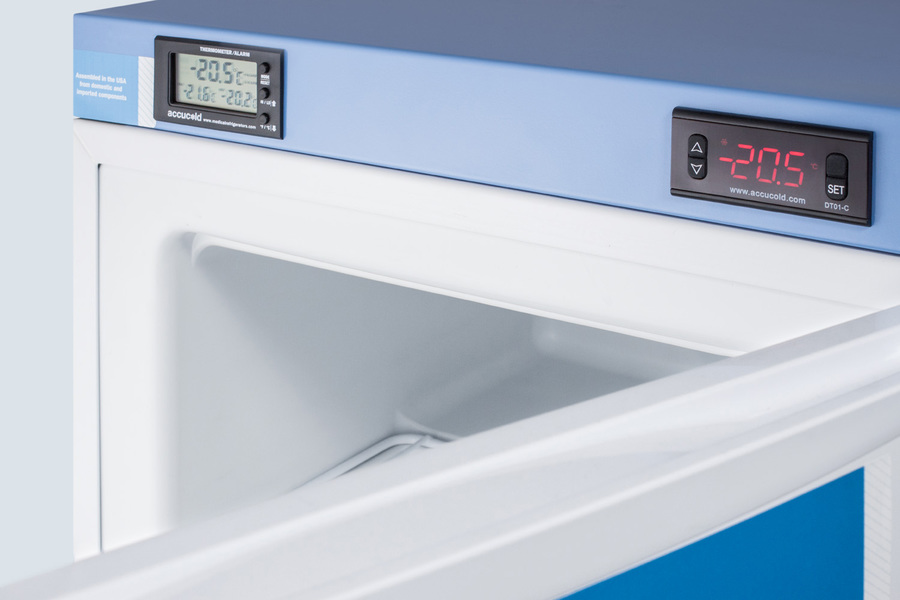

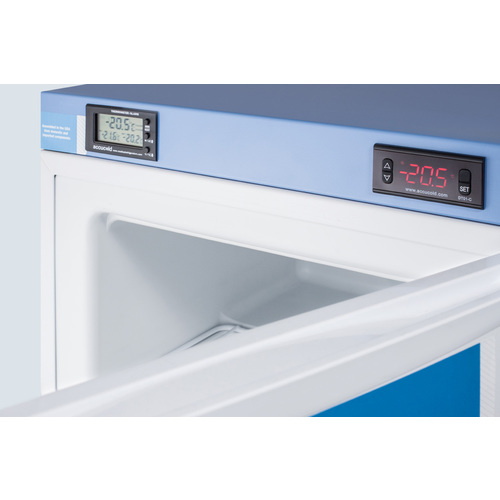

Digital thermostat
Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

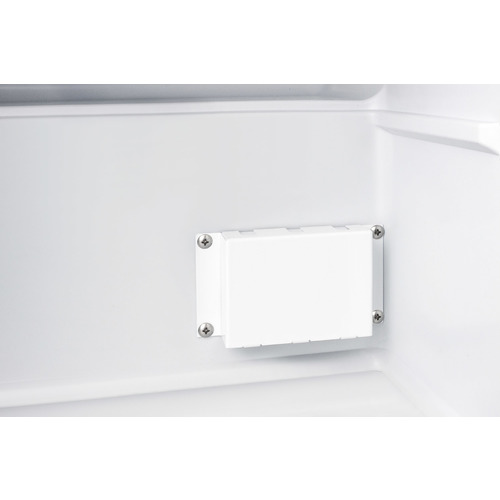

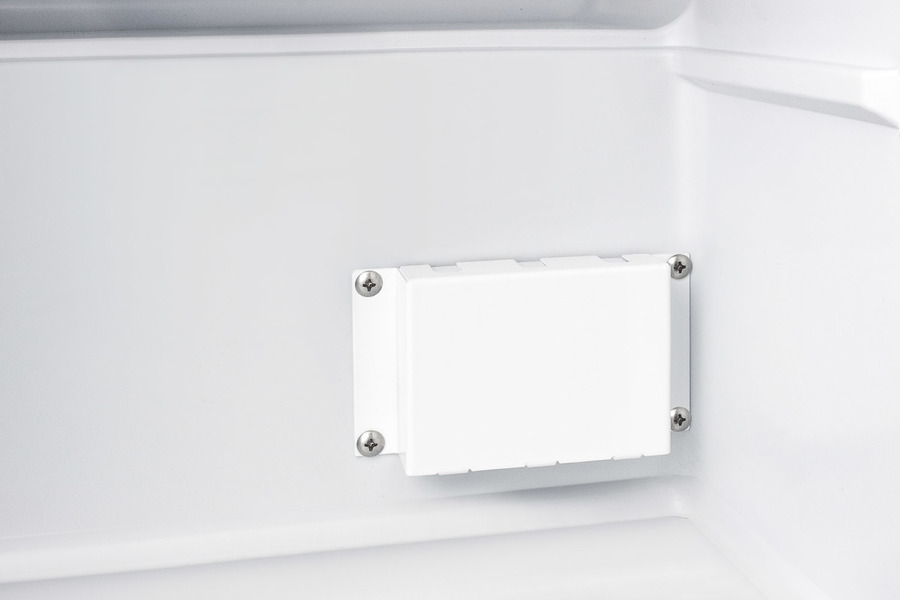

Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

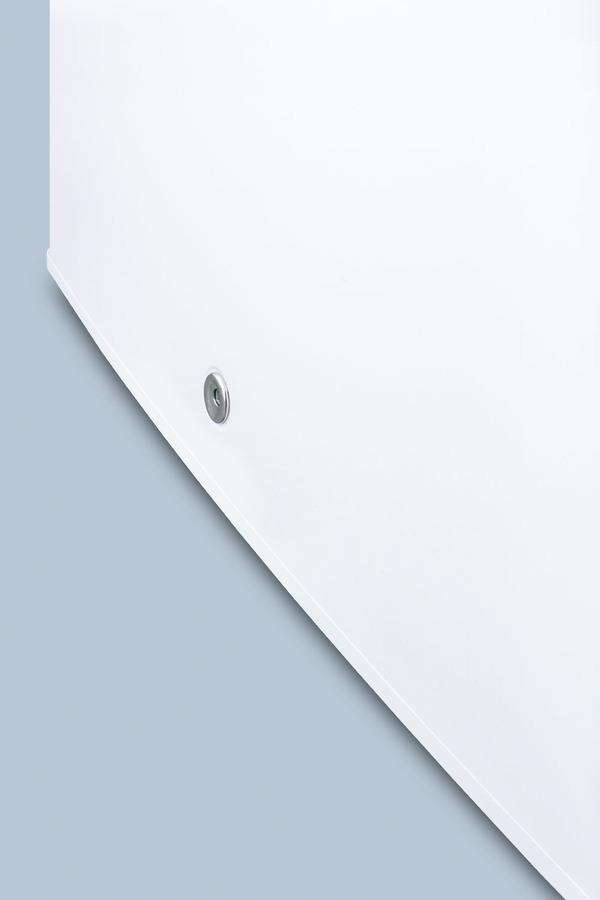

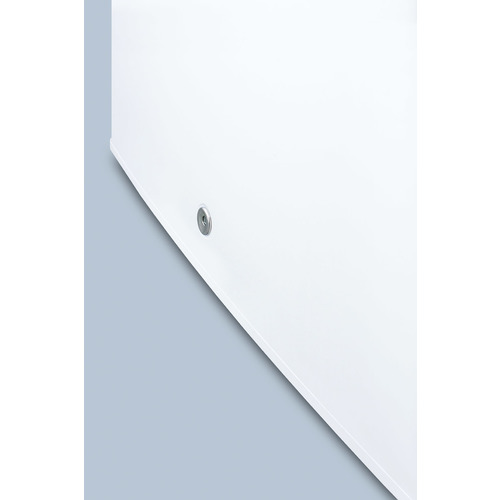

Factory installed lock
Keyed lock for convenient security, with two keys included
Manual defrost
Static cooling system for reduced temperature fluctuations
Hospital grade cord and plug
Secure three-pronged cord for added unit safety
3/8" access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

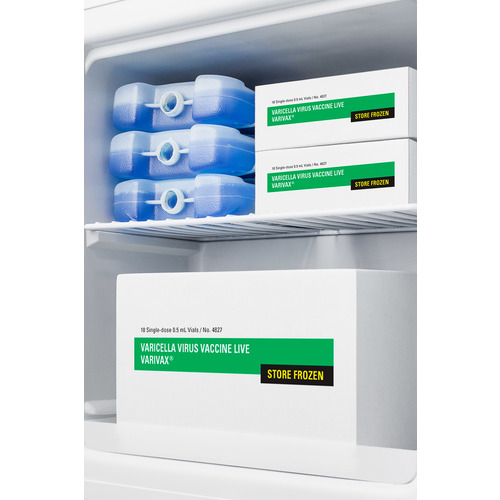

Removable shelf
Includes one wire shelf for easier storage
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Fully finished white cabinet
Allows the unit to be used freestanding
Foamed-in-place cabinet
Quality design ensures efficiently insulated interior
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Matching refrigerator available
Pair with the FFAR24LMED2 to create a complete set
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Extended warranty
This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

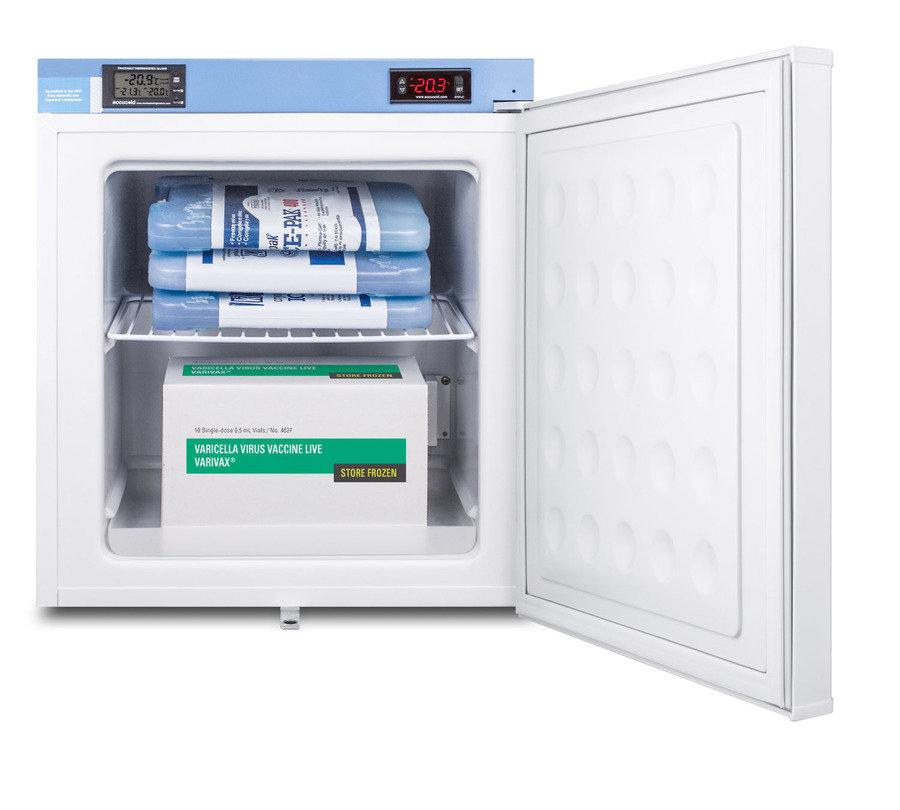

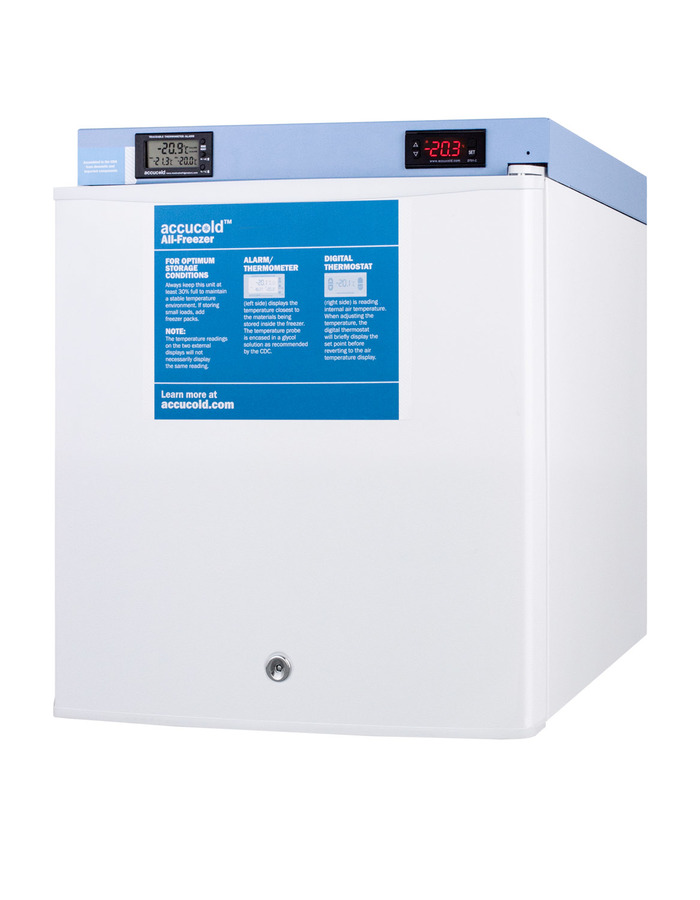

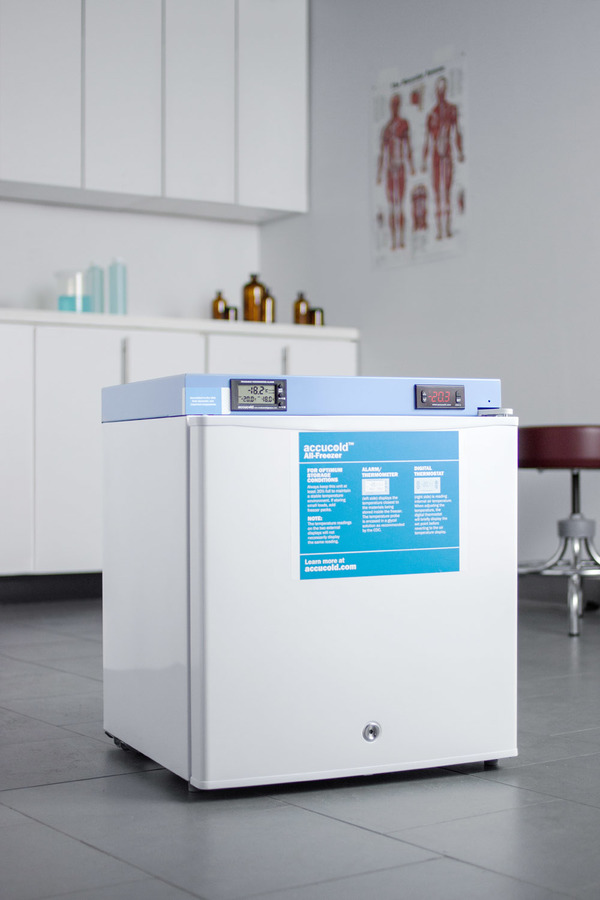

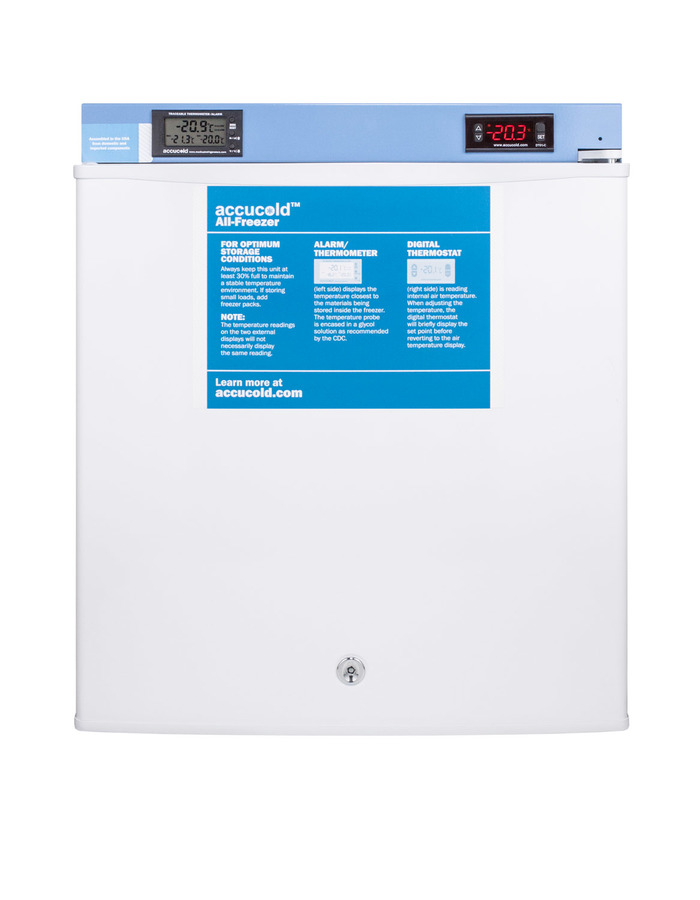

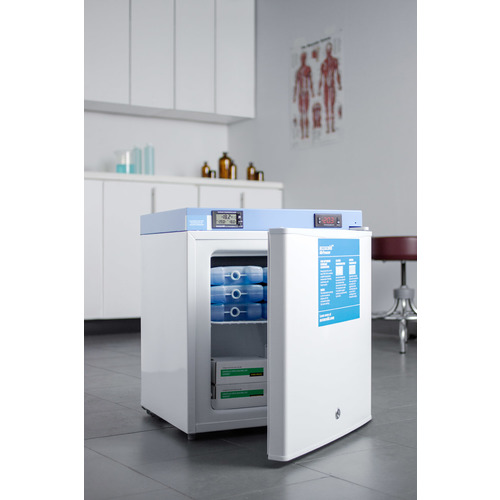

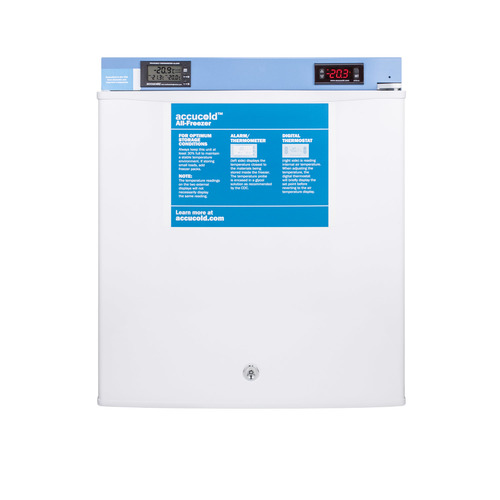

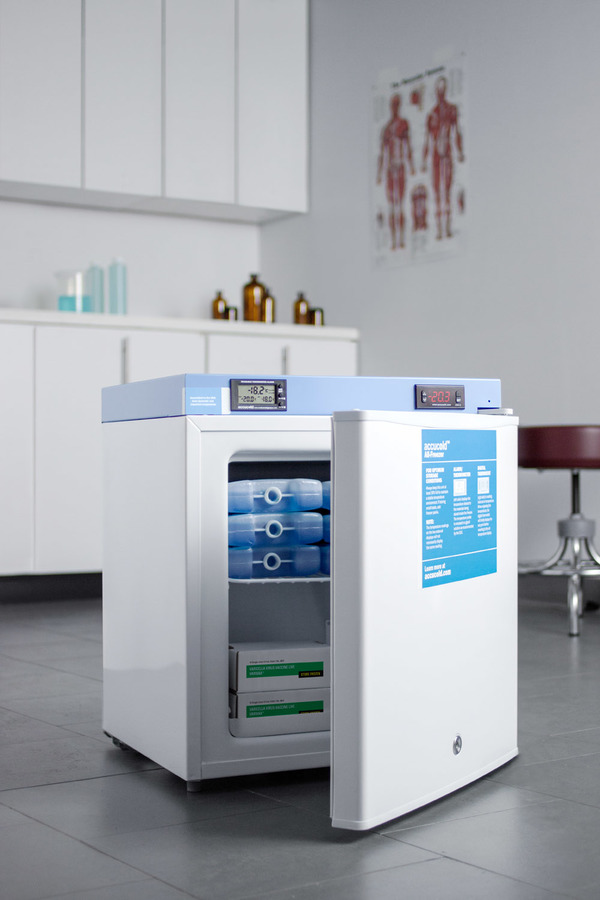

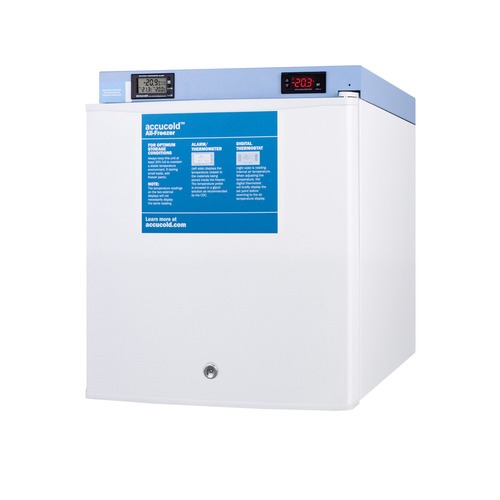

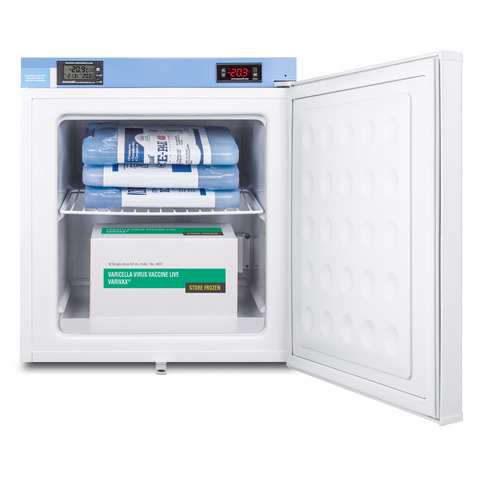

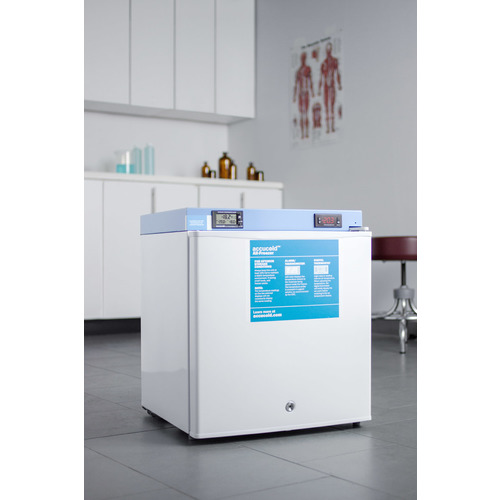

The FS24LMED2 is a compact manual defrost all-freezer designed for use on top of counters. This unit is  designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door and exposing stored contents to ambient temperature. A keyed lock offers security and a hospital grade 'green dot' cord provides added safety in high traffic environments.

As recommended by the CDC and VFC programs, the FS24LMED2 is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each FS24LMED2 ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

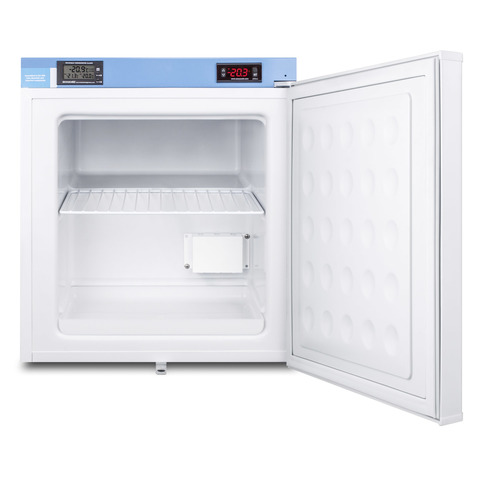

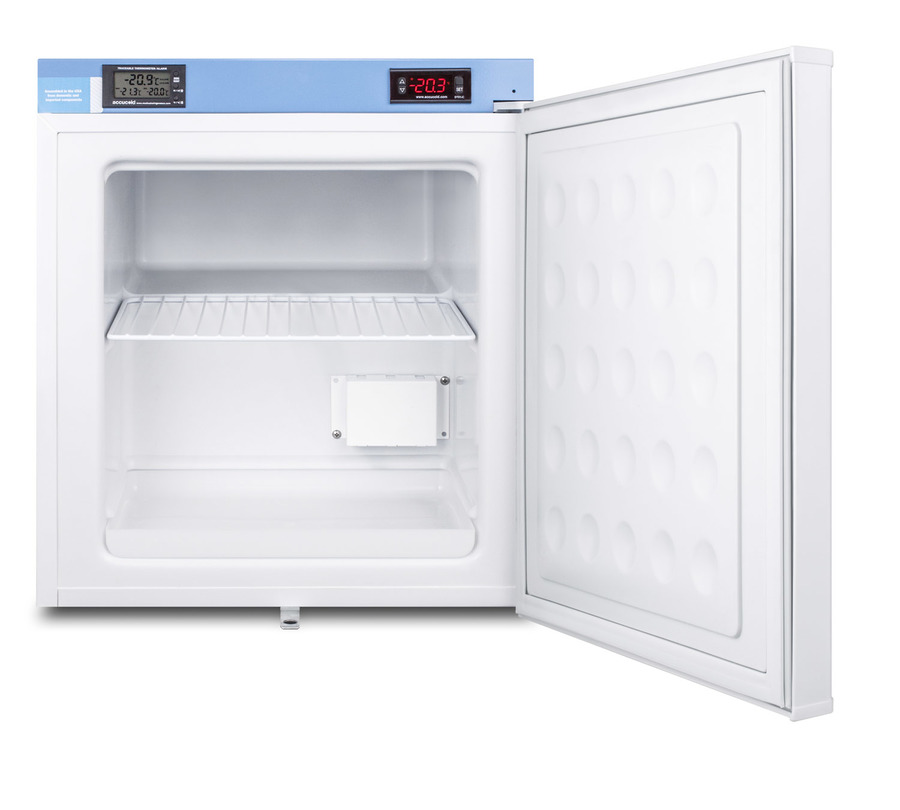

The FS24LMED2 features a 1.4 cu.ft. interior capacity. A removable wire shelf offers convenient storage. It can operate as low at -20ºC, ideal for storing certain vaccines and other sensitive medical contents. This unit has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. The FS24LMED2 can be paired with a matching all-refrigerator (FFAR24LMED2). This unit can also be customized with additional features, including a power-out alarm or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.


SPECIFICATIONS

Overview
Height of Cabinet 21.75" (55 cm)
Width 18.5" (47 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Weight 40.0 lbs. (18 kg)
Shipping Weight 42.0 lbs. (19 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
High Side PSI 280.0
Low Side PSI 110.0
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -20º to -15ºC

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FS24LMED2.pdf
Download
TECHNICAL DRAWING (.dwg)
FS24LMED2_FREEZER__A-C_2000_.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
