19" Wide Beverage Center

SKU: SCR486L
Fully featured with a digital thermostat and LED lighting
Estimated Time to Ship:

Next day shipping

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
33.5" H x 19.0" W x 19.5" D
(85cm H x 48cm W x 50cm D)

Overview
Height of Cabinet 33.0" (84 cm)
Height to Hinge Cap 33.5" (85 cm)
Width 19.0" (48 cm)
Depth 19.5" (50 cm)
Depth with Handle 20.0" (51 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 3.35 cu.ft. (95 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Shipping Weight 96.0 lbs. (44 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101044897
Refrigerator Features
Door Swing RHD
Reversible No
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.92oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 28.75" (73 cm)
Interior Width 15.25" (39 cm)
Interior Depth 13.75" (35 cm)
Compressor Step Height 7.75" (20 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

Commercially approved

ETL-S listed to NSF-7 standards for use in commercial settings

Double pane tempered glass door

Heat resistant design provides clear view of stored products, with an elegant trim in stainless steel

Digital thermostat

Precise temperature management at the touch of a button, with an external display for added convenience

Recessed LED lighting

Externally located controls make it easy to manage the interior light, keeping products in full view to increase impulse sales

Professional handle

Stainless steel handle adds an attractive touch

Factory installed lock

Keyed lock ensures a secure interior

Automatic defrost

Reduced user maintenance with auto defrost system

Adjustable chrome shelves

Rearrange the refrigerator space to fit any sized item or remove shelves for simple cleanup

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's beverage centers offer the perfect conditions for commercial storage and display.

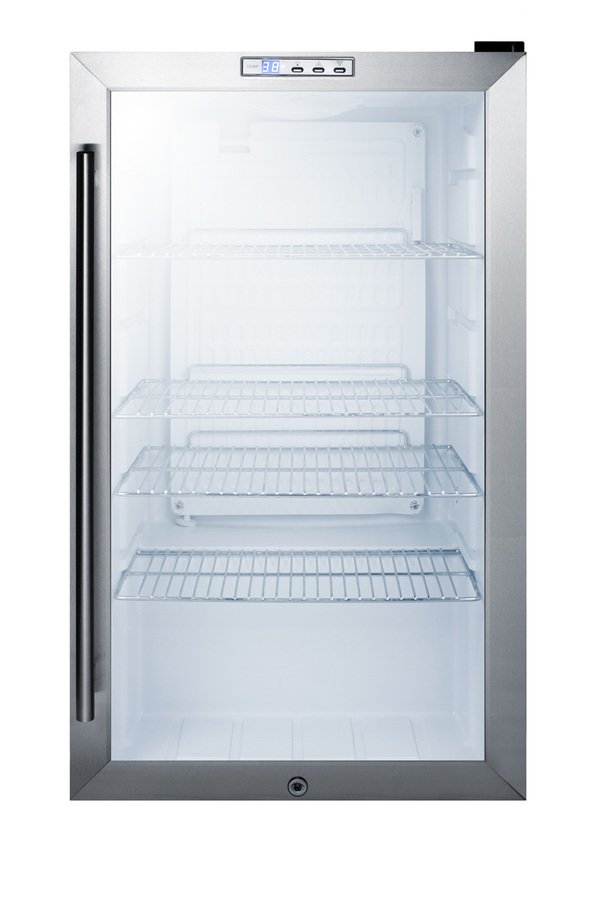

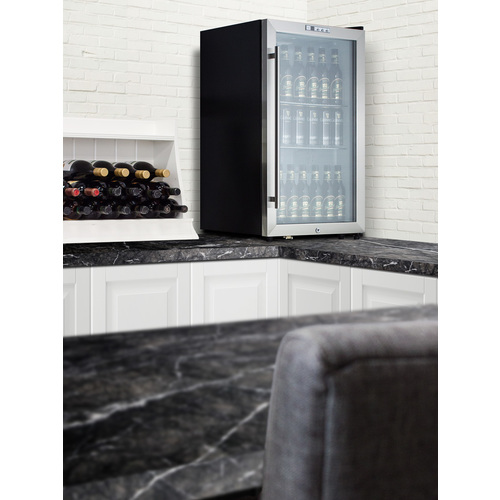

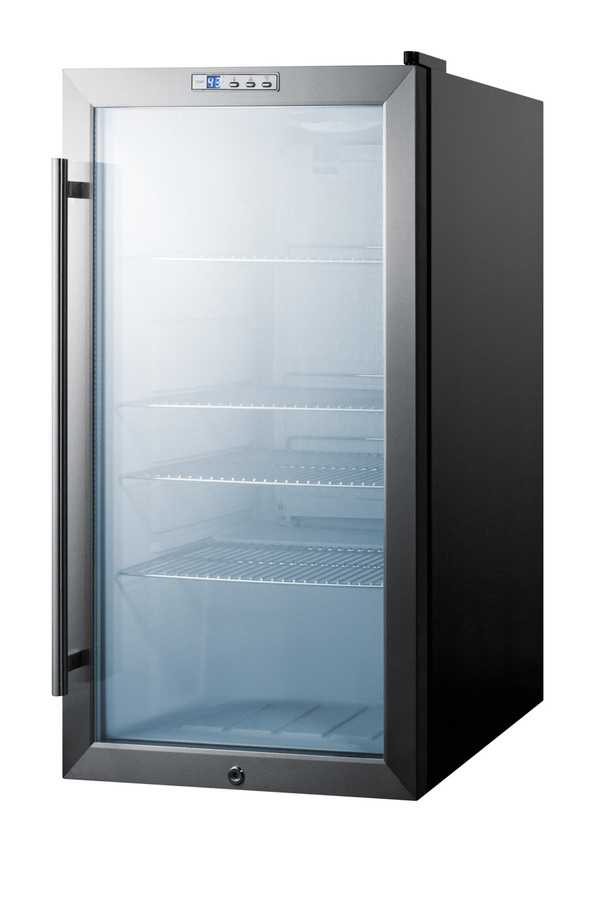

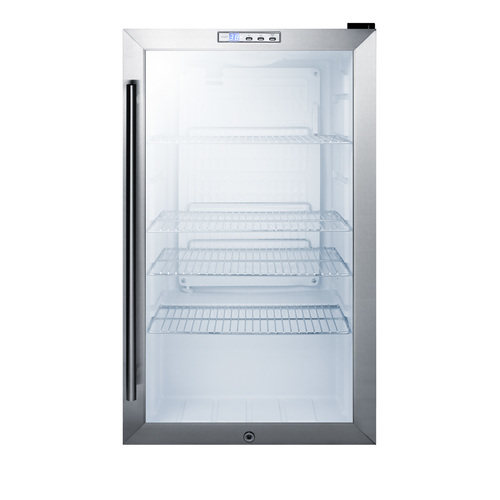

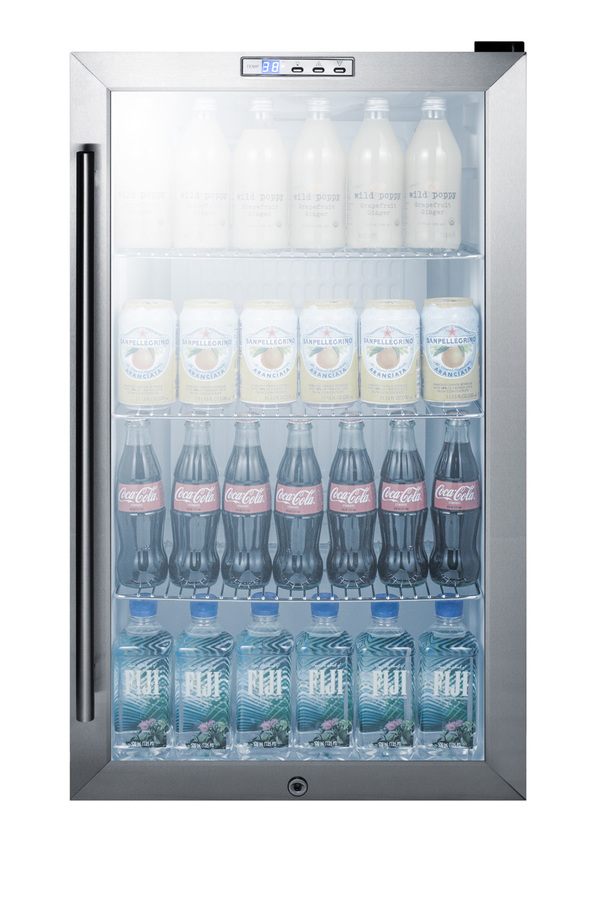

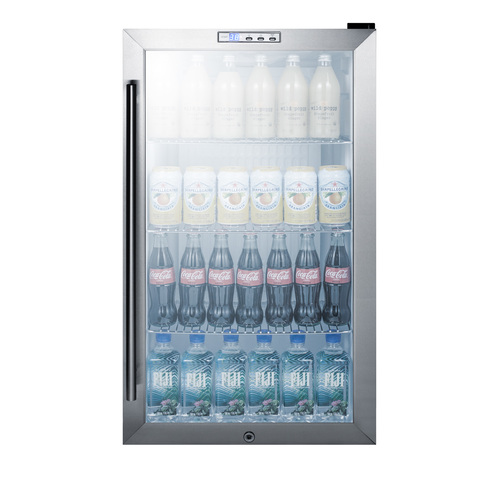

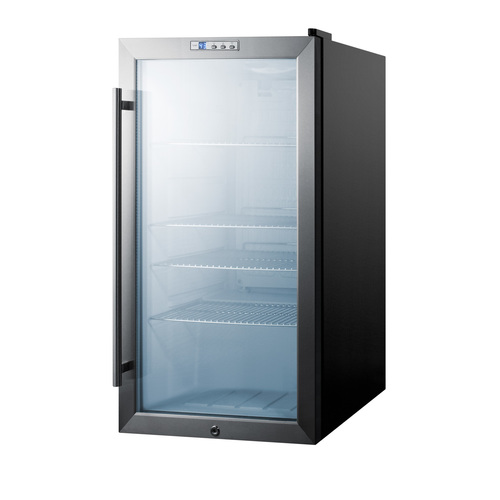

The SCR486L is a counter height beverage center designed for freestanding use. It comes with a black cabinet and stainless steel trimmed glass door that offers a full display of the interior from top to bottom. With a 3.35 cu.ft. capacity, the SCR486L can store up to 94 cans or a combination of 60 12 oz. bottles and an additional 16 cans. A stainless steel handle completes the professional look and a factory installed lock offers added security.

Inside, the SCR486L includes recessed LED lighting to provide an attractive and efficient display of stored products. Automatic defrost ensures minimum user maintenance inside. The digital thermostat can be set in Celsius or Fahrenheit for added convenience. Adjustable chrome shelves offer various storage configurations to accommodate different sized items.

The SCR486L is ETL-S listed to NSF-7 commercial standards. With its convenient size and user-friendly features, this unit is ideal for commercial establishments looking for an efficient way to store and sell beverages.

Download
BROCHURE w/ DRAWINGS
SCR486L.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR486L_BEVE._CENTER__A-C_2000_.dwg
Download
MSDS INFORMATION
MSDS_R134a___C.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
