24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBIADA

-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents

Estimated Time to Ship:

3 to 5 days

How to Buy

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101043401
Freezer
Door Swing	RHD
Reversible	Yes
Crisper Finish	Opaque
Crisper Cover	Glass
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Shelf Type	Glass
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.5" (44 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-12ºC to -25ºC

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	SS Hinges Stainless steel top and bottom hinges
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DLPWF - Factory installed NIST calibrated wireless environmental temperature monitoring device NIST calibrated wireless environmental temperature monitoring device for cloud-based data management

Handle

TBC Copper Towel Bar Handle Factory-installed handle made from pure copper for antimicrobial protection	AMHandle - Antimicrobial handle Antimicrobial coated stainless steel handle to reduce germ spread

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished white cabinet

Allows the unit to be used freestanding

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Factory installed lock

Keep contents secure with a front lock on the door

-25º capable

Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

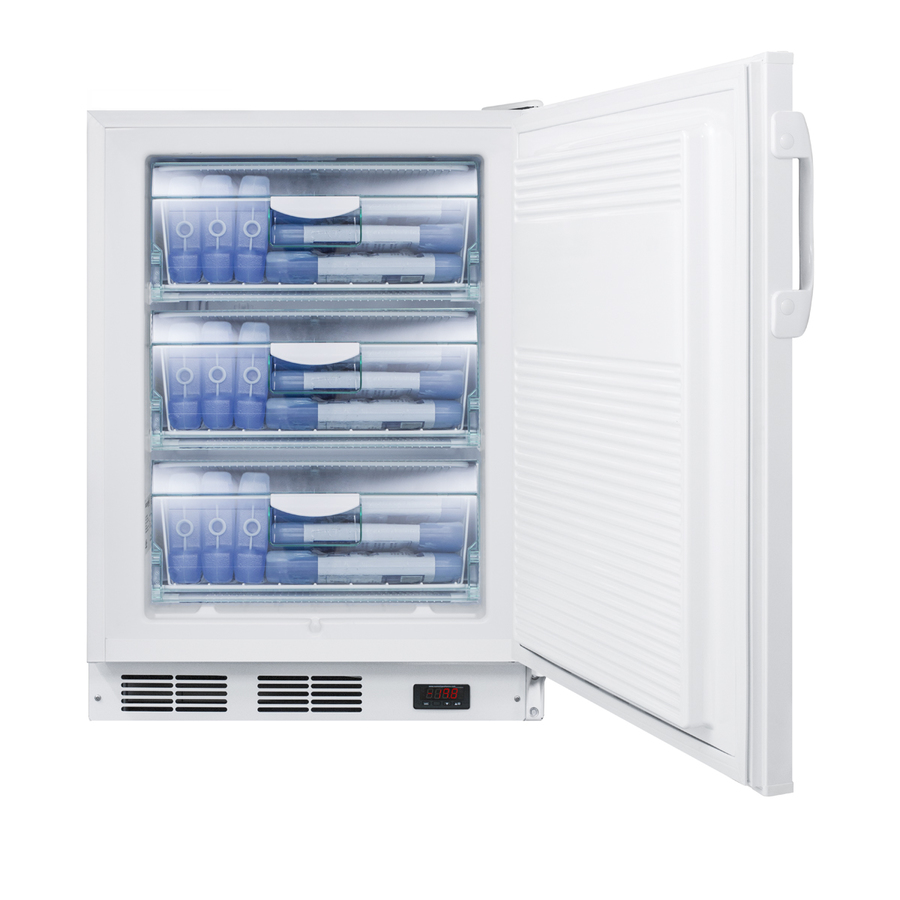

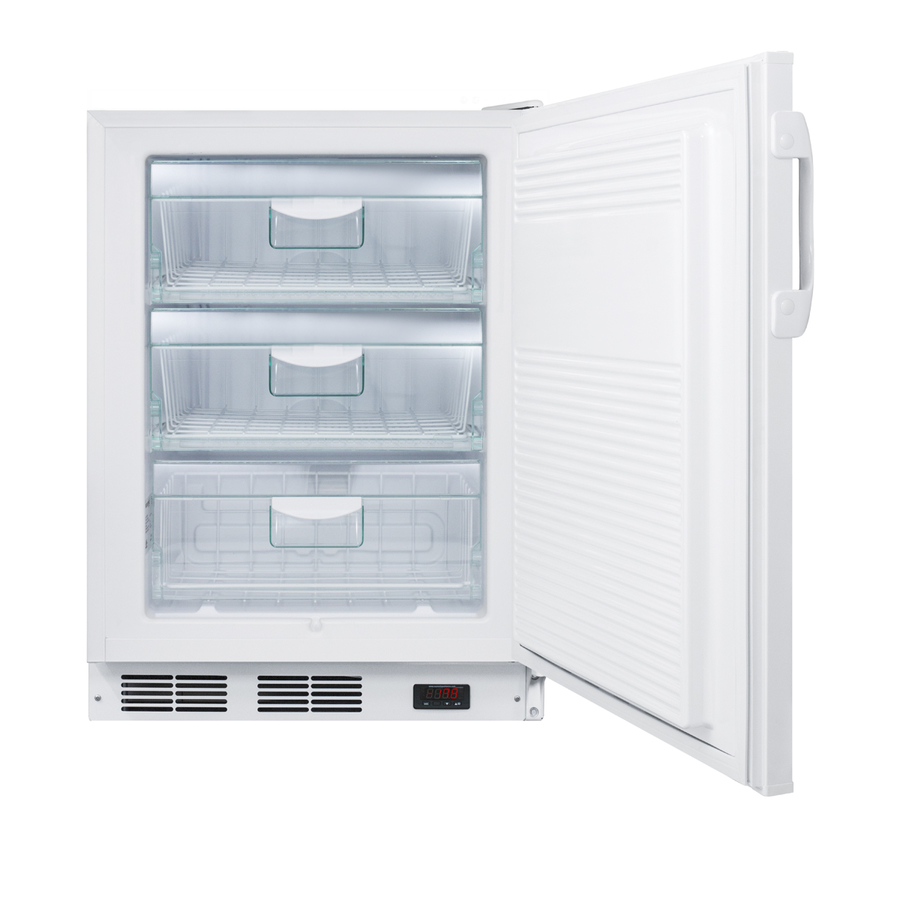

Three slide-out drawers

Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans

Static cooling system

Manual defrost

Energy efficient operation for stable interior temperature

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Digital thermostat

Electronic controls located in the front kickplate for easy and intuitive temperature management

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters.

The 32” high VT65MLBIADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and reversible door. A factory installed lock offers added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
