24" Wide Built-In All-Freezer with Antimicrobial Pure Copper Handle, ADA Compliant

SKU: VT65MLBITBCADA

Pure copper handle protects against microbes for safer use

Estimated Time to Ship:

3 to 5 days

How to Buy

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	26.0" (66 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101073507
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Thermostat Type	Digital
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.5" (44 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-18ºC to -25ºC

Exterior

SSK - Stainless steel kickplate Stainless steel kickplate factory installed	SS Hinges Stainless steel top and bottom hinges
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DLPWF - Factory installed NIST calibrated wireless environmental temperature monitoring device NIST calibrated wireless environmental temperature monitoring device for cloud-based data management

Handle

TBC Copper Towel Bar Handle Upgrade Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection	AMHandle - Antimicrobial handle Antimicrobial coated stainless steel handle to reduce germ spread

Door

STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Lock

KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security	AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security

Copper handle

Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished white cabinet

Allows the unit to be used freestanding

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Right hand door swing

For this unit with the door opening from the other side, add option "LHD"

Factory installed lock

Keep contents secure with a front lock on the door

-25ºC capable

Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

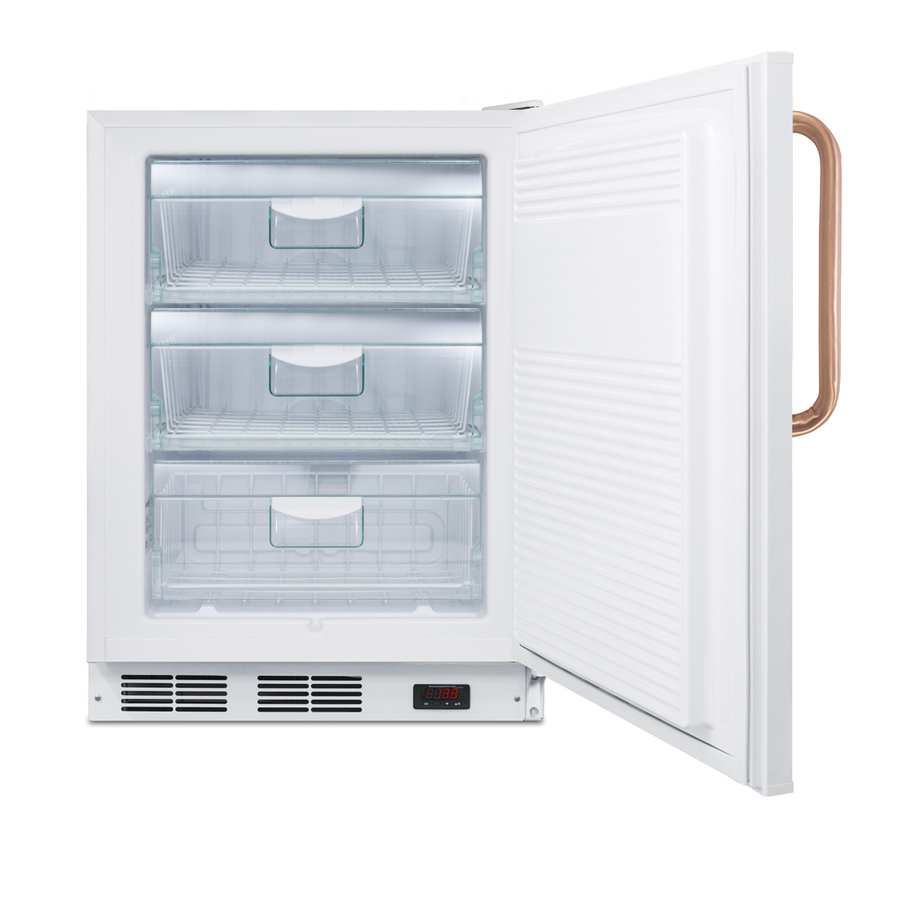

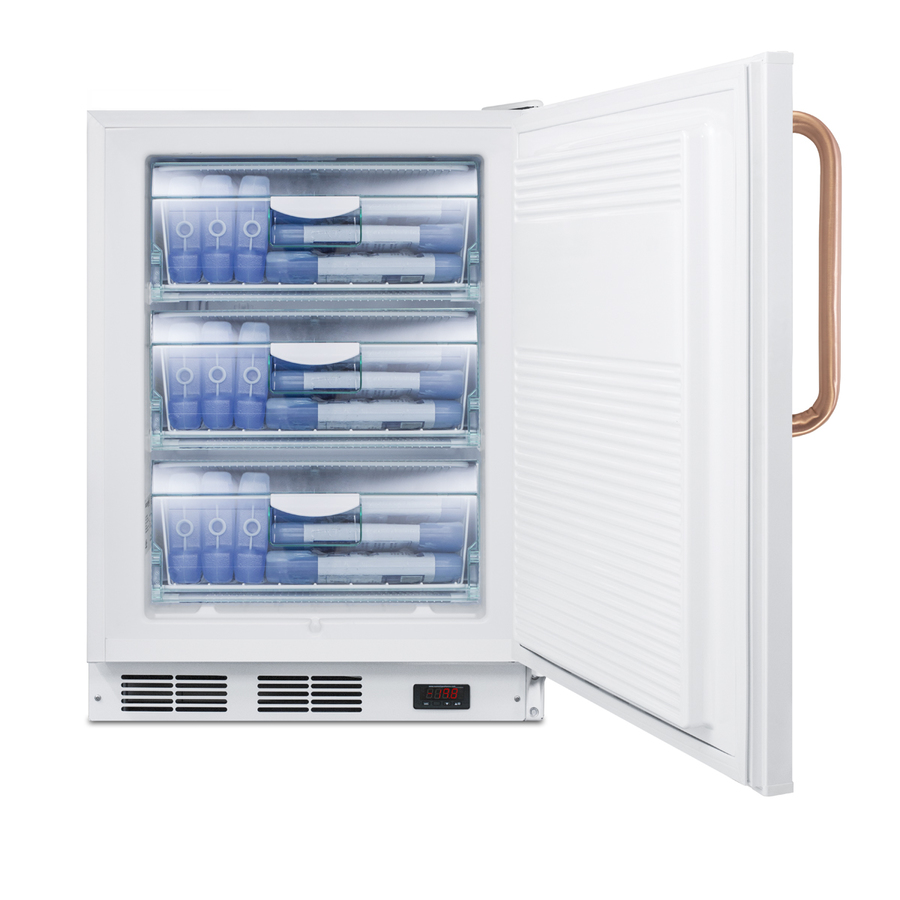

Three slide-out drawers

Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans

Static cooling system

Manual defrost

Energy efficient operation for stable interior temperature

One piece interior liner

Simple cleanup with a seamless liner that won't hold a mess in hidden crevices

Digital thermostat

Electronic controls located in the front kickplate for easy and intuitive temperature management

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance offers a quality line of refrigeration designed for healthcare applications, with pure copper handles that kill microbes.

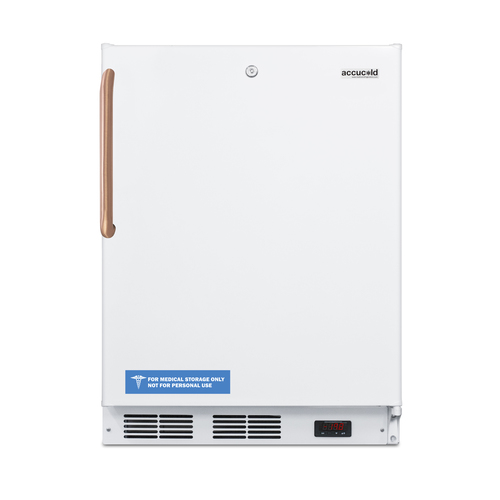

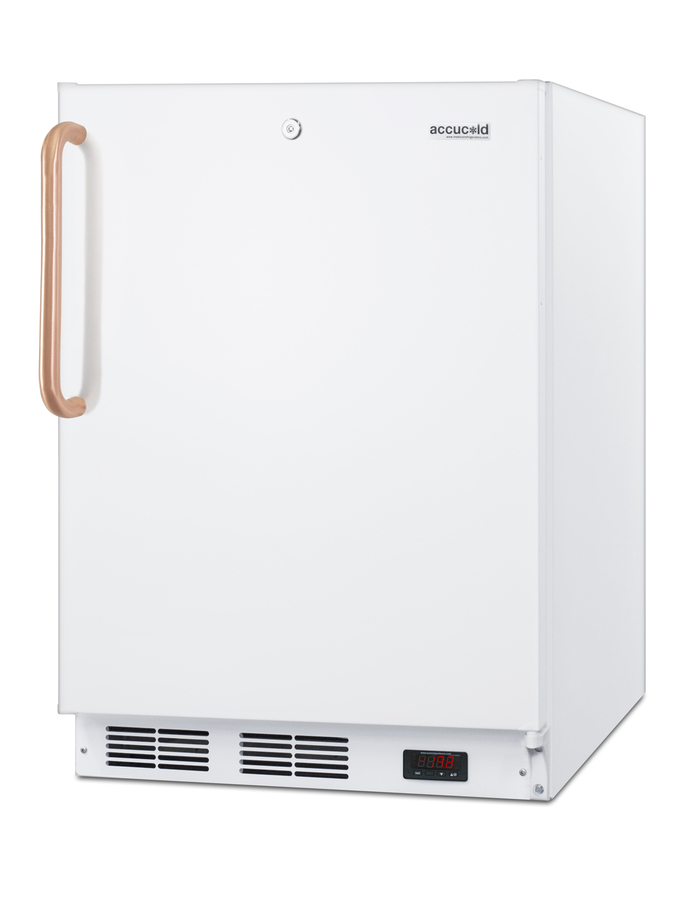

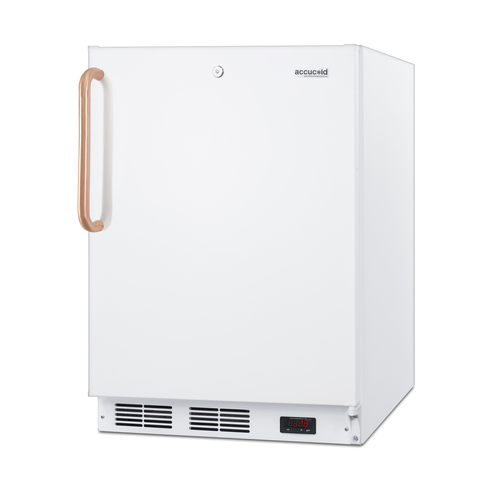

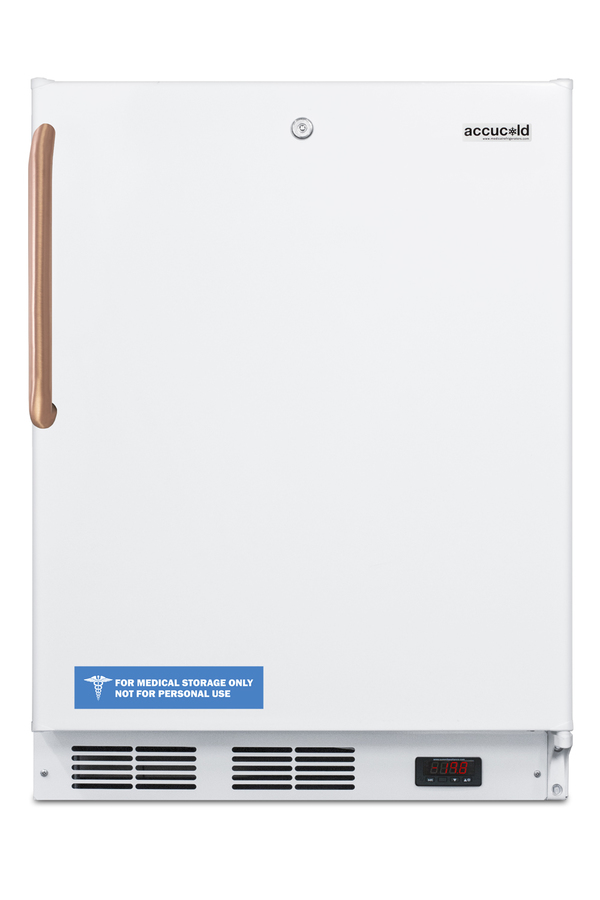

Sized at 32 in. high, the VT65MLBITBCADA is ideal for use under lower ADA compliant counters. It features a front-breathing design for built-in installation and a fully finished cabinet that also allows freestanding use. This unit runs at colder temperatures than standard freezers, with a static manual defrost cooling system that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable digital thermostat and one-piece interior liner for easier cleanup.

The VT65MLBITBCADA includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience.

This freezer is made in Europe and comes with a white exterior and right hand door swing. A factory-installed lock is located towards the top of the door for convenient security. For a matching refrigerator, see the FF7LWBITBCADA.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL/HEALTHCARE OR COMMERCIAL APPLICATIONS ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

BROCHURE
VT65MLBITBCADA.pdf

USE & CARE
VT65M_VT65ML_manual_incl_ADA_BI_ALF_Engl_French.pdf

ACCUCOLD CATALOG
Accucold_Cold_Storage_Solutions_Catalog.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
