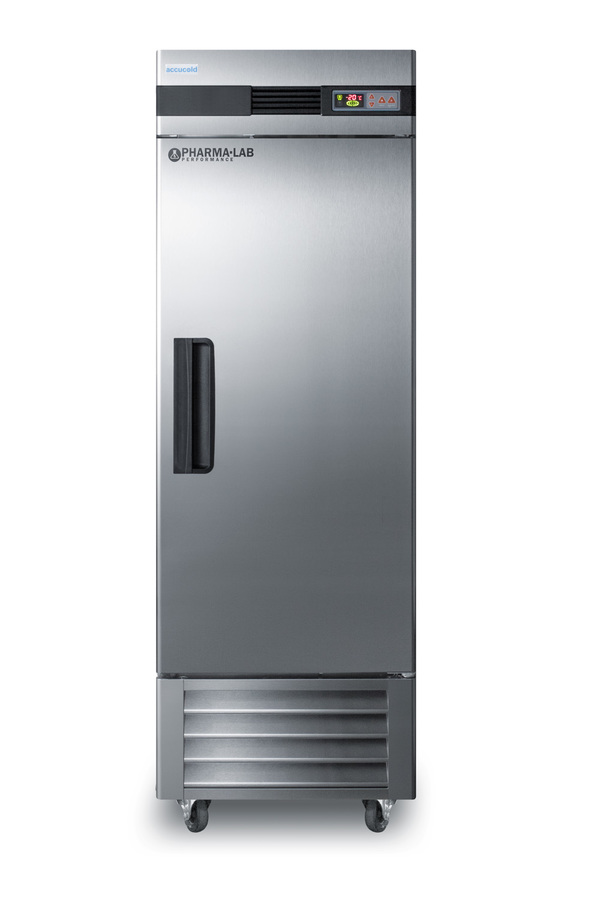

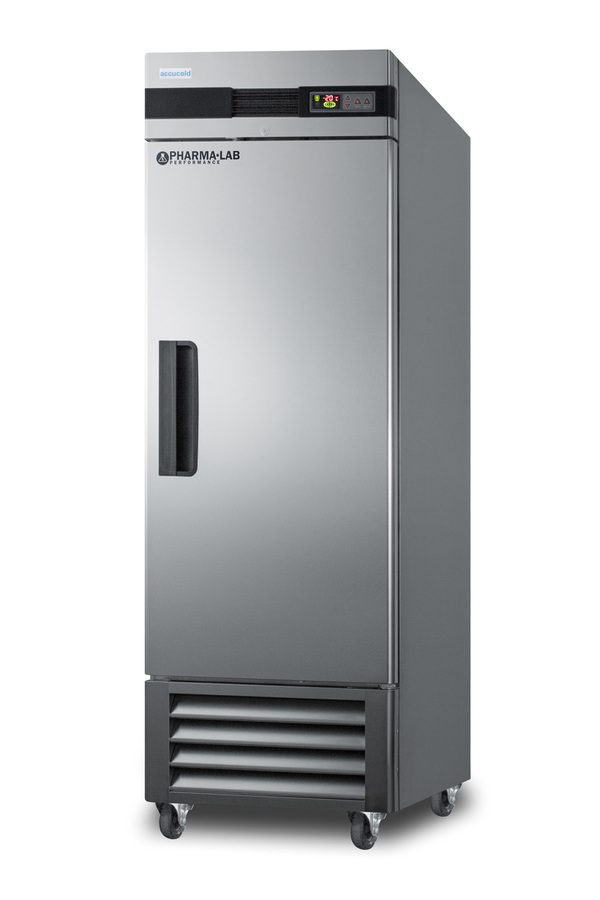

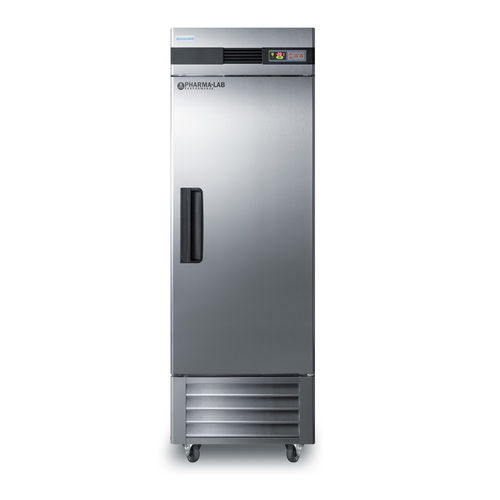

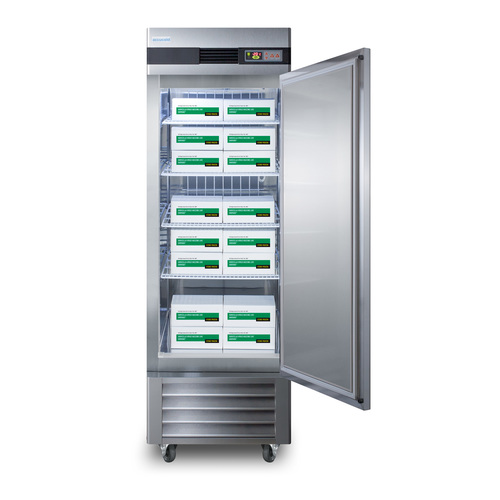

23 Cu.Ft. Upright Pharmacy Freezer

SKU: AFS23ML Matching refrigerator

Designed and Purpose built to meet demanding needs of life science, vaccine, laboratory and medical cold storage applications

83.75" H x 27.5" W x 31.0" D

(213cm H x 70cm W x 79cm D)

OVERVIEW

  • Intelligent microprocessor digital temperature controller
  • Improved temperature accuracy with a separate temperature probe for continuous product readout
  • Additional sensor reads interior air temperature for superior temperature control
  • Adjustable operating control range from -30 °C to -15°C
  • Digital display of the min/max temperature (updated in 15 minute increments)
  • Temperature viewable in Celsius or Fahrenheit to the nearest degree
  • Audible/visual alarms for high/low temperature excursions
  • Optimized forced air cooling for excellent temperature stability and uniformity with rapid recovery after door openings and product loading

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 83.75" (213 cm)
Width 27.5" (70 cm)
Depth 31.0" (79 cm)
Depth with Handle 32.75" (83 cm)
Depth with door at 90° 56.5" (144 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 8.0
Voltage/Frequency 115 V AC/60 Hz
Weight 273.0 lbs. (124 kg)
Shipping Weight 293.0 lbs. (133 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible No
Interior Height 51.5" (131 cm)
Interior Width 23.5" (60 cm)
Interior Depth 27.0" (69 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.5 oz.
Wheels 4
Temperature Range -30 to -15ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

The AFS23ML is a 23 cu.ft. all-freezer with an adjustable control range from -30 to -15ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

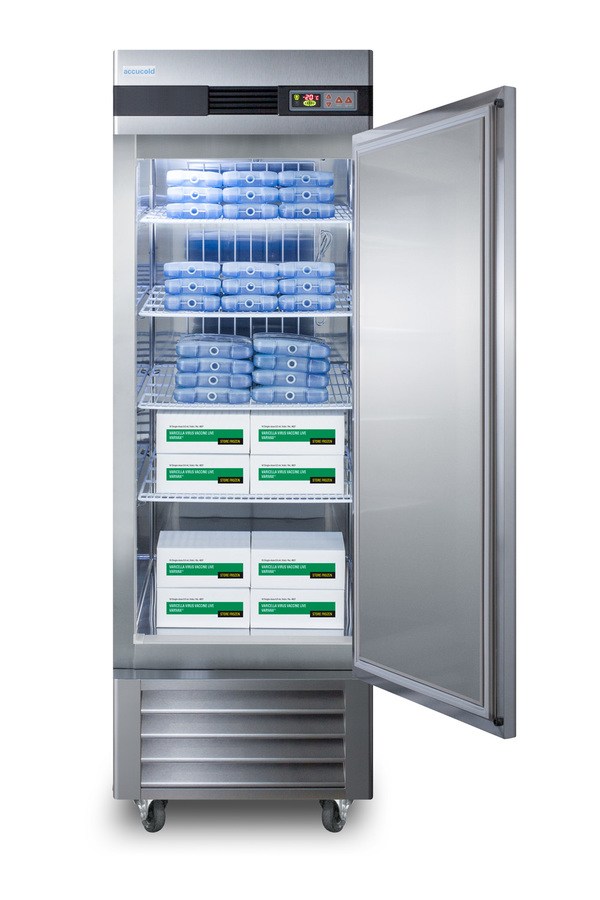

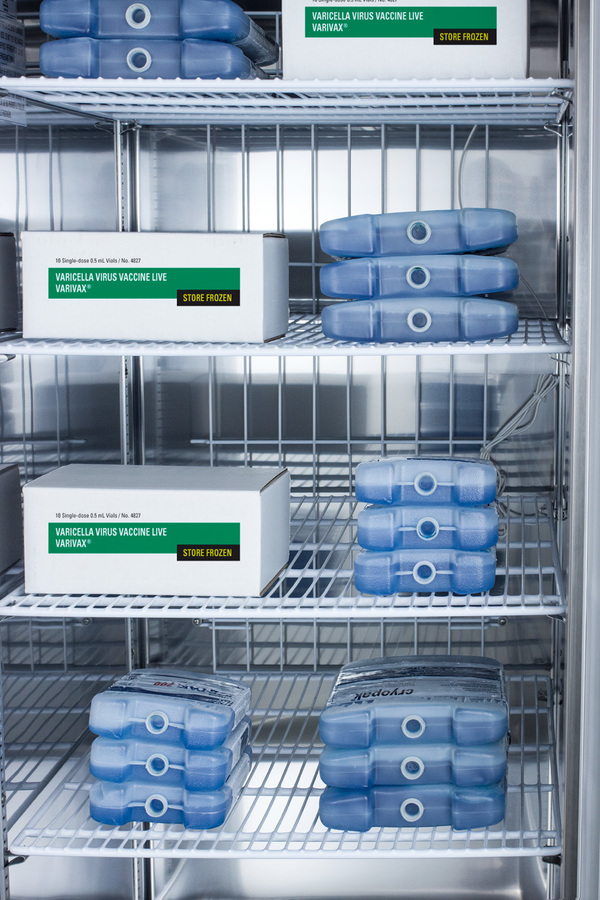

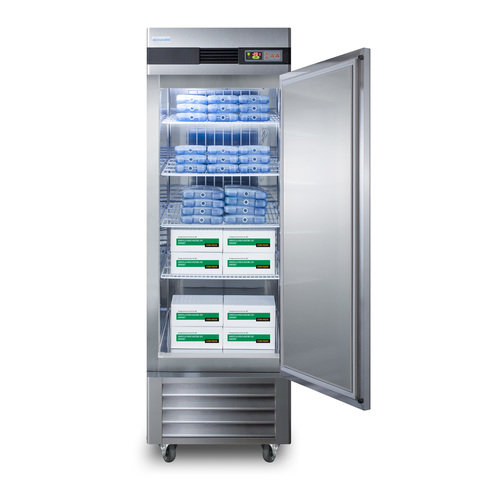

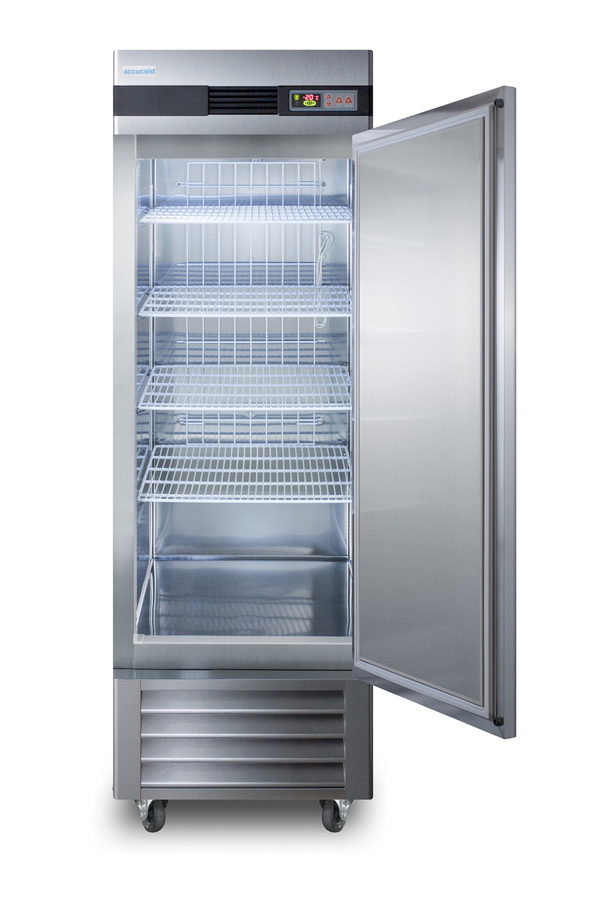

Inside, the AFS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.

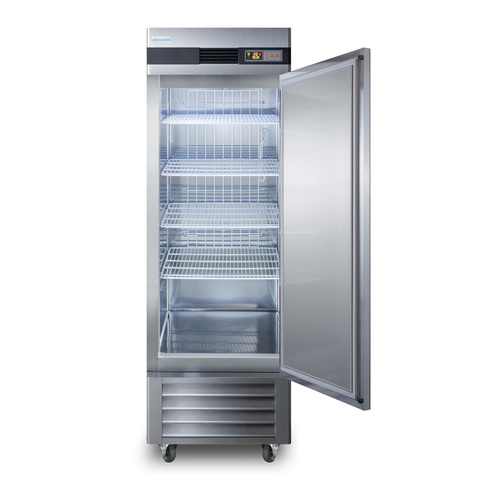

The AFS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.

Designed with hydrocarbon refrigerant, the AFS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS23ML.

FEATURES

Purpose-built design
Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions
Adjustable temperature
Interior is pre-set to -25ºC, with an adjustable control range from -30 to -15ºC
Temperature alarm
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Complete stainless steel construction
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

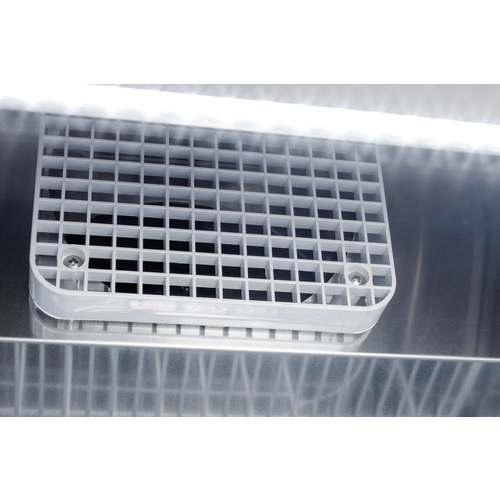

Forced air cooling
Top-mounted commercial fan ensures rapid temperature recovery
Automatic defrost with adjustable cycle defrost
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

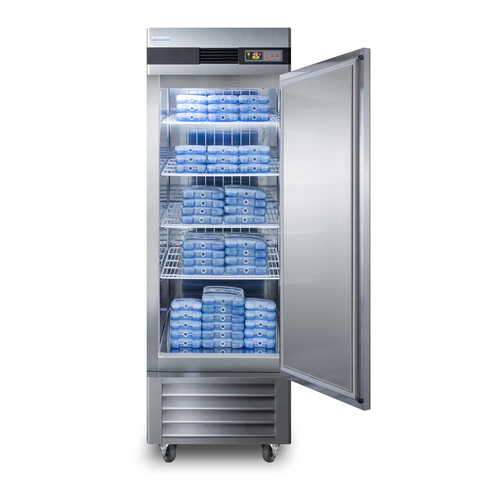

Self-closing door
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Open door alarm
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
6 inch casters
Ships with a set of casters (2 locking) for optional user installation

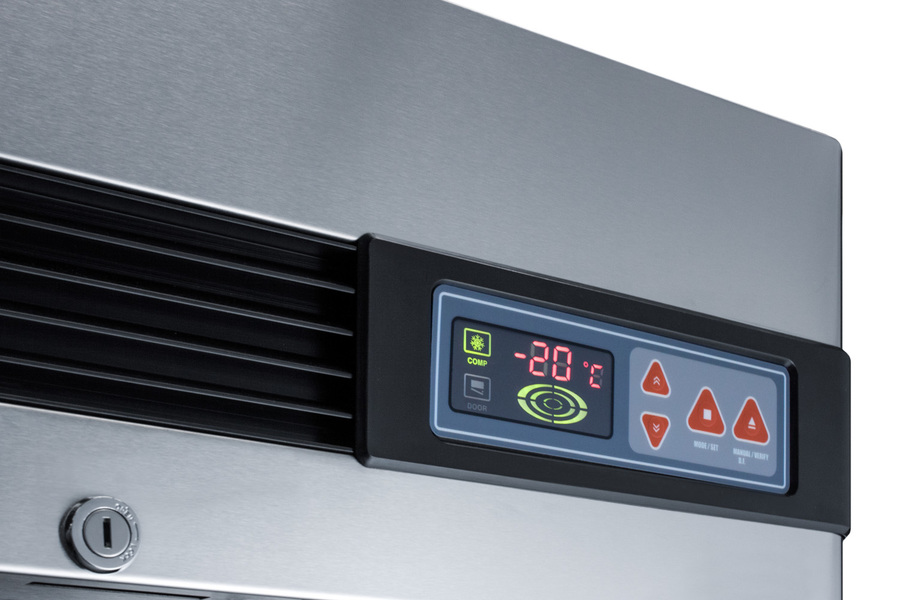

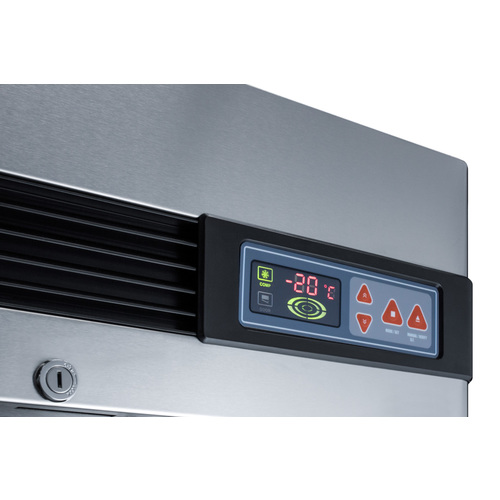

Microprocessor control panel
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Min/max display
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

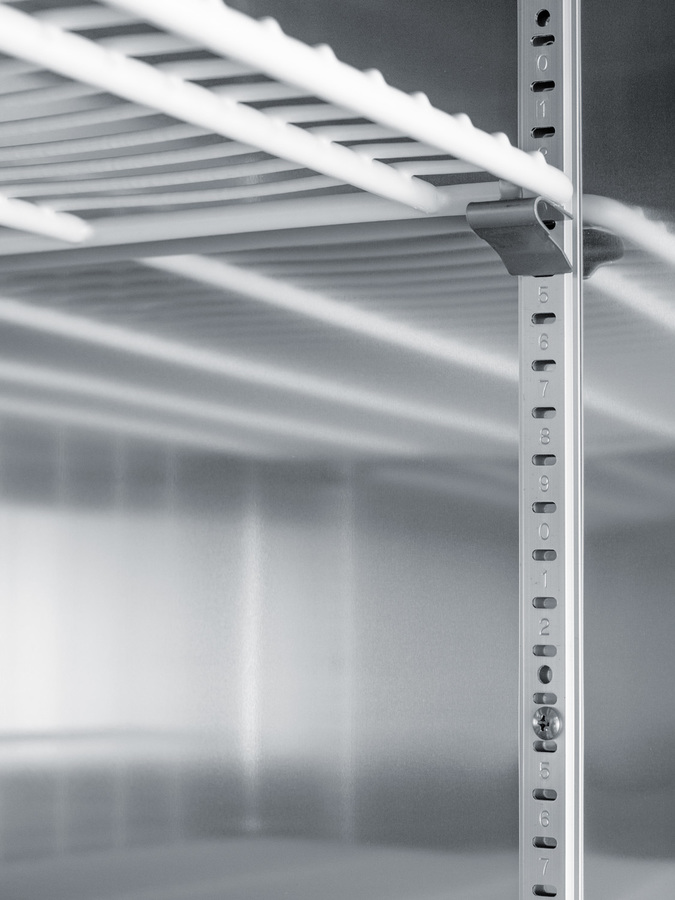

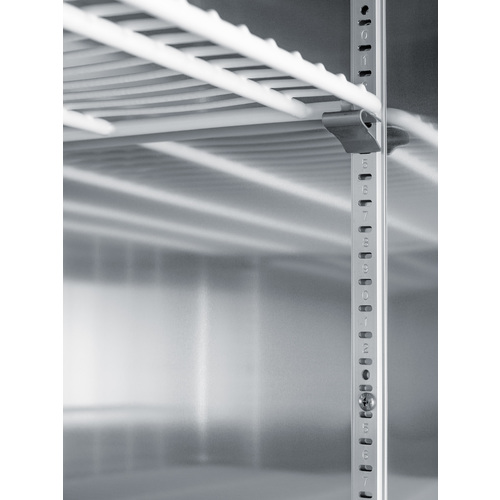

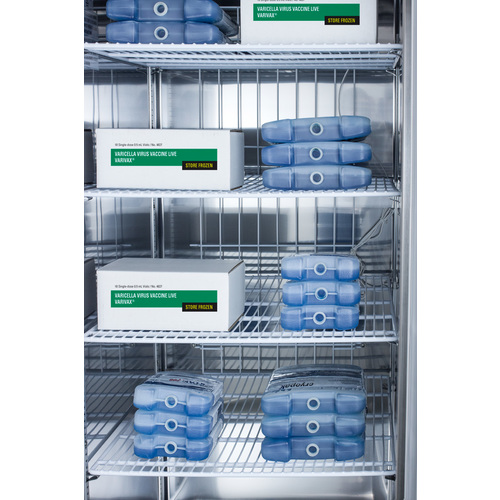

Adjustable plastic-coated wire shelves for improved circulation
Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Interior light
Energy efficient LED lighting with internal on/off switch
Large capacity
23 cubic feet of storage space inside
Condenser cleaning alarm
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Sealed back
Space-saving design that ensures easier cleanup
Extended warranty
2 years parts and labor/5 years compressor
Commercially approved
Commercial construction meeting UL commercial listing standards
Matching refrigerator
Pair with ARS23ML for a matching set in stainless steel
Eco-Friendly
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 83.75" (213 cm)
Width 27.5" (70 cm)
Depth 31.0" (79 cm)
Depth with Handle 32.75" (83 cm)
Depth with door at 90° 56.5" (144 cm)
Capacity 23.0 cu.ft. (651 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 8.0
Voltage/Frequency 115 V AC/60 Hz
Weight 273.0 lbs. (124 kg)
Shipping Weight 293.0 lbs. (133 kg)
Estimated Time to Ship 1 to 2 days
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible No
Interior Height 51.5" (131 cm)
Interior Width 23.5" (60 cm)
Interior Depth 27.0" (69 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior
Refrigerant Type R290a
Refrigerant Amount 3.5 oz.
Wheels 4
Temperature Range -30 to -15ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
AFS23ML.pdf
Download
TECHNICAL DRAWING (.dwg)
SCRR233___ARS23ML_REF.__A-C_2010_.dwg
Download
MSDS INFORMATION
XR290a.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
