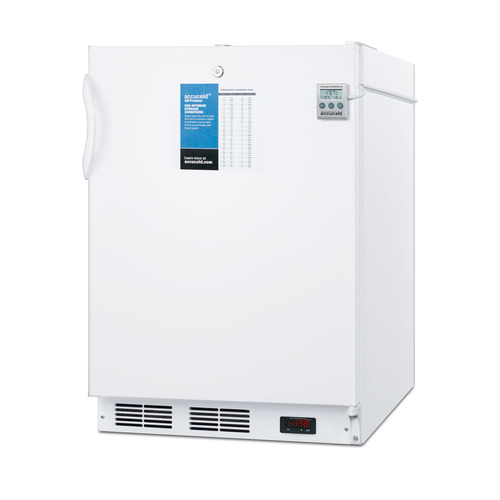

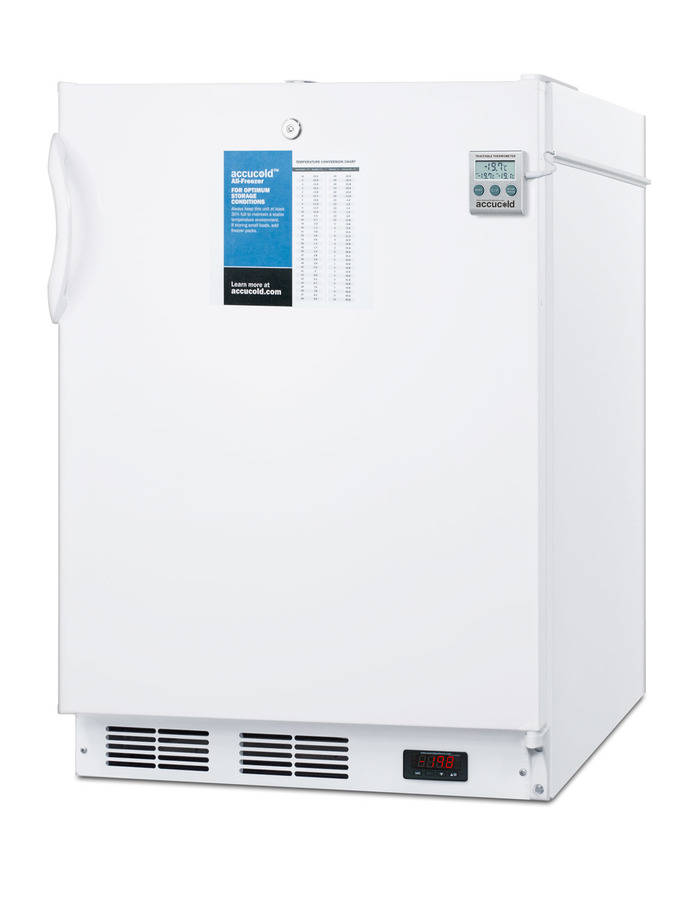

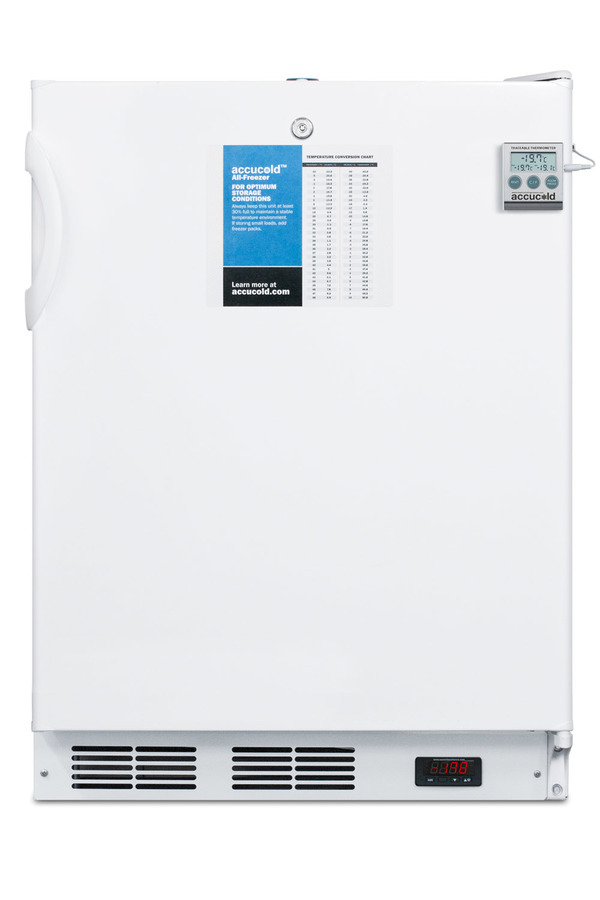

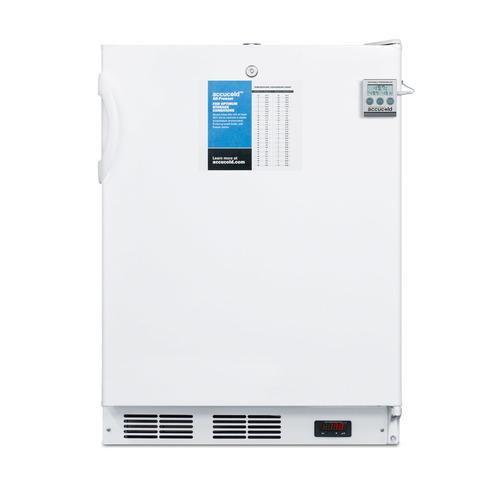

24" Wide All-Freezer

SKU: VT65MLPLUS2ADA Matching refrigerator

NIST calibrated thermometer with current and high/low temperature readout

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32" height for use in ADA compliant settings
  • NIST calibrated thermometer displays the current and high/low temperature to the nearest tenth of a degree
  • -25º C operation for safe storage of temperature sensitive materials
  • Ideal 24" footprint offers large capacity in a slim fit
  • Factory installed lock provides security you can count on

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
HUM - Humidity sensor
Humidity sensor with min/max readout
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's PLUS2 Series freezers come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard freezer unit provides.

The VT65MLPLUS2ADA is a 24” wide all-freezer designed for freestanding use in ADA compliant settings, with a factory installed lock for added security and a digital thermostat for easy temperature management. This manual defrost unit can hold temperatures as low as -25ºC, ideal for many vaccines and laboratory items. The door includes a  thermometer calibrated to NIST standards in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas. The interior features three removable storage baskets with clear plastic fronts for easy storage that stays cold, even when the door is opened.

This freezer can be paired with the auto defrost FF6LPLU2SADA for a complete matching set. For a built-in version of this model, see the VT65MLBIPLUS2ADA.

FEATURES

ADA compliant
32" height for use in ADA compliant settings
Factory installed lock
Keyed lock for secure interior
NIST calibrated temperature display
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature
-25ºC capable
Low temperature capability ideal for certain sensitive items
Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management
Manual defrost
Efficient performance with reliable temperature stability

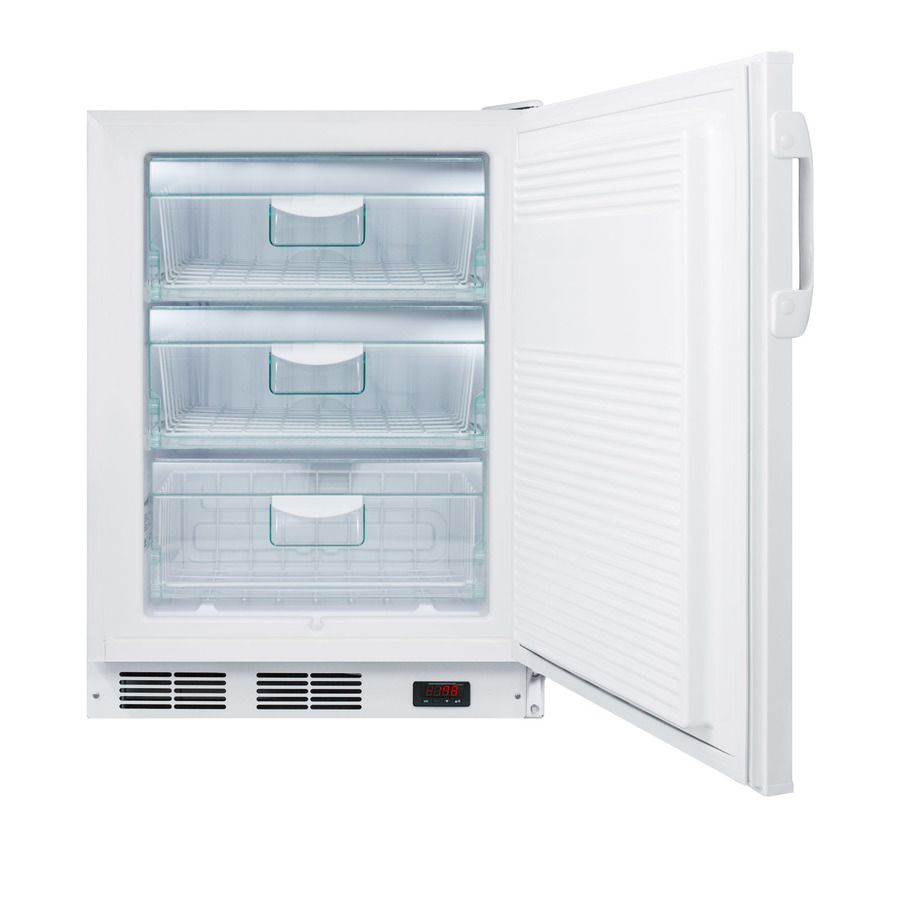

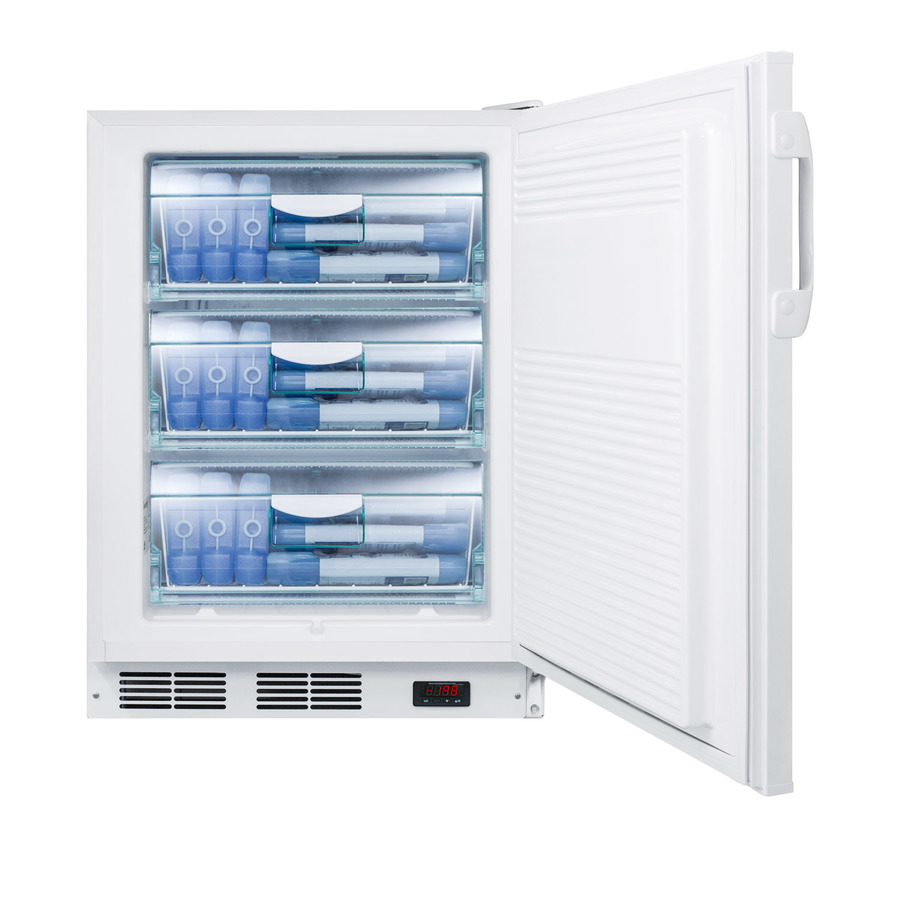

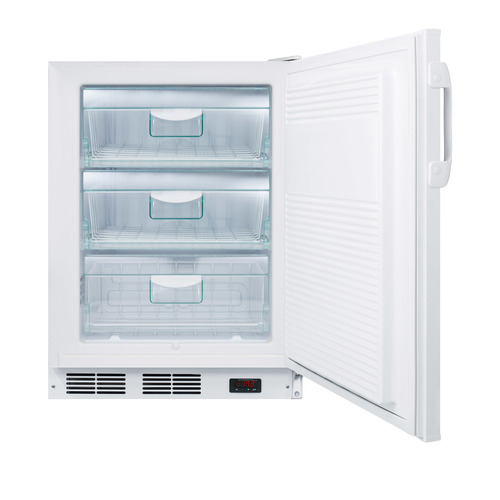

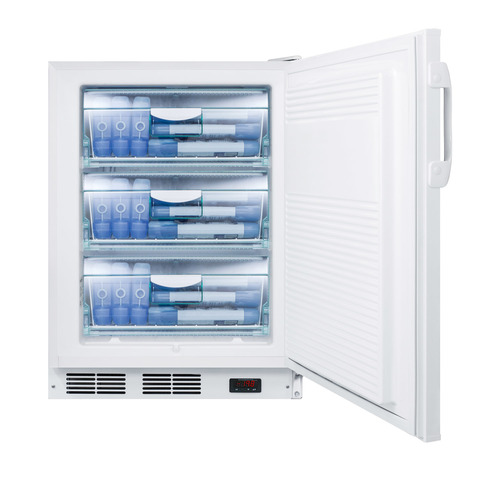

Pull-out drawers
Clear baskets for convenient and separated storage
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Matching refrigerator available
Pair with FF6LPLUS2ADA for a complete ADA compliant set
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
HUM - Humidity sensor
Humidity sensor with min/max readout
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
