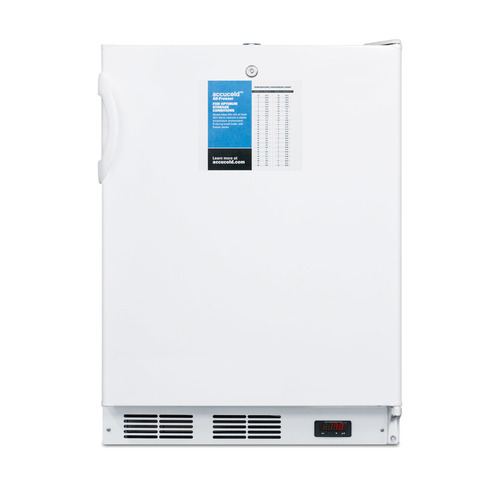

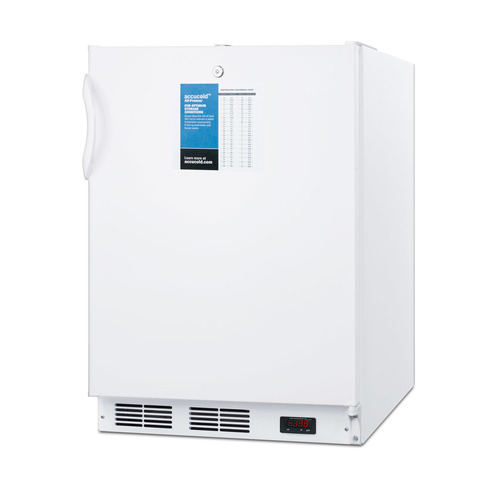

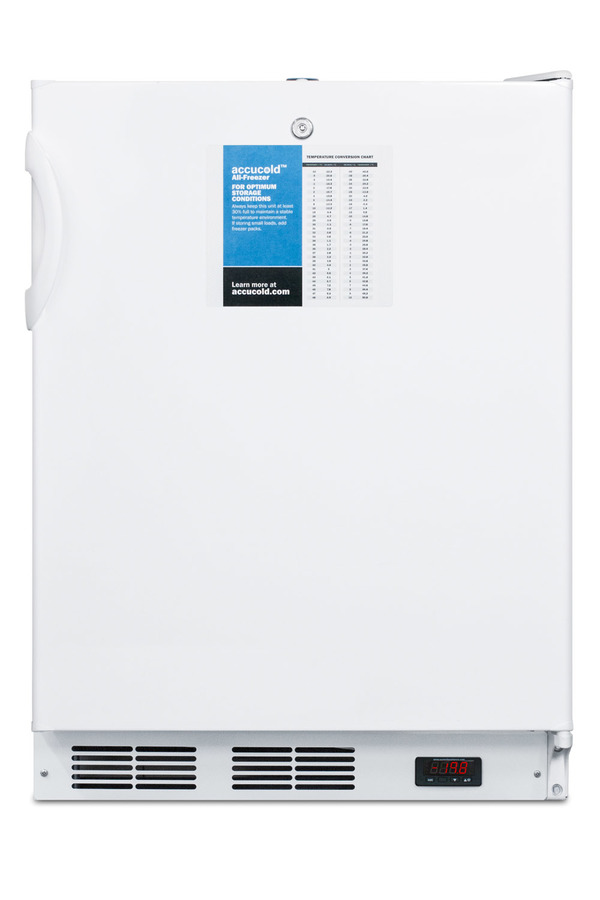

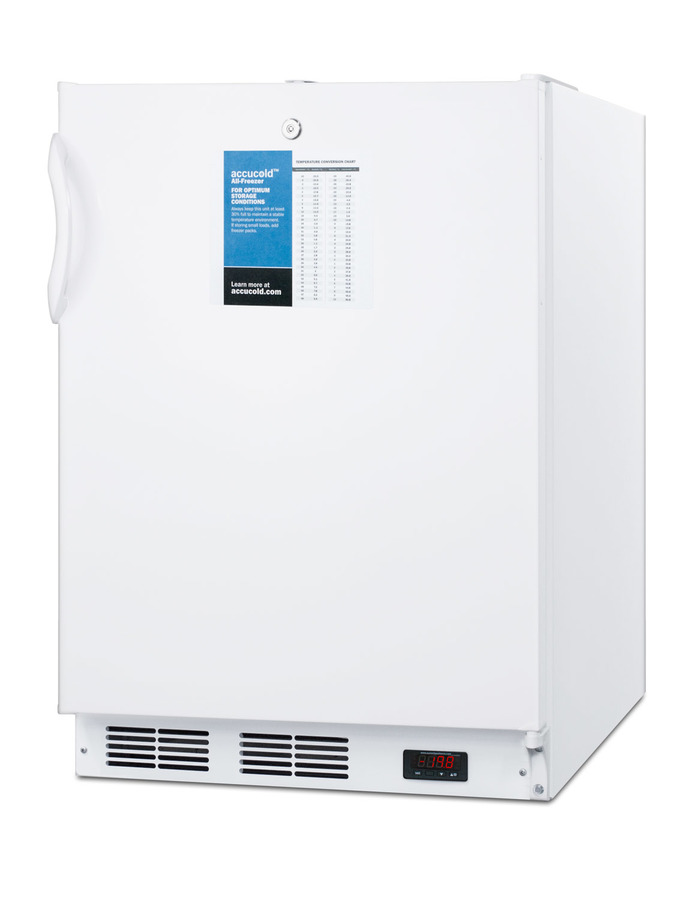

24" Wide All-Freezer, ADA Compliant

SKU: VT65MLPROADA Matching refrigerator

Factory-installed probe hole accommodates user-provided monitoring equipment

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32" height for use in ADA compliant settings
  • Factory installed access port allows users to install their own monitoring equipment
  • -25º C operation for safe storage of temperature sensitive materials
  • Ideal 24" footprint offers large capacity in a slim fit
  • Factory installed lock provides security you can count on
  • Made in Europe

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TH - Installed thermometer
Add a solar powered thermometer with external temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

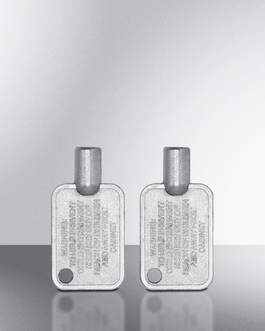

Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

Sized at 32" high and just under 24" wide, the VT65MLPROADA is an all-freezer designed for freestanding use in hospitals, doctors' offices, and other facilities with specific temperature needs following ADA guidelines for lower counter height. Made in Europe, it comes in a white finish with a fully finished cabinet. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas and factory-installed lock is located towards the top of the unit for convenient security. A digital thermostat is located in the kickplate for easy temperature management.

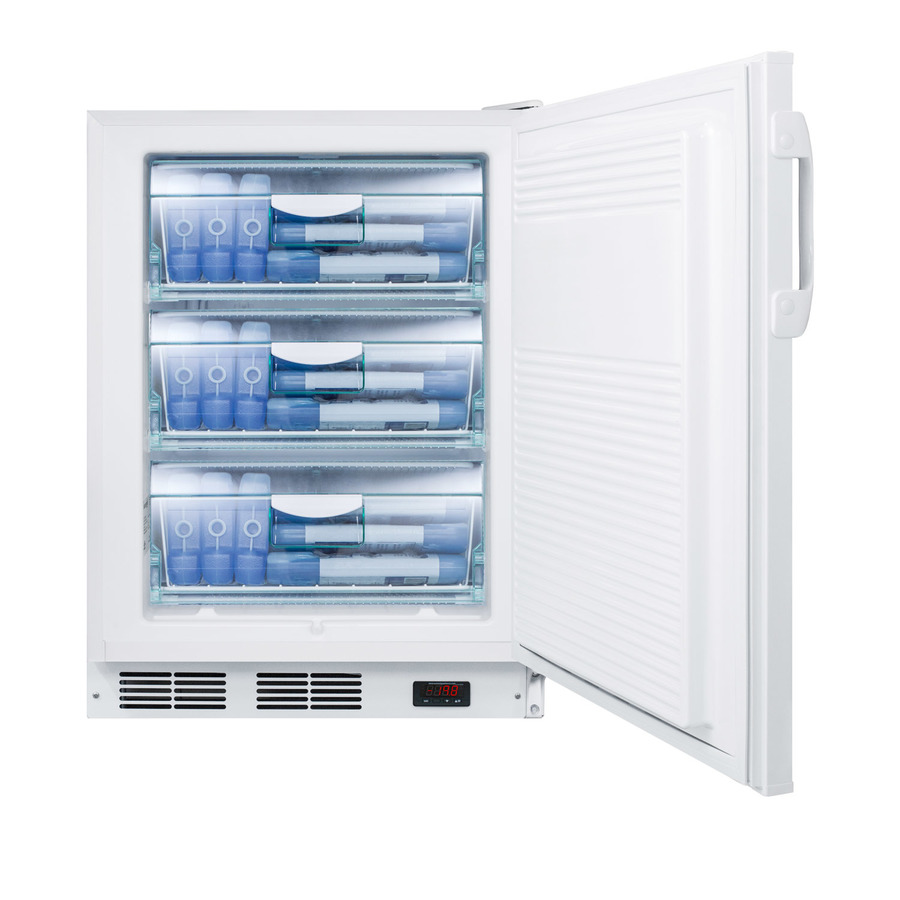

This manual defrost -25ºC capable unit features three removable interior drawers with clear fronts, ideal for keeping contents protected from ambient temperature when the door is opened. It has a flat door liner as recommended by the CDC and VFC. An access port is installed in the rear to allow users to install their own temperature monitoring equipment.

The VT65MLPROADA can be paired with a matching all-refrigerator (model FF6LPROADA or FF7LPROADA). Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

FEATURES

ADA compliant
32" height for use in ADA compliant settings
Factory installed lock
Top-mounted keyed lock for convenient security
Access port
Pre-installed 3/8" probe hole included in the rear allows users to connect their own monitoring equipment
-25ºC capable
Low temperature capability ideal for certain sensitive items
Manual defrost
Efficient performance with reliable temperature stability

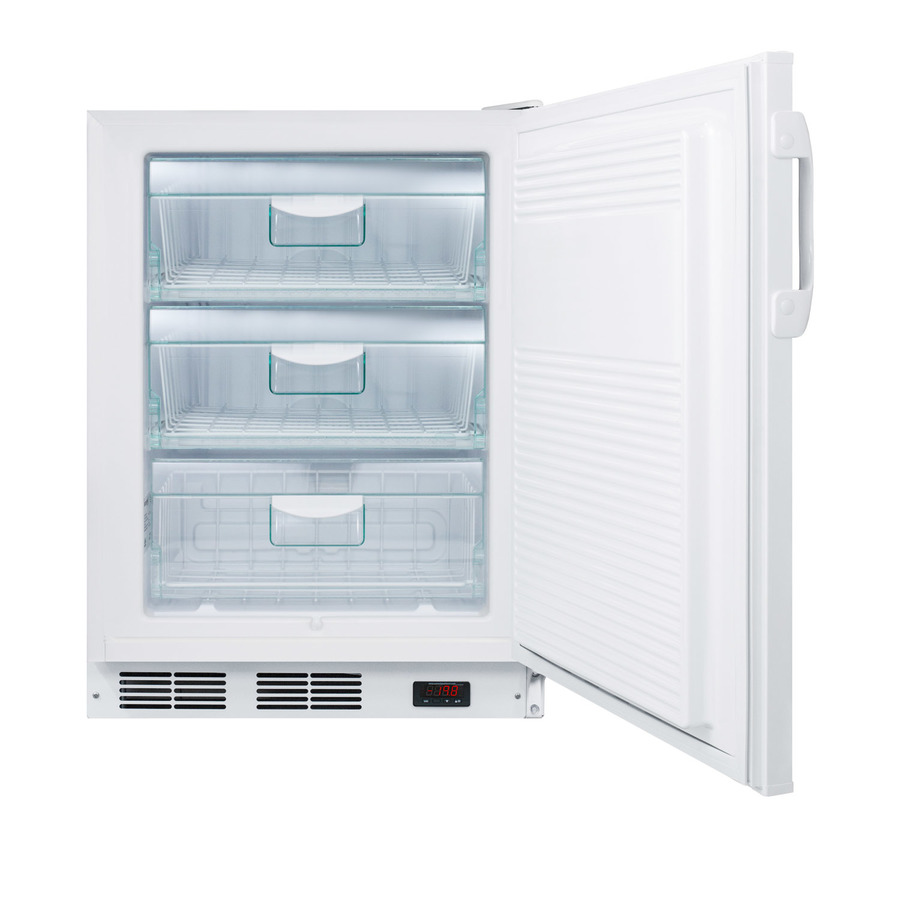

Pull-out drawers
Clear baskets for convenient and separated storage
Digital thermostat
Electronic controls located in the front kickplate for easy and intuitive temperature management
Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance
Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior
Matching refrigerator available
Pair with FF6LPROADA for a complete ADA compliant set
Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales
Fully finished white cabinet
Allows the unit to be used freestanding
Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
TH - Installed thermometer
Add a solar powered thermometer with external temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
