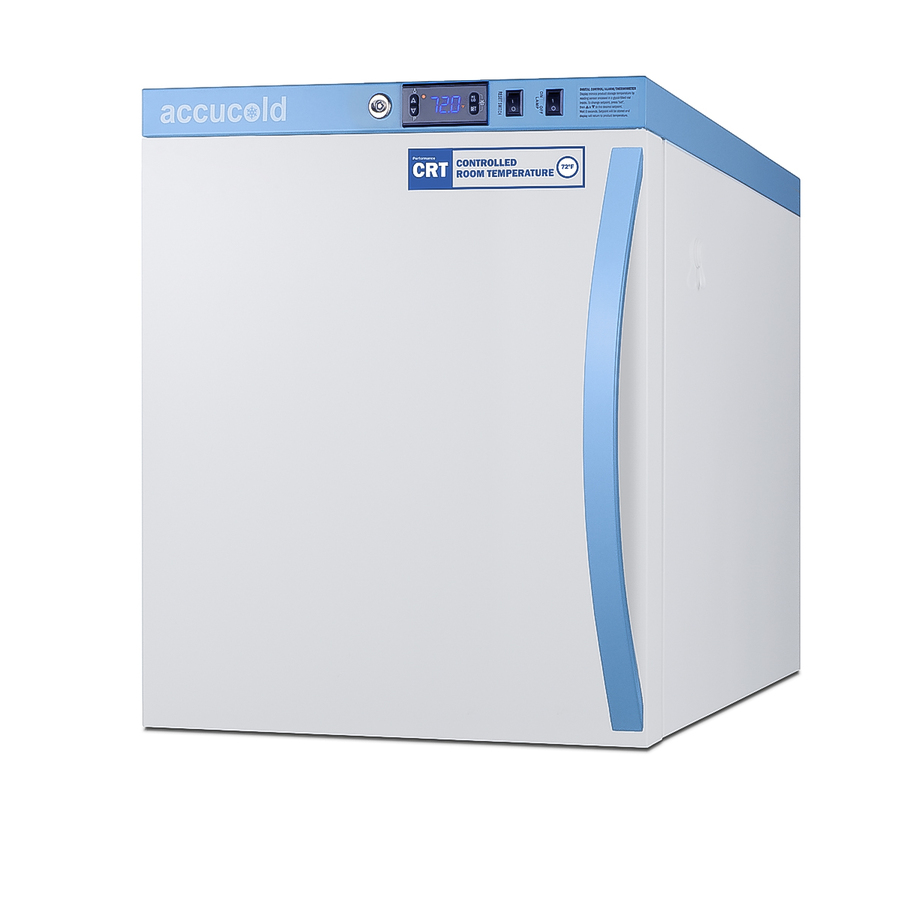

2 Cu.Ft. Compact Controlled Room Temperature Cabinet

SKU: ARS2PV-CRTLHD
Controlled Room Temperature (CRT) cabinets are designed and purpose-built for ambient medication and vaccine storage in pharmacy and patient care areas
Estimated Time to Ship:

2 to 3 days

22.25" H x 18.5" W x 23.25" D
(57cm H x 47cm W x 59cm D)

Overview
Height of Cabinet 22.25" (57 cm)
Width 18.5" (47 cm)
Width with Door Open 18.88" (48 cm)
Depth 23.25" (59 cm)
Depth with Handle 24.75" (63 cm)
Depth with door at 90° 42.5" (108 cm)
Capacity 1.94 cu.ft. (55 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.6
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Shipping Weight 86.0 lbs. (39 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101107059
Refrigerator Features
Door Swing LHD
Reversible Yes
Shelf Type Wire
Shelf Qty 2
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.84oz.
High Side PSI 280.0
Low Side PSI 90.0
Interior Light Yes
Temperature Range 68 to 77ºF (preset to 72ºF)
Dimensions
Interior Height 16.5" (42 cm)
Interior Width 15.25" (39 cm)
Interior Depth 15.75" (40 cm)
Compressor Step Height 8.25" (21 cm)
Compressor Step Width 15.25" (39 cm)
Compressor Step Depth 4.25" (11 cm)

Exterior
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator

Controlled Room Temperature Cabinet

Purpose-built design to store medication, pharmaceuticals, and other sensitive materials at 72ºF

Purpose-built design

Designed and purpose-built to support manufacturer recommendations for storage of pharmacy, medication, and vaccines within 20° - 25°C (68° - 77°F) as defined by USP <1079> Good Storage and Distribution Practices for Drug Products

+/-1.5ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Stable operation

Designed to maintain a set temperature, even when ambient room temperature is as cold as 68ºF or as high as 86ºF

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce germ spread

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +68 to +77ºF

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

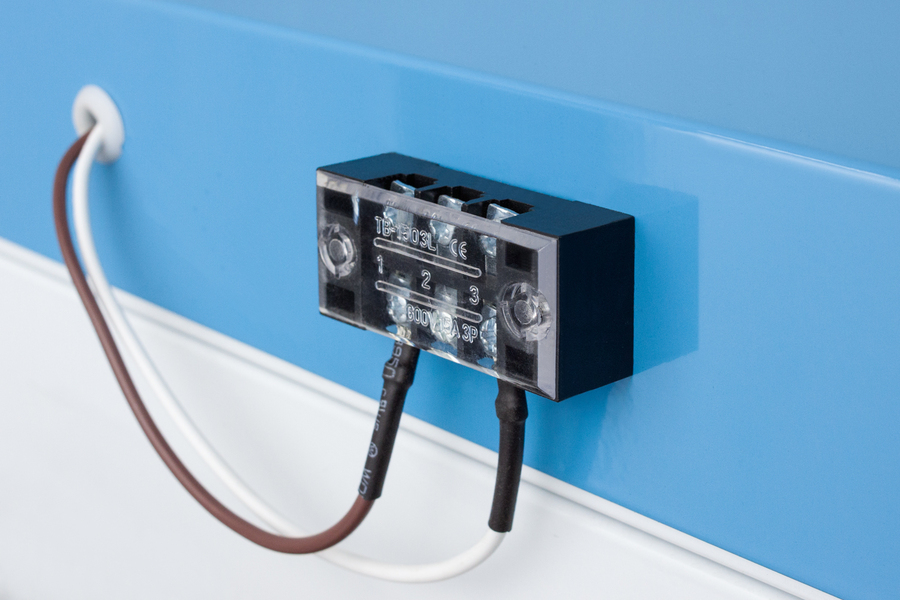

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

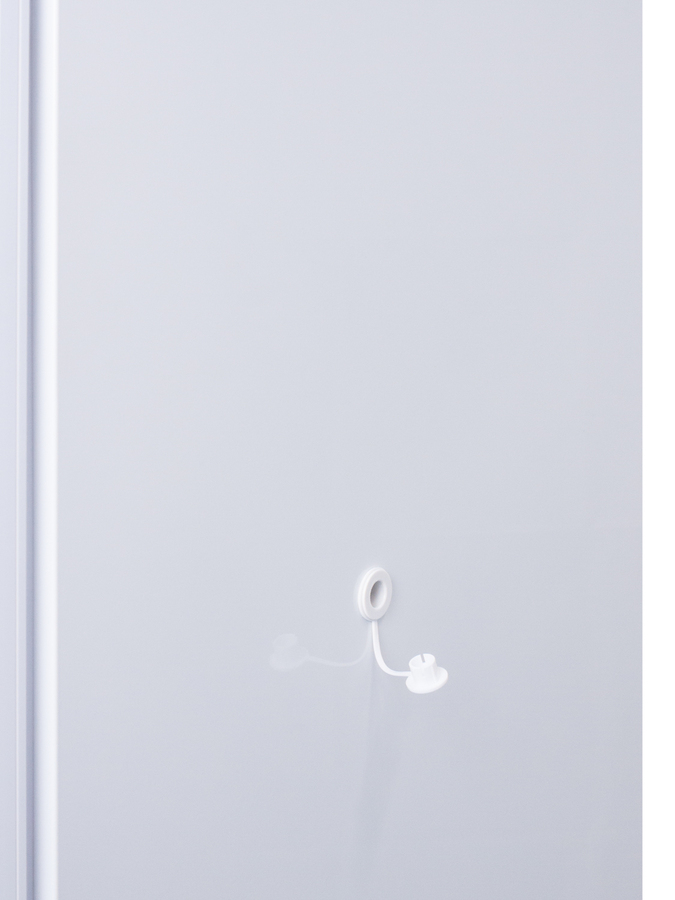

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

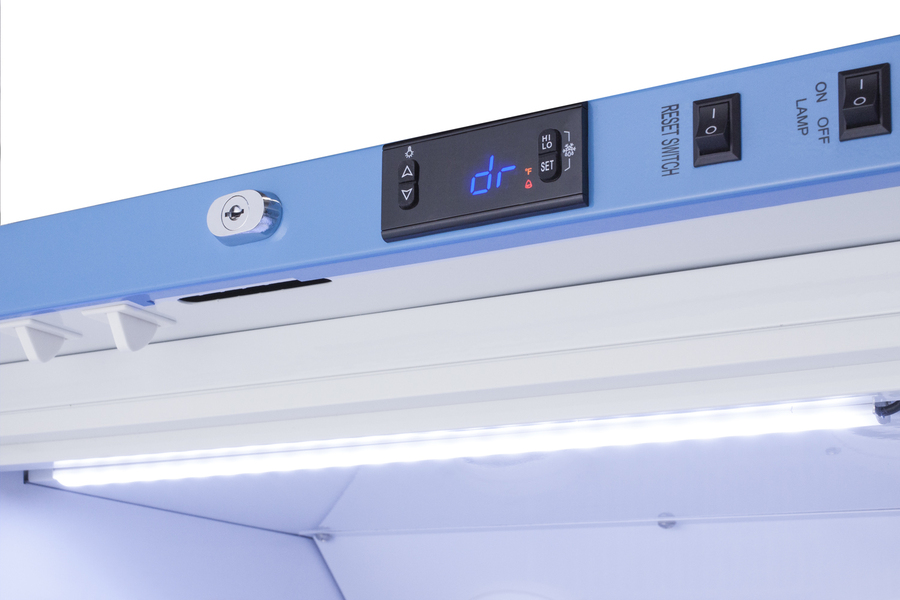

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Adjustable plastic-coated wire shelves for improved circulation

Multiple shelf positions spaced at 1/2" to accommodate virtually any size

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Self-closing door

Added protection in busy settings

Left hand door swing

For this unit with the door opening from the other side, see model ARS2PV-CRT

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices

Solid and glass door choices available from 1 to 18 cu.ft. Browse the CRT series for more information

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Performance Series Controlled Room Temperature Cabinets offer purpose-built storage solutions for medication requiring a stable room temperature environment.

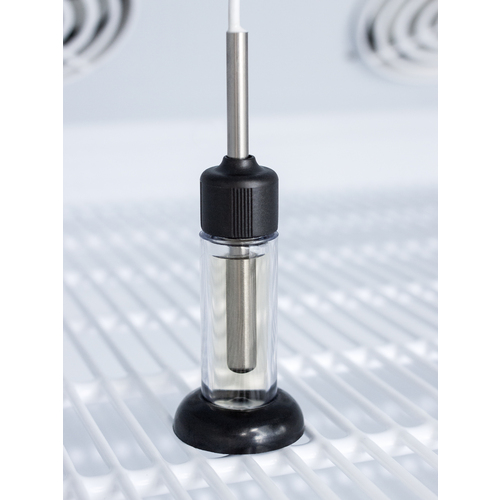

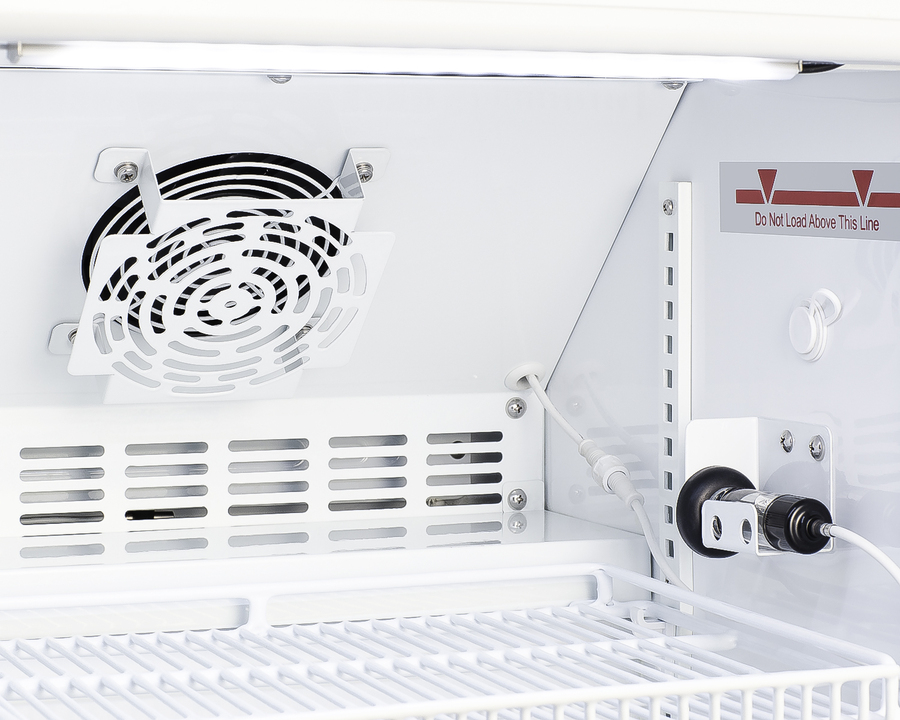

The ARGSPV-CRTLHD is a 1.94 cu.ft. countertop unit pre-set to 72ºF, with an adjustable range from 68º to 77ºF. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas.

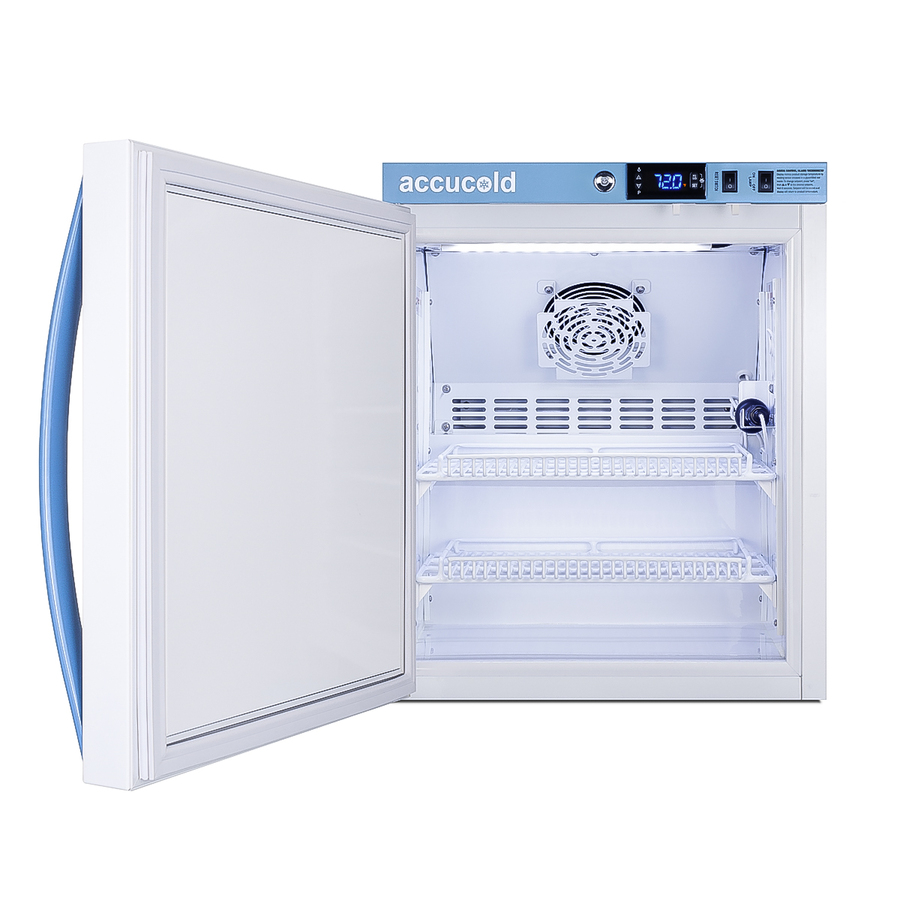

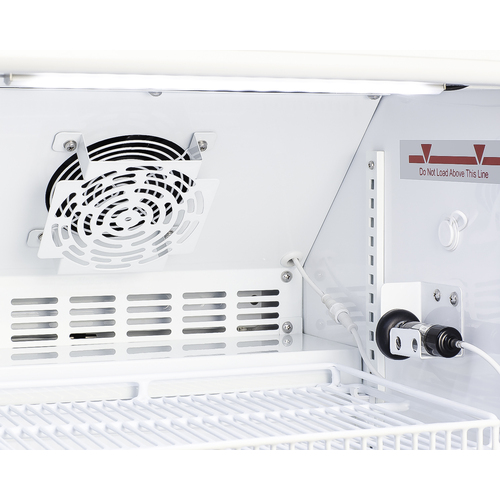

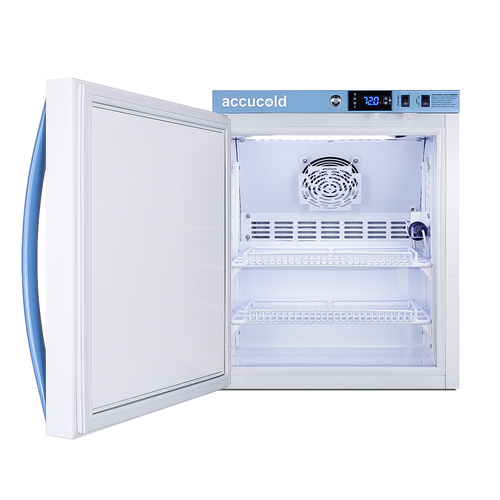

Inside, the ARS2PV-CRTLHD utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan to ensure excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

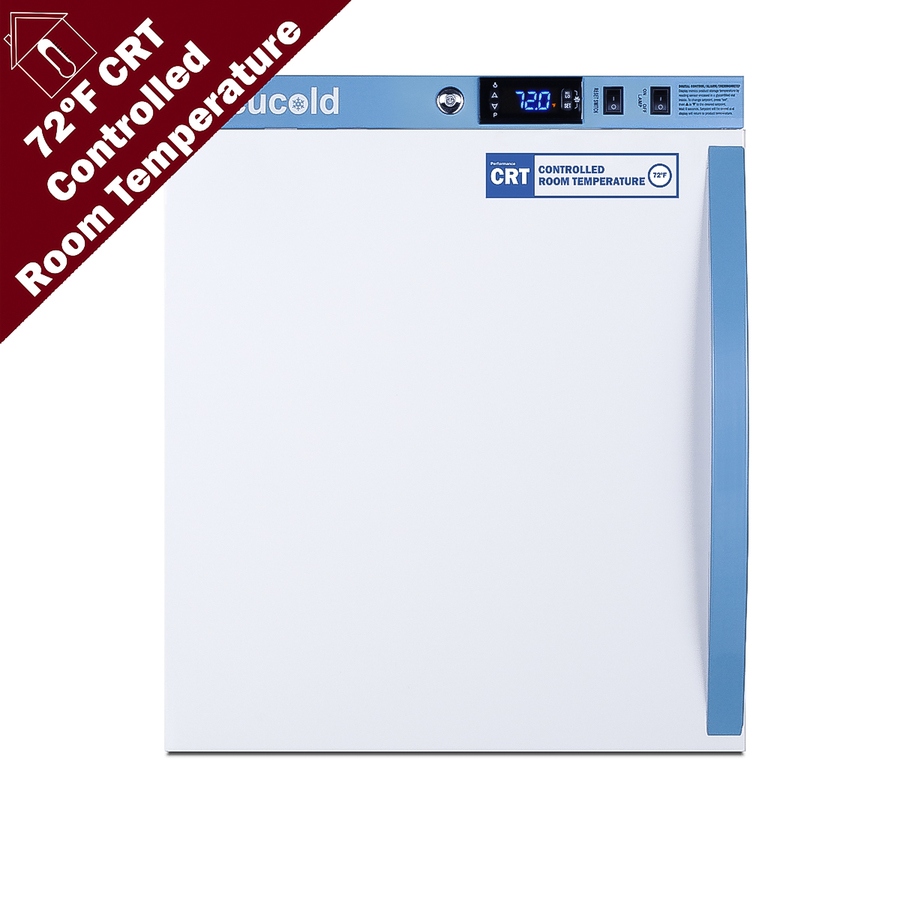

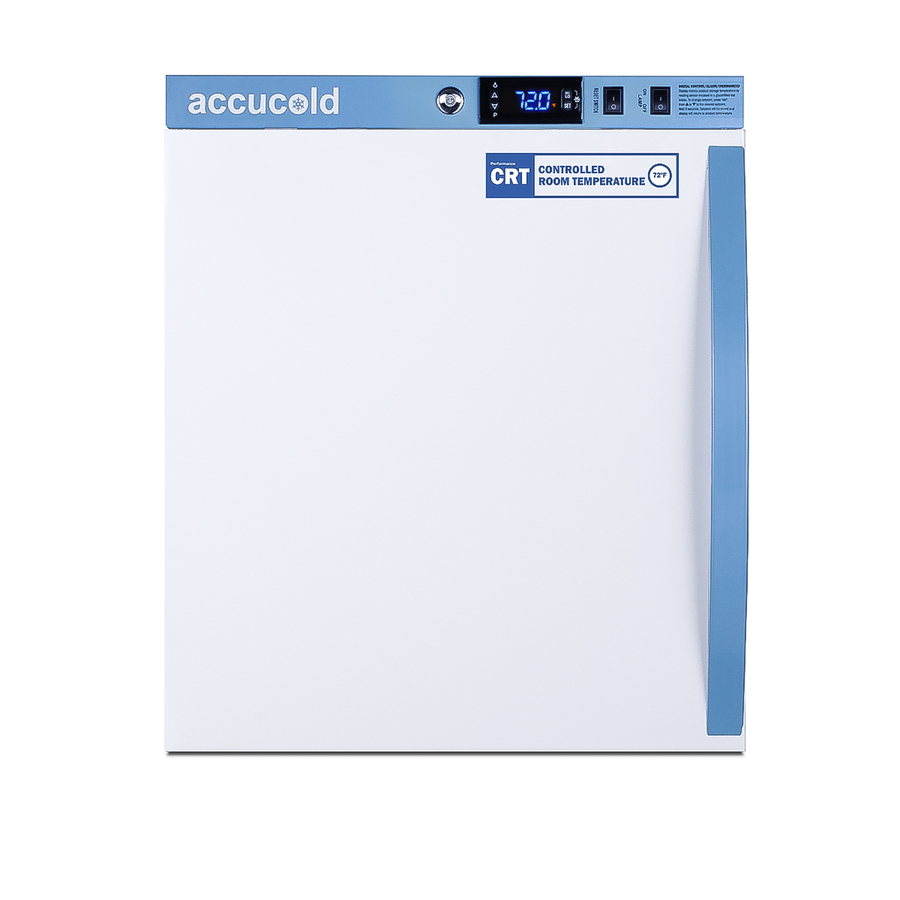

The ARS2PV-CRTLHD comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial  handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a left hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS2PV-CRTLHD provides an energy efficient solution to stabilized room temperature storage, even when ambient temperatures can reach temperatures as cold as 68ºF or warm as 86ºF. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as glass door options, are also available.

Download
BROCHURE w/ DRAWINGS
ARS2PV-CRTLHD.pdf
Download
TECHNICAL DRAWING (.dwg)
ARS2PV.dwg
Download
ASSEMBLY DRAWING
ARS2PV-Assembly.pdf
Download
MSDS INFORMATION
R600a_MSDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
