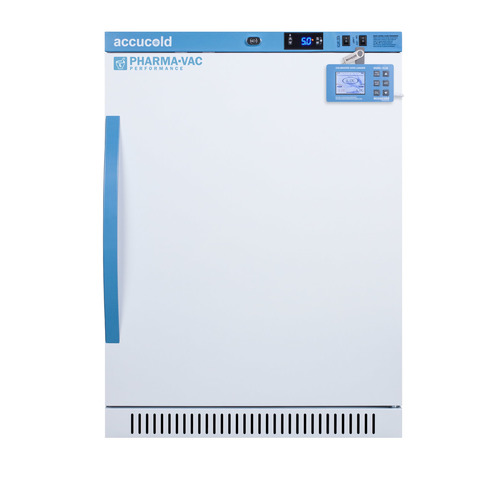

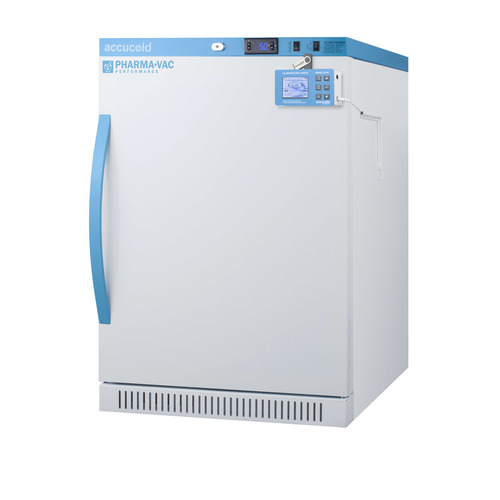

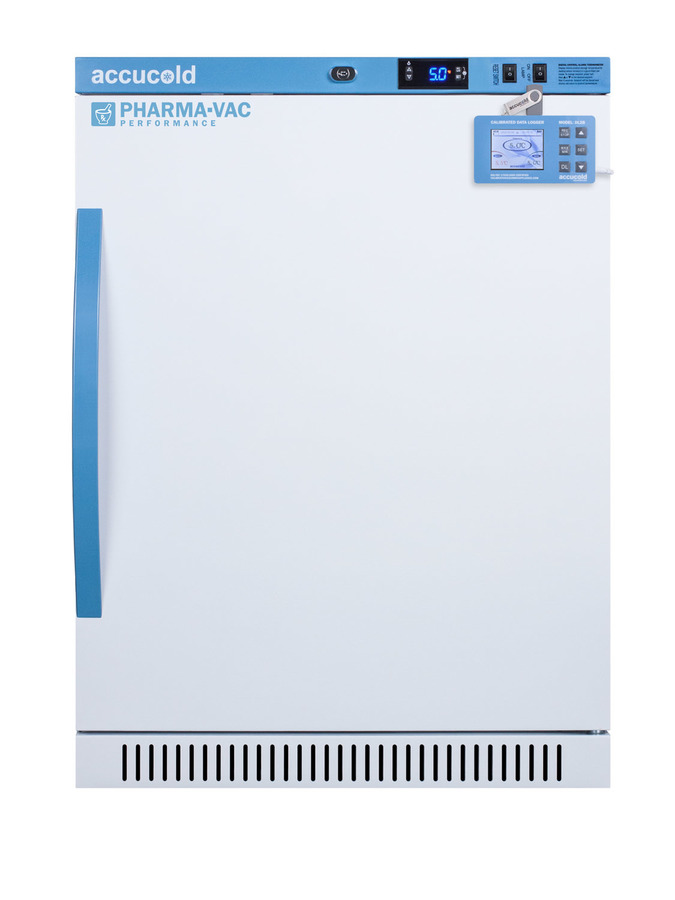

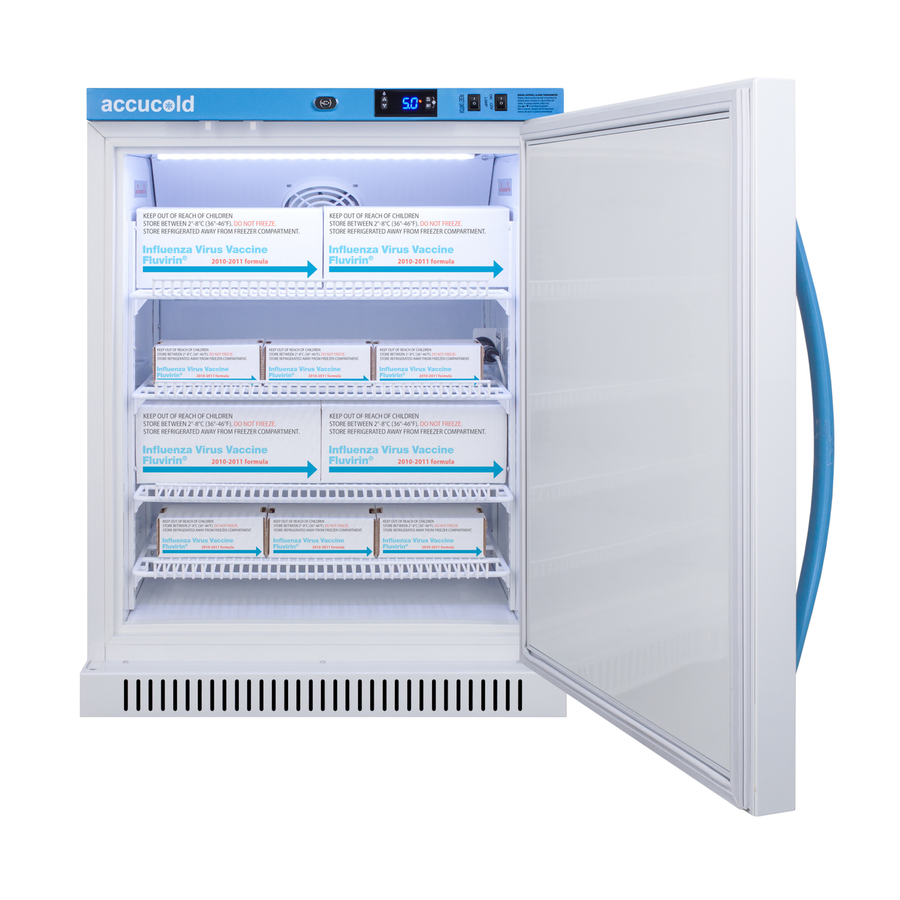

6 Cu.Ft. ADA Height Vaccine Refrigerator

SKU: ARS6PVDL2B
Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a NIST calibrated data logger included, and antimicrobial handle
Out of Stock; ETA:

12/17/2021

32.5" H x 23.38" W x 24.38" D
(83cm H x 59cm W x 62cm D)

Overview
Height of Cabinet 32.5" (83 cm)
Width 23.38" (59 cm)
Width with Door Open 23.88" (61 cm)
Depth 24.38" (62 cm)
Depth with Handle 26.13" (66 cm)
Depth with door at 90° 46.5" (118 cm)
Capacity 6.0 cu.ft. (170 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.75
Voltage/Frequency 115 V AC/60 Hz
Weight 115.0 lbs. (52 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101065700
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.66oz.
Interior Light Yes
Temperature Range 2 to 8ºC
Sound Level 36.4 dB
Dimensions
Interior Height 24.5" (62 cm)
Interior Width 20.0" (51 cm)
Interior Depth 17.0" (43 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 20.0" (51 cm)
Compressor Step Depth 5.0" (13 cm)

Exterior
DTFAR-Temperature display converted to Fahrenheit
Factory conversion of temperature readout to display in Fahrenheit
LHD - Left hand door swing
Door reversal to left hand swing
Extra key
Extra keys available for purchase
Interior
LockBoxSS - Interior locking compartment
Interior drop-down compartment with combination lock for use in SCR610BL, SCR1156, FFAR12W, or FFAR121SS
LockBoxW - Interior locking compartment with window
Interior drop-down locking compartment with combination lock and two windows for use in 24" wide Pharma-Vac and Med-Lab units, SCR610BL, SCR1156, SCR1401, FFAR12W, or FFAR121SS
DR-Ventilated Drawer
Full-extension ventilated storage drawer factory-installed inside refrigerator
Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Antimicrobial silver ion-coated handle

Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC

Digital data logger (DDL) included

Accucold DL2B data logger is NIST calibrated in our ISO/IEC 17025:2017 laboratory, with user-set logging intervals, a large LCD readout of the current and high/low temperature, and virtually unlimited storage through internal memory and a convenient USB drive; for additional information on this logger's features, view the DL2BKit on our webiste

Temperature alarm

Visual and audible alarms alert if the interior temperature rises or falls out of set range

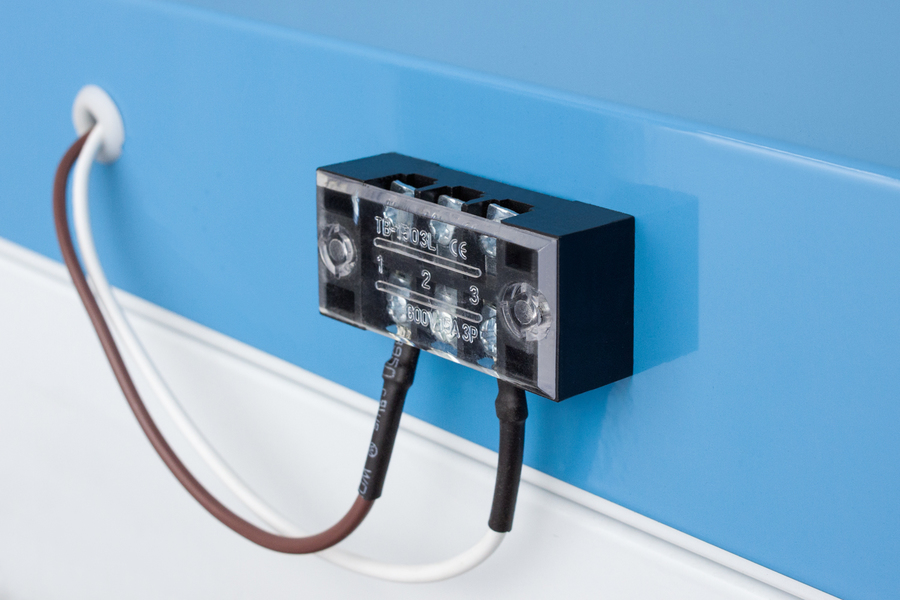

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

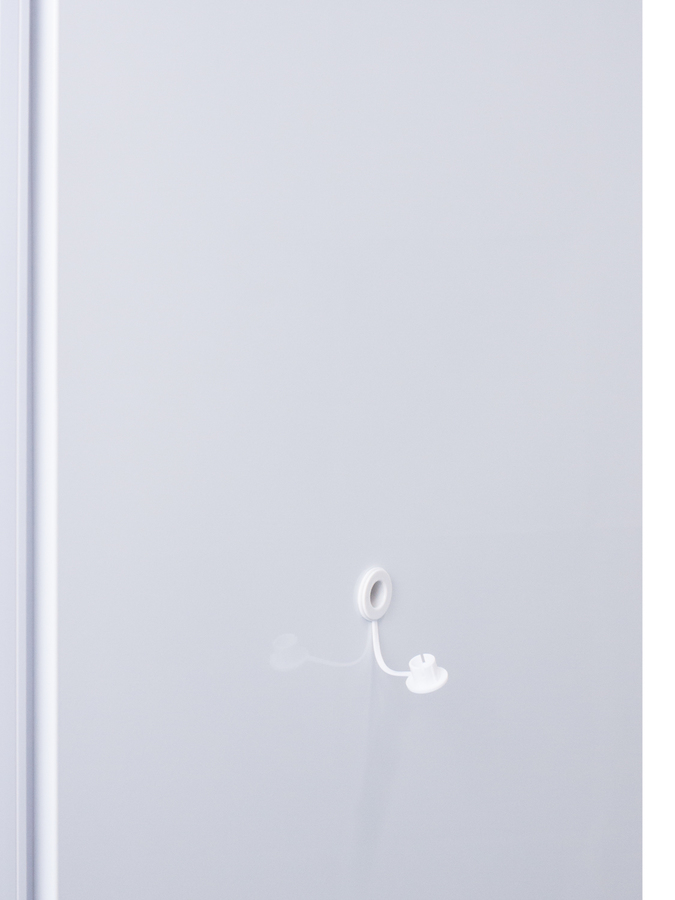

Access port

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment

Open door alarm

Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarm

Battery-powered alarm sounds if the power connection is interrupted

Sensor failure alarm

Audible and visual alarm warns if the sensor is disrupted

Password protection

Control panel requires password entry to adjust the parameters beyond the set point

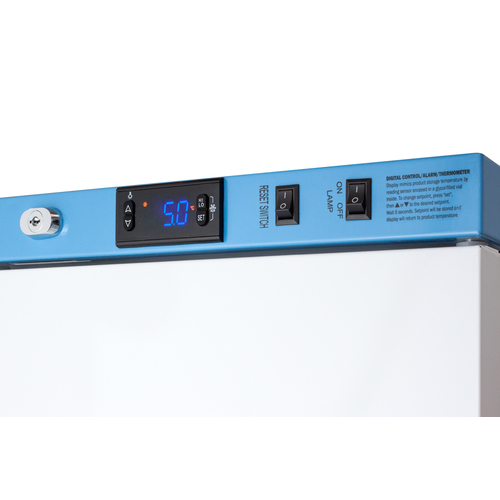

Microprocessor control panel

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max display

Control panel provides a readout of the low and high temperatures in 15 minute increments

Factory-installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

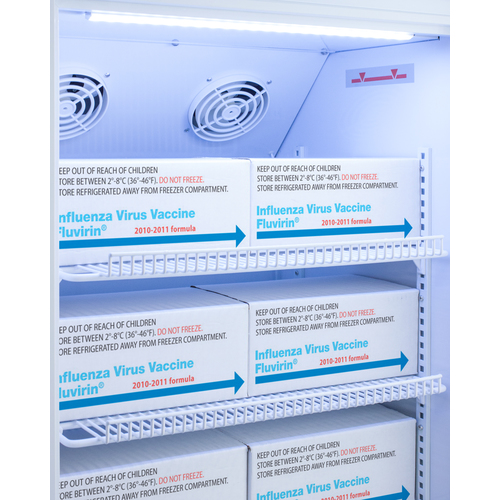

Adjustable plastic-coated wire shelves for improved circulation

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Durable interior

Walls are constructed from white powder coated metal for added strength and improved temperature retention

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Helps to ensure stored contents aren't overexposed to ambient temperature

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Additional choices

Solid and glass door choices available from 1 to 15 cu.ft. Browse the Pharma-Vac series for more information

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Pharma-Vac Performance Series are upright all-refrigerators designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with a powder-coated silver ion handle that helps prevent germ spread.

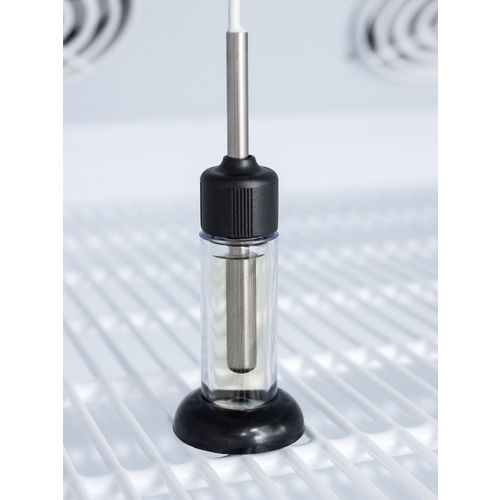

The ARS6PVDL2B is a 6 cu.ft. all-refrigerator sized at 32.5 inches high for use in most ADA compliant applications. The adjustable control range allows you to manage the temperature between +2 to +8ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. This refrigerator includes a high/low temperature alarm, as well as a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas.

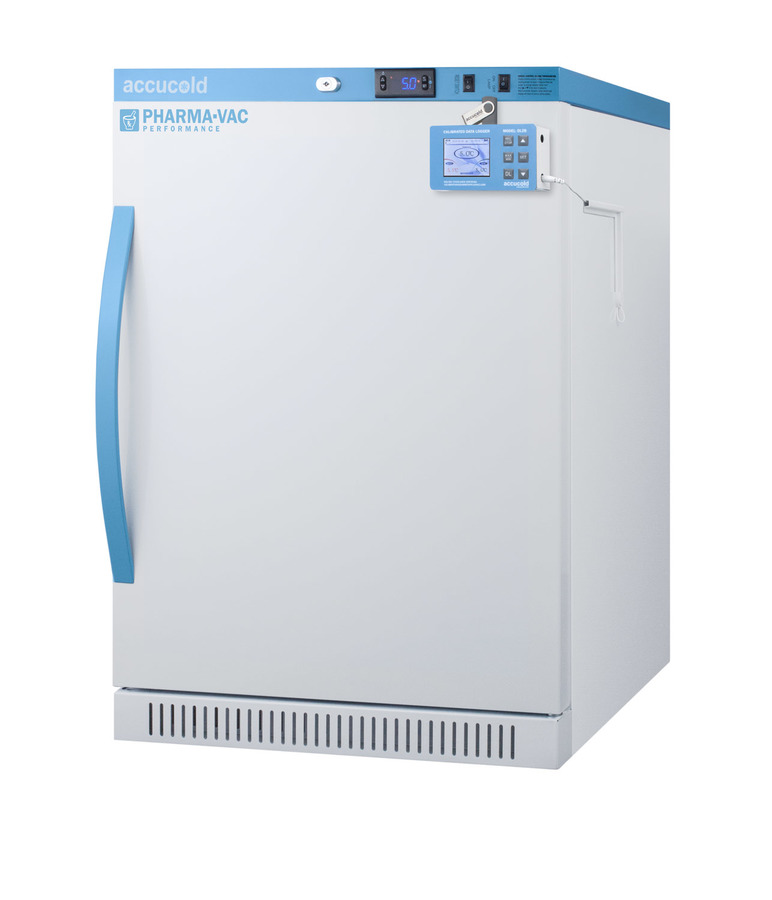

We also include our DL2B digital data logger to be mounted to the door, a feature recommended by the CDC and VFC for vaccine storage. This password-protected DDL is NIST calibrated in our ISO/IEC 17025:2017 certified laboratory and offers a large LCD display of the current and high/low temperature, recording up to 32,000 data groups to its internal memory or even more on the included 4GB USB flash drive. Data can be viewed through a PC or Mac in Microsoft Excel or any .CSV compatible program. Users can set their own recording intervals starting at increments of 10 seconds to best meet a facility's specific logging needs. We include a 2-year certificate of calibration beginning the date of manufacture. The logger can be re-calibrated in our laboratories after the certificate expires. (For additional information on the DDL, see the DL2BKit listing on our website.)

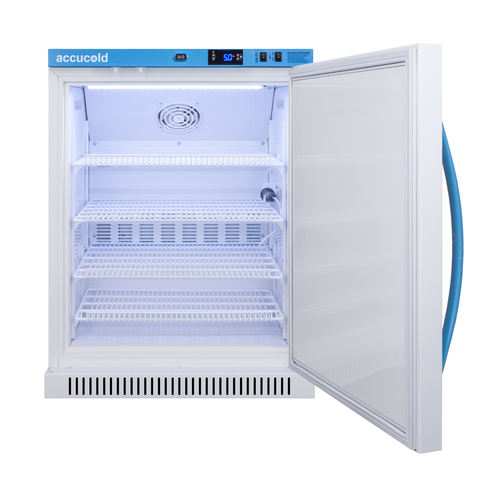

Inside, the ARS6PVDL2B utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The ARS6PVDL2B comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal.

Designed with hydrocarbon refrigerant, the ARS6PVDL2B provides an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as solid door options, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac.

Note: The DL2B data logger adds 1 1/2" to the depth of the upper right hand corner of the door (not included in the listed specifications on this page).

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation, as well as a calibrated digital data logger (DDL) to display the current and high/low temperature.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
