Compact All-Refrigerator

SKU: FF28LWHMED2
Designed and constructed to meet strict CDC and VFC refrigeration guidelines
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
26.63" H x 18.5" W x 17.75" D
(68cm H x 47cm W x 45cm D)

Overview
Height of Cabinet 26.63" (68 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 2.4 cu.ft. (68 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.7
Voltage/Frequency 115 V AC/60 Hz
Weight 45.0 lbs. (20 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101056456
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Wire
Shelf Qty 2
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 0.7oz.
High Side PSI 120.0
Low Side PSI 70.0
Level Legs Qty 2
Temperature Range 2 to 8ºC
Dimensions
Interior Height 20.5" (52 cm)
Interior Width 15.5" (39 cm)
Interior Depth 13.5" (34 cm)
Compressor Step Height 7.75" (20 cm)
Compressor Step Width 15.5" (39 cm)
Compressor Step Depth 5.5" (14 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

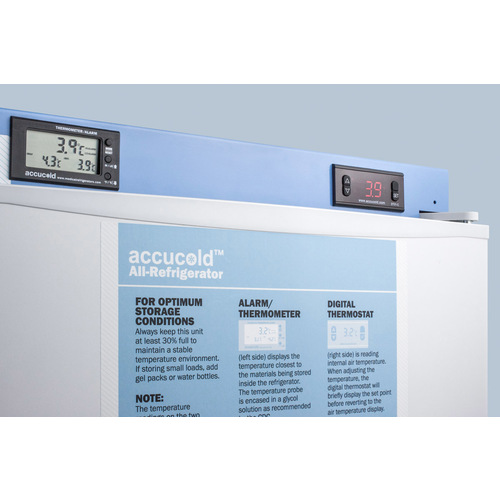

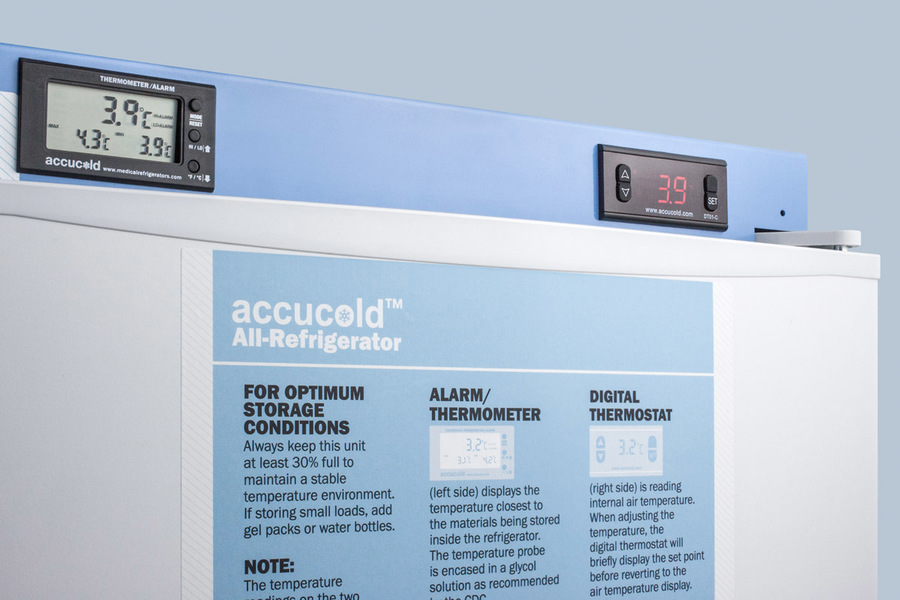

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

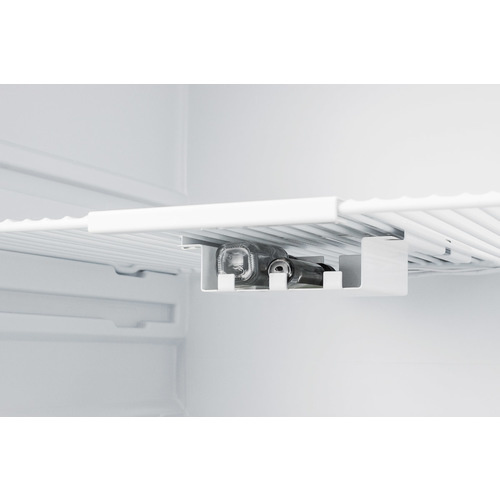

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

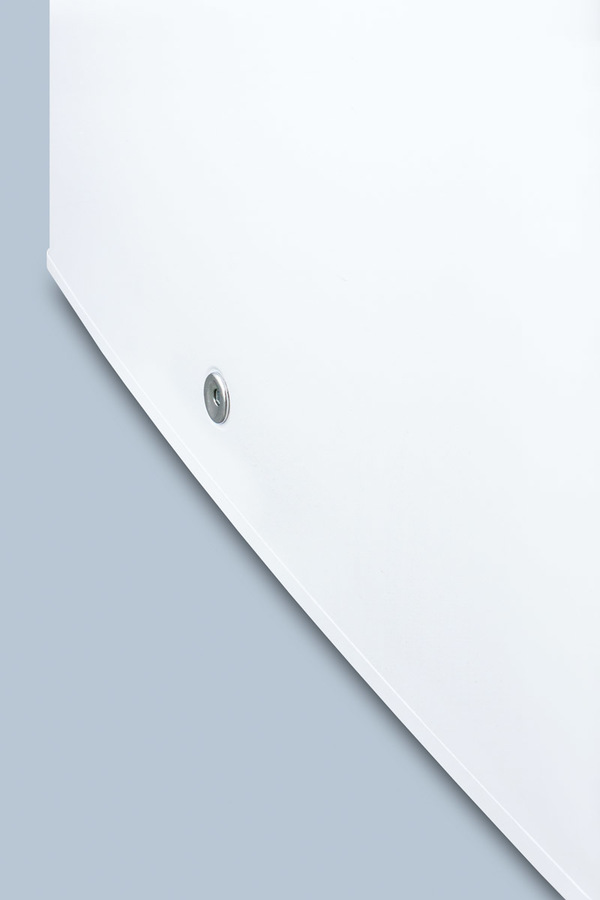

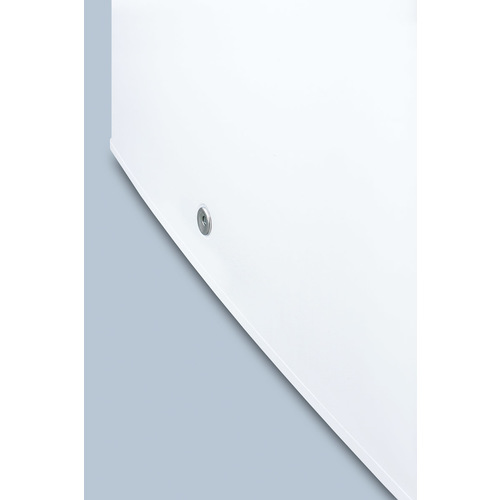

Factory installed lock

Keyed lock for added security, with two keys included

Automatic defrost

Reduced maintenance with auto defrost system

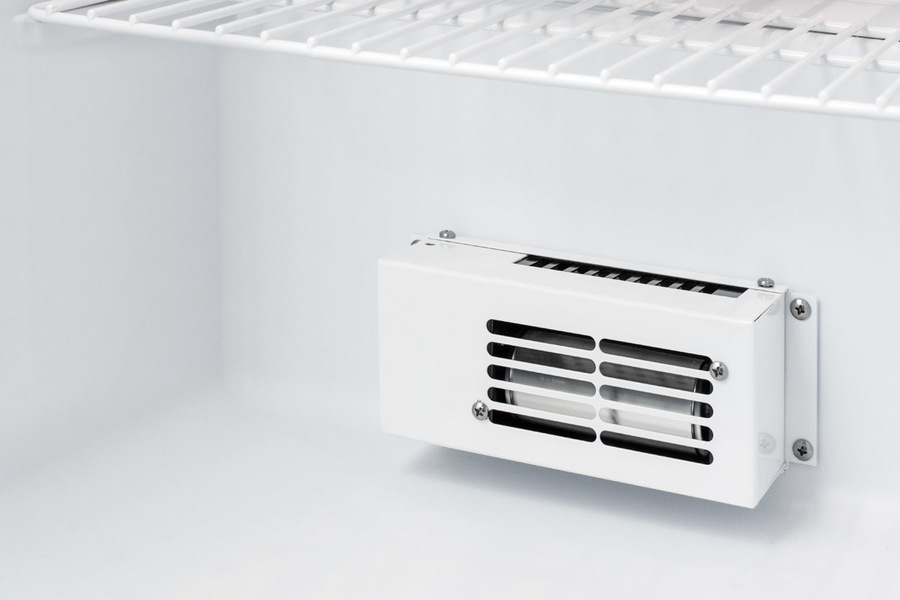

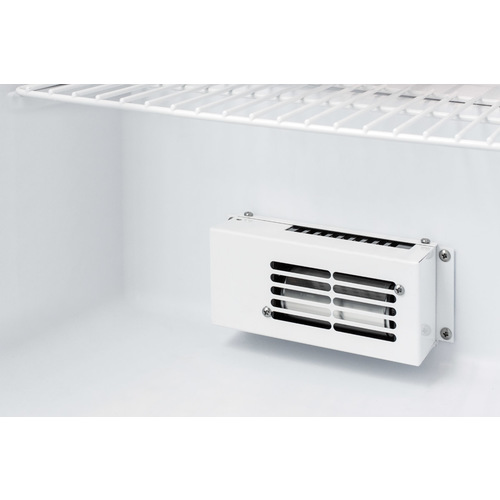

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Wire shelving

Helps to ensure improved air circulation, with a full-width fixed wire shelf and a removable half shelf included

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching freezer available

Pair with the FS30LMED2 to create a complete set

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

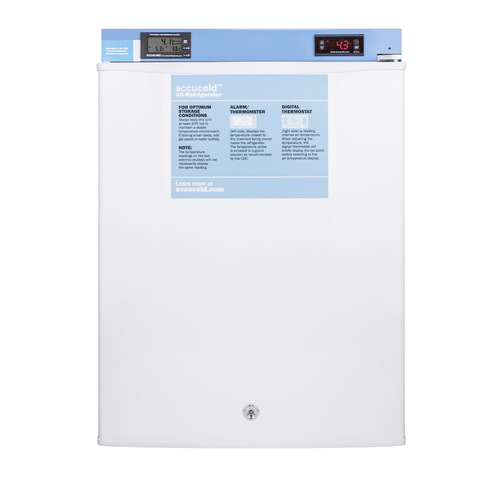

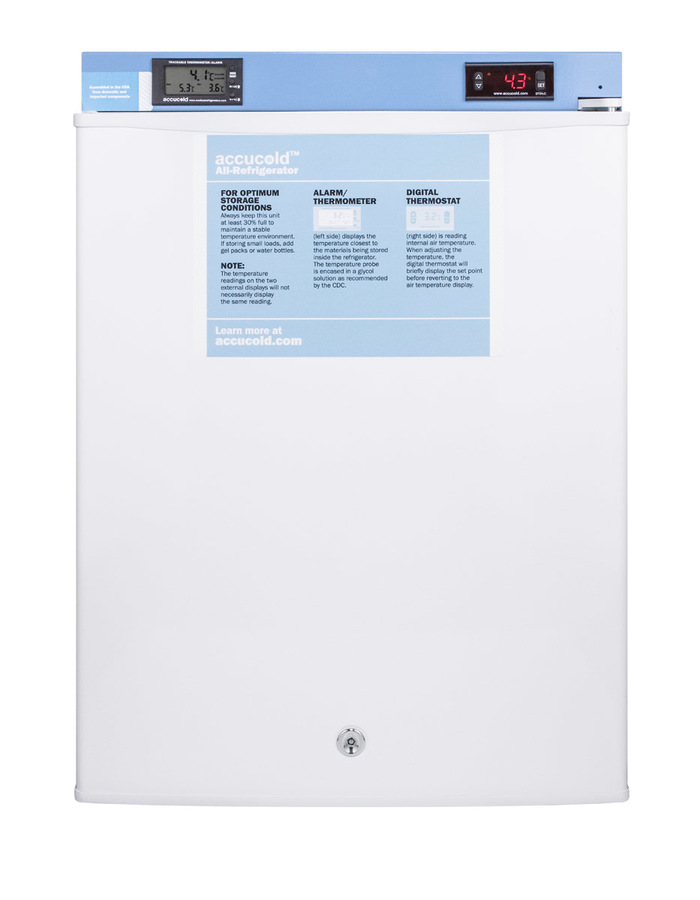

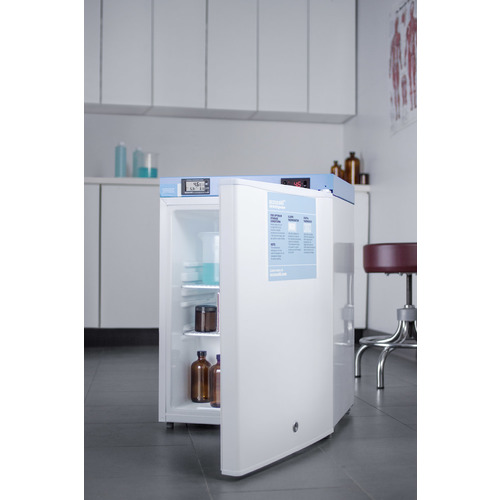

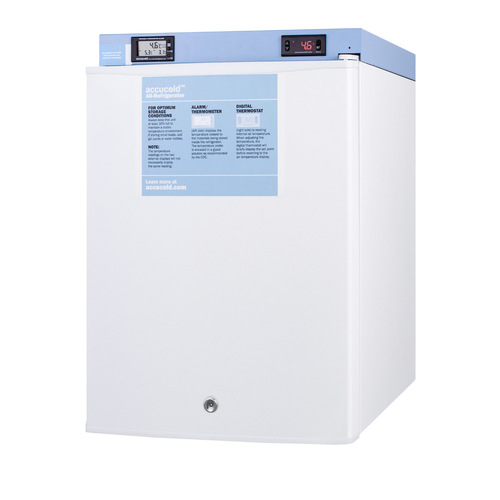

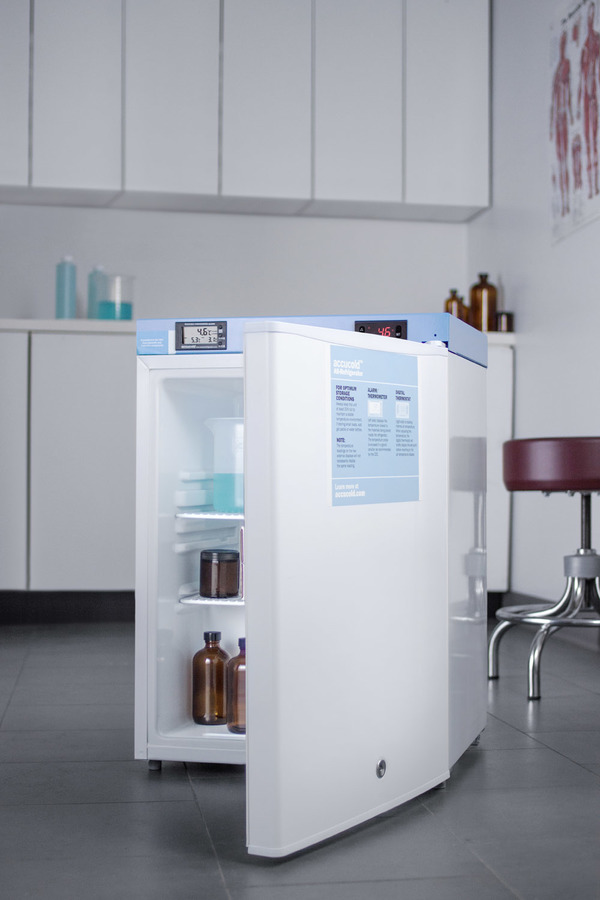

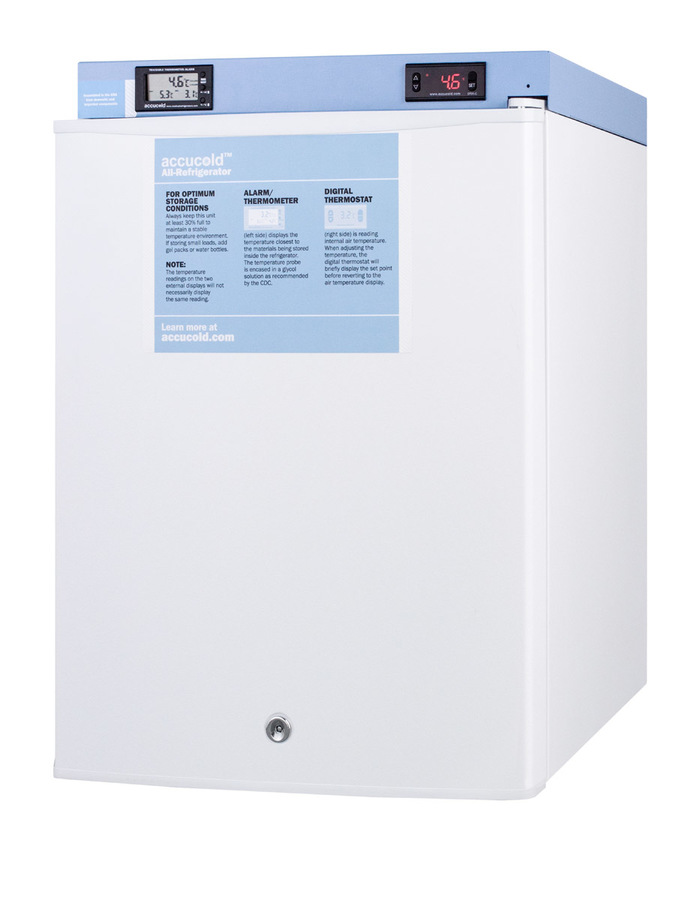

The FF28LWHMED2 is a compact all-refrigerator sized for countertop use. It comes in a white finish with a blue top-mounted control panel that allows users to adjust and monitor the temperature without opening the door. A hospital grade 'green dot' cord offers added safety in high traffic environments and a factory-installed lock provides keyed security for sensitive items.

As recommended by the CDC and VFC programs, the FF28LWHMED2 is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each FF28LWHMED2 ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle and secured inside the fixed center wire shelf to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

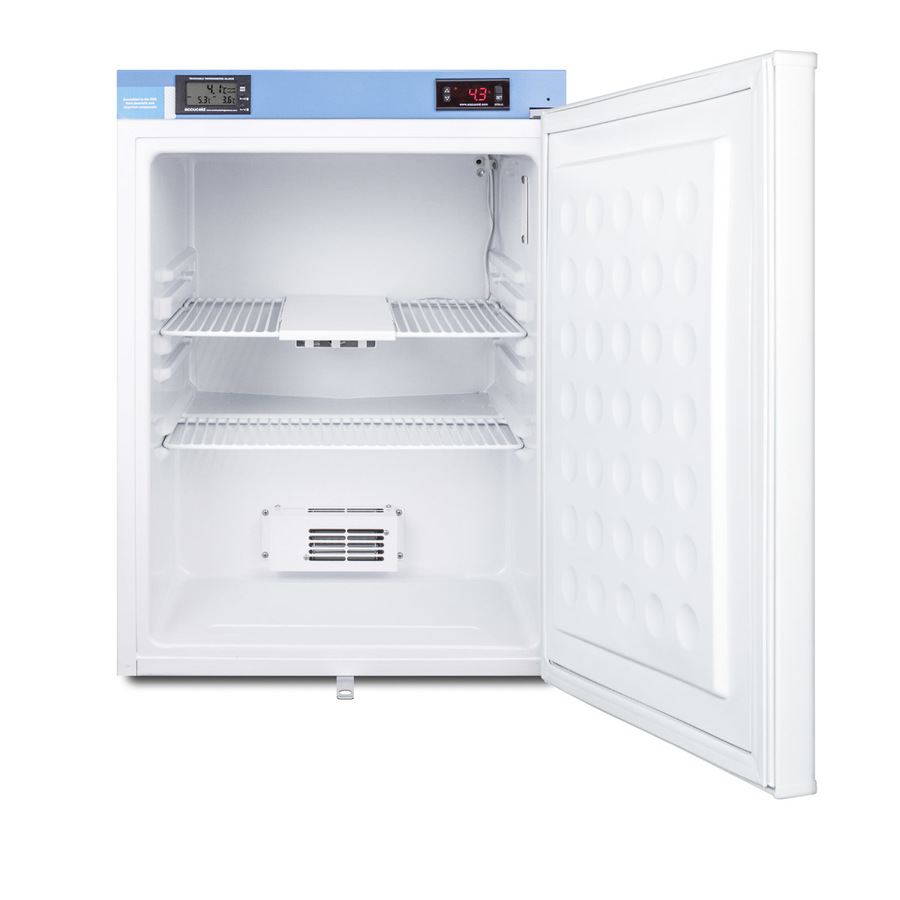

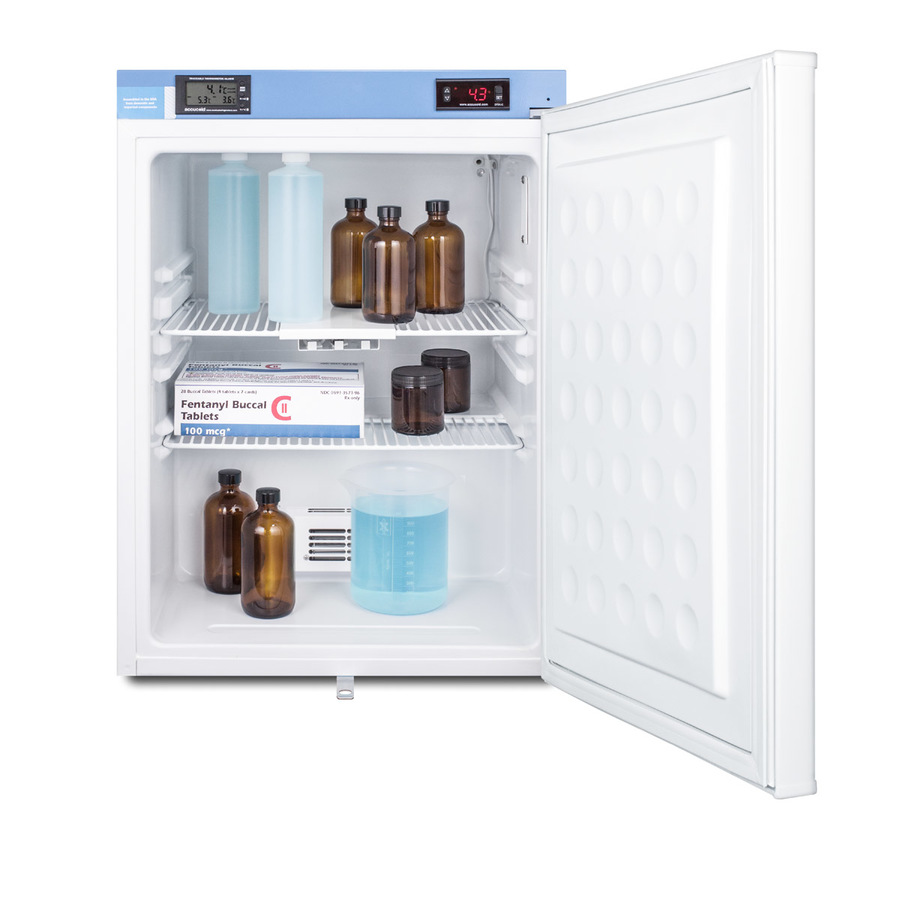

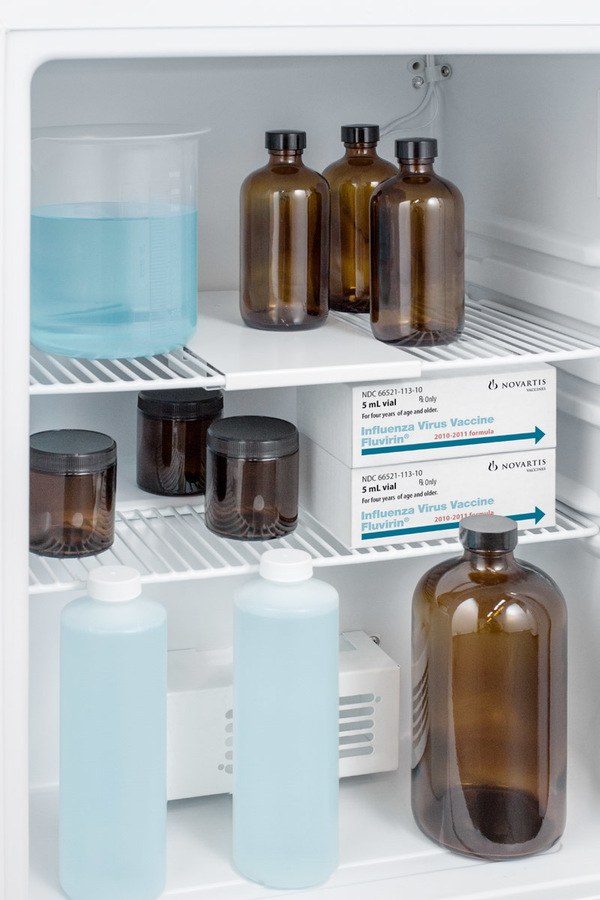

The 2.4 cu.ft. interior capacity includes wire shelving for optimum circulation, with one center fixed shelf to keep the temperature probe in place anda removable half shelf that can be positioned above the compressor step. This unit has a flat door liner as recommended by the CDC to protect stored items from too much exposure to ambient temperature when the door is opened. An internal fan ensures the interior is evenly cooled from top to bottom.

All MED2 series units are assembled in the USA from domestic and imported components. The FF28LWHMED2 can be paired with a matching all-freezer (FS30LMED2). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
FF28LWHMED2.pdf
Download
TECHNICAL DRAWING (.dwg)
FF28LWHMED2_REF.__A-C_2000_.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
Download
MSDS INFORMATION
R134a_AO.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
