COVID-19 VACCINE COLD STORAGE SOLUTIONS

24" Wide Built-In All-Refrigerator, ADA Compliant

SKU: FF7LWBIVACADA

Specially designed to store vaccines with more temperature stability

Estimated Time to Ship: 5 to 7 days
How to Buy
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.25" H x 23.63" W x 23.25" D

(82cm H x 60cm W x 59cm D)

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 2.6 cu.ft. (74 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Temperature Range 2º to 8ºC
Dimensions
Interior Height 22.5" (57 cm)
Interior Width 17.25" (44 cm)
Interior Depth 15.0" (38 cm)

AVAILABLE UPGRADES

Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees
MEDLINE SSTB
Stainless steel wrapped door finish with curved towel bar style handle
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Improved temperature stability
Interior is designed to operate within 2ºC of set temperature performance
ADA Compliant
32" height is designed to fit under lower ADA compliant counters

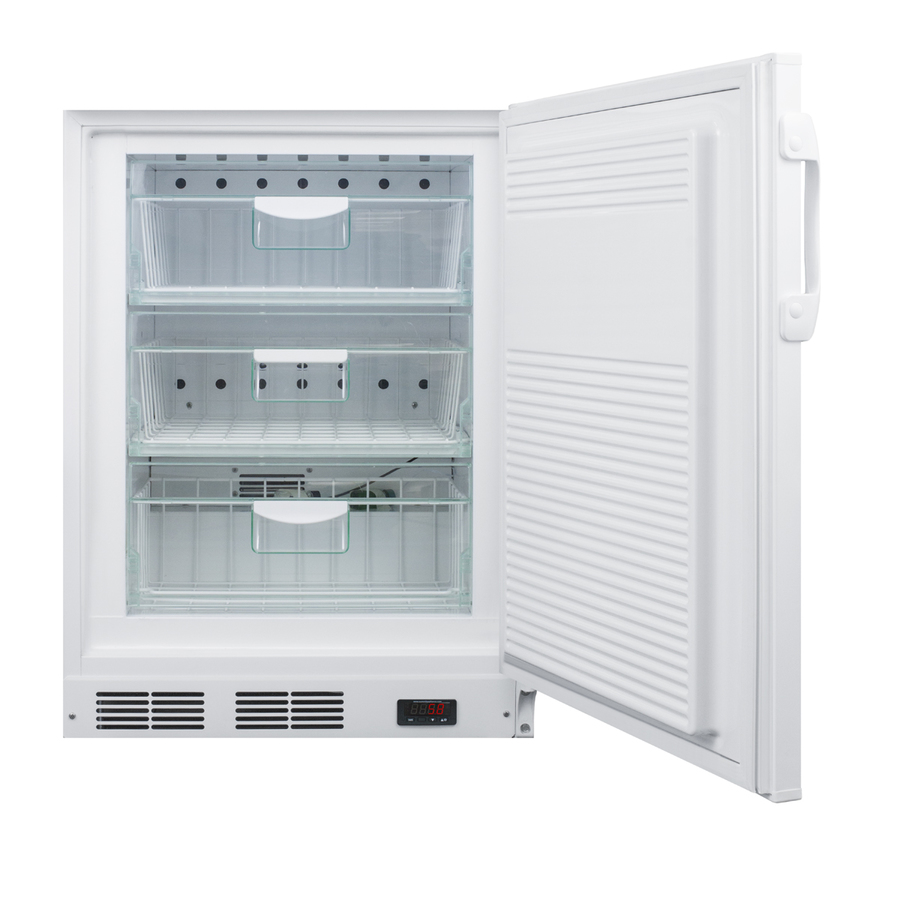

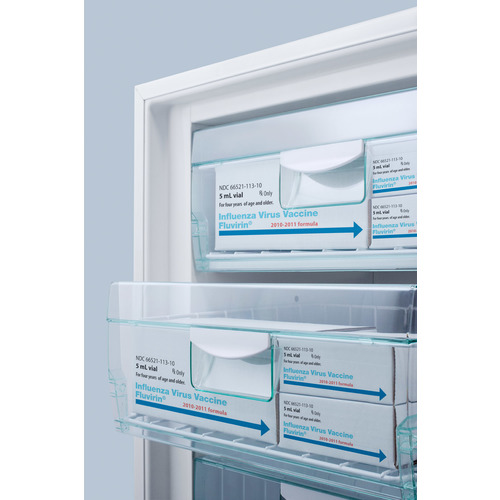

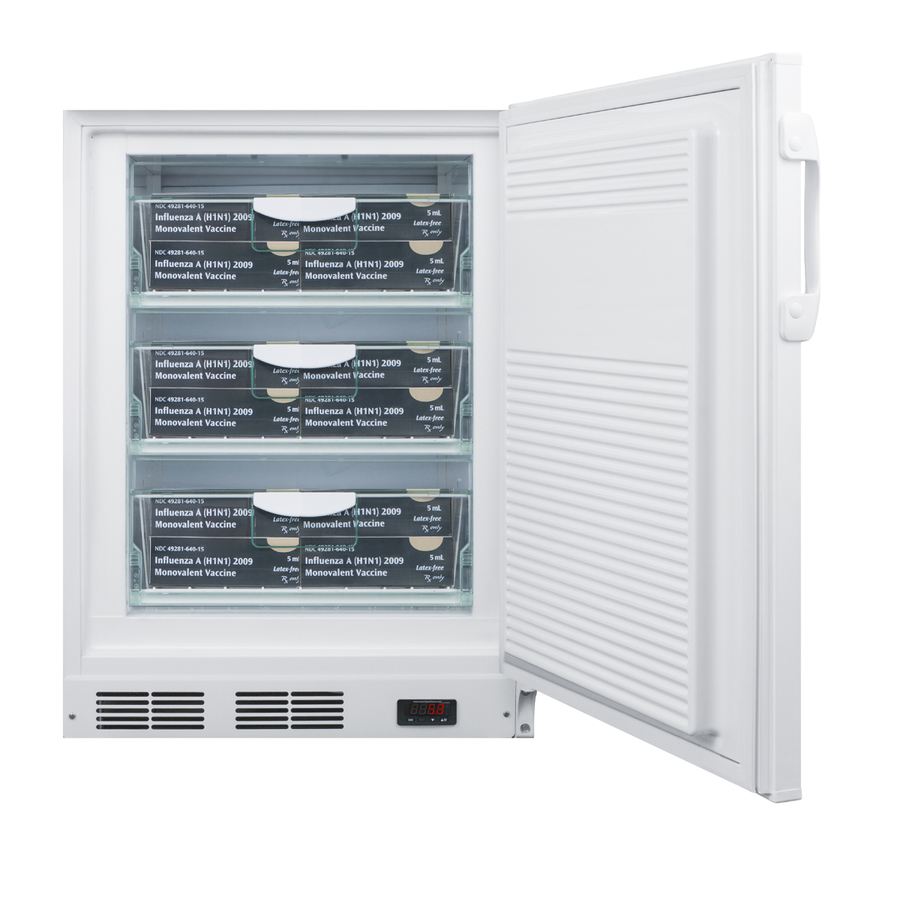

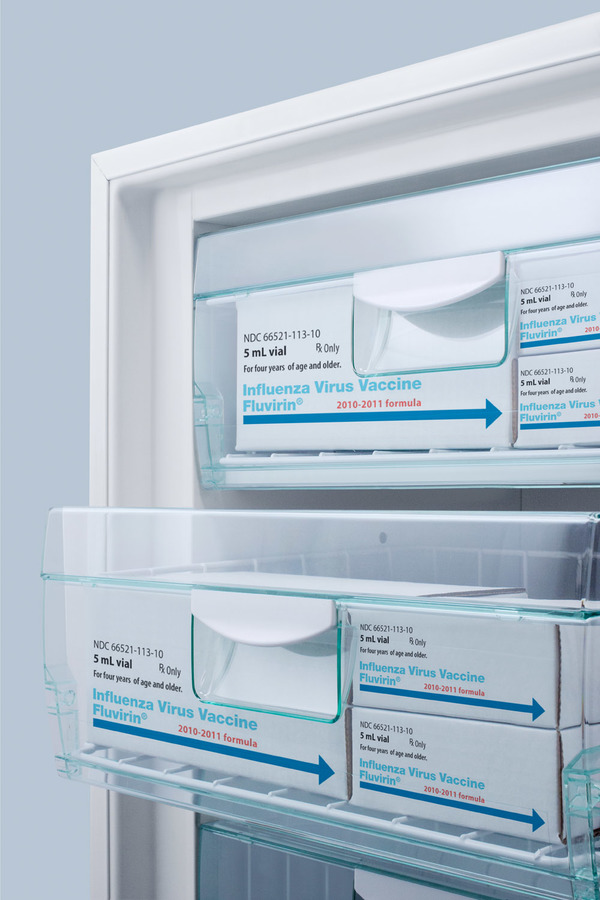

Interior basket drawers
Three slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open
Digital thermostat
Electronic controls ensure precise and intuitive temperature management
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature
Self-closing door
Door closes automatically when opened at angles less than 90º
Access port with contact
Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
Hospital grade cord and plug
Secure three-pronged 'green dot' cord for added unit safety in high traffic settings
Automatic defrost
Reduced user maintenance with automatic defrost
Internal fan
Fan-cooled interior maintains a consistent temperature from top to bottom
Factory installed lock
Keyed lock for a secure interior
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Built-in capable
Front-breathing design allows built-in installation under counters
Fully finished white cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

DESCRIPTION

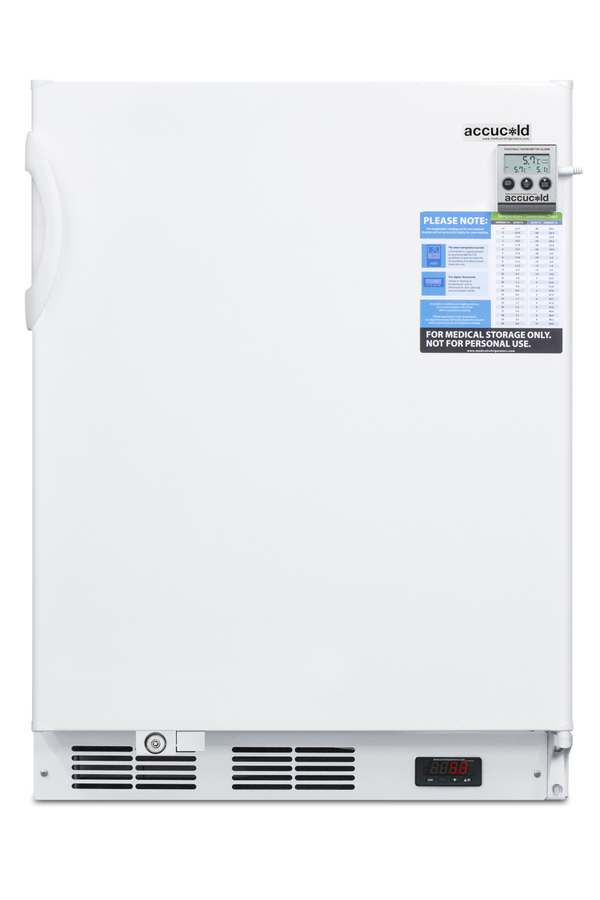

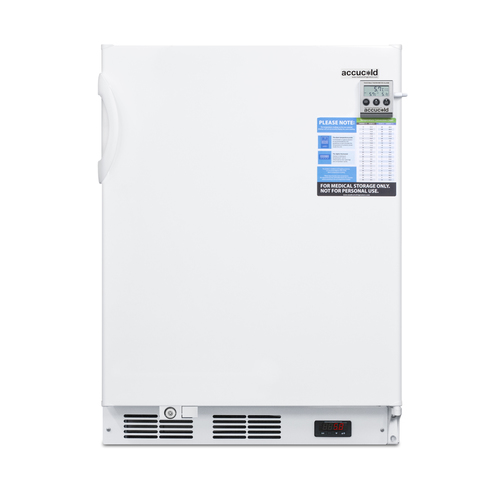

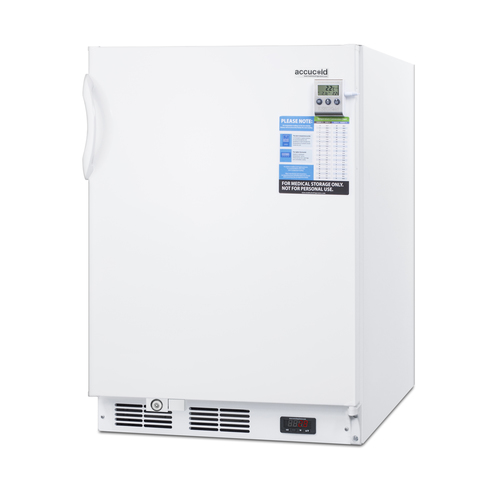

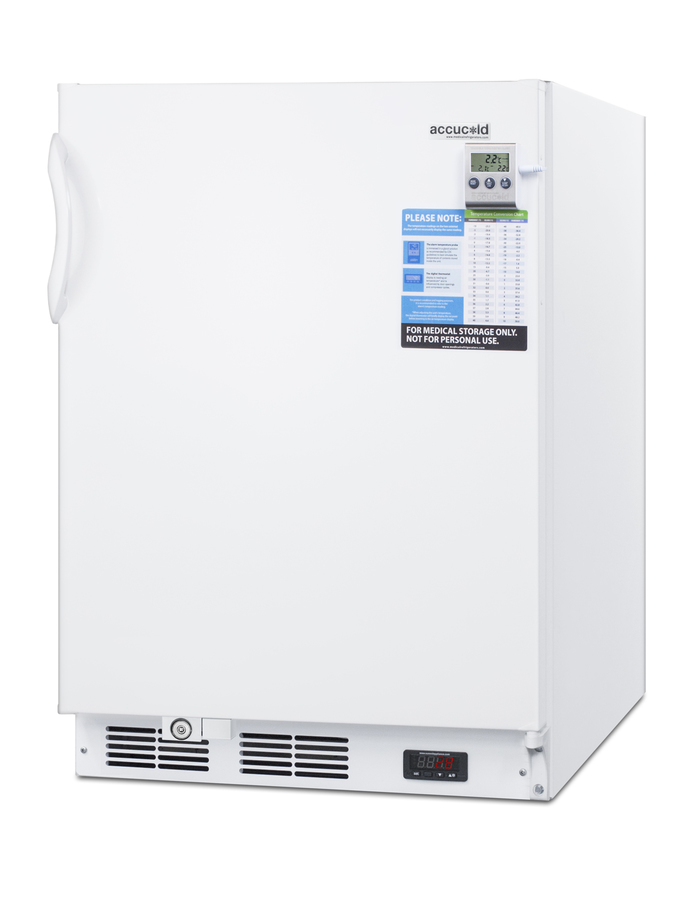

The Accucold® VAC Series refrigerators are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Sized with a 24" footprint and 32" height, the FF7LWBIVACADA is an undercounter all-refrigerator that can be used built-in or freestanding in ADA compliant settings. The automatic defrost interior is equipped with fan-forced cooling to ensure even temperature distribution from top to bottom. Three slide-out wire basket drawers make it easy to organize the interior while the plastic drawer fronts help to shield stored contents from being exposed to room temperature when the door is open. As recommended by the CDC for vaccine storage, this unit has a flat interior door liner.

The FF7LWBIVACADA includes a factory installed front lock for added security. The self-closing door is an ideal feature for lab or medical settings, helping to protect valuable samples and vaccines when a busy staff may not always have time to ensure a tight seal. The hospital grade 'green dot' cord offers added safety in high-traffic locations.

For temperature precision, the FF7LWBIVACADA includes a digital thermostat. A high/low temperature alarm sends an audible alert if the unit is out of set range, while also displaying a NIST calibrated temperature readout to the nearest tenth of a degree. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

In addition to the standard features of the VAC line, the FF7LWBIVACADA can be further customized to your exact specifications. Additional options include temperature loggers, keypad locks, open door alarms, and more. For more information, call our office to discuss your complete medical refrigeration needs with our sales team.

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.25" (59 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 44.25" (112 cm)
Capacity 2.6 cu.ft. (74 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Temperature Range 2º to 8ºC
Dimensions
Interior Height 22.5" (57 cm)
Interior Width 17.25" (44 cm)
Interior Depth 15.0" (38 cm)

AVAILABLE UPGRADES

Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees
MEDLINE SSTB
Stainless steel wrapped door finish with curved towel bar style handle
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad door lock installed for keyless security
AC Keypad
Keypad door lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF7LWBIVACADA.pdf
Download
TECHNICAL DRAWING (.dwg)
FF7LBIVACADAREF.A-C2000.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
