20" Wide Built-In Commercial All-Freezer, ADA Compliant

SKU: SCF505SSTBADA
Commercially listed to NSF-7 standards, with a versatile design for built-in or freestanding use
Estimated Time to Ship:

3 to 5 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.0" H x 19.75" W x 22.5" D
(81cm H x 50cm W x 57cm D)

Overview
Height of Cabinet 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 25.0" (64 cm)
Depth with door at 90° 40.25" (102 cm)
Capacity 2.47 cu.ft. (70 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.1
Voltage/Frequency 115 V AC/60 Hz
Weight 75.0 lbs. (34 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101086149
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Shelf Type Drawers
Shelf Qty 3
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -25° to -15°C

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

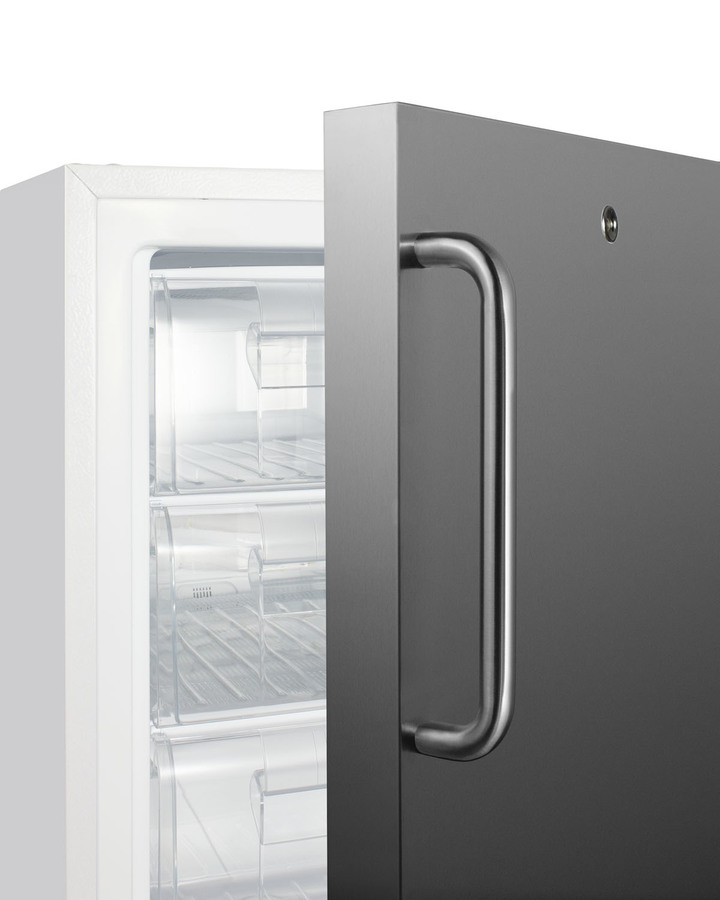

Professional towel bar handle

Curved handle in brushed stainless steel offer an easier grip and attractive style

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

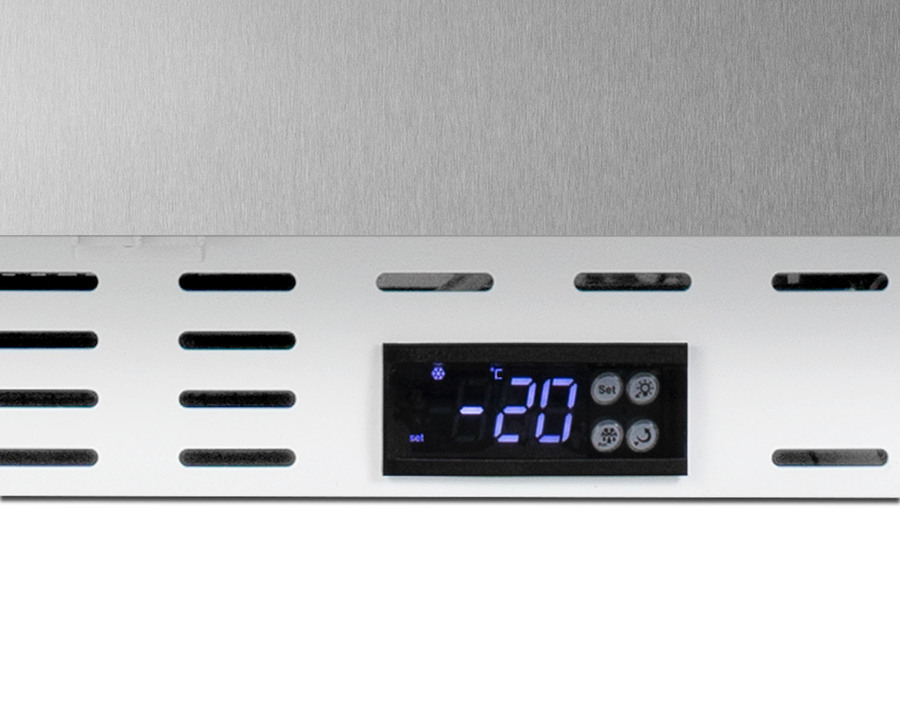

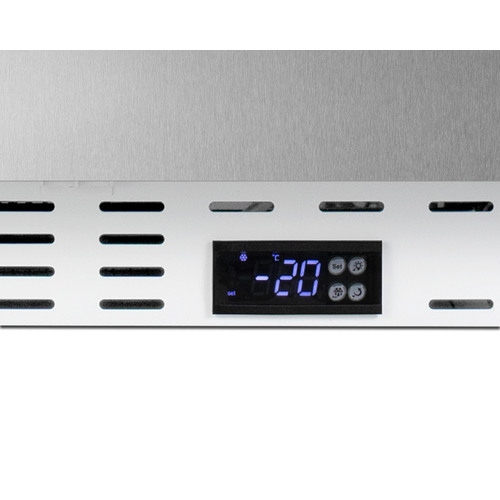

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

Basket shelves

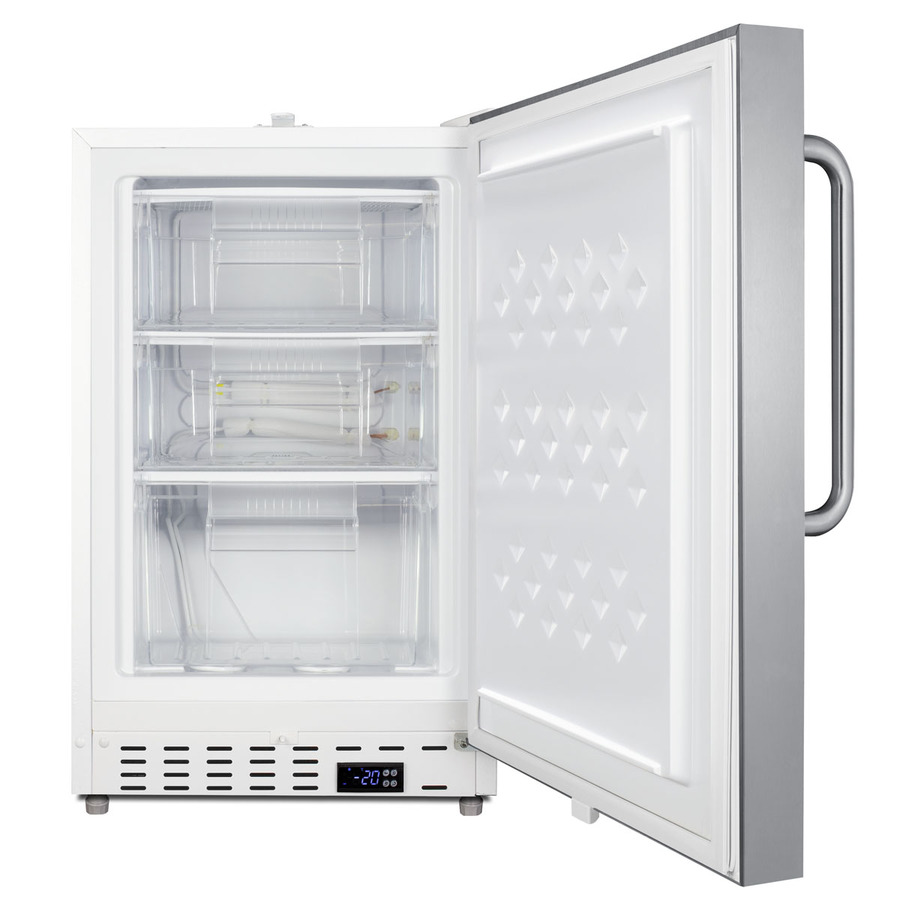

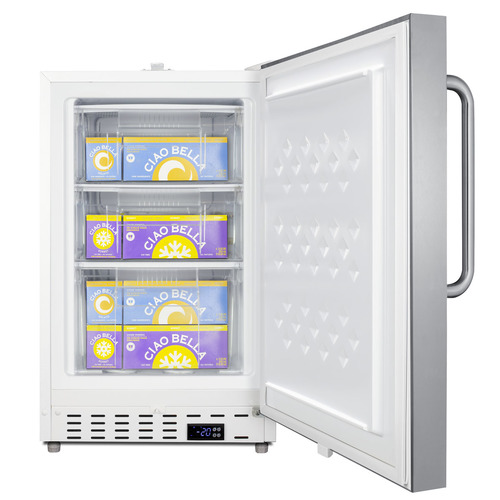

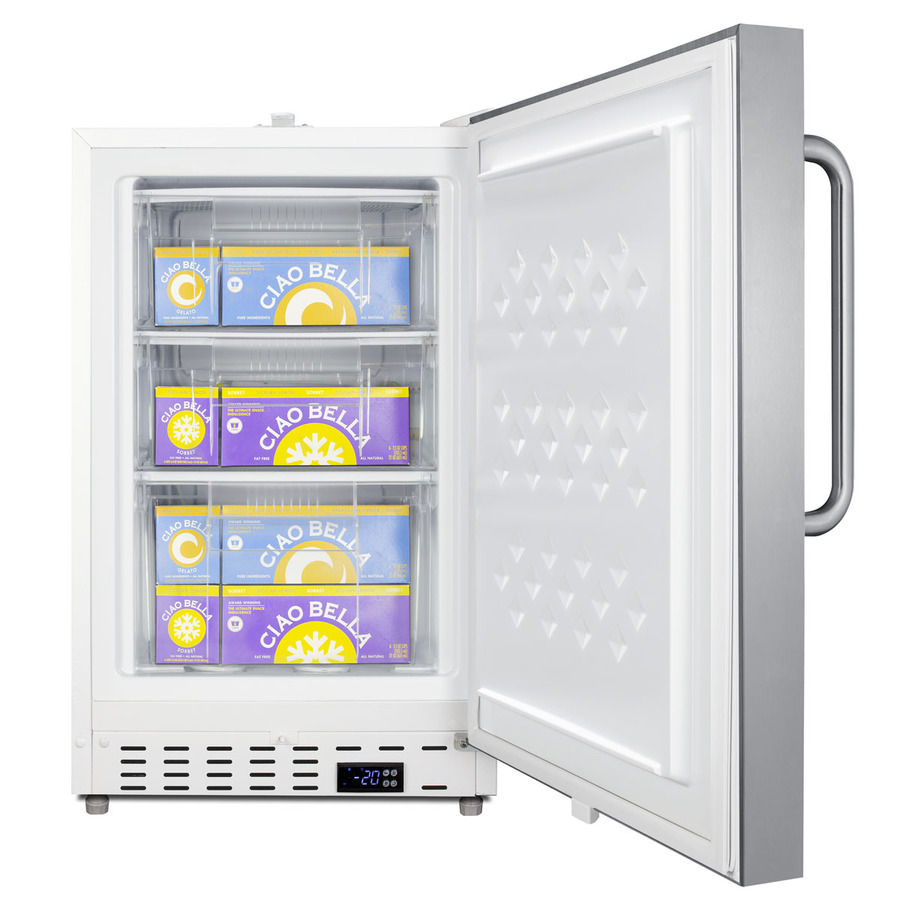

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Hospital grade cord with 'green dot' plug

Secure three-pronged cord offers a tighter fit in wall sockets

Manual defrost

More temperature stability with an energy efficient manual defrost system

No internal fans

Temperature remains more stable with a static cooling system

Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting

Sealed back

Space-saving design that offers easier cleanability

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching all-refrigerator

This unit can be paired with the SCR504SSTBADA all-refrigerator for a complete set

Fully finished white cabinet

Allows the unit to be freestanding

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.

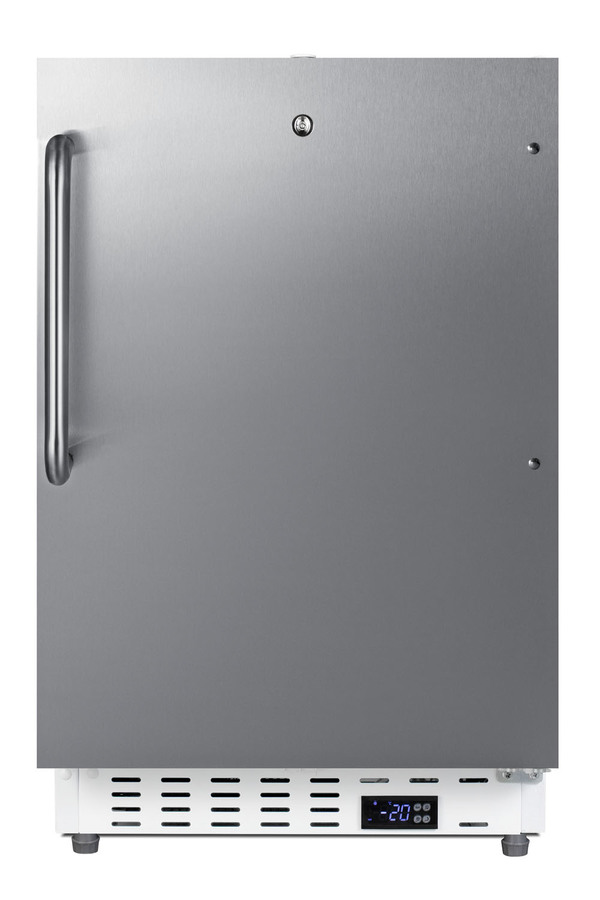

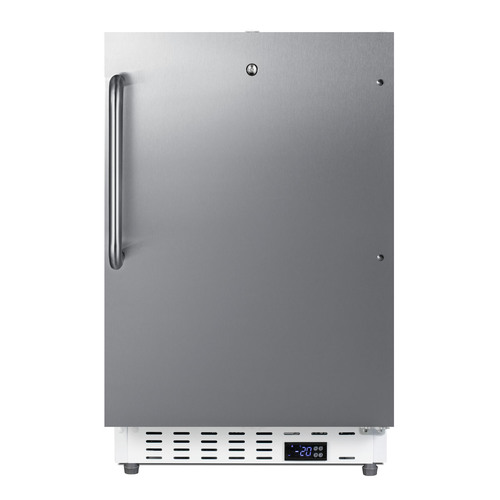

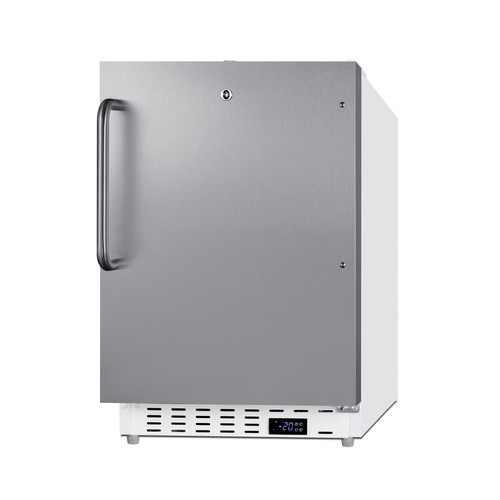

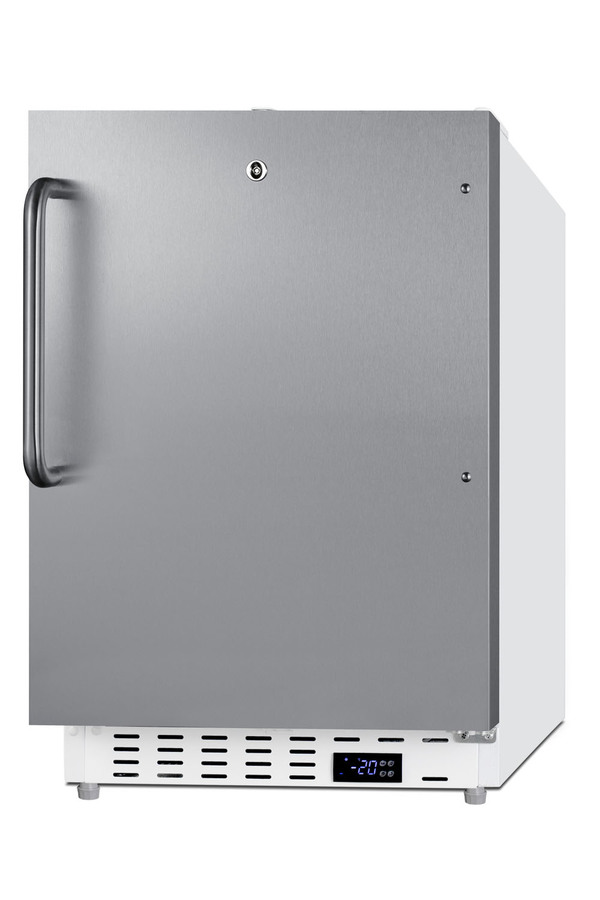

Model SCF505SSTBADA is a commercial all-freezer sized at just under 20" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius and is designed to operate between -25° and -15°C. Inside, this freezer includes removable pull-out drawers on fixed wire shelving, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. This unit utilizes static manual defrost cooling for improved temperature stability. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.

The SCF505SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCR504SSTBADA all-refrigerator. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, clear icemakers, reach-in refrigeration, and much more.

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
