COVID-19 VACCINE COLD STORAGE SOLUTIONS

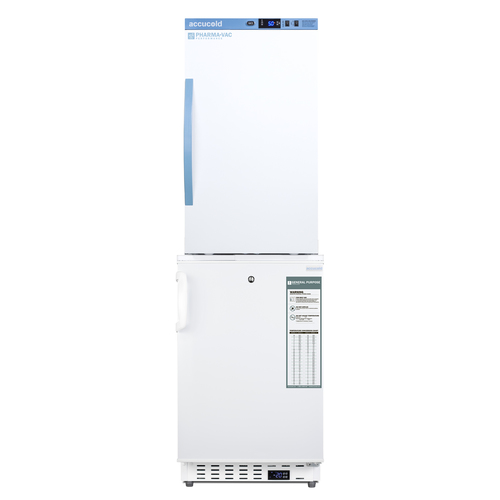

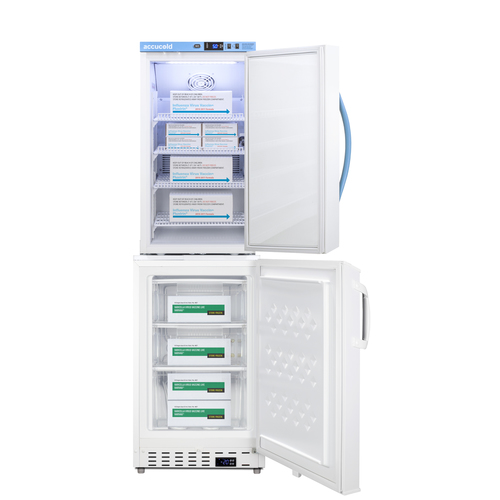

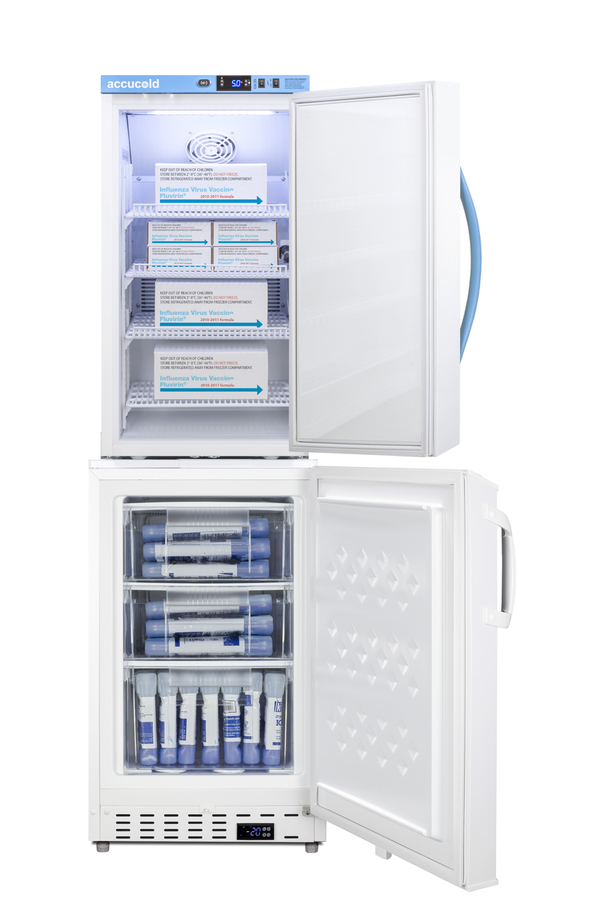

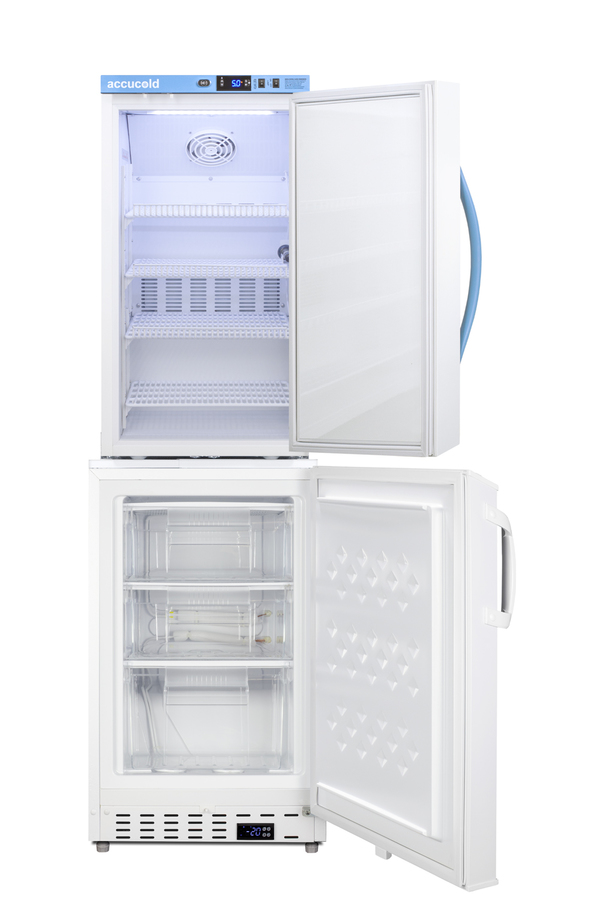

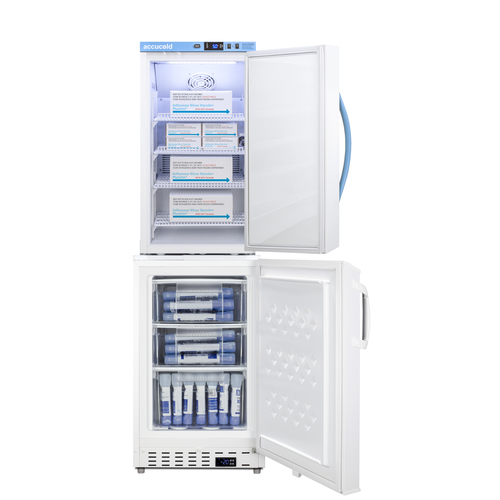

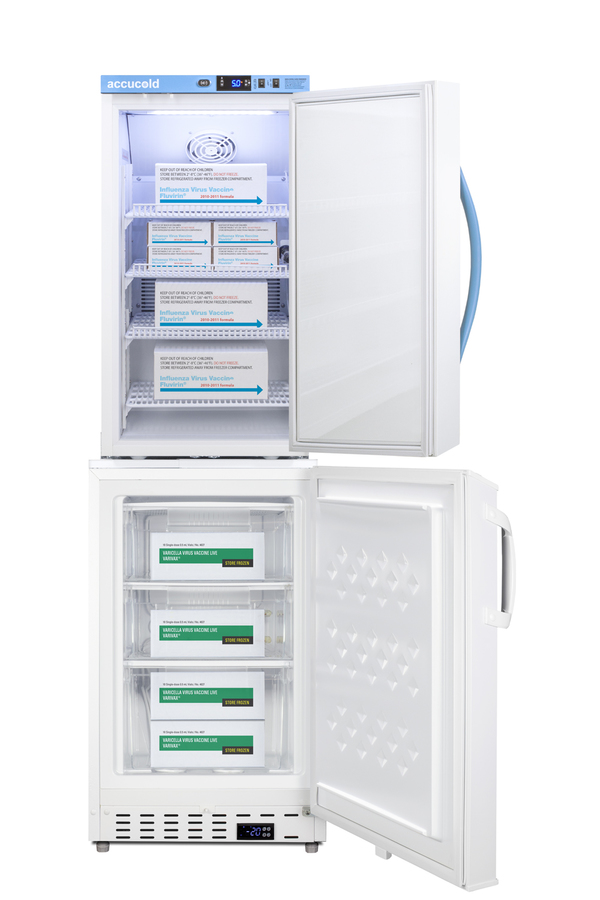

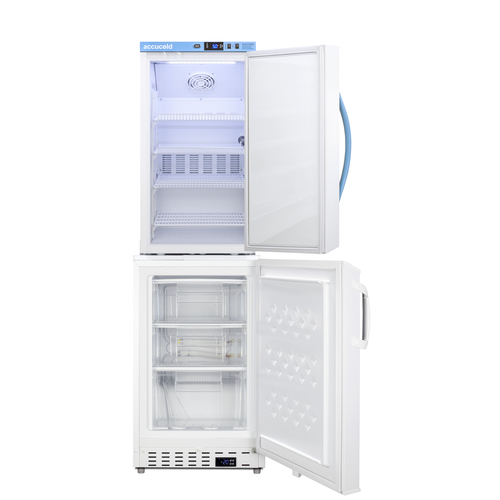

20" Wide Vaccine Refrigerator/Freezer Combination

SKU: ARS3PV-ADA305AFSTACK

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

Estimated Time to Ship: 2 to 4 days
How to Buy
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

66.0" H x 19.75" W x 22.5" D

(168cm H x 50cm W x 57cm D)

SPECIFICATIONS

Overview
Height of Cabinet 66.0" (168 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 5.47 cu.ft. (155 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 151.0 lbs. (68 kg)
Shipping Weight 171.0 lbs. (78 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 3
Interior Light Yes
Refrigerator - Interior Height 28.38" (72 cm)
Refrigerator - Interior Width 15.25" (39 cm)
Refrigerator - Interior Depth 11.75" (30 cm)
Refrigerator - Capacity 3.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8°C
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.06 oz.
Freezer - Interior Height 23.75" (60 cm)
Freezer - Interior Width 14.5" (37 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Capacity 2.47 cu.ft
Freezer - Shelf Type Drawers
Freezer - Shelf Qty 3
Thermostat Type Digital
Fan Type Interior
Level Legs 2
Freezer - Temperature Range -25° to -15°C
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 1.34 oz.

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Space-saving design
Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
Easy assembly
Unit ships in three boxes for customer to install the StackRack on the bottom freezer and place and secure the refrigerator on top
+/-1ºC Variation (refrigerator)
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
-25°C capable (freezer)
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Adjustable temperature
Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -25º to -15ºC (freezer)
Commercially designed
ADA305AF freezer is ETL-S to NSF-7 commercial standards
Temperature alarms
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Automatic defrost with adjustable cycle defrost (refrigerator)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Remote alarm contacts (refrigerator)
Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Manual defrost (freezer)
Static cooling system for reduced temperature fluctuations
Access ports
Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
Open door alarm
Alarm will sound if the door is left ajar for over 4 minutes (refrigerator) or 1 minute (freezer)
3" thick door (freezer)
Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
Flat door liners
Interior design of both units conforms to CDC guidelines to ensure stable conditions for sensitive materials
Audible power failure alarm (refrigerator)
Battery-powered alarm sounds if the power connection is interrupted
Sensor failure alarm (refrigerator)
Audible and visual alarm warns if the sensor is disrupted
Password protection (refrigerator)
Control panel requires password entry to adjust the parameters beyond the set point
Microprocessor control panel (refrigerator)
Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Adjustable digital thermostat (freezer)
Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Resettable min/max display (refrigerator)
Control panel provides a readout of the low and high temperatures in 15 minute increments
Factory-installed locks
Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)
Adjustable plastic-coated wire shelves for improved circulation (refrigerator)
Designed to accommodate a variety of sizes for flexible storage
Basket shelves (freezer)
Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Hospital grade cords with 'green dot' plugs
Refrigerator & freezer have pre-installed hospital grade cords with 'green dot' plugs for added safety in high traffic areas
Interior light (refrigerator)
Energy efficient LED lighting with internal on/off switch
Self-closing door (refrigerator)
Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing
No internal fans (freezer)
Temperature remains more stable with a static cooling system
Sealed back (freezer)
Space-saving design that offers easier cleanability
Magnetic door gaskets
Quality door gaskets ensure a tight seal for energy savings and improved performance of each unit
Extended warranty (refrigerator)
2 years parts and labor/5 years compressor
Eco-Friendly (refrigerator)
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Usage stickers
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Versatile design (refrigerator)
Compatible with Pyxis®, Omnicell®, and AcuDose RX®
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

Accucold offers innovative solutions to vaccine storage with stackable purpose-built refrigerator-freezer combinations design to support meeting CDC/VFC guidelines.

Sized at just 20" wide, the ARS3PV-ADA305AFSTACK combines the 3 cu. ft. ARS3PV auto defrost vaccine refrigerator with ADA305AF 2.47 cu. ft. manual defrost vaccine freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.

Refrigerator ARS3PV is part of Accucold's Pharma-Vac Performance Series, designed to meet the demanding needs of vaccine storage. It utilizes a microprocessor temperature controller with an adjustable control range from +2 to +8ºC. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices.

Inside, the ARS3PV utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The refrigerator is designed to be stacked on top of the ADA305AF, a -25ºC  vaccine freezer that utilizes manual defrost operation. The freezer has  3" thick door for efficient insultation, and a flat door liner, as recommended by the CDC, to ensure users don't store sensitive materials on the door. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit is also equipped with high/low temperature and open door alarms, as well as an access port to accept additional monitoring equipment.

Both units include front-mounted keyed locks, powerful magnetic gaskets to ensure a positive seal, and hospital grade cords with 'green dot' plugs for added safety in high traffic areas. The refrigerator has a self-closing door and the freezer is ETL-S to NSF-7 standards for use in commercial settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

SPECIFICATIONS

Overview
Height of Cabinet 66.0" (168 cm)
Width 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Depth 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 5.47 cu.ft. (155 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 151.0 lbs. (68 kg)
Shipping Weight 171.0 lbs. (78 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 3
Interior Light Yes
Refrigerator - Interior Height 28.38" (72 cm)
Refrigerator - Interior Width 15.25" (39 cm)
Refrigerator - Interior Depth 11.75" (30 cm)
Refrigerator - Capacity 3.0 cu.ft
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 4
Refrigerator - Temperature Range 2 to 8°C
Refrigerator - Refrigerant Type R600a
Refrigerator - Refrigerant Amount 1.06 oz.
Freezer - Interior Height 23.75" (60 cm)
Freezer - Interior Width 14.5" (37 cm)
Freezer - Interior Depth 17.0" (43 cm)
Freezer - Capacity 2.47 cu.ft
Freezer - Shelf Type Drawers
Freezer - Shelf Qty 3
Thermostat Type Digital
Fan Type Interior
Level Legs 2
Freezer - Temperature Range -25° to -15°C
Freezer - Refrigerant Type R600a
Freezer - Refrigerant Amount 1.34 oz.

AVAILABLE UPGRADES

Lock
KAL-Keyless Access Lock
Battery-powered self-locking keypad lock installed towards the top of this refrigerator
Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
