COVID-19 VACCINE COLD STORAGE SOLUTIONS

24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBIVACADA
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 105.0 lbs. (48 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101043517
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
Extra key
Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" height to fit under lower ADA compliant counters

Slim undercounter dimensions

24" footprint is ideal for use under the counter

Built-in capable

Front-breathing design allows built-in installation under counters

-25º C/-13º F capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Digital thermostat

Electronic controls for more precise temperature management

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Self-closing door

Door closes automatically when opened at angles less than 90º

Access port with contact

Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order

Hospital grade cord

Secure three-pronged cord for added unit safety

Factory installed lock

Keep contents secure with a front lock on the door

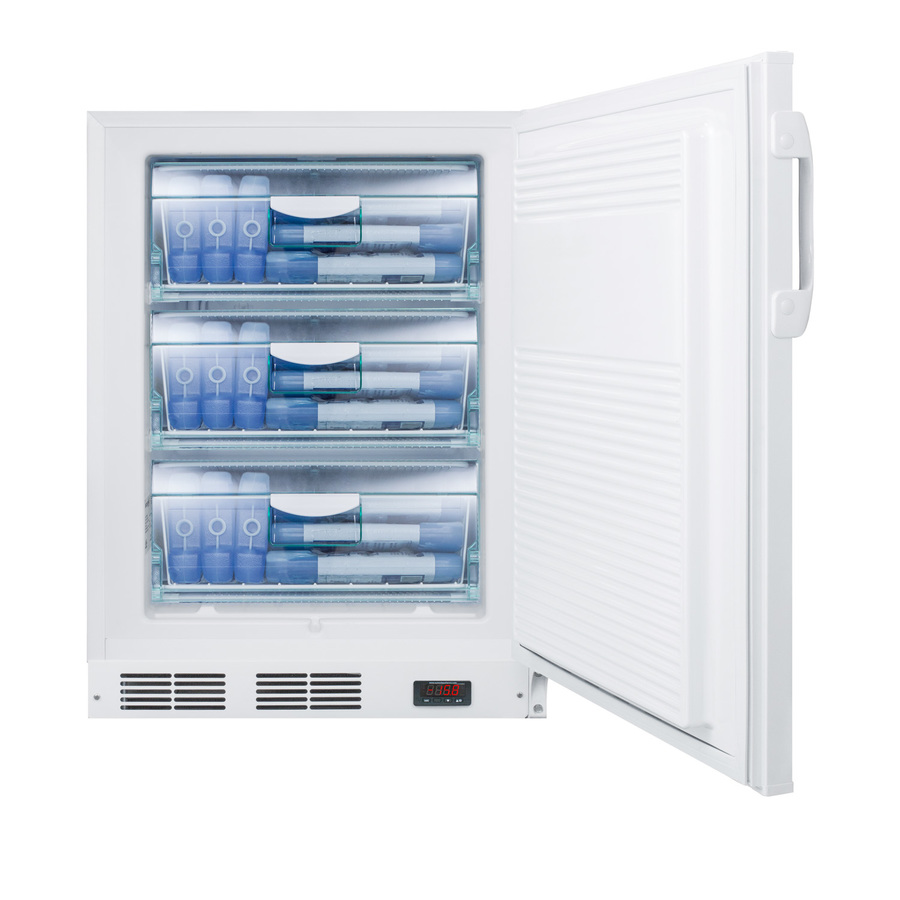

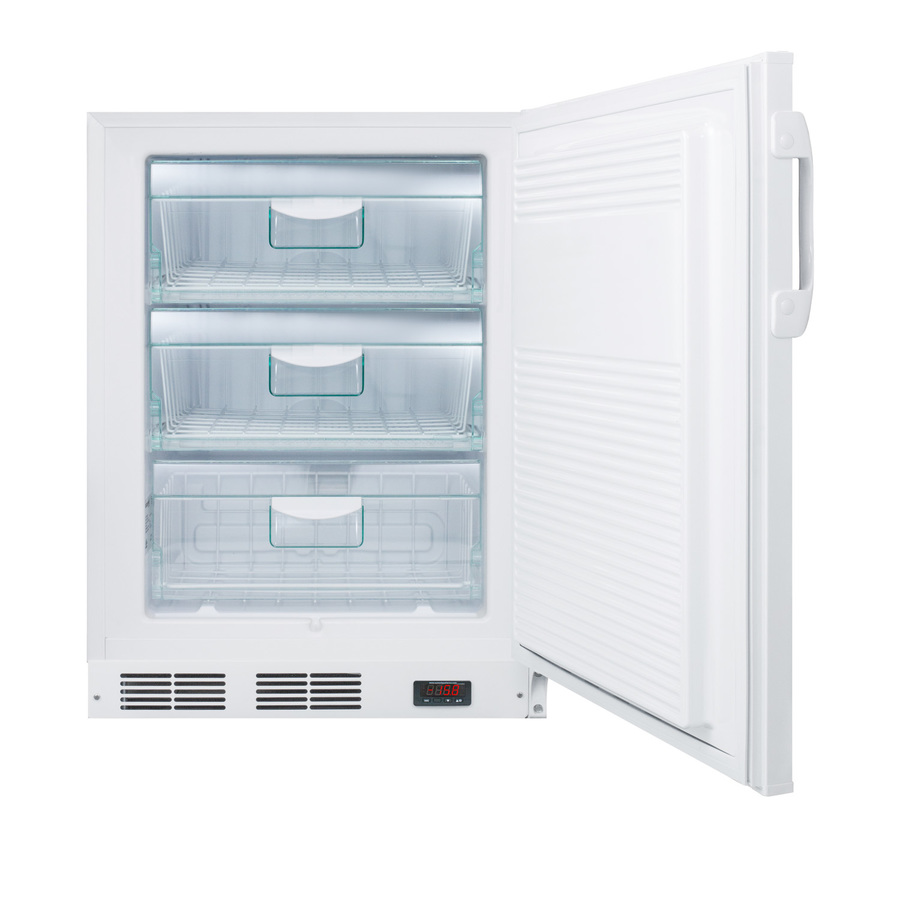

Three slide-out drawers

Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Manual defrost

Static cooling system for reduced temperature fluctuations

Fully finished white cabinet

Allows the unit to be used freestanding

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Factory reversible door

Standard unit ships RHD but can be ordered LHD

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Made in Europe, the VT65MLBIVACADA is a 32" high front-breathing all-freezer designed for built-in installation under lower ADA compliant counters. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the VT65MLBIVACADA includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. An access port with contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

The VT65MLBIVACADA can be paired with the FF7LBIVACADA all-refrigerator for a matching set. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

Download
BROCHURE w/ DRAWINGS
VT65MLBIVACADA.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or [email protected]

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
