Compact All-Refrigerator

SKU: FF28LWHVAC Matching freezer

Specially designed to store vaccines under stable temperature conditions

24.88" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Medical grade design conforms with CDC guidelines for vaccine storage
  • Specialized interior design protects stored contents when the door is open
  • Automatic defrost with an internal fan for stabilized cooling designed to stay within 2ºC of set temperature
  • High/low temperature alarm includes NIST calibrated temperature readout of the interior
  • Factory-installed lock offers security you can count on
  • Self-closing door and hospital grade plug protect unit in high traffic areas
  • Digital thermostat allows more precision in temperature control
  • Access port with contact allows users to install their own monitoring equipment
  • Compact size for easy placement on top of counters

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.88" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 0.8 cu.ft. (23 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 63.0 lbs. (29 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.3oz.
High Side PSI 261.0
Low Side PSI 103.0
Level Legs Qty 2
Temperature Range 2 to 8ºC
Dimensions
Interior Height 11.38" (29 cm)
Interior Width 14.0" (36 cm)
Interior Depth 10.5" (27 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

The Accucold® VAC Series refrigerators are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Sized for use on top of counters, the FF28LWHVAC is a compact all-refrigerator with automatic defrost operation. Fan-forced cooling helps to maintain even temperature distribution throughout the interior, ensuring the refrigerator stays within 2ºC of desired temperature and maximizing the usable storage space inside. The interior includes two drop-down covers that shield stored contents from being exposed to room temperature when the door is open. As recommended by the CDC for vaccine storage, this unit has a flat interior door liner.

The FF28LWHVAC includes a factory installed front lock for added security. The self-closing door is an ideal feature for lab or medical settings, helping to protect valuable samples and vaccines when a busy staff may not always have time to ensure a tight seal. The hospital grade 'green dot' cord offers added safety in high-traffic locations.

For temperature precision, the FF28LWHVAC includes a digital thermostat. A high/low temperature alarm sends an audible alert if the unit is out of set range, while also displaying a NIST calibrated temperature readout to the nearest tenth of a degree. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

In addition to the standard features of the VAC line, the FF28LWHVAC can be further customized to your exact specifications. Additional options include temperature loggers, open door alarms, and more. For more information, call our office to discuss your complete medical refrigeration needs with our sales team.

FEATURES

Improved temperature stability
Interior is designed to operate within 2ºC of set temperature performance

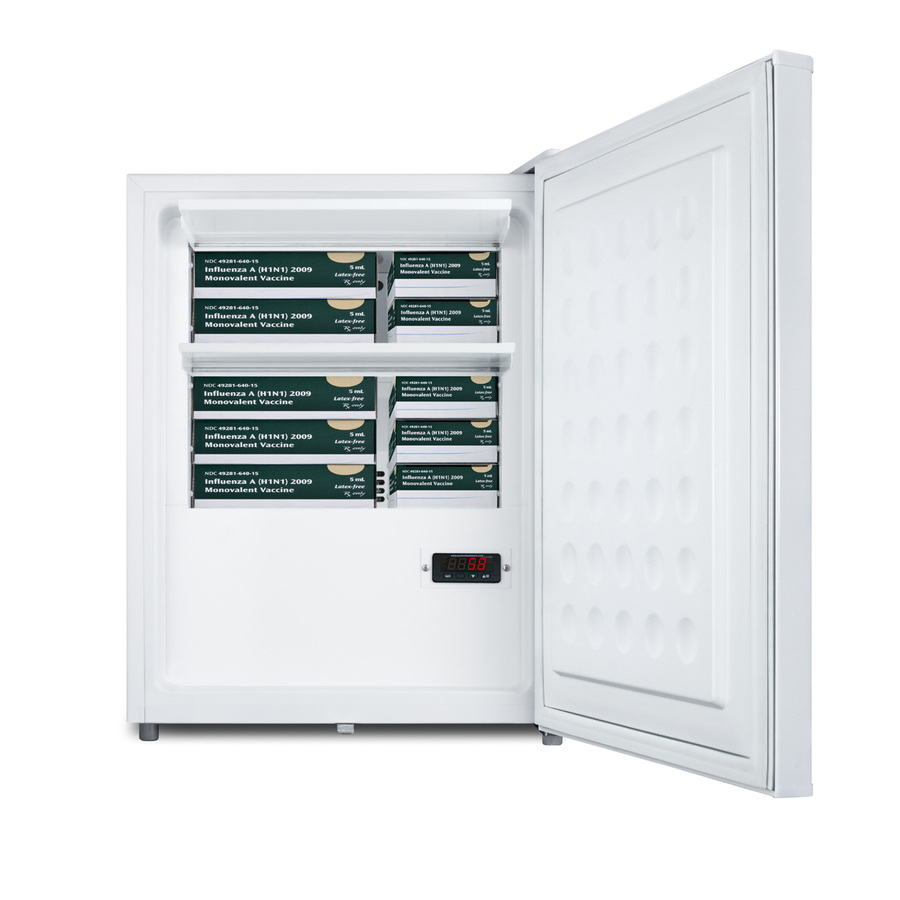

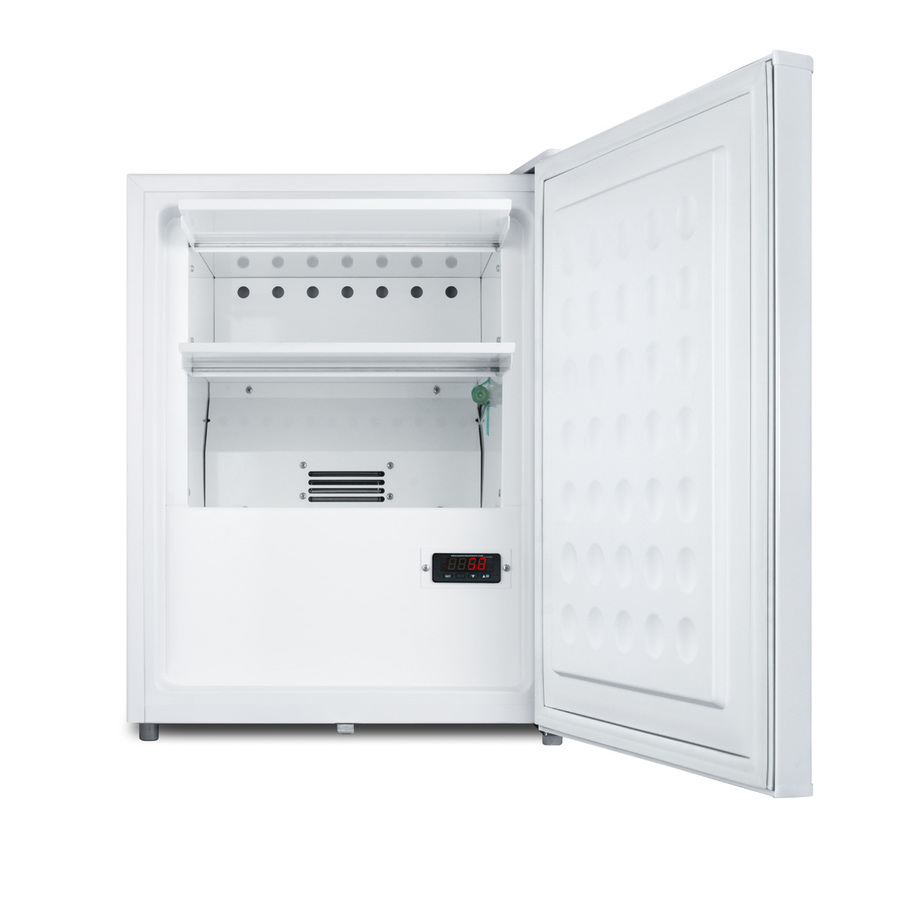

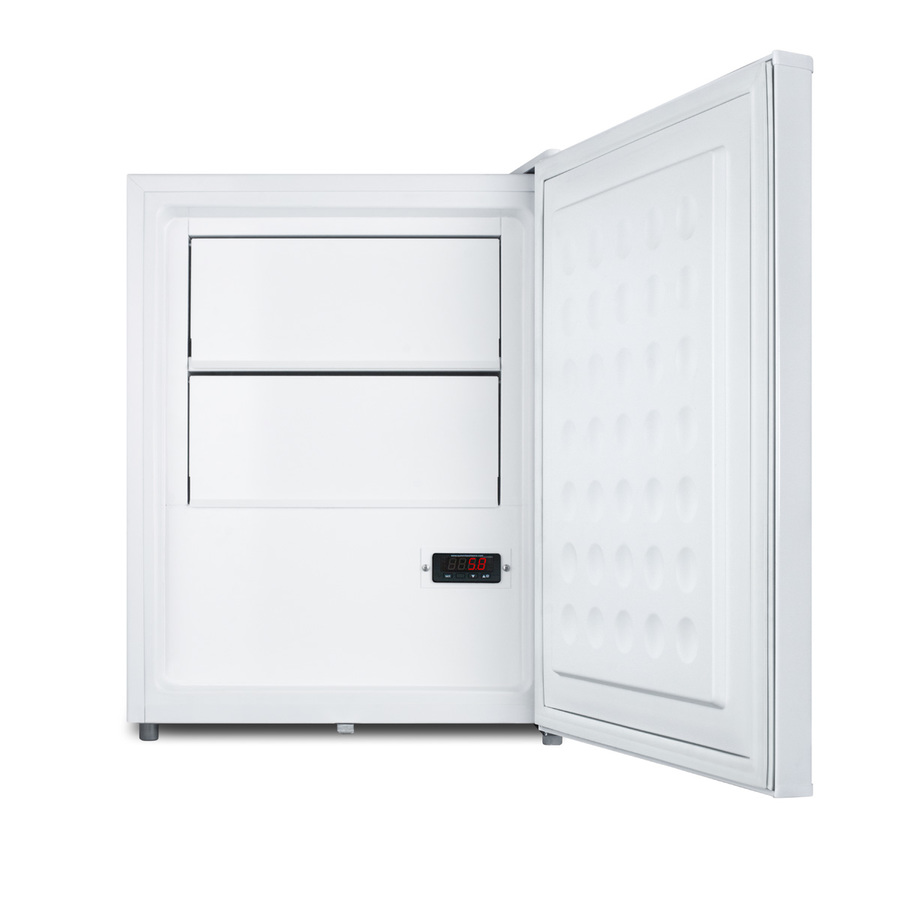

Interior drawer covers
Two shelves are protected by metal door flaps that help to protect stored contents from being exposed to room temperature when the door is opened
Digital thermostat
Electronic controls ensure precise and intuitive temperature management
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature
Self-closing door
Door closes automatically when opened at angles less than 90º to prevent the interior from being exposed to room temperature
Access port with contact
Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
Hospital grade cord and plug
Secure three-pronged 'green dot' cord for added unit safety in high traffic settings
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan
Fan-cooled interior maintains a consistent temperature from top to bottom
Factory installed lock
Keyed lock for a secure interior
Fully finished white cabinet
Allows the unit to be used freestanding
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
Compact dimensions
Perfectly sized for use on the counter
Factory reversible door
Standard unit ships RHD but can be ordered LHD
100% CFC Free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 24.5" (62 cm)
Height to Hinge Cap 24.88" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 0.8 cu.ft. (23 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 60.0 lbs. (27 kg)
Shipping Weight 63.0 lbs. (29 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R134a
Refrigerant Amount 1.3oz.
High Side PSI 261.0
Low Side PSI 103.0
Level Legs Qty 2
Temperature Range 2 to 8ºC
Dimensions
Interior Height 11.38" (29 cm)
Interior Width 14.0" (36 cm)
Interior Depth 10.5" (27 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM - Humidity sensor
Humidity sensor with min/max readout
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
FF28LWHVAC.pdf
Download
TECHNICAL DRAWING (.dwg)
FF28LWHVAC_REF.A-C2000.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
Download
MSDS INFORMATION
R134a_AO.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
