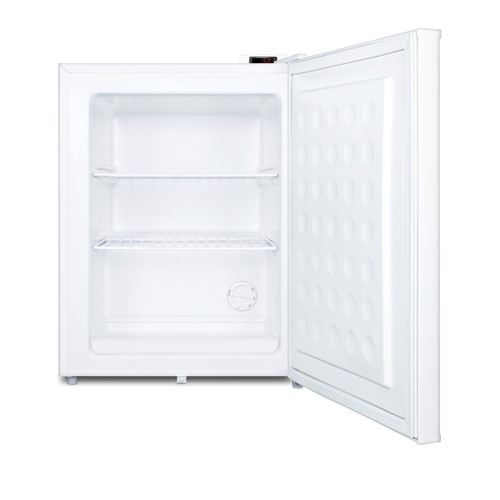

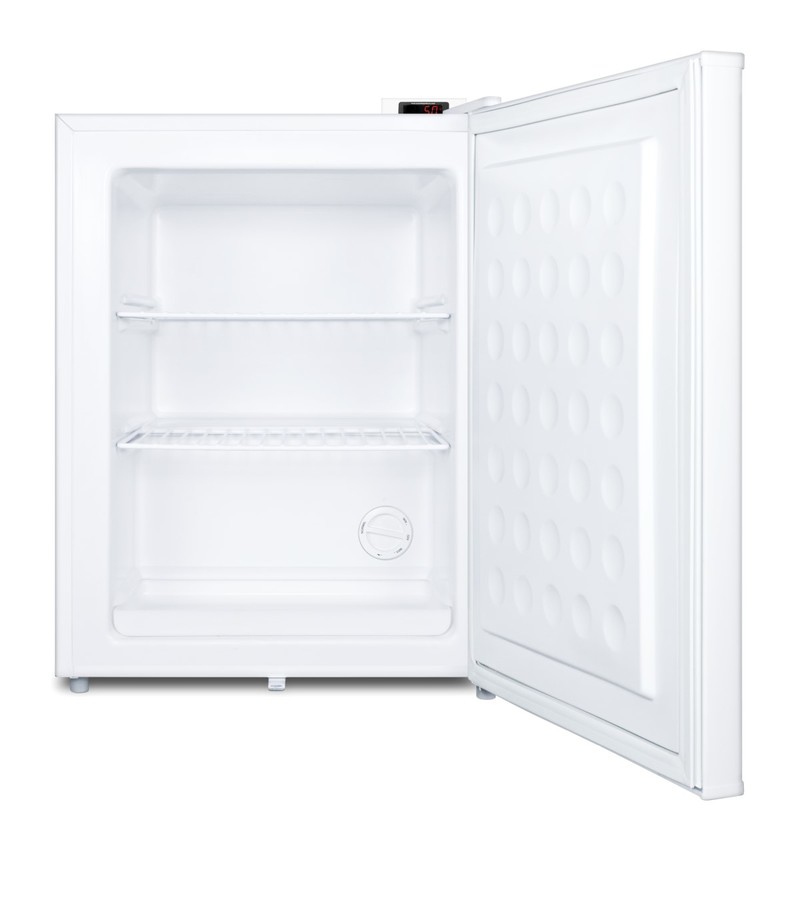

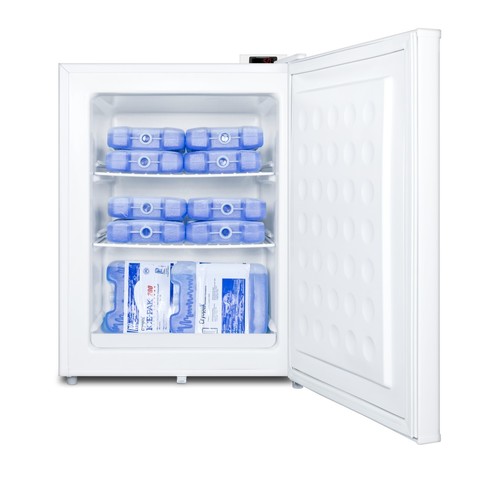

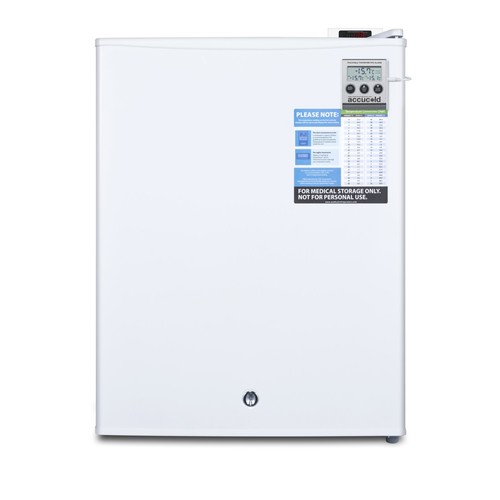

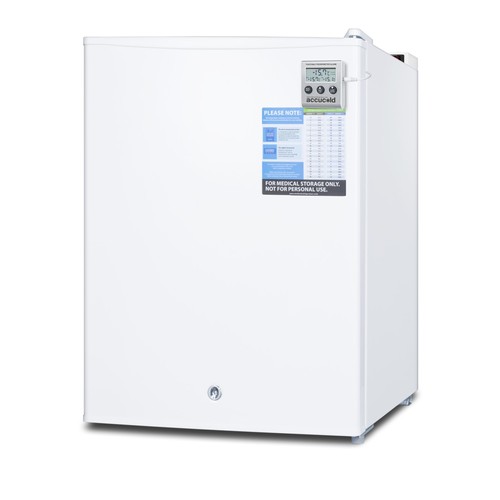

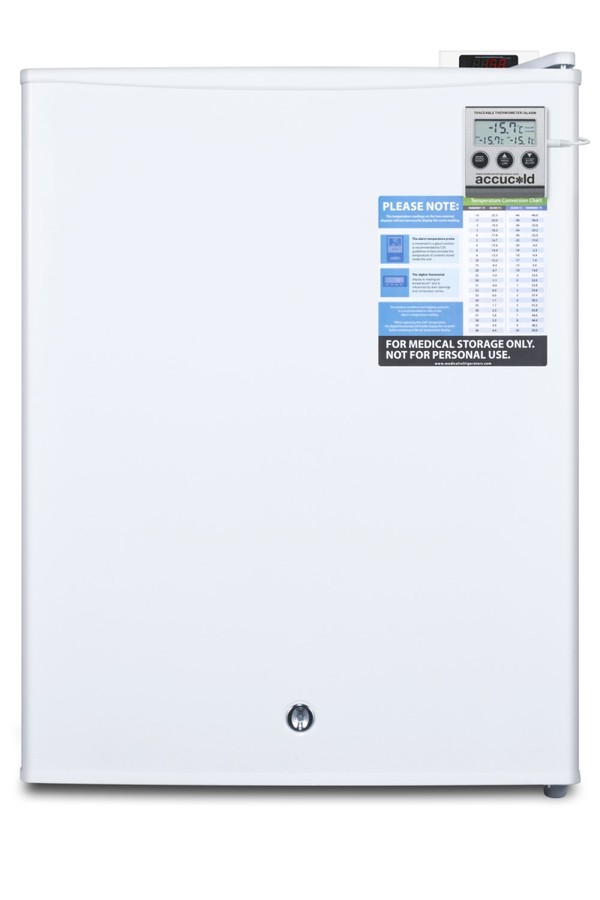

Compact All-Freezer

SKU: FS30LVAC Matching refrigerator

Specially designed to store vaccines with more temperature stability

24.63" H x 18.5" W x 17.75" D

(63cm H x 47cm W x 45cm D)

OVERVIEW

  • Medical grade design conforms with CDC guidelines for vaccine storage
  • Compact size is ideal for countertop use
  • Digital thermostat ensures more precision in temperature control
  • High/low temperature alarm includes NIST calibrated temperature readout of the interior
  • Self-closing door and hospital grade cord protect the unit in high traffic areas
  • Access port with contact allows users to install their own monitoring equipment

How to Buy

SPECIFICATIONS

Overview
Height of Cabinet 26.25" (67 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship Out of stock; ETA 9/23/2019
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

DESCRIPTION

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

The FS30LVAC is a compact all-freezer designed to operate at -20º C, the ideal temperature for long-term storage of select sensitive materials. The 1.8 cu.ft. manual defrost interior offers static cooling for stable results. Removable wire shelving allows easy storage options, with a seamless interior liner to simplify cleanup. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the FS30LVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. An access port with a contact is pre-installed, allowing users to install additional monitoring equipment. Customers can specify the access port location upon order.

The FS30LVAC can be paired with the FF28LWHVAC all-refrigerator for a matching set. These units can also be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

FEATURES

Compact dimensions
Sized for easy use on top of counters
Digital thermostat
Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit
High/low temperature alarm
Audible alarm sounds if the interior temperature rises or falls out of set range
NIST calibrated temperature display
Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree
Self-closing door
Door closes automatically when opened at angles less than 90º
Access port with contact
Pre-installed probe with contact allows users to install their own monitoring equipment; customers can specify placement of the access port upon order
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Static cooling system for improved temperature stability
Factory installed lock
Keyed lock for a secure interior
Removable shelves
Wire shelves can be removed to accommodate different sizes or for easy cleanup
Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Factory reversible door
Standard unit ships RHD but can be ordered LHD
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 26.25" (67 cm)
Height to Hinge Cap 24.63" (63 cm)
Width 18.5" (47 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.8 cu.ft. (51 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 50.0 lbs. (23 kg)
Shipping Weight 53.0 lbs. (24 kg)
Estimated Time to Ship Out of stock; ETA 9/23/2019
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 18.63" (47 cm)
Interior Width 13.38" (34 cm)
Interior Depth 13.0" (33 cm)
Shelf Type Wire
Shelf Qty 2
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
Level Legs 2
Compressor Step Height 8.0" (20 cm)
Compressor Step Width 13.38" (34 cm)
Compressor Step Depth 5.75" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security

DOWNLOADS

Download
BROCHURE
FS30LVAC.pdf
Download
MSDS INFORMATION
R600a_AO.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
