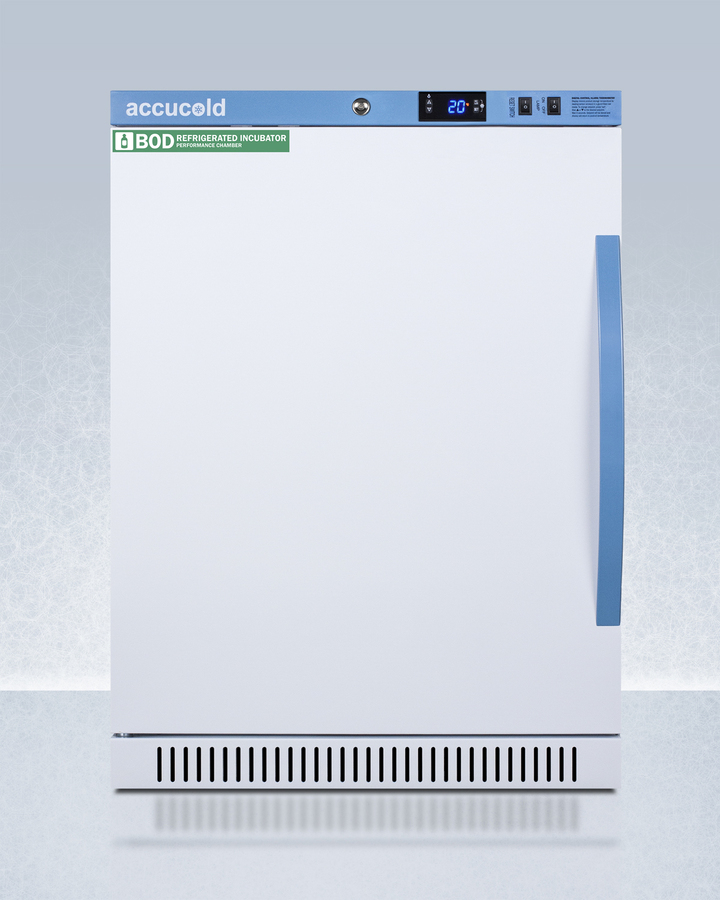

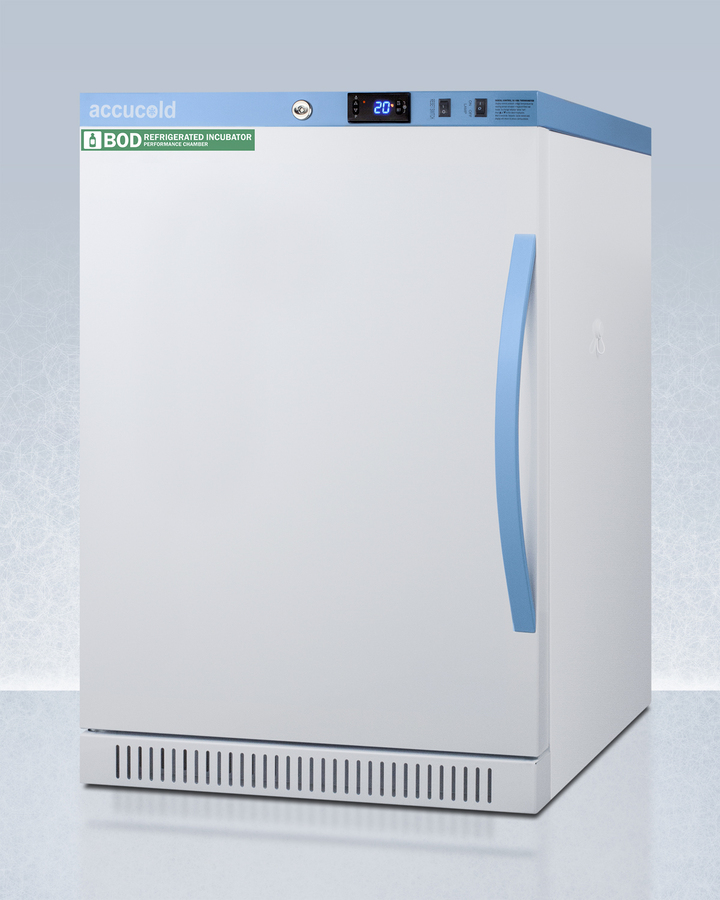

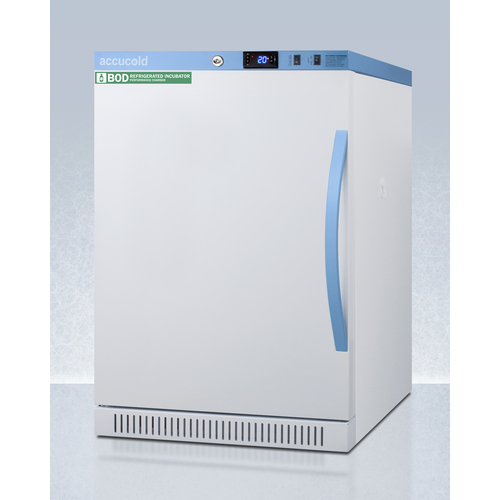

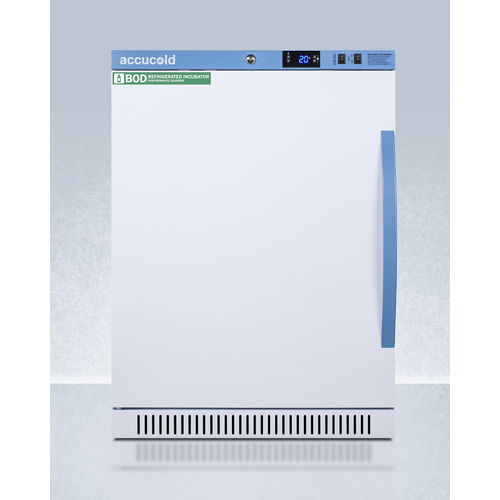

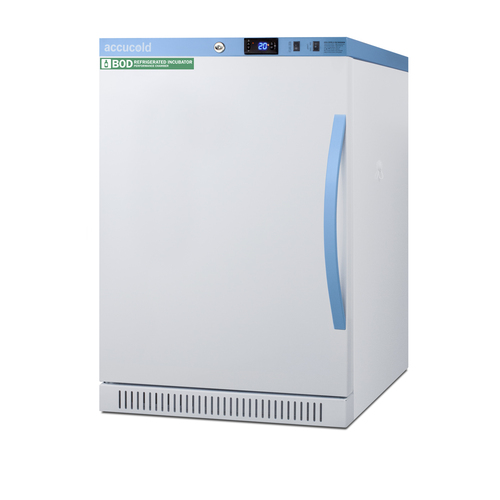

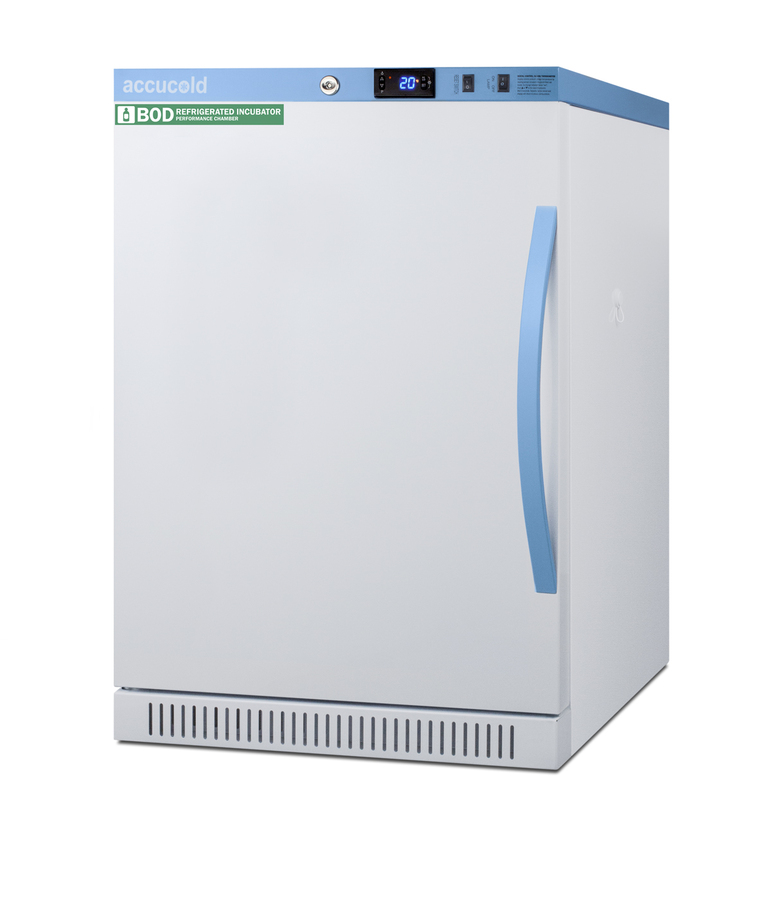

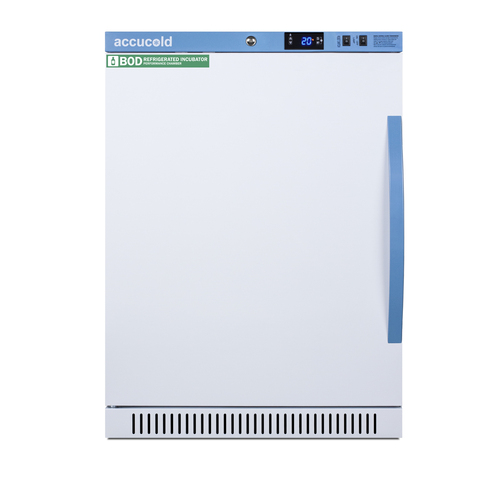

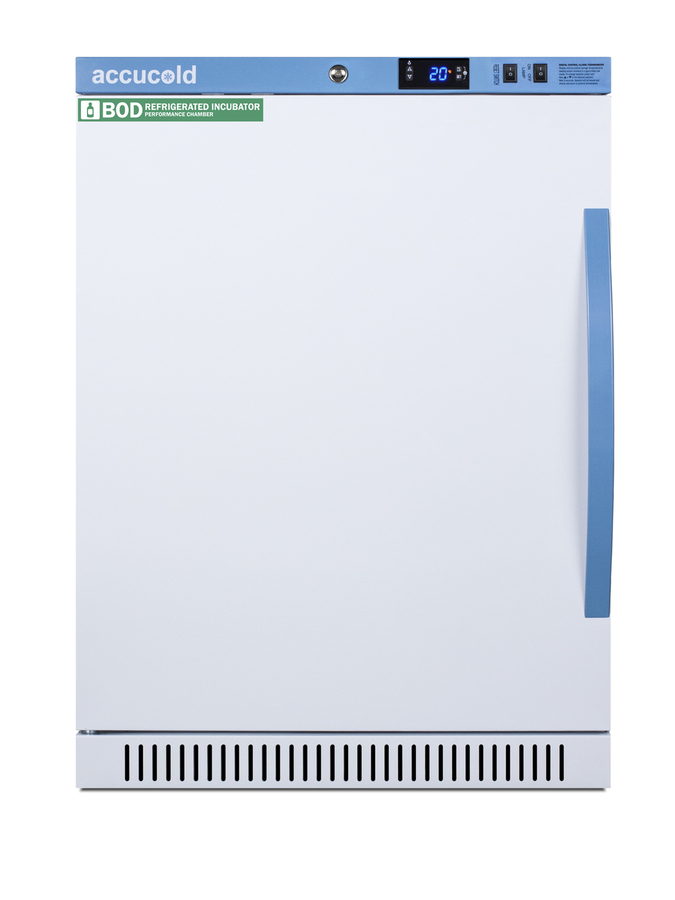

6 Cu.Ft. BOD Refrigerated/Heated Incubator
1 to 2 days
(83cm H x 59cm W x 62cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 33.0" (84 cm) |
| Height of Cabinet | 32.5" (83 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 25.0" (64 cm) |
| Depth | 24.38" (62 cm) |
| Depth with Handle | 26.13" (66 cm) |
| Depth with door at 90° | 46.5" (118 cm) |
| Capacity | 6.0 cu.ft. (170 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 0.75 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101155142 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.66oz. |
| Interior Light | Yes |
| Temperature Range | 4 to 60ºC (39.2 to 140ºF) |
|
Dimensions
|
|
| Interior Height | 24.5" (62 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
||
| Lock | ||
|
FEATURES
Designed to store water samples under reliable temperature conditions for optimum research results
Constructed and featured for the storage of water samples
Ideal temperature for bottle incubation
The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

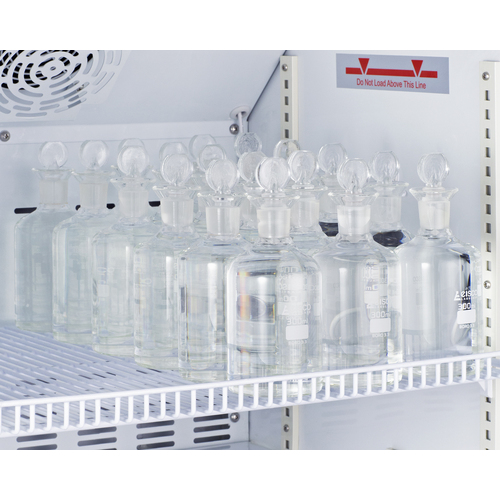

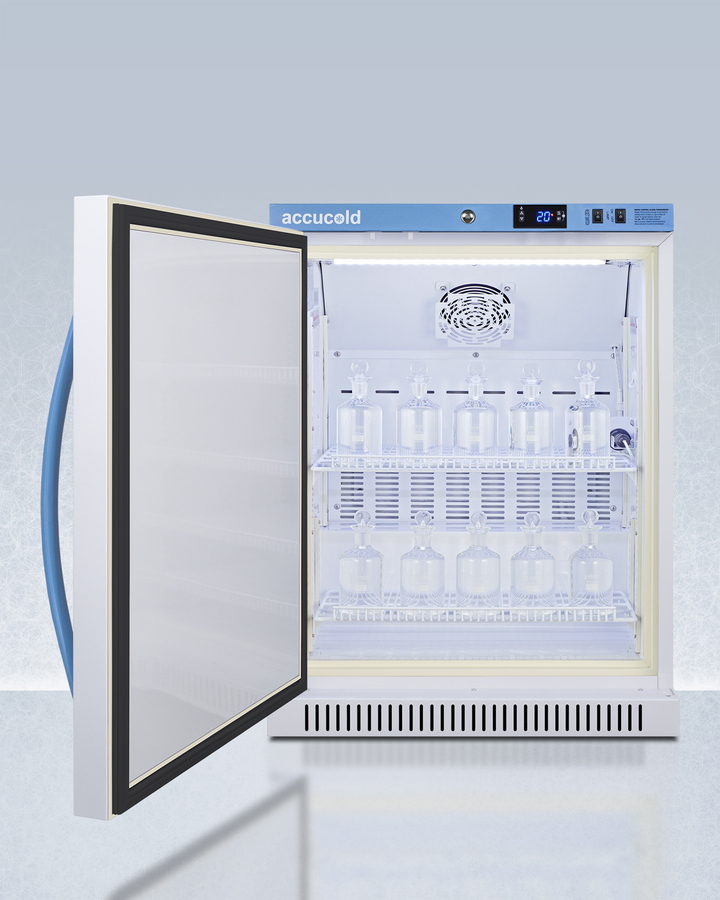

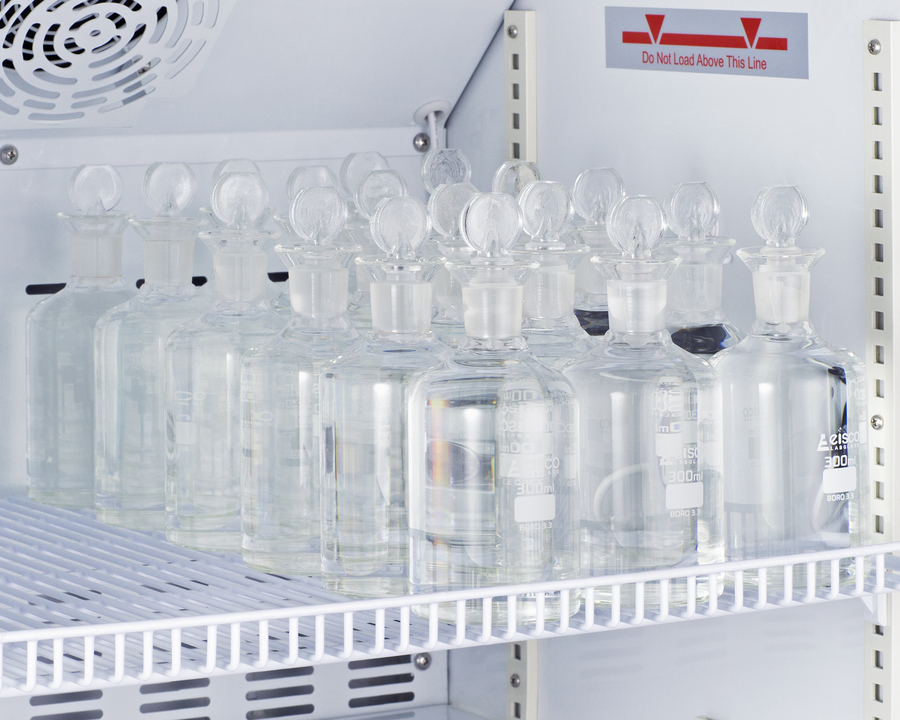

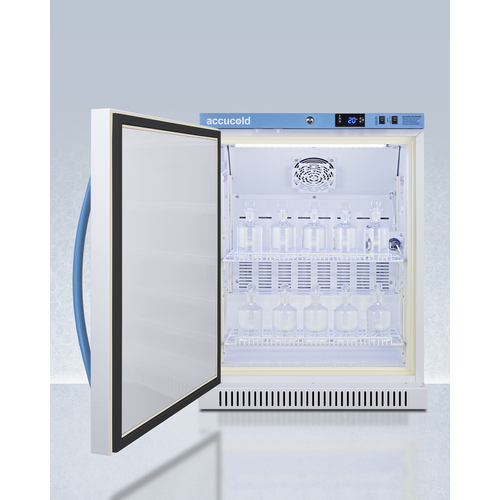

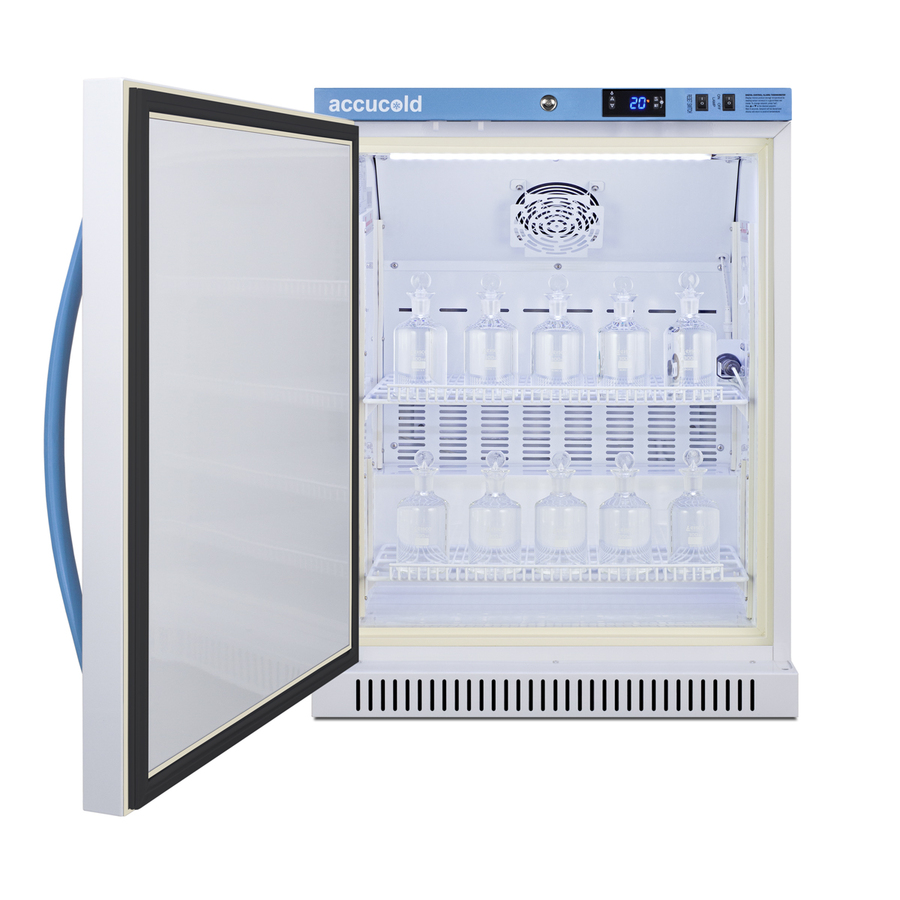

6 cu.ft. interior can hold up to 90 300ml incubator glass bottles (note: bottle capacity varies by exact bottle design and size)
Powder-coated handle with naturally occurring silver ions to help reduce the spread of germs
Intuitive controls let you adjust the interior temperature between +4 to +60ºC
Visual and audible alarms alert if the interior temperature rises or falls out of set range

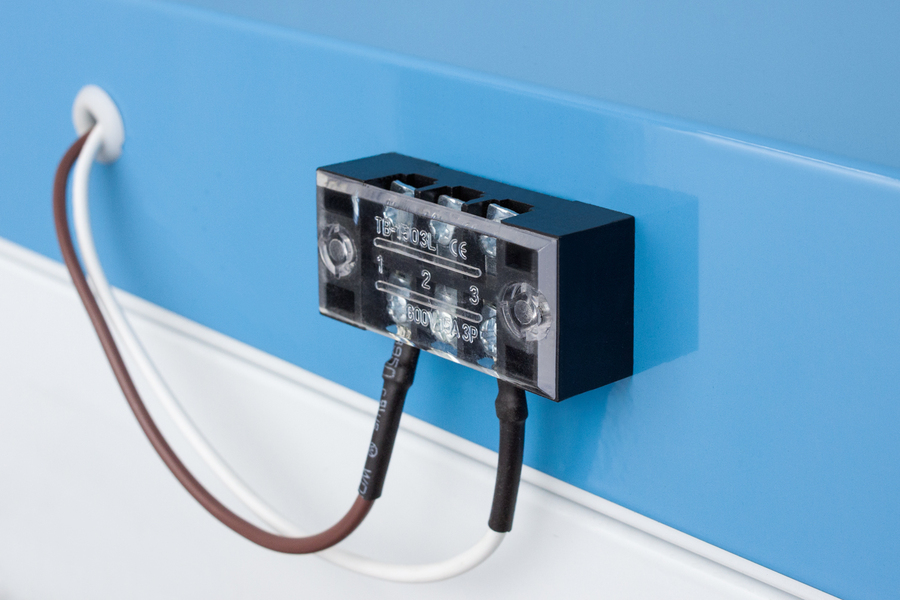

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

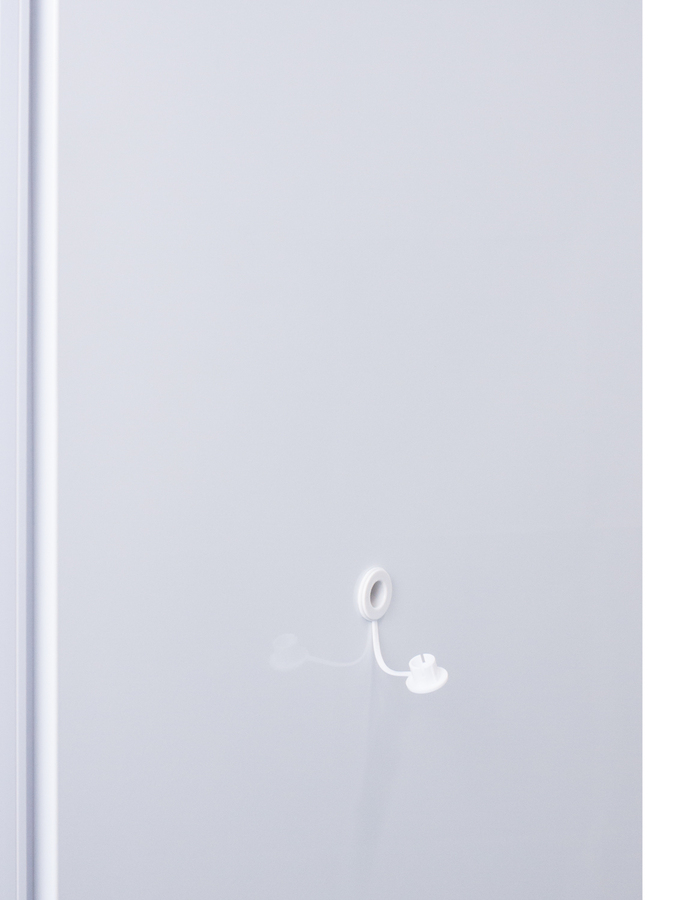

Includes a pre-installed 1/2" probe hole in the right interior wall to allow easier connection to user-provided monitoring equipment
Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
Battery-powered alarm sounds if the power connection is interrupted
Audible and visual alarm warns if the sensor is disrupted
Control panel requires password entry to adjust the parameters beyond the set point

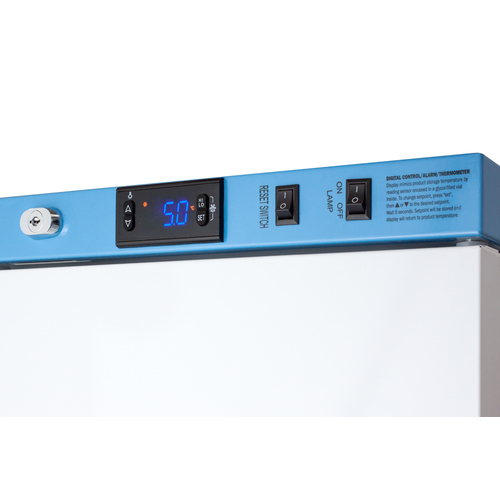

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

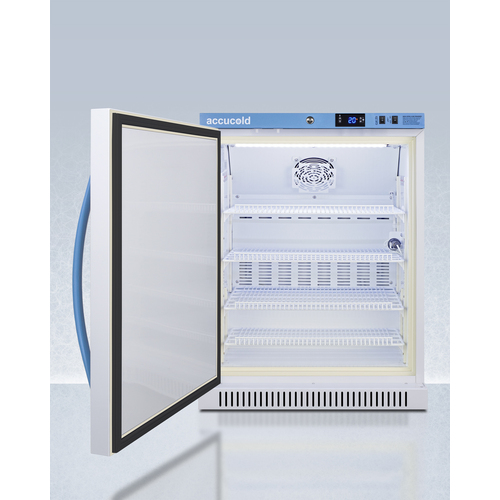

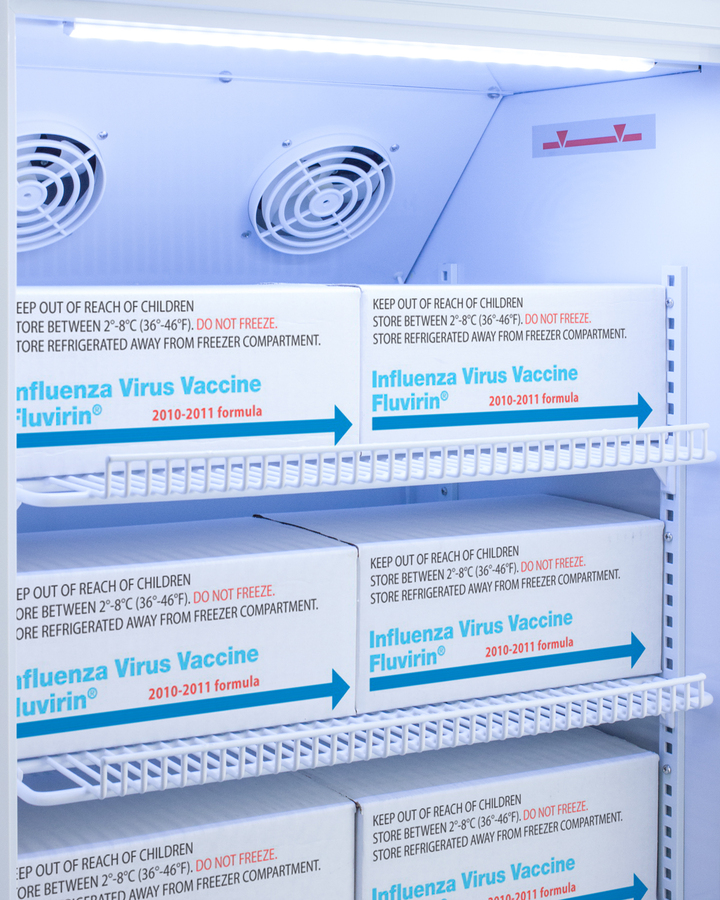

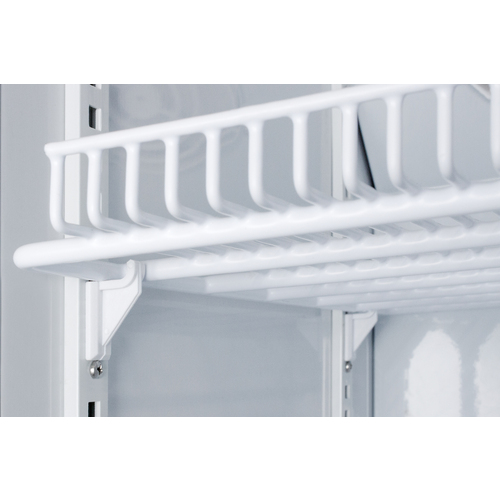

Shelves can be positioned with a front lip for small storage items or reversed to a flat position to better hold larger items, with multiple shelf positions spaced at 1/2" to accommodate virtually any size
Secure three-pronged cord for added unit safety
Walls are constructed from white powder coated metal for added strength and improved temperature retention
Energy efficient LED lighting with internal on/off switch
Added protection in busy settings
Quality door gaskets ensure a tight seal for energy savings and improved performance
2 years parts and labor/5 years compressor
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"
Larger sizes available, as well as custom upgrades. Contact the Accucold product team for more information
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

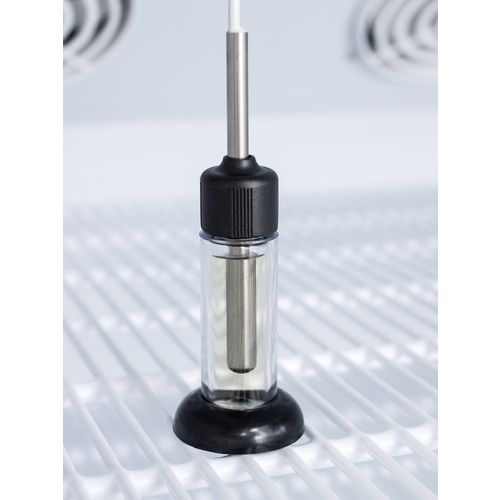

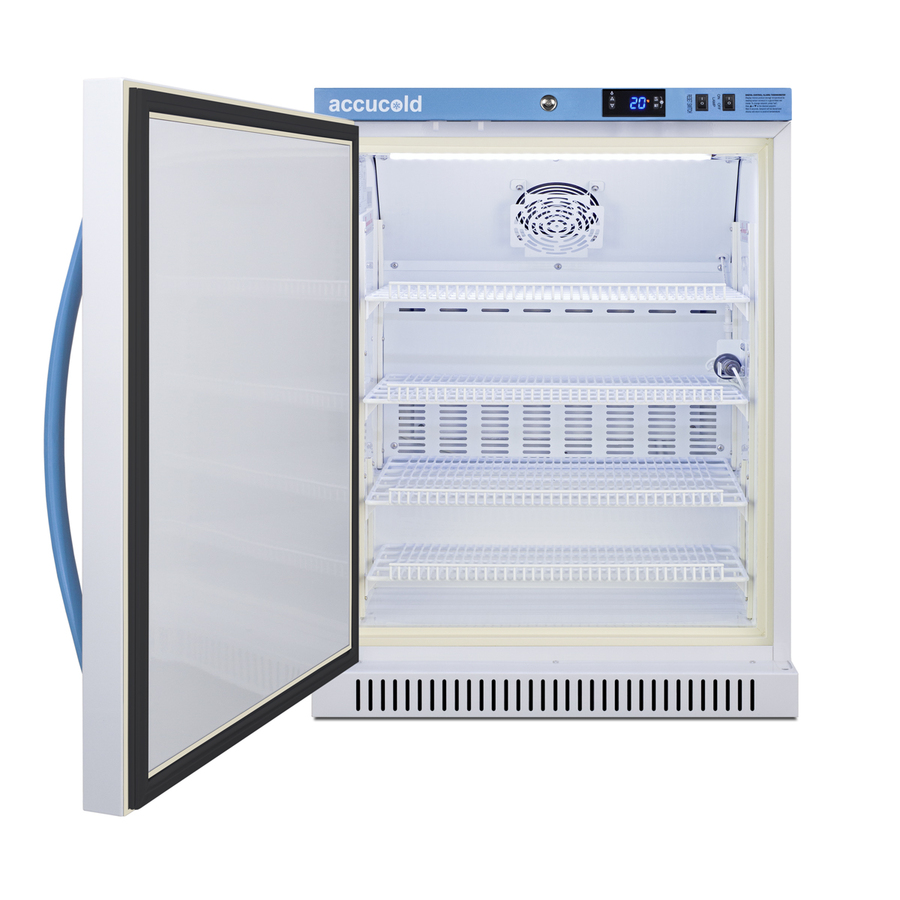

Accucold's Performance Series includes BOD refrigerated incubators designed to provide reliable cold storage in water treatment centers, environmental laboratories, and other research facilities. Model ABOD6LHD is a 6 cu.ft. refrigerated incubator. The adjustable control range allows you to manage the temperature between 4º and 60ºC (39.2 to 140ºF) and comes preset at 20ºC. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This unit is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. It comes with a hospital grade cord with a green dot plug for added safety in high traffic laboratory and research areas. Inside, the ABOD6LHD utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with one internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized bottle. This unit includes LED internal lighting with an on/off rocker switch so you can ensure the interior contents are not unnecessarily exposed to light. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. This refrigerated incubator comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The door ships with a left hand swing and self-closing function. This model includes a factory-installed lock and ships with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, the ABOD6LHD provides an energy efficient solution to water storage. Additional size are available, as well as upgrades including digital data loggers, keyless entry locks, and more. Browse the complete Accucold lineup at accucold.com.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
