S19LWHPLUS2

NIST calibrated thermometer included with current and high/low readout

20.13" H x 17.75" W x 17.63" D

(51cm H x 45cm W x 45cm D)

OVERVIEW

  • Designed for general purpose use in medical and scientific facilities
  • Traceable NIST calibrated thermometer provides external readout of current and high/low temperature
  • Includes hospital grade cord with a 'green dot' plug
  • Factory installed lock provides security you can count on
  • Compact size is ideal for countertop use

SPECIFICATIONS

Overview
Height of Cabinet 19.75" (50 cm)
Height to Hinge Cap 20.13" (51 cm)
Width 17.75" (45 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 33.88" (86 cm)
Capacity 1.7 cu.ft. (48 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.78
Voltage/Frequency 115 V AC/60 Hz
Weight 31.0 lbs. (14 kg)
Shipping Weight 33.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Refrigerator - Interior Height 16.13" (41 cm)
Refrigerator - Interior Width 14.88" (38 cm)
Refrigerator - Interior Depth 14.25" (36 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 1
Refrigerator - Full Door Shelves 1
Refrigerator - Half Door Shelves 1
Freezer - Interior Height 4.38" (11 cm)
Freezer - Interior Width 8.75" (22 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Compressor Step Height 7.38" (19 cm)
Compressor Step Width 14.88" (38 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
HUM - Humidity sensor
Humidity sensor with min/max readout
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com

DESCRIPTION

Accucold's PLUS2 Series refrigerators come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard refrigeration unit provides.

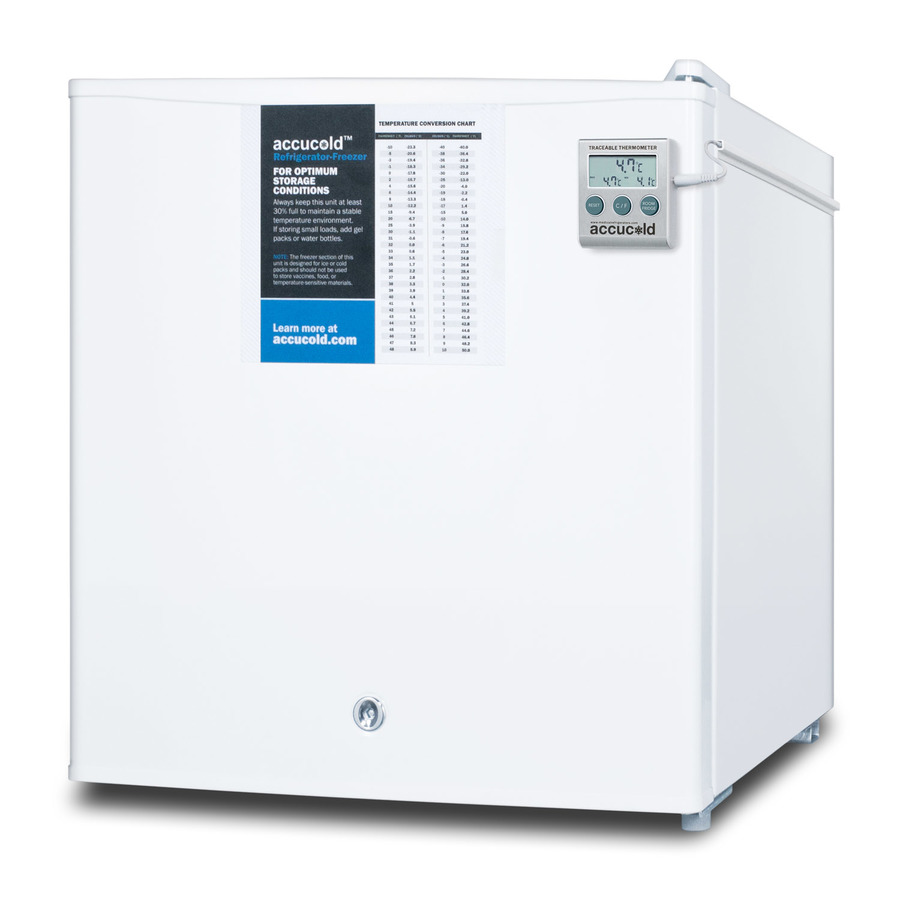

The S19LWHPLUS2 is a compact refrigerator-freezer sized for easy placement on top of counters. The door includes a factory installed lock for keyed security. The thermometer is NIST calibrated in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored refrigerator contents. A hospital grade 'green dot' cord offers added safety in high traffic areas.

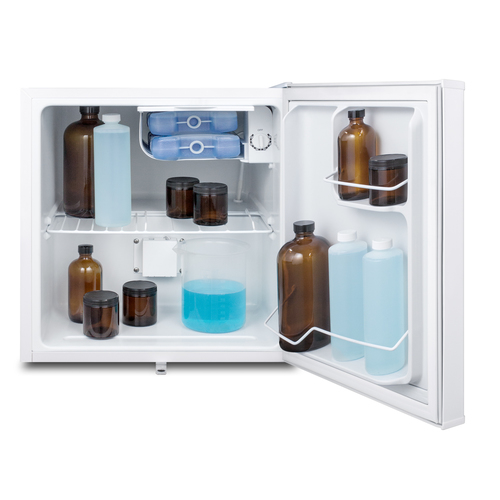

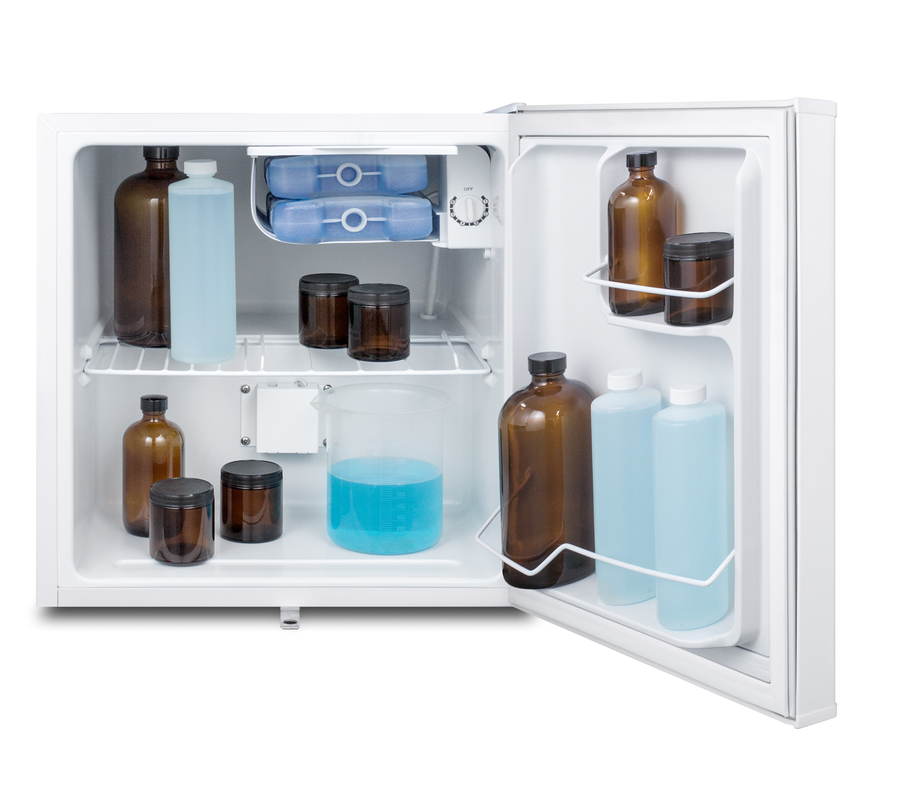

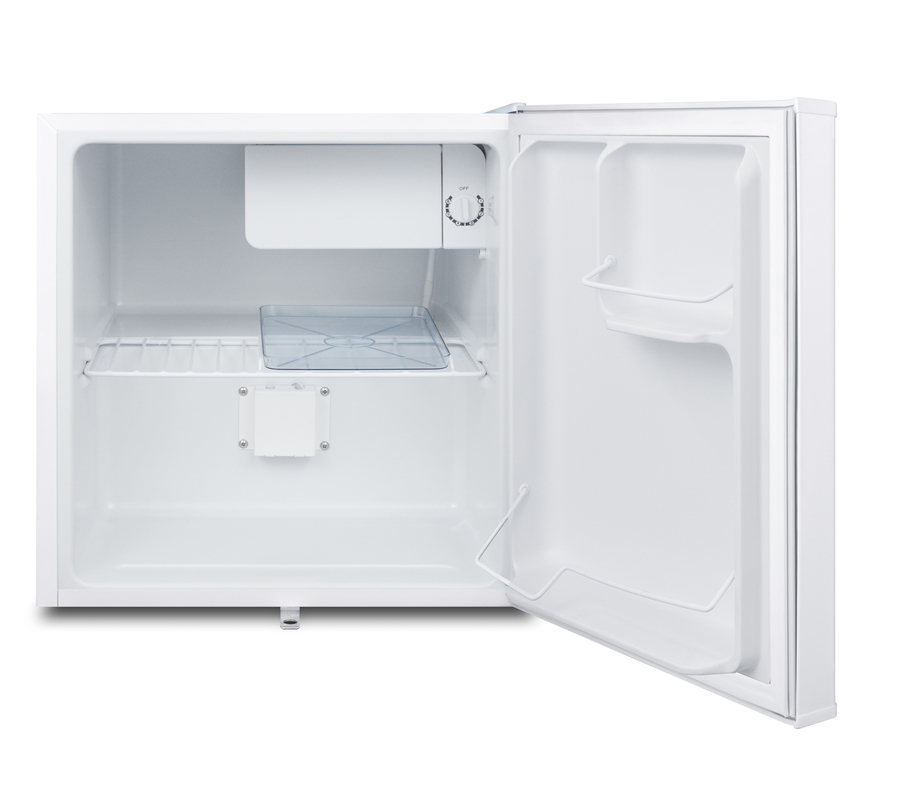

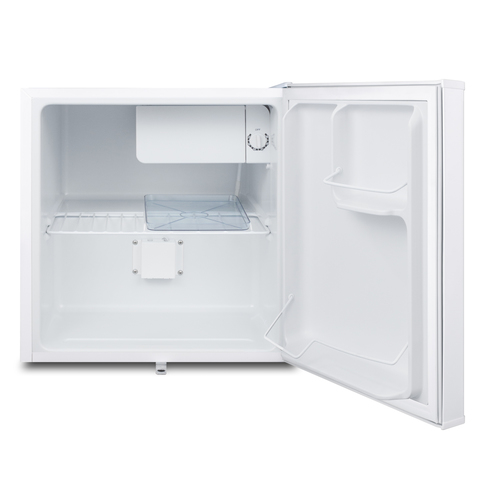

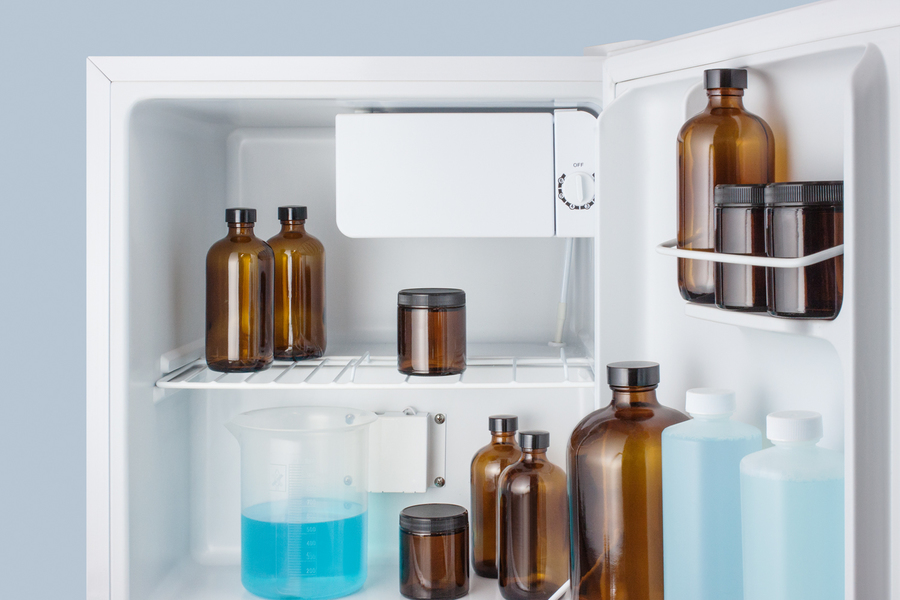

Inside, the manual defrost S19LWHPLUS2 features 1.7 cu.ft. of cold storage. A compact freezer compartment is perfectly sized for ice packs or other small items. A removable wire shelf and two door racks offer convenient options for refrigerated storage. The adjustable thermostat is located on the front to the freezer compartment, making it easy to manage the temperature

In addition to the standard features of the PLUS2 series, the S19LWHPLU2S can be further customized for specific applications with a temperature alarm, data logger, self-closing door, and more. This model is designed for general purpose use and is not recommended for storing vaccines or sensitive medicine.

FEATURES

Compact dimensions
Sized for easy use on top of counters

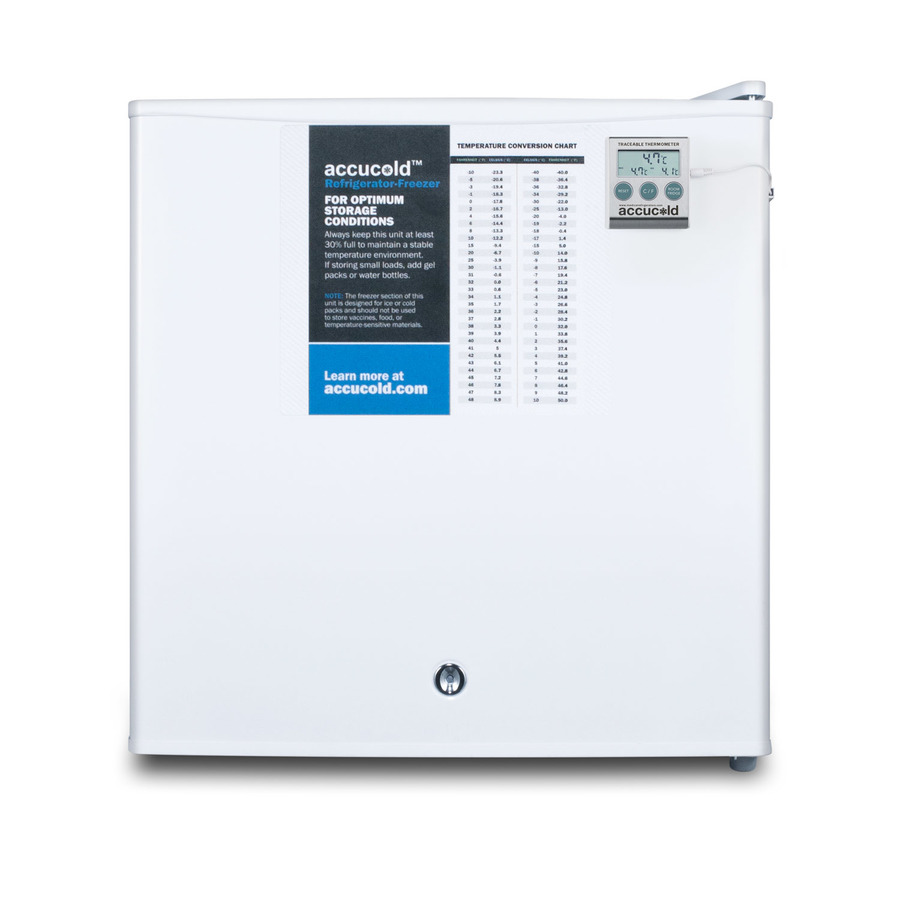

NIST calibrated temperature display
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
Buffered temperature probe

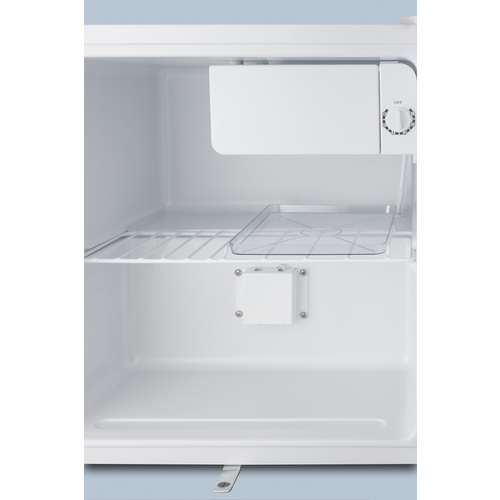

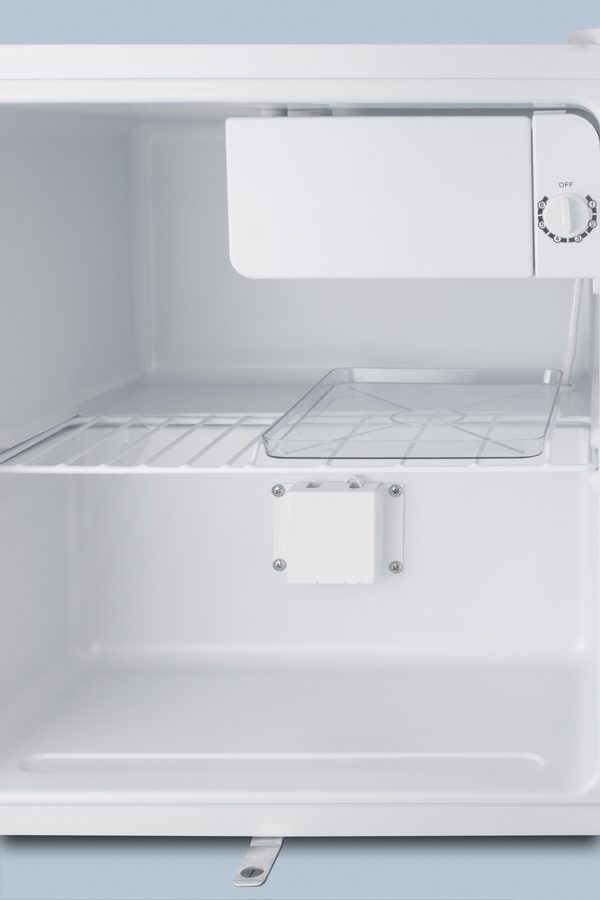

Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety

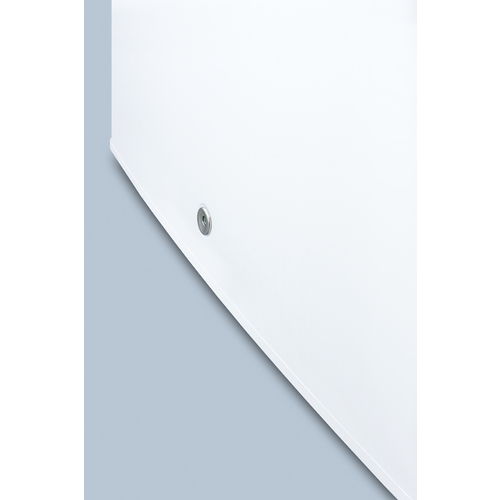

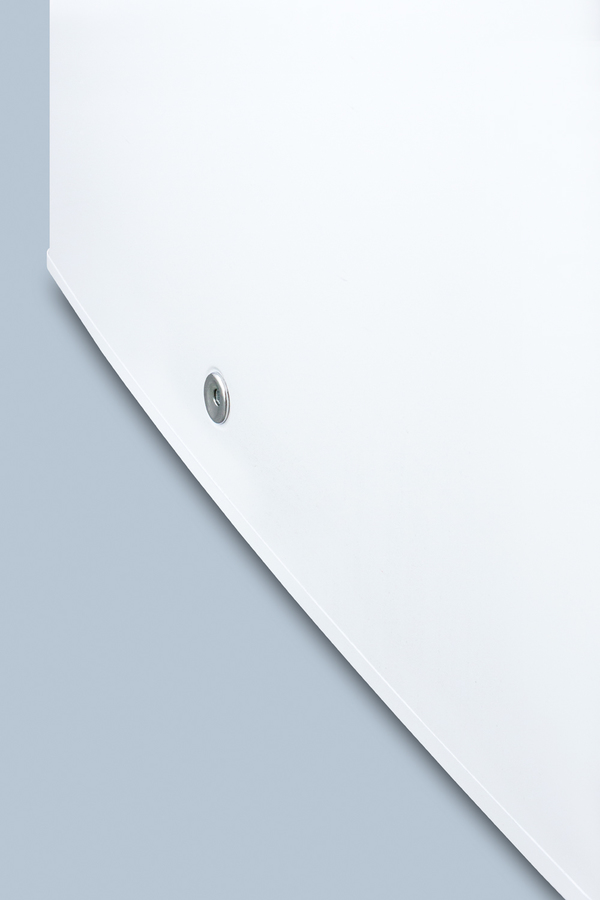

Factory installed lock
Keyed lock ensures a secure interior
Manual defrost
Static cooling system for improved temperature stability
Door storage
Store items right on the door for easy access
Adjustable thermostat
Dial thermostat conveniently located on the door to the freezer compartment for easy temperature management
Removable shelf
Wire shelf included for storage convenience
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 19.75" (50 cm)
Height to Hinge Cap 20.13" (51 cm)
Width 17.75" (45 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 33.88" (86 cm)
Capacity 1.7 cu.ft. (48 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.78
Voltage/Frequency 115 V AC/60 Hz
Weight 31.0 lbs. (14 kg)
Shipping Weight 33.0 lbs. (15 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator-Freezer
Door Swing RHD
Reversible Factory Reversible
Adjustable Shelves Yes
Refrigerator - Interior Height 16.13" (41 cm)
Refrigerator - Interior Width 14.88" (38 cm)
Refrigerator - Interior Depth 14.25" (36 cm)
Refrigerator - Shelf Type Wire
Refrigerator - Shelf Qty 1
Refrigerator - Full Door Shelves 1
Refrigerator - Half Door Shelves 1
Freezer - Interior Height 4.38" (11 cm)
Freezer - Interior Width 8.75" (22 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Compressor Step Height 7.38" (19 cm)
Compressor Step Width 14.88" (38 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL1 - Factory installed data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
FA Front - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
FA Rear - Fan assist
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
HUM - Humidity sensor
Humidity sensor with min/max readout
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
ODA - Open door alarm
Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security

DOWNLOADS

California residents:
click here for information on Proposition 65

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or accucoldinfo@summitappliance.com
